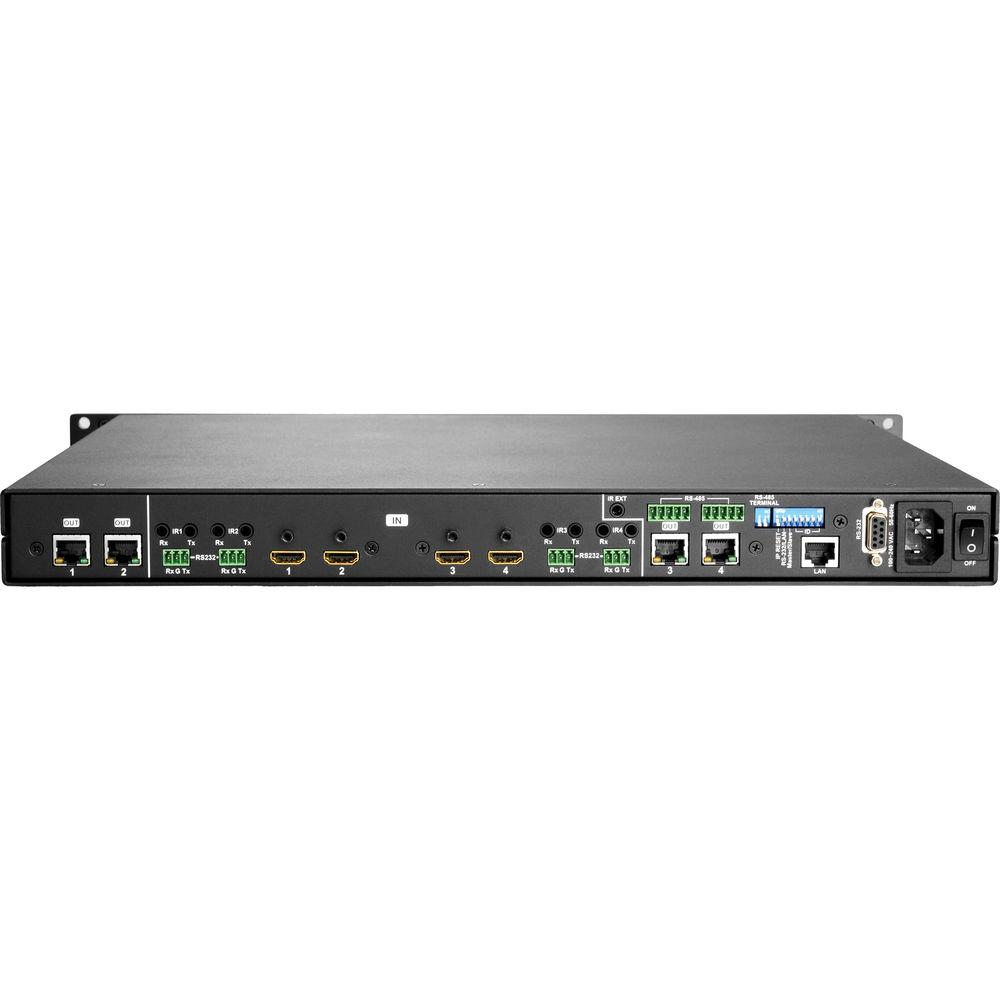

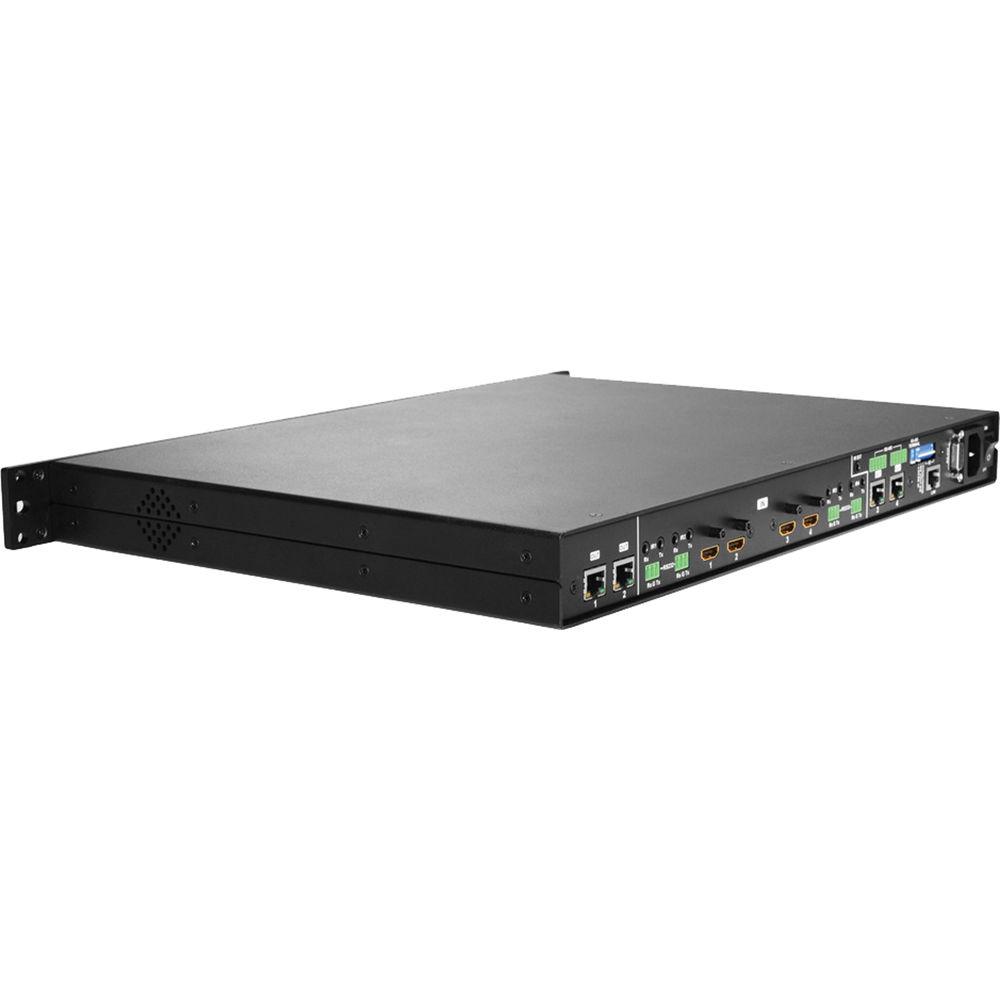

User Manual for Zigen 4x4 Fixed HDMI HDbaseT Matrix Routing Switcher Click to enlarge the picture
Contents of the user manual for the Zigen 4x4 Fixed HDMI HDbaseT Matrix
- Product category: Routers & Switchers Zigen
- Brand: Zigen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zigen Routers & Switchers
 |
User manual for the Zigen 4x4 Fixed HDMI HDbaseT Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zigen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zigen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zigen product will considerably shorten its lifespan!
|

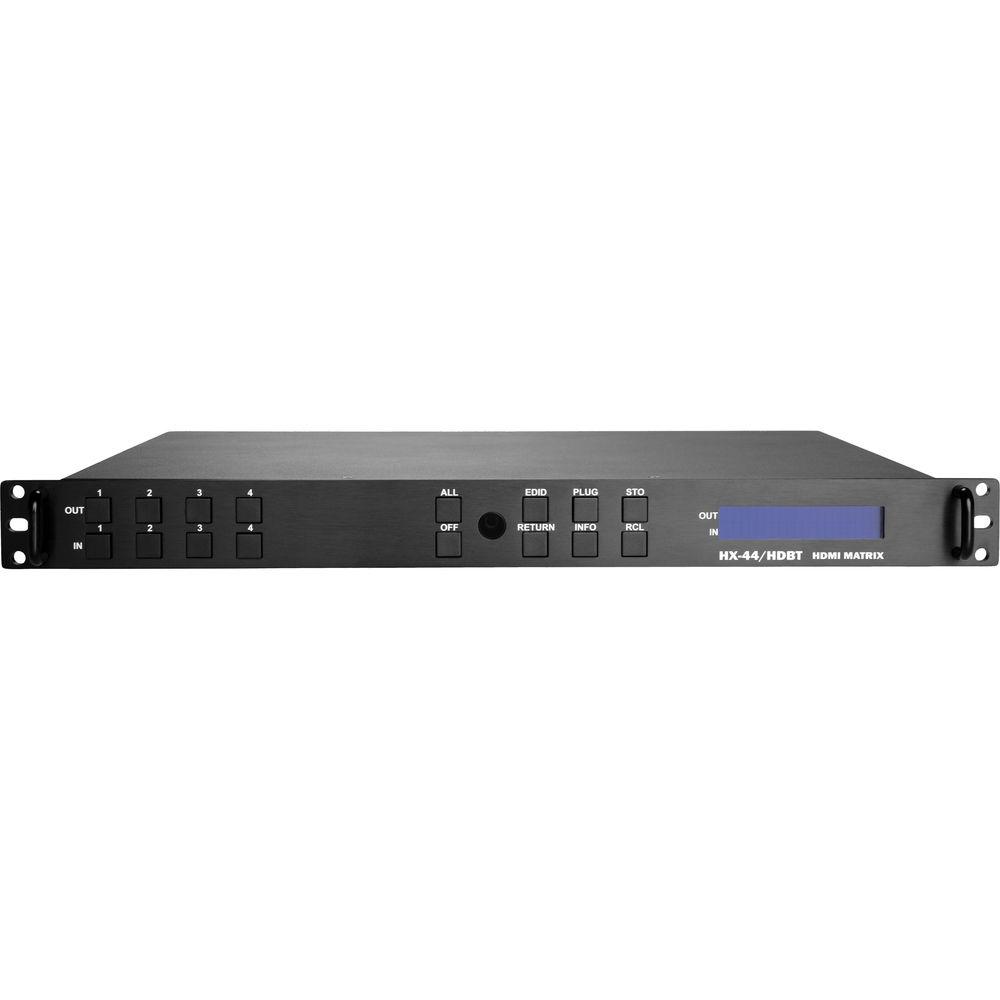

Product description The 4x4 Fixed HDMI HDbaseT Matrix Routing Switcher from Zigen is designed to route and extend high resolution digital video signals. This Matrix switcher features four HDMI high resolution digital video inputs and four RJ45 outputs over CAT5e. It is HDMI 1.4b compatible and supports resolutions up to 4k x 2k at 30 Hz and HDTV 1080p/60 Hz. The HX-44 ensures simultaneous distribution of any input source signal to one or more HDCP compliant displays (all-to-one/one-to-all combination). It also features a memory control option which can save up to four frequently used I/O configurations as presets. The switcher can be operated via the front panel, RS-232, IR, or Ethernet. - Mixed use of HDMI cables for input and Cat-5e cables for output connections
- Output supports HDBaseT as a long-distance transmission via a Cat-5e cable up to 328' long
- EDID management (copy from each output port)
- Centralized control upon 32 series connections via RS-485
- Memory control up to four presets
- Supports original 3D pass through
- Supports high definition audio (Dolby TrueHD, Dolby Digital Plus, and DTS-HD MA)
- Fast response time for channel switch
- IR pass-through supports all input and output ports, all kinds of IR frequency band, and duplex transmission between input and output ports
- Supports RS-232 control, RS-485 serial control, Ethernet control, and IR control
- Internal universal power supply
In the Box Zigen 4x4 Fixed HDMI HDbaseT Matrix Routing Switcher RS-232 Communication Connected Cable Power Cord IR Receiver Cable LAN Line 2 x Captive Screw Socket Matrix Switcher Remote Controller 2 x AAA Battery AV Matrix Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zigen 4x4 Fixed HDMI HDbaseT Matrix Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

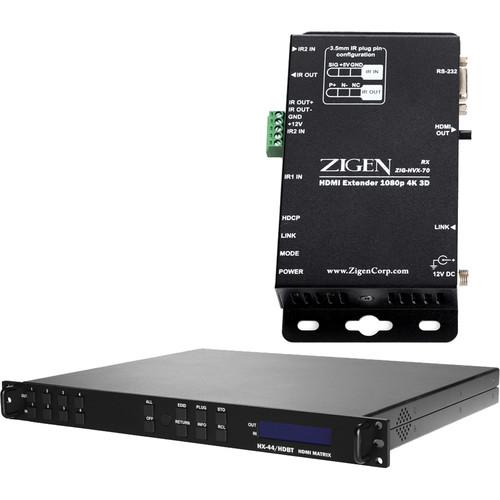

Technical parametersZigen ZIG-HX44-HDBT70M Specs | Compatibility | HVX-100-R Extender | | Connectors | 4 x HDMI Input, Type A
4 x RJ-45 Output
1 x RS-232 9-pin female, D Type
1 x RJ-45 LAN
2 x RS-485 | | Switches | 1 x 2-pin DIP switcher
1 x 8-pin DIP switcher | | Maximum Resolution | 4k x 2k @ 30 Hz (8-bit) | | TMDS | 300 MHz highest frequency | | Power | 100 - 240 VAC, 50 / 60 Hz, internal | | Supported HDMI Cable Length | 32.8' (10.0 m) minimum | | Cat-5e Cable Distance | 328' (100 m) maximum | | Baud Rate | 9600 bps; 8 data bits, 1 stop bit, no parity | | Ethernet Protocol | HTTP, DHCP, TCP/IP, ICMP (ping) | | Mounting | 1 RU rackmountable | | Finish | Black aluminum | | Dimensions (L x W x H) | 13.1 x 19.0 x 1.7" (332.0 x 482.0 x 43.0 mm) | | Weight | 7.83 lb (3.55 kg) |
