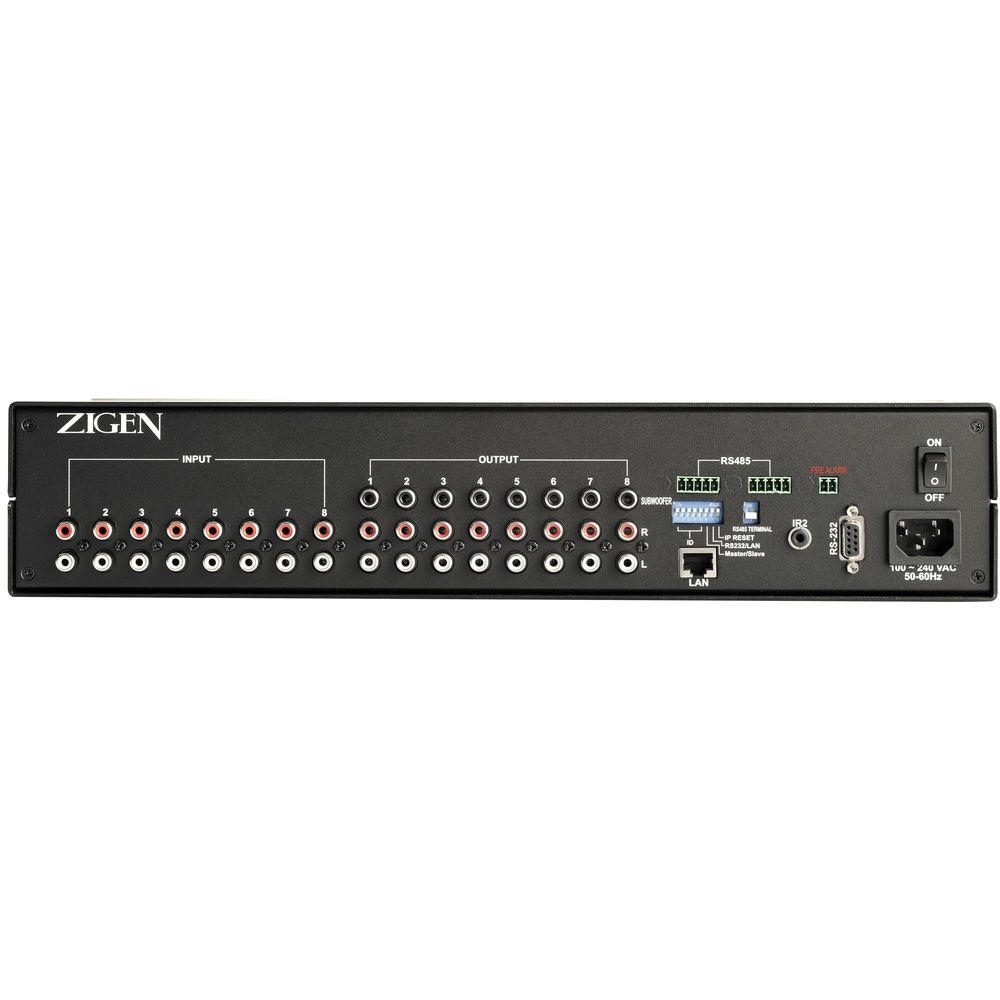

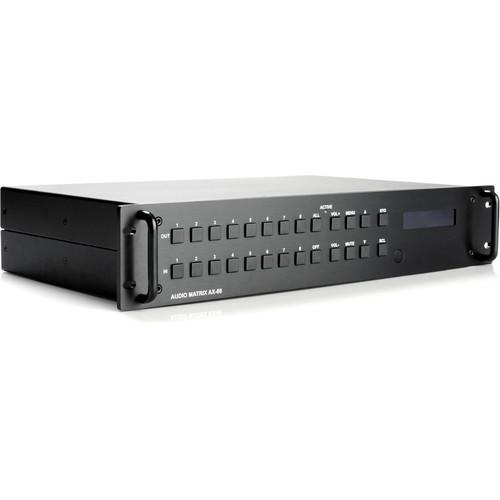

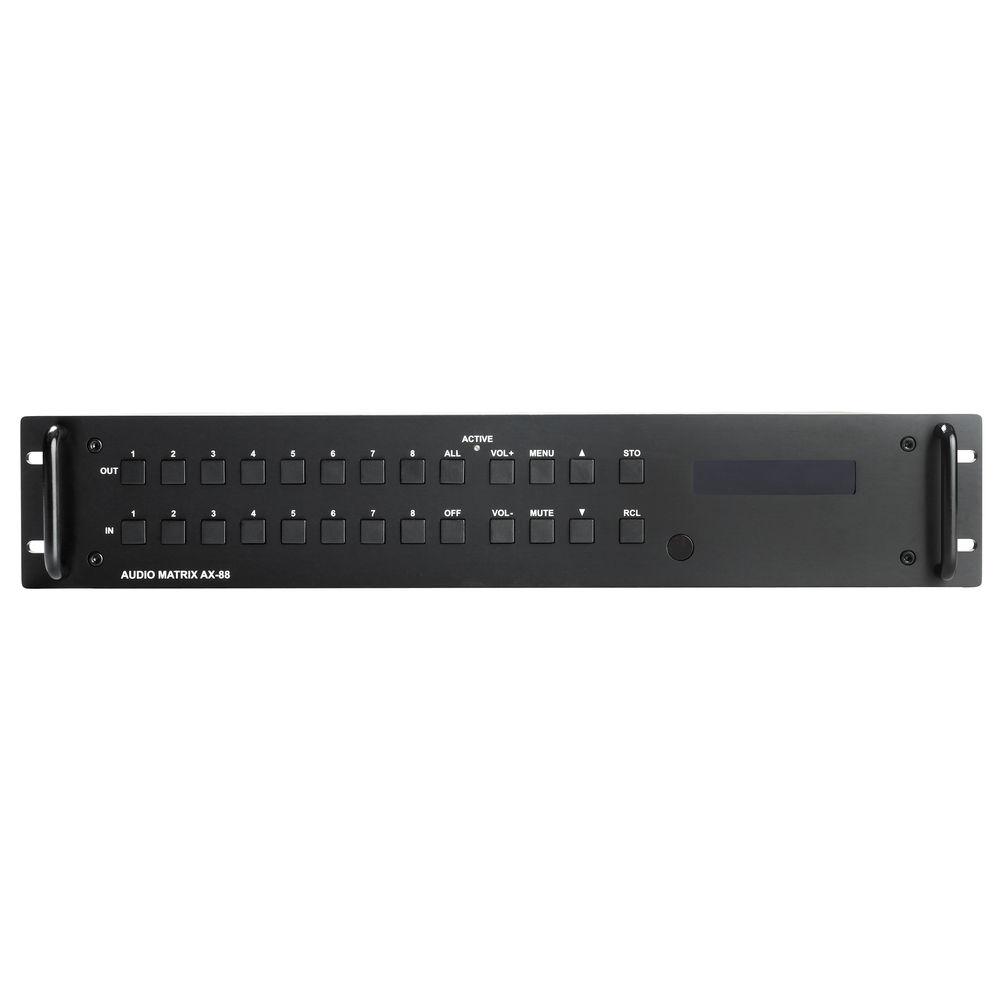

User Manual for Zigen AX-88 8 x 8 Audio Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Zigen AX-88 8 x 8 Audio
- Product category: Routers & Switchers Zigen
- Brand: Zigen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zigen Routers & Switchers
 |
User manual for the Zigen AX-88 8 x 8 Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zigen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zigen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zigen product will considerably shorten its lifespan!
|
Product description The black AX-88 8 x 8 Audio Matrix Switcher from Zigen is designed for applications that require routing of high-quality audio signals along with lip-sync and controls for audio output volume, treble, bass, and muting. It supports balanced or unbalanced mono or stereo audio signals, and ensures simultaneous distribution of any input source signal to one or more receivers or amplifiers in one-to-one or one-to-many combinations. This audio matrix switcher features line level subwoofer outputs for each zone, offering the ability to control sub levels independently. In addition, it allows saving 8 frequently used I/O configurations as presets. The switcher can be operated via the front panel or remotely using the included remote control or RS-232, RS-485, IR, and Ethernet controls. One of the key features of the AX-88 Audio Matrix Switcher is the ability to integrate with fire alarm and life safety systems. When the fire alarm is triggered, it mutes all the channels by switching them to standby mode until the system is reset. This feature is useful for hotels and banquet halls. - Supports up to 8 input / output ports
- Volume / subwoofer / bass / treble adjustment
- 1000 ms maximum allowable audio delay
- Mute function when the fire alarm is active
- Centralized control with RS-232 connectivity
- RS-485, Ethernet, and IR controls
- Save 8 frequently used I/O configurations as presets
- Internal universal power supply
- Suitable for medical, military, and government sectors and for use in restaurants, bars, hotels, and commercial & residential facilities
In the Box Zigen AX-88 8 x 8 Audio Matrix Switcher (Black) RS-232 Communication Cable Power Cord IR Box LAN Cable Female 1 x 5 Pole Captive Screw Socket Female 1 x 2 Pole Captive Screw Socket Remote Control 2 x AAA Battery Audio Matrix Software CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zigen AX-88 8 x 8 Audio Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZigen ZIG-AX-88 Specs | Frequency Response | 20 Hz to 20 kHz | | Volume | 0 to -78.75 dB | | Subwoofer | 0 to -37.5 dB (150 Hz low-pass filter ) | | Tone Control (Treble / Bass) | -14 to 14dB | | Lip-Sync (Digital Audio Delay) | 0 ms to 1 sec in 5 ms increments | | Impedance | Input: 10 kΩ, unbalanced | | Output Volume | Range: 0 to -64 (0 to -78.75 dB, mute) in -1.25 dB increments from steps 0 to -64 mute; default is 0 dB | | Input Ports | RCA female ports (L / R) | | Output Ports | RCA female ports (L / R subwoofer) | | Signal Type | Stereo, unbalanced connection | | Impedance | Input: 10 kΩ | | Baud Rate | 9600 bps; 8 data bits, 1 stop bit, no parity | | Ethernet Protocol | HTTP, DHCP, TCP/IP, ICMP (ping) | | Program | Controls: Web server, AVM application | | Serial Port | 1 x 9-pin D type female RS-232 connector
RS-485, 1 x 5 pole captive screw | | Control | Sequence: Matrix | | Remote Control | Remote controller, IR receiver | | Web Server | LAN, RJ-45 | | Fire Alarm | 1 x 2 pole captive screw | | Mounting | Rack mountable | | Housing | Aluminum | | Power | 100 to 240 VAC, 50 / 60 Hz, automatic switch | | Dimensions (L x W x H) | 11.8 x 19.0 x 3.5" (30.0 x 48.2 x 9.0 cm) (2U high, full rack wide) | | Weight | 6.9 lb (3.1 kg) |
