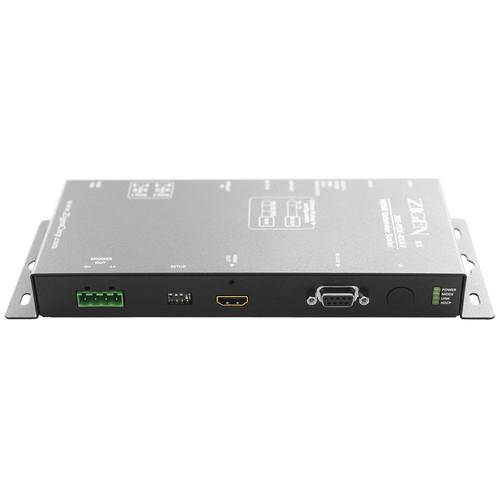

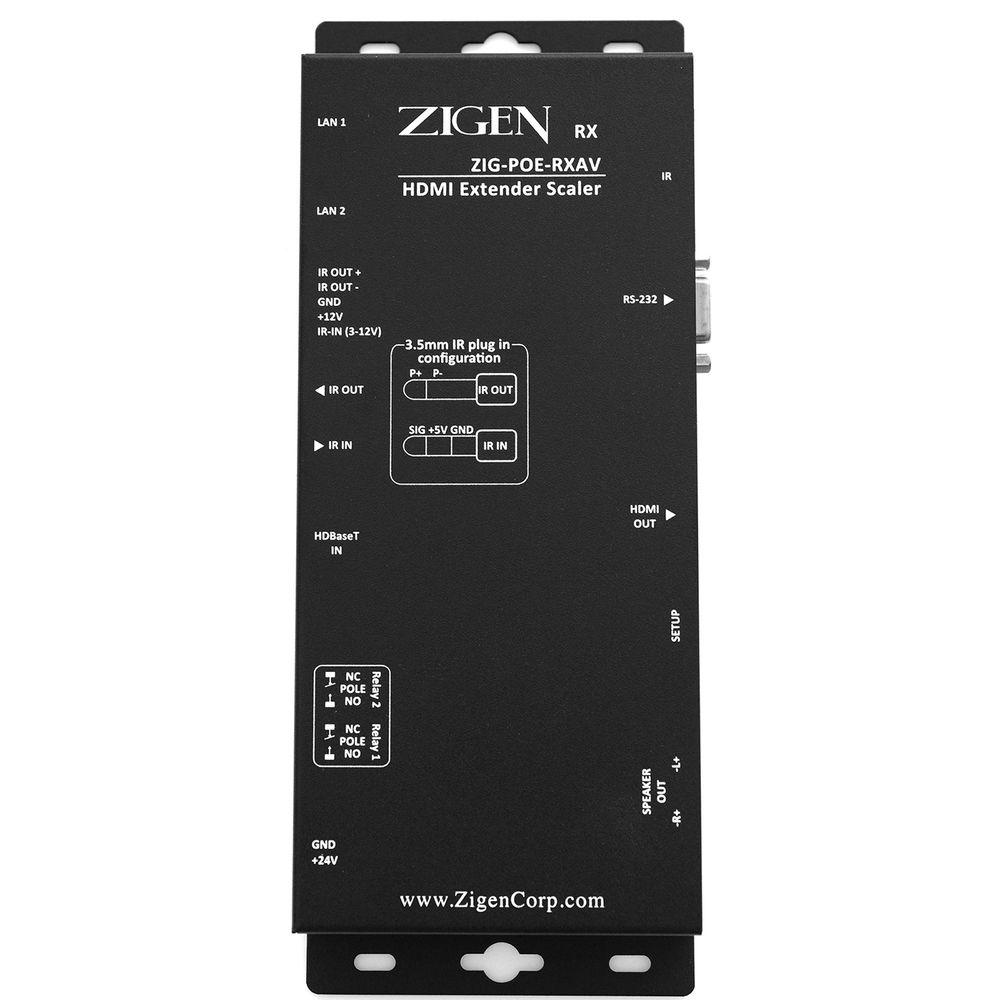

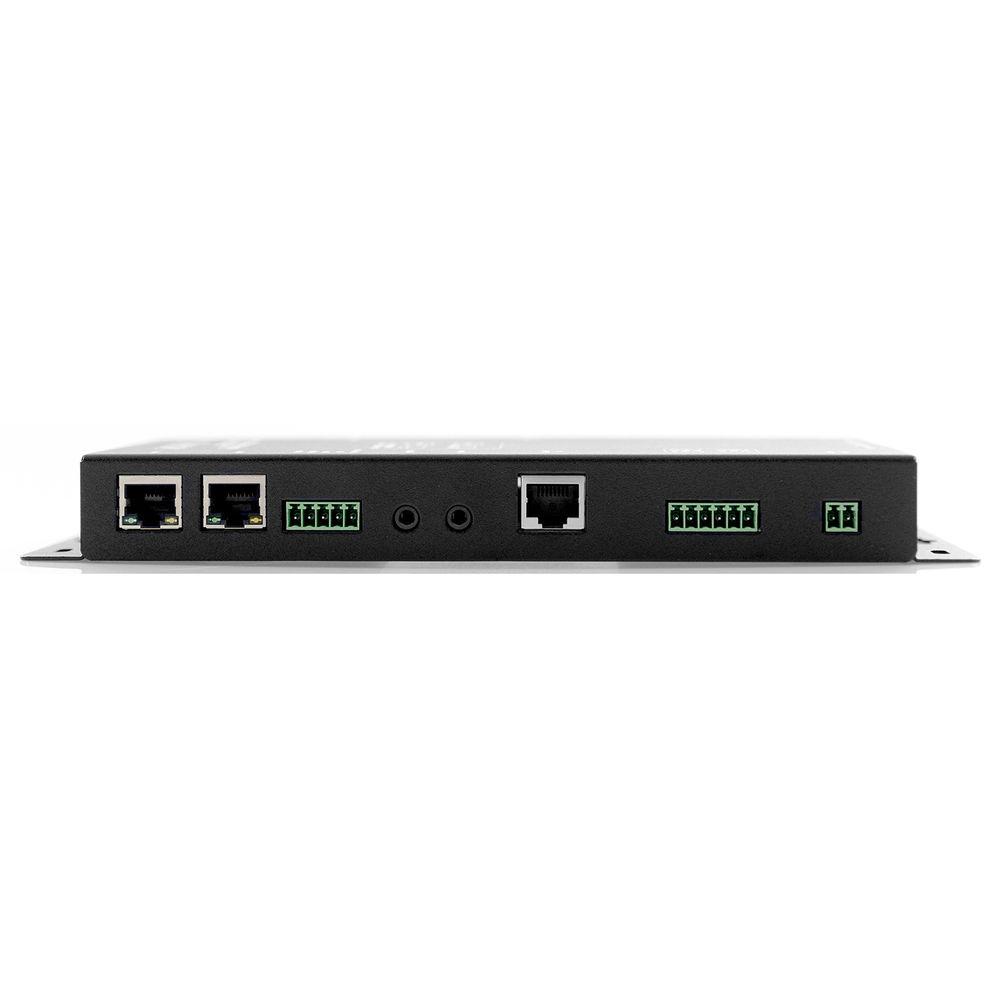

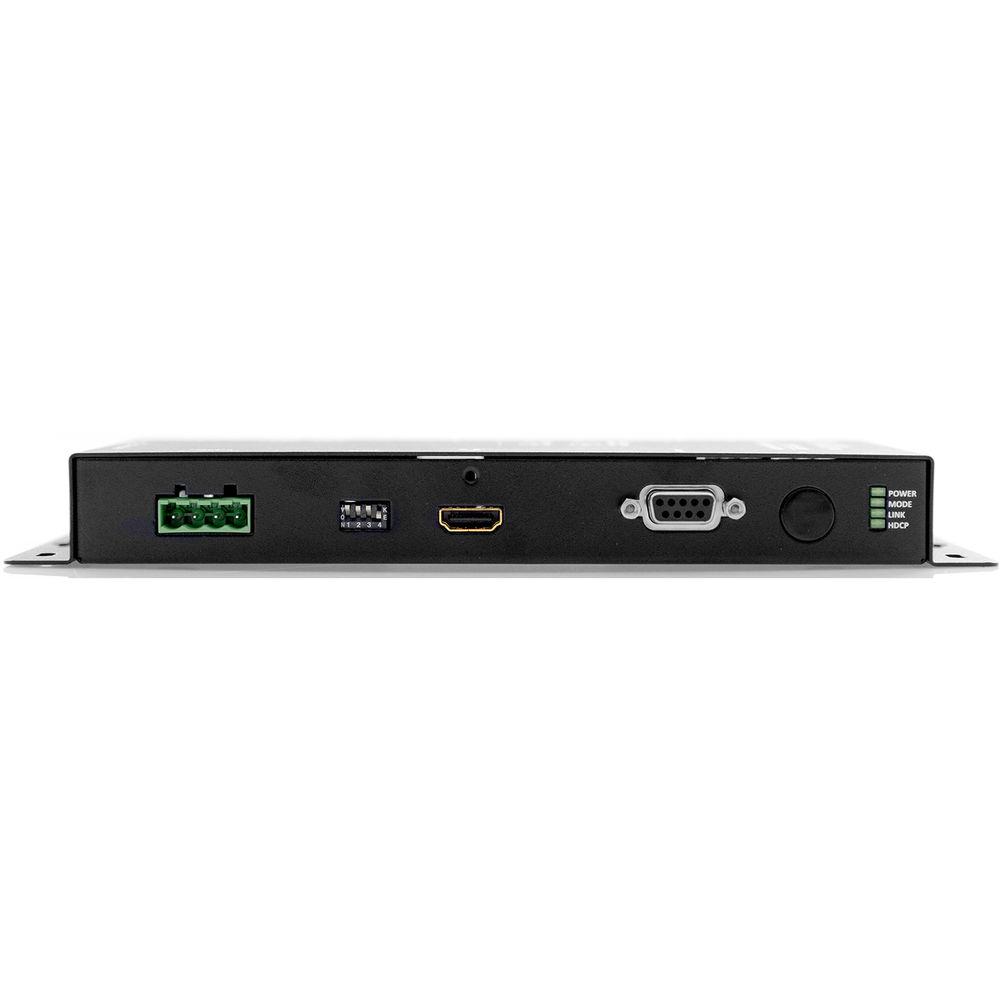

User Manual for Zigen HDBaseT PoE Receiver with Audio Amplifier Click to enlarge the picture
Contents of the user manual for the Zigen HDBaseT PoE Receiver with Audio
- Product category: Video Extenders & Repeaters Zigen
- Brand: Zigen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zigen Video Extenders & Repeaters
 |
User manual for the Zigen HDBaseT PoE Receiver with Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zigen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zigen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zigen product will considerably shorten its lifespan!
|
Product description The HDBaseT PoE Receiver with Audio Amplifier from Zigen can be connected to any HDBaseT transmitter. Attach the receiver and transmitter to your source, display, and speakers; the receiver will manipulate all your presentation devices. There's no need to individually turn on and adjust each device. There are many ways to control the receiver, such as a remote, smartphone, a wireless router or modem, or a DVD or Blu-ray player. The HDBaseT Receiver provides an amplified audio output for direct connection to speakers, LAN ports for connecting and controlling devices, and a 4K Ultra HD scaler to match source display resolutions. The included IR receiver allows you to mount the HDBaseT unit in a discreet, out-of-sight location. - Provides PoE to upstream transmitters
- Built-in 20W per channel, class-D stereo amp that strips from HDMI via single CatX cable (not included)
- Built-in 4K UHD up/down scaler
- Supports digital video formats up to 4K Ultra HD, and a variety of audio formats
- Two relays for contact closure
- RS-232 command set for third-party control

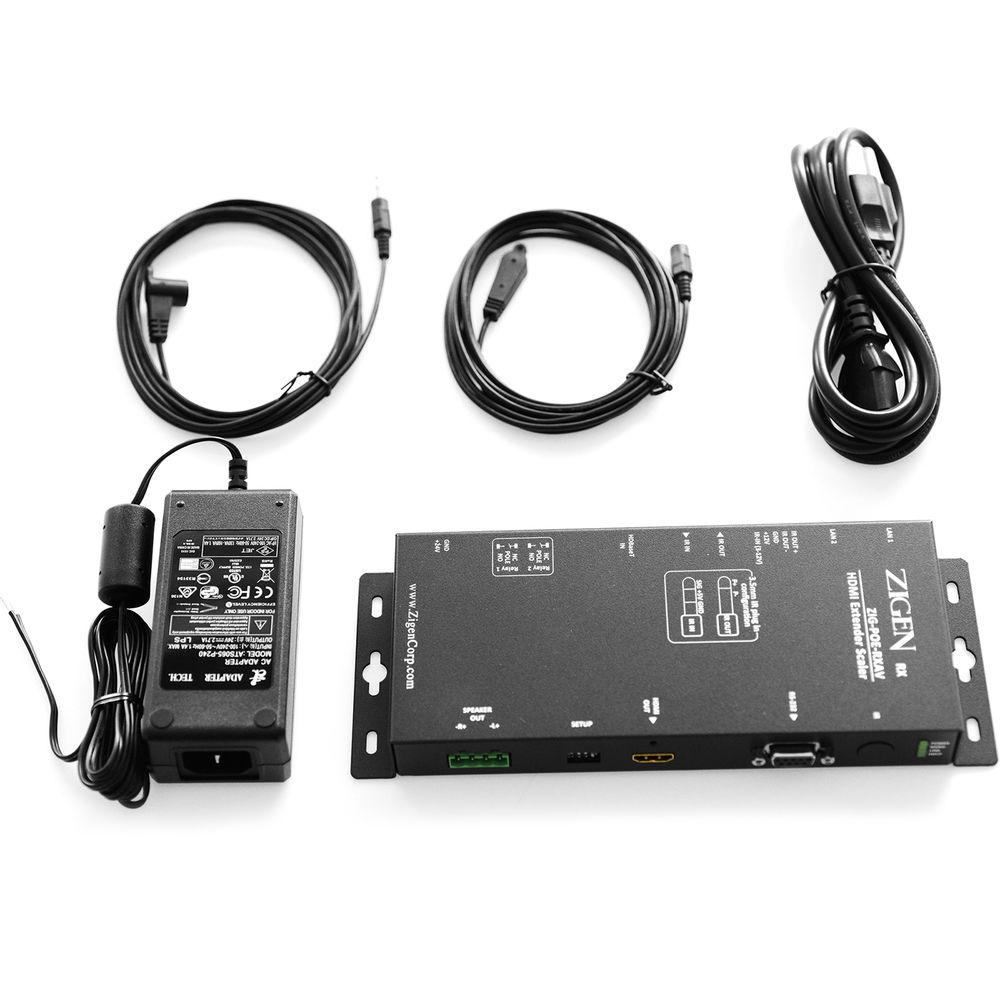

In the Box Zigen HDBaseT PoE Receiver with Audio Amplifier Power Supply AC Cord (3') 5 x Male Captive Screw Connectors Remote Control IR Receiver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zigen HDBaseT PoE Receiver with Audio Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZigen ZIG-POE-RXAV Specs | Inputs | 1 x RJ-45 HDBaseT
1 x Power | | Outputs | 1 x HDMI
1 x L/R Audio (stereo) | | Combo Ports | 2 x RJ-45 LAN 10/100 BaseT
1 x RS-232
1 x IR In/Out: 3.5 mm
1 x IR Connecting Block: 3 to 12 V | | Maximum Distance | 328' / 100 m (at 2160p60, 4:2:0 8-bit) | | Video Bandwidth | 10.2 Gbps | | Color Depth | 48-bit | | Maximum Resolution | 4K | | HDMI Versions Supported | HDMI 1.2, 1.3, 1.4, 2.0 | | Video Timings | 480i, 480p, 720p, 1080i, 1080p, 1920 x 1200, 2K, 4K
4K/2K, 30 Hz, 24 bpp
4K/2K, 60 Hz, 24 bpp with 4:2:0 Pixel format | | Built-in Speaker | Stereo, 20 W per channel RMS, class-D amplifier, 8 Ohms recommended | | Audio Formats Supported | All HDMI formats | | HDCP Versions Supported | HDCP 1.0, 1.1, 1.2, 1.3, 1.4 | | Cable Compatibility | Cat5/5e/6/6a/7 | | Connectors | Male Captive Screw Connectors:
1 x 2-Pin: Power
2 x 3-Pin: Relays (NC-G-NO)
1 x 4-Pin: Speakers
1 x 5-Pin: IR connecting block | | Switches | DIP Switches:
EDID
Force 3D off
Force 2 channel audio
Audio routing | | Sensors | 1 x Built-in IR receiver sensor
1 x IR receiver sensor | | LED Status Indicators | Power
Mode
Link
HDCP | | PoE Power Output | 48 VDC | | Power Consumption | Without POE: 5 W
With POE: 5 to 18 W | | Power Supply | 24 VDC, 2.7 A | | Approvals and Certifications | FCC, HDBT, CE, RoHS | | Dimensions | 5.9 x 2.9 x 1.0" / 15.0 x 7.4 x 2.4 cm | | Weight | 3 lb / 1.4 kg |
