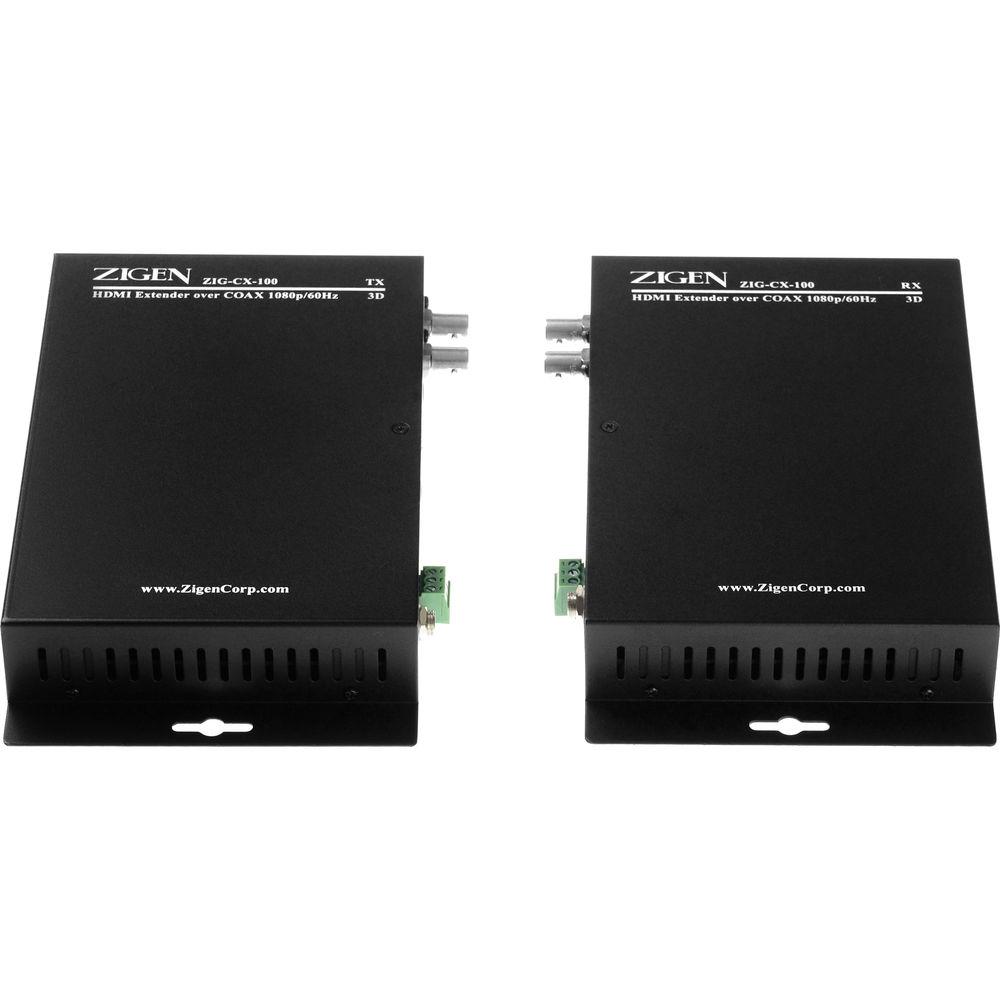

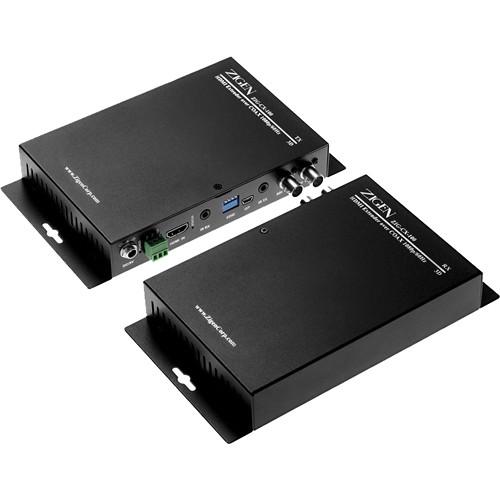

Product description The HDMI Extender Over Coaxial Cable from Zigen is comprised of one local transmitter and one remote receiver unit and is used for long distance transmission of HDMI video and embedded audio plus bi-directional control signals over a single coaxial cable. The ZIG-CX-100 can be used as a point-to-point solution or integrated with Matrix switching equipment to extend inputs or outputs to remote locations. The transmitter and receiver set supports simultaneous transmission of bi-directional RS-232 and IR signals from a control system, providing remote control to source equipment or displays. - Extends HDMI signal by using single coaxial cable
- Up to 328' extension at 1080p resolution
- Supports 640x480p to 1920x1080p video
- Supports 5.1/7.1/stereo audio

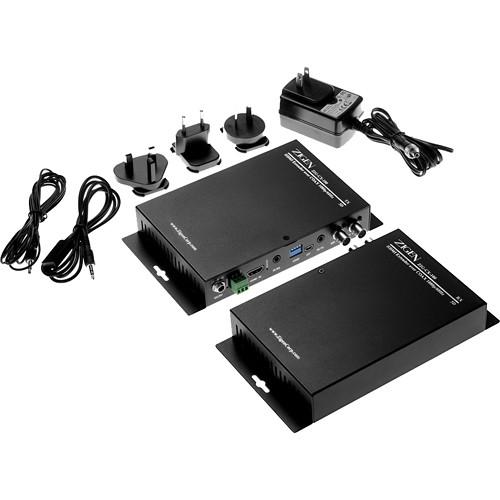

UPC: 794504032659 In the Box Zigen HDMI Extender Over Coaxial Cable IR Emitter Cable IR Receiver Cable 2 x 5 VDC 3A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zigen HDMI Extender Over Coaxial Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

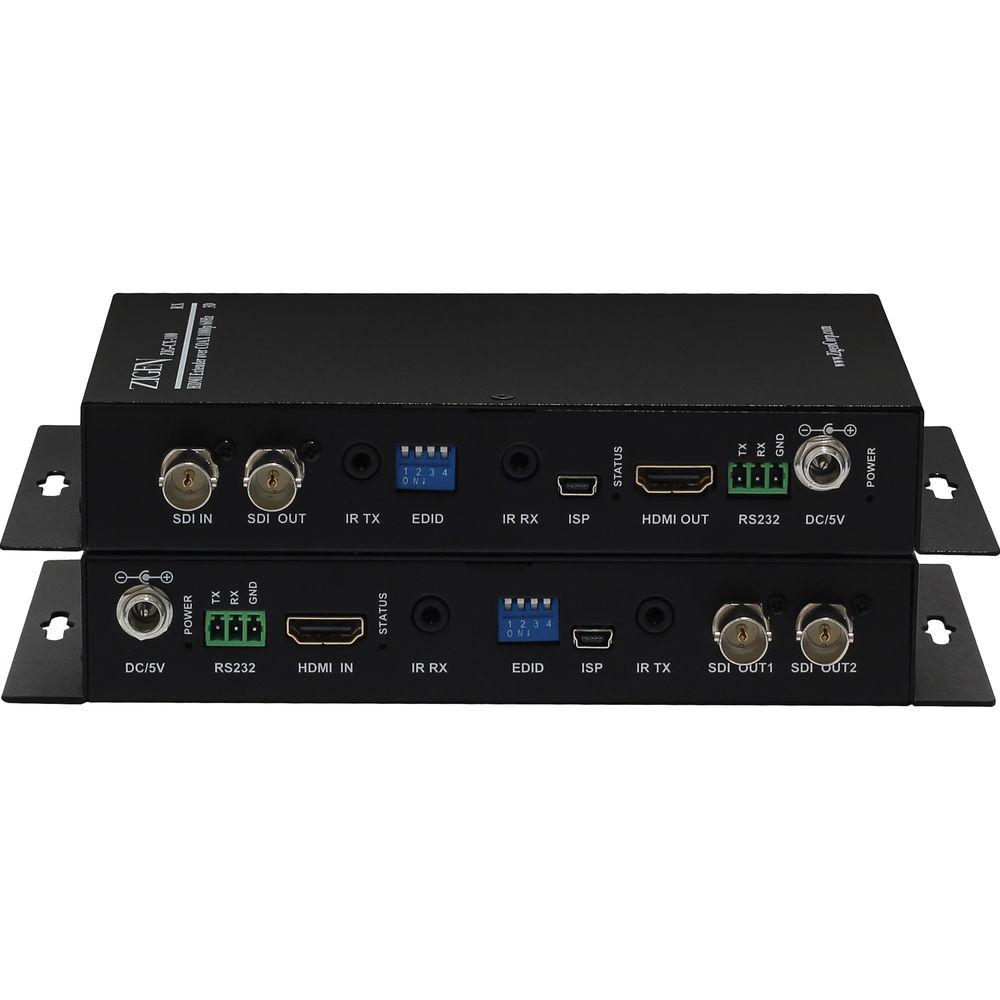

Technical parametersZigen ZIG-CX-100 Specs | Connectors | Transmitter Unit:
1 x SDI output 1
1 x SDI output 2
1 x IR TX
1 x EDID
1 X IR RX
1 x ISP USB port
1 x HDMI input
1 x RS-232
1 x 5 VDC 3 A, power
Receiver Unit:
1 x SDI input
1 x SDI loop output
1 x IR TX
1 x EDID
1 X IR RX
1 x ISP USB port
1 x HDMI output
1 x RS-232
1 x 5 VDC 3 A, power | | LEDs | Transmitter Unit:
1 x power
1 x HDMI input status
Receiver Unit:
1 x power
1 x SDI input status | | Input Video Signal | 0.5 - 1.0 V pp | | Input DDC Signal | 5 V pp (TTL) | | Supported Video Formats | DTV / HDTV; 640 x 480P 60 Hz; 800 x 600 60 Hz; 1024 x 768 60 Hz; 1280 x 768 60 Hz; 1360 x 768 60 Hz; 1280 x 960 60 Hz;1280 x 1024 60 Hz; 1400 x 1050 60 Hz; 1440 x 480I 60 Hz; 720 x 480P 60 Hz; 1440 x 576I 50 Hz; 720 x 576P 50 Hz; 1440 x 576P 50 Hz; 1280 x 720P 50 Hz / 60 Hz; 1920 x 1080I 50 / 60 Hz; 1920 x 1080P 24 / 25 / 30 / 50 / 60 Hz; 1280 x 720P 3D 50/ 60 Hz; 1920 x 1080I 3D 50 / 60 Hz; 1920x 1080P 3D 24 Hz | | Video Output | HDMI 1.4 + HDCP | | Audio Output | Supports 5.1 / 7.1 / stereo audio (including PCM and non PCM, HD Audio, etc.) | | Maximum Transmission Distance | 328' (100 m) over RG-6QUAD
164' (50 m) SYV75-5 over coax cable | | Power Supply | 5 VDC, 3A | | Power Consumption | Transmitter Unit: 7.5 W
Receiver Unit: 8 W | | Dimensions (L x W x H) | 6.2 x 4.6 x 1.0" (157.0 x 118.0 x 25.0 mm) per unit | | Weight | 2.02 lb (0.92 kg) pair | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 15.5 x 8.7 x 3.3" |
