User Manual for Zigen HDMI & VGA Auto-Switching HDBaseT PoE Wall Plate Transmitter Click to enlarge the picture
Contents of the user manual for the Zigen HDMI & VGA Auto-Switching HDBaseT
- Product category: Video Extenders & Repeaters Zigen
- Brand: Zigen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zigen Video Extenders & Repeaters
 |
User manual for the Zigen HDMI & VGA Auto-Switching HDBaseT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zigen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zigen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zigen product will considerably shorten its lifespan!
|

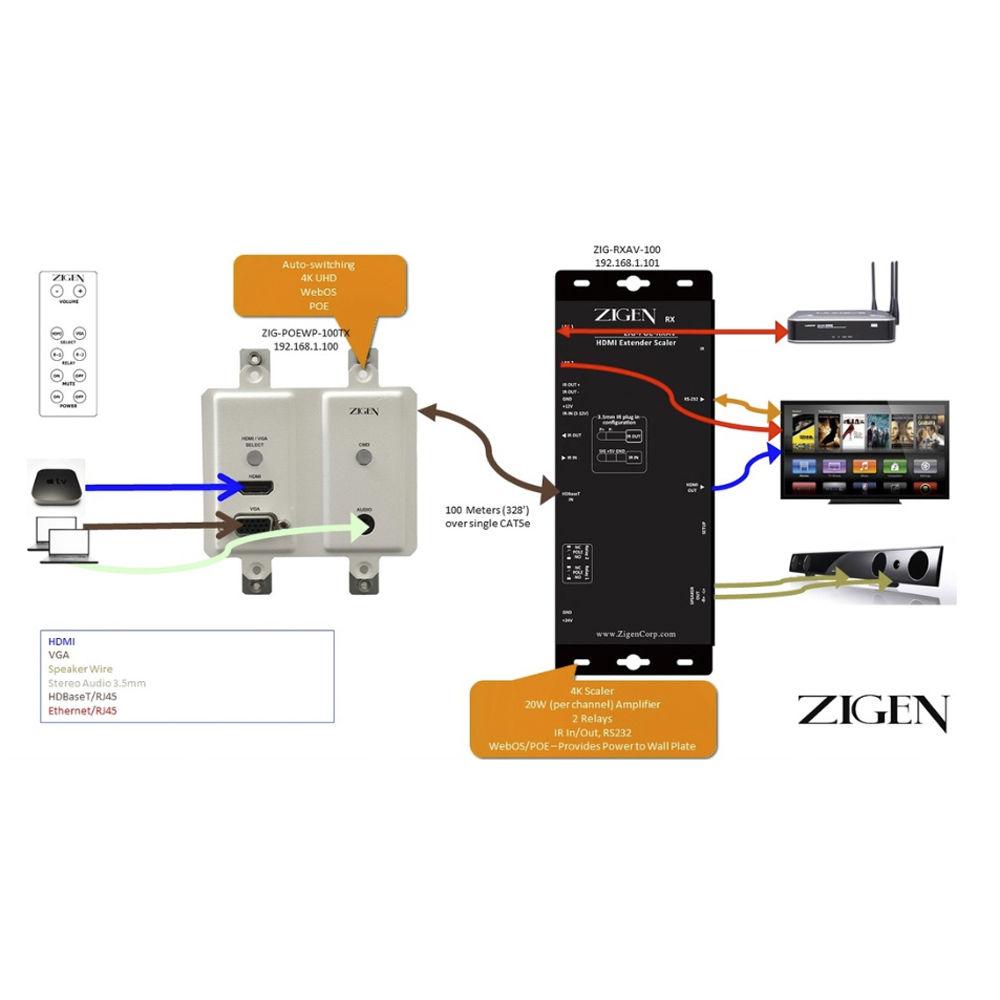

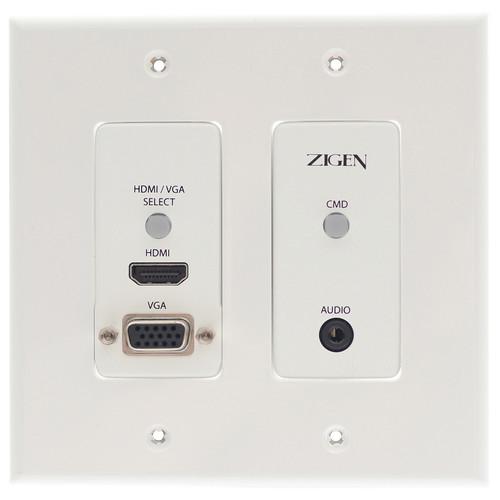

Product description The HDMI & VGA Auto-Switching HDBaseT PoE Wall Plate Transmitter from Zigen can be used on its own as an HDBaseT transmitter, or it can be paired with an HDBaseT receiver. You can control the transmitter directly via RJ-45 or WebOs, or remotely through a receiver or a presentation switch. The HDBaseT Wall-Plate's auto-switching function, which automatically activates and deactivates its ports according to source activity, gives you the ability to fire up projectors, drop screens, and control lighting in small rooms by simply plugging them into the transmitter. - VGA can be configured as component, Y/C, or C
- Supports digital video formats up to 4K Ultra HD, and a variety of audio formats
In the Box Zigen HDMI & VGA Auto-Switching HDBaseT PoE Wall Plate Transmitter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zigen HDMI & VGA Auto-Switching HDBaseT PoE Wall Plate Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZigen ZIG-POEWP-100 Specs | Ports | 1 x HDMI input
1 x VGA Input: Multi-port (YPbPr and composite video)
1 x Audio Input (for VGA Port): 3.5 mm (Stereo)
1 x Power Input: 5 VDC direct

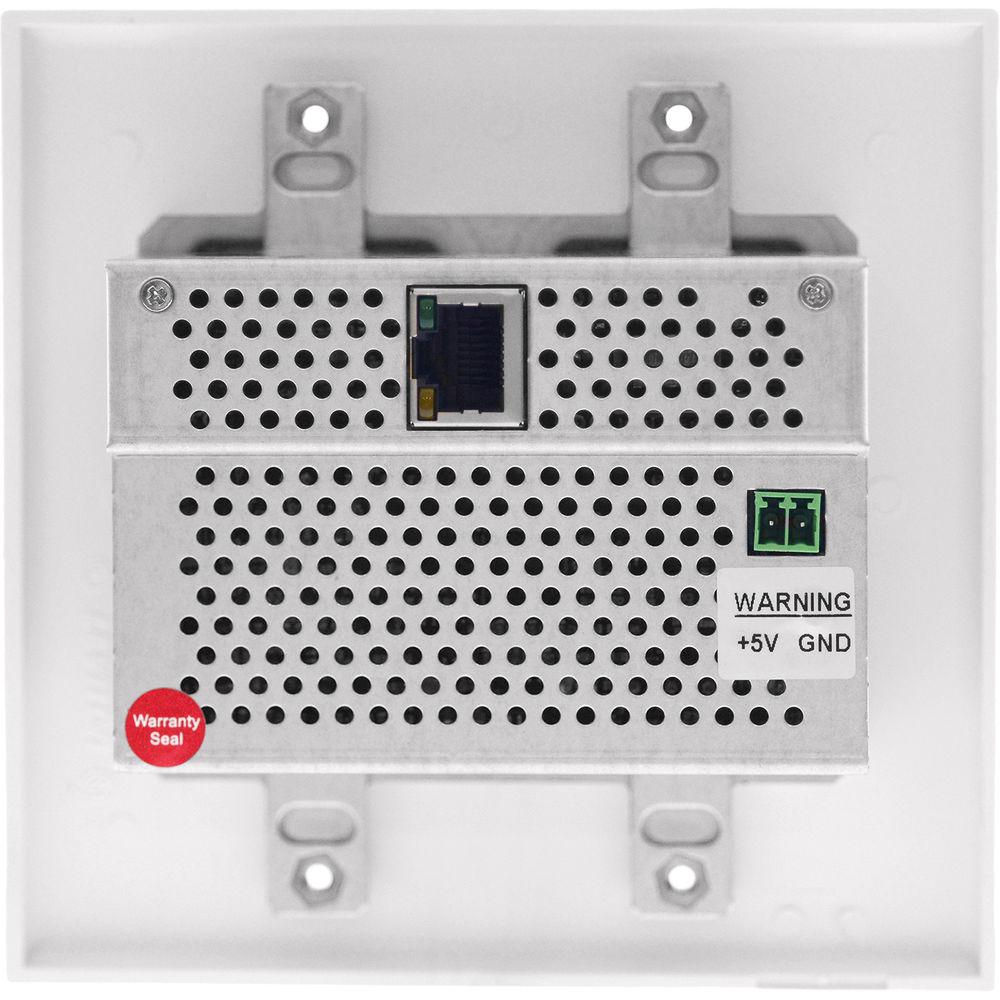

1 x Dual-function RJ-45 HDBaseT output, LAN 48 VDC, PoE | | Maximum Distance | 328' / 100 m (at 2160p60, 4:2:0 8-bit) | | Video Bandwidth | 10.2 Gbps | | Color Depth | 48-bit | | Maximum Resolution | 4K | | HDMI Versions Supported | HDMI 1.2, 1.3, 1.4, 2.0 | | Video Timings | 480i, 480p, 720p, 1080i, 1080p, 1920 x 1200, 2K, 4K
4K/2K, 30 Hz, 24 bpp
4K/2K, 60 Hz, 24 bpp with 4:2:0 Pixel format | | Audio Formats Supported | All HDMI formats | | HDCP Versions Supported | HDCP 1.4 and 2.2 | | Cable Compatibility | Cat5/5e/6/6a/7 | | Connectors | 1 x 2-Pin: Power (female captive screw connectors) | | Buttons | Source select
Command (programmable) | | LED Status Indicators | Source select
Command | | PoE Power Output | 48 VDC | | Power Consumption | 10 W Maximum | | Approvals and Certifications | FCC, HDBT, CE, RoHS | | Dimensions | 5.9 x 2.9 x 1.0" / 15.0 x 7.4 x 2.4 cm | | Weight | 0.7 lb / 303 g |
