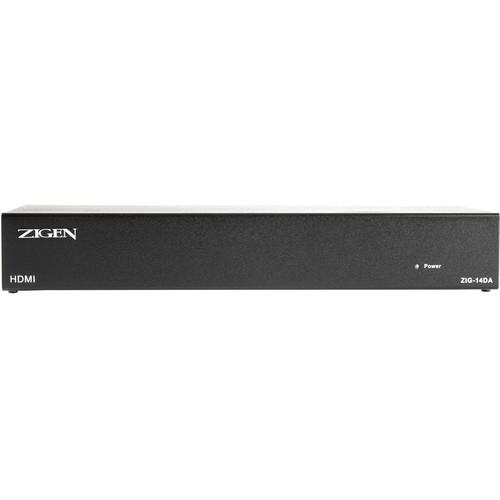

User Manual for Zigen ZIG-14DA 1 x 4 HDMI Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Zigen ZIG-14DA 1 x 4 HDMI
- Product category: Distribution Amplifiers (DA's) Zigen
- Brand: Zigen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zigen Distribution Amplifiers (DA's)
|
User manual for the Zigen ZIG-14DA 1 x 4 HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zigen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zigen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zigen product will considerably shorten its lifespan!
|
Product description The ZIG-14DA 1 x 4 HDMI Distribution Amplifier from Zigen allows you to split any HDMI digital video with embedded audio source to four HD displays. ZIG-14DA will split the HDMI signal to four outputs without signal loss and maintain high resolution up to 1080p/60 Hz, 3D, and 1920x1200 computer signals. The HDMI signal of this distribution amplifier can be cascaded up to eight layers. - Panel Link digital technology
- Can be cascaded up to 8 layers
- Full HD support: 1080p at 24/60 Hz, 3D
- Supports high-resolution display up to UXGA, 480p, 480i, 720p, 1080i, 1080p, 1920x1200 deep colors up to 12 bits
- Supports uncompressed PCM two-channel audio, 5.1, 7.1, DTS-HD, Dolby audio format
UPC: 794504032055 In the Box Zigen ZIG-14DA 1 x 4 HDMI Distribution Amplifier 12VDC Power Adapter 2 x Rack Rail 8 x Screw Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zigen ZIG-14DA 1 x 4 HDMI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZigen ZIG-14DA Specs | Connectors | 1 x HDMI input, Type A female
4 x HDMI output, Type A female
1 x 12 VDC, power | | LED | 1 x power | | Maximum Resolution | UXGA, 1080p (12 bits) | | Maximum Cable Distance | 32.8' (10.0 m) | | Power Adapter | 12 VDC, 600 mA | | Material | Metal | | Dimensions (L x W x H) | 10.6 x 4.1 x 1.8" (269.0 x 104.0 x 45.0 mm) | | Weight | 34.4 oz (975.0 g) | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 13.9 x 10.9 x 3.2" |
