Zigen ZIG-AX Long Range Stereo Audio

Search your instruction manual in PDF to download

User Manual for Zigen ZIG-AX Long Range Stereo Audio Extender Kit

Click to enlarge the picture
Zigen ZIG-AX Long Range Stereo Audio Extender Kit Contents of the user manual for the Zigen ZIG-AX Long Range Stereo Audio
  • Product category: Video Extenders & Repeaters Zigen
  • Brand: Zigen
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Zigen Video Extenders & Repeaters

Zigen ZIG-AX Long Range Stereo Audio Extender Kit Zigen ZIG-AX Long Range Stereo Audio Extender Kit
User manual for the Zigen ZIG-AX Long Range Stereo Audio contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Zigen product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Zigen user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Zigen product will considerably shorten its lifespan!



Product description

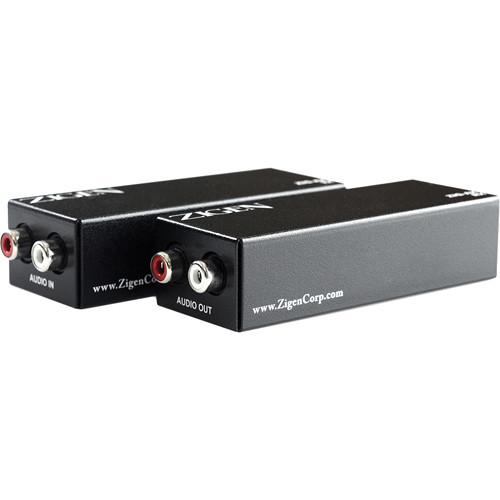

The ZIG-AX Long Range Stereo Audio Extender Kit from Zigen is comprised of one local transmitter and one remote receiver unit and is used for long distance transmission of analog stereo audio over a single CATx cable. It can extend signals up to 985' away. The ZIG-AX can be used either as a point-to-point solution or integrated with Matrix switching equipment to extend inputs or outputs to remote locations. This audio extender supports frequencies from 10 Hz to 25 KHz.
  • Active line level stereo audio extender
  • Can extend signals up to 985' away
  • A single power supply (included) connected to the transmitter powers both units
UPC: 794504032857 In the Box Zigen ZIG-AX Long Range Stereo Audio Extender Kit
  • 12VDC Power Adapter
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Zigen ZIG-AX Long Range Stereo Audio Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Zigen ZIG-AX Specs

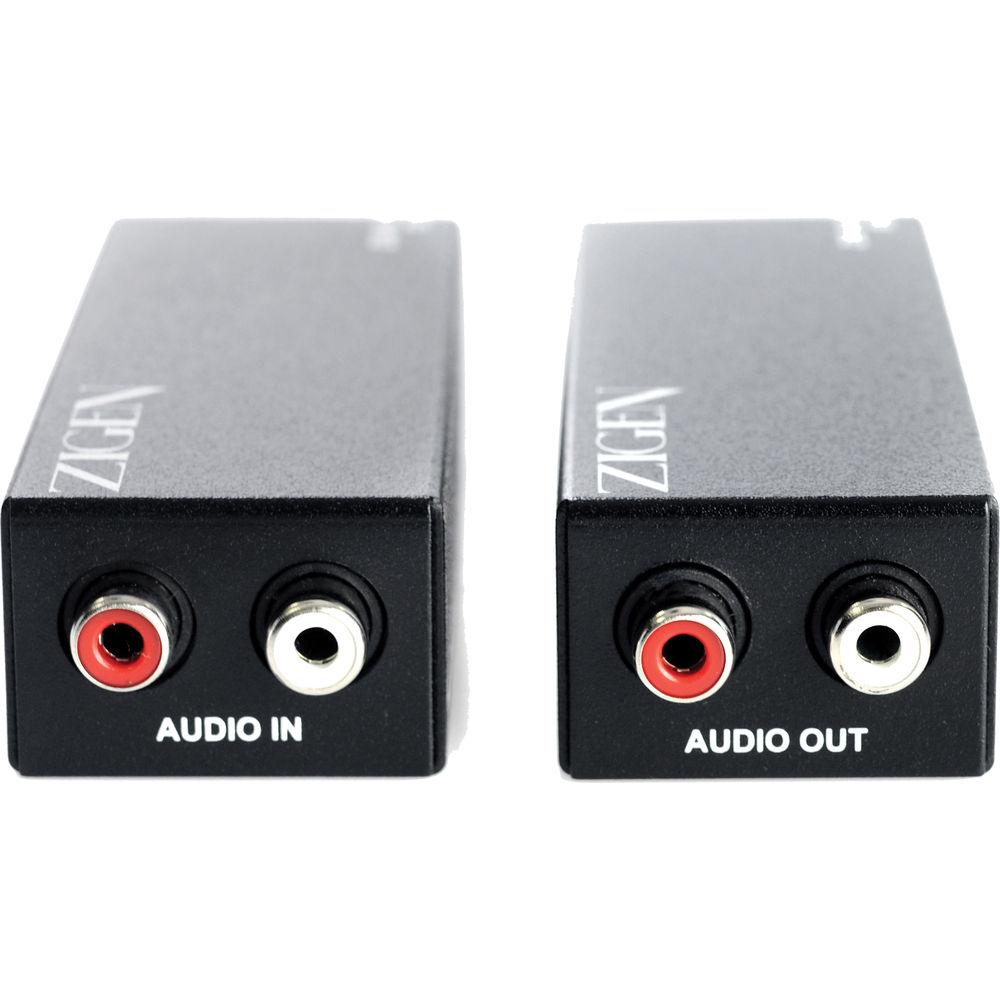

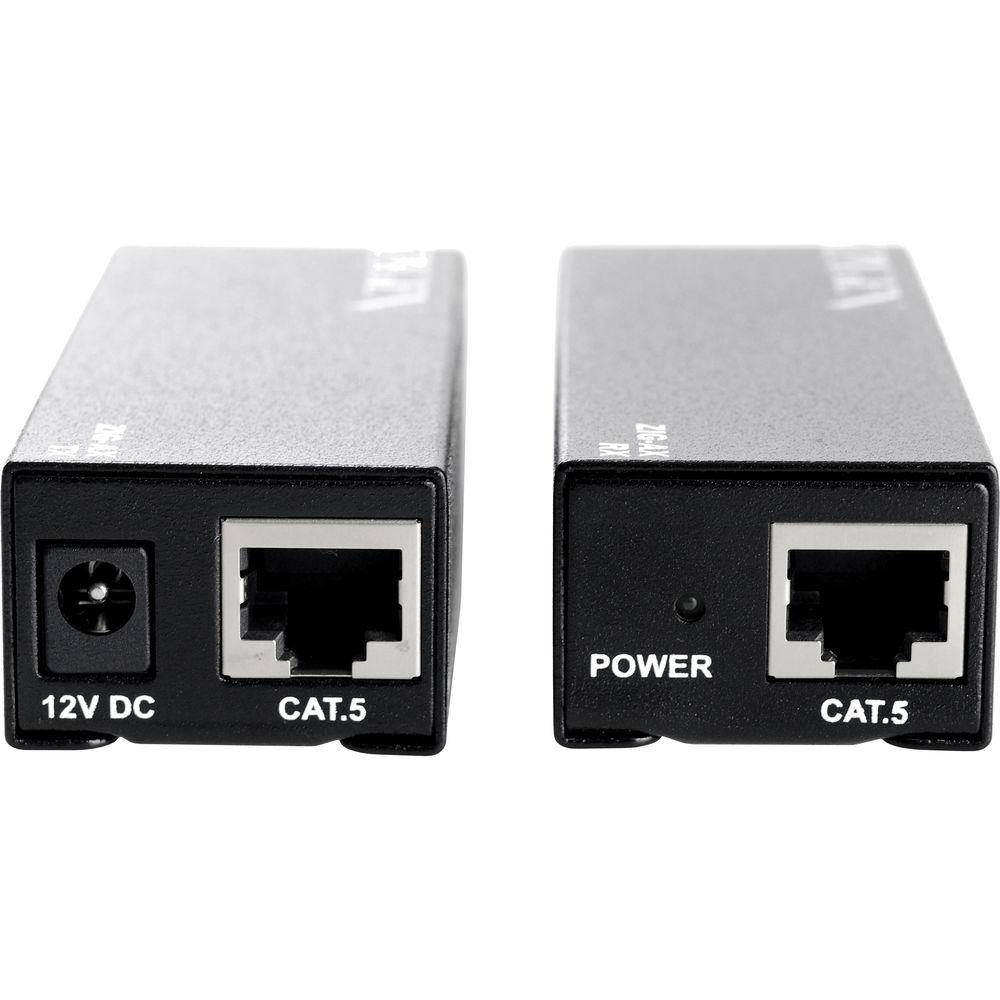

    Connectors Transmitter Unit:
    2 x RCA audio in, female
    1 x 12 VDC power jack
    1 x RJ-45, interconnection
    Receiver Unit:
    2 x RCA audio out, female
    1 x RJ-45, interconnection
    LED Receiver Unit:
    1 x green, Power
    Frequency Response 10 Hz to 25 KHz, -3 dB (1 V pp / 10 kΩ)
    Audio Input Impedance 10 kΩ
    Audio Input Level 1.8 V pp maximum
    Power Adapter 12 VDC
    Material Metal
    Transmission Range 985' (300 m) maximum
    Dimensions (L x W x H) Each Unit: 3.6 x 1.3 x 0.9" (92.0 x 34.0 x 22.0 mm)
    Weight Transmitter Unit: 2.33 oz (66.00 g)
    Receiver Unit: 2.29 oz (65.00 g)
    Package Weight 1.1 lb
    Box Dimensions (LxWxH) 9.6 x 6.2 x 2.5"

    Rating

    90% users recommend this product to others. And what about you?
