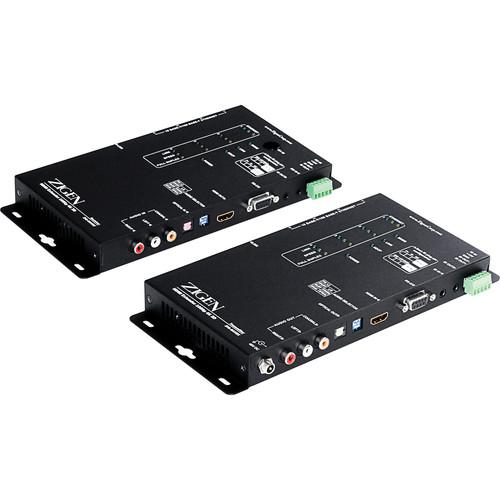

Product description The ZIG-HAVEX HDbaseT HDMI Extender Kit from Zigen is comprised of a local transmitter and a remote receiver unit and is used for long distance transmission of HDMI video, embedded audio, four-port POE Ethernet, back channel analog or digital audio, and bi-directional control signals over a single CAT 5/6/7 type cable. The ZIG-HAVEX can be used as a point-to-point solution or integrated with matrix routing equipment to extend inputs or outputs to remote locations. This transmitter and receiver kit supports simultaneous transmission of digital or analog audio back channel, full duplex 10/100 Ethernet, and bi-directional RS-232 and IR signals from a control system providing remote control to source equipment or displays. In addition, the extender comes equipped with dual voltage IR receiver and emitter ports for screw or 3.5mm input/output. - Extends HDMI / Ethernet and ARS signals up to 328' by using a single cat6/7 cable or up to 260' using a cat5 cable
- Selectable audio return channel (ARC) for digital or analog audio
- Compliant with HDMITM 1.4 with 3D function, HDCP, and DVI-D standards
- Built-in full duplex 10 / 100 four-port POE Ethernet switch with switching capabilities on each unit (IEEE802.3, IEEE802.3u, IEEE802.3X compliant)
- Supports HDMI 1.2, 1.3, and 1.4 with 48-bit deep color
- 4k / 2k, 60 Hz, 24 bpp with 4:2:0 pixel format
- Supports digital video formats in 480i, 480p, 720p, 1080i, 1080p, 1920x1200, 2k, and 4k
- Supports uncompressed PCM two-channel, 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, and more
- Supports all frequency band IR control (bi-directional transfer)
- Supports dual voltage IR 5V / 12V with phoenix connector and 3.5mm
- Supports bi-directional RS-232 transfer
- Supports CEC pass-through

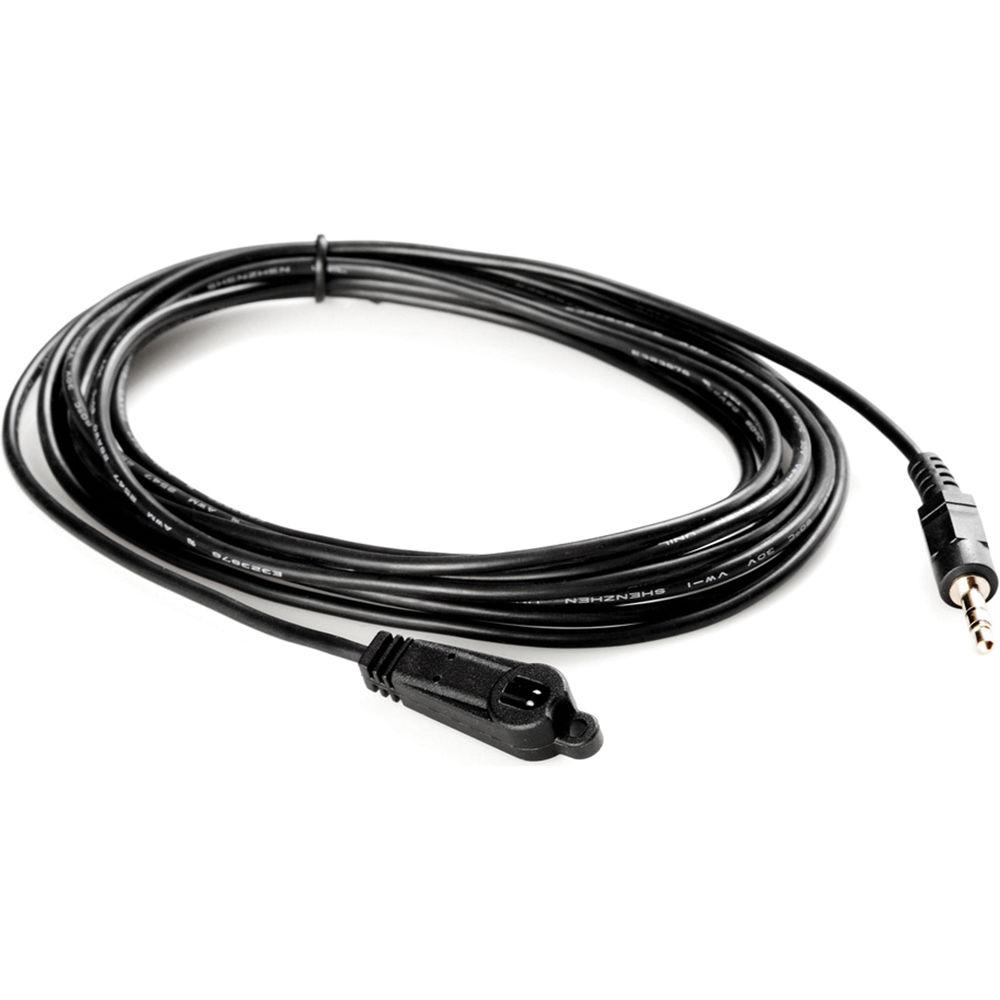

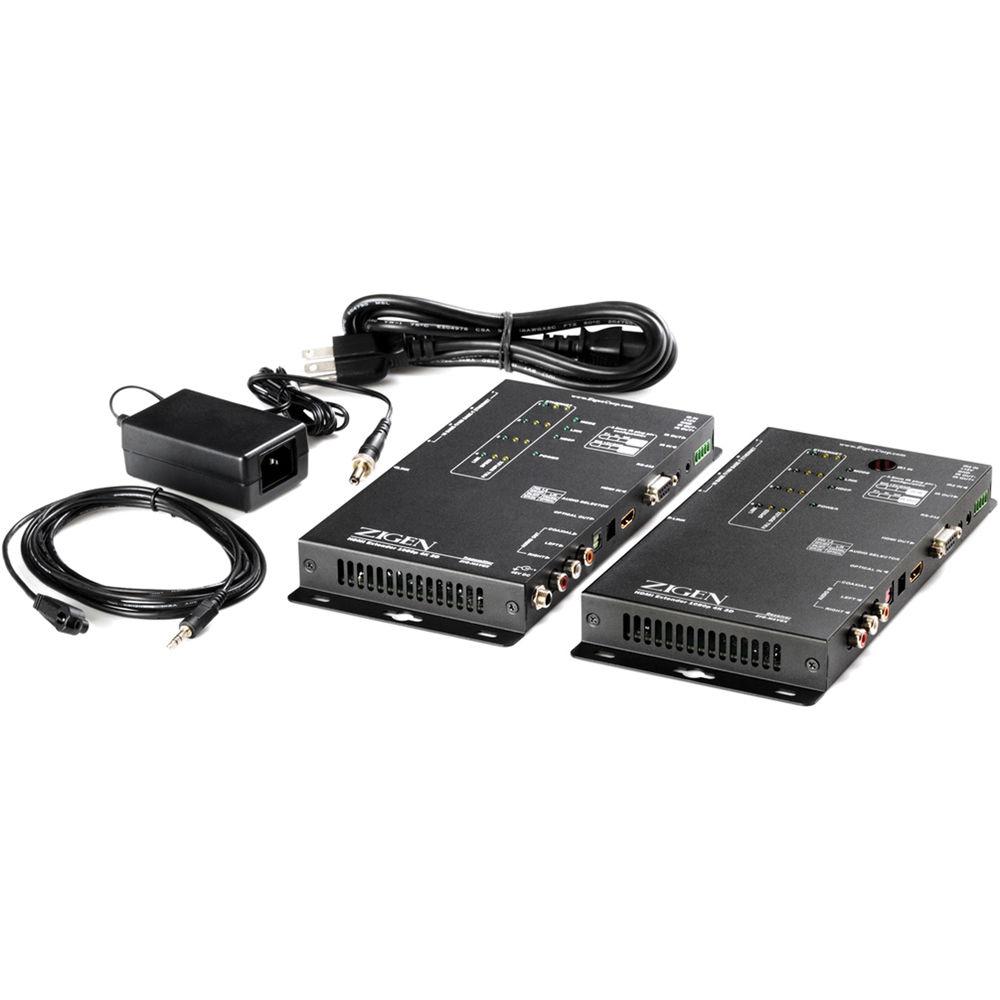

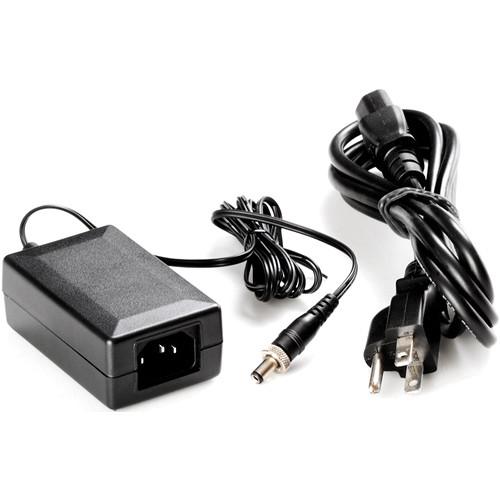

UPC: 794504032758 In the Box Zigen ZIG-HAVEX HDbaseT HDMI Extender Kit 48 VDC Power Adapter with Lock IR Receiver Cable 4 x Screw 8 x Foot Pad Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zigen ZIG-HAVEX HDbaseT HDMI Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

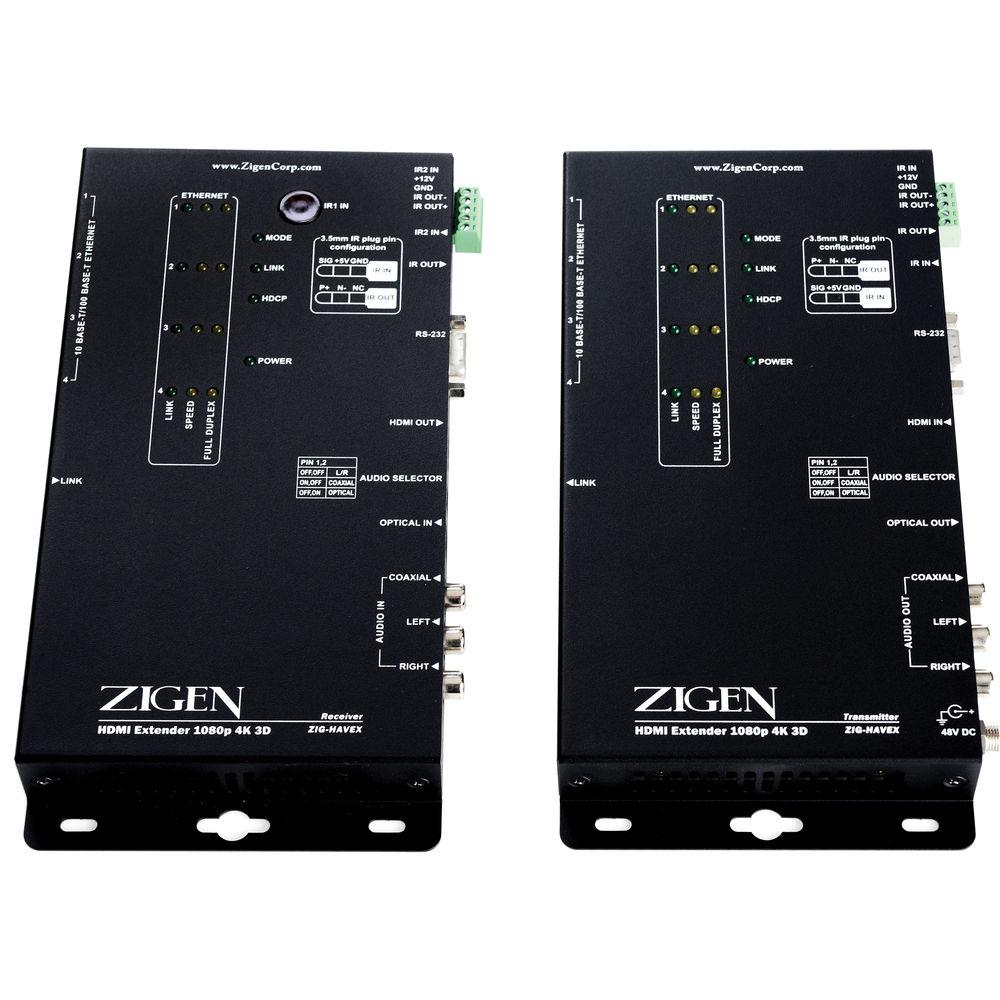

Technical parametersZigen ZIG-HAVEX Specs | Connectors | Transmitter Unit:
1 x RCA female audio line output, right
1 x RCA female audio line output, left
1 x RCA female audio coaxial output
1 x fiber, optical output
1 x HDMI input, female Type A
1 x 9-pin Sub-D female, RS-232 serial port
1 x 3.5mm stereo phone jack, IR input
1 x 3.5mm stereo phone jack, IR output
1 x 5-position Eurostyle terminal block, IR control
1 x DC locking barrel, 48 VDC power input

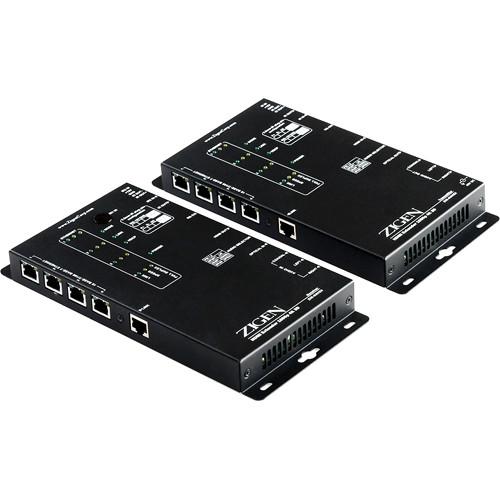

4 x RJ-45, Ethernet 10 Base-T/100 Base-T
1 x RJ-45, Link
Receiver Unit:

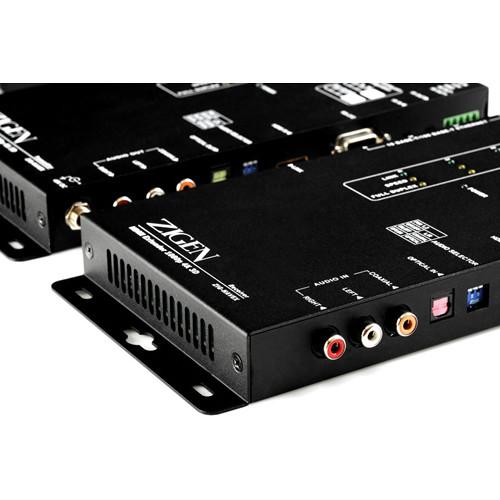

1 x RCA female audio line input, right
1 x RCA female audio line input, left
1 x RCA female audio coaxial input
1 x fiber, optical input
1 x HDMI output, female Type A
1 x 9-pin Sub-D female, RS-232 serial port
1 x 3.5mm stereo phone jack, IR output
1 x 3.5mm stereo phone jack, IR input
1 x 5-position Eurostyle terminal block, IR control
4 x RJ-45, Ethernet 10 Base-T/100 Base-T
1 x RJ-45, Link | | Indicator LEDs | Each Unit:
4 x LINK, green
4 x SPEED, yellow
4 x FULL DUPLEX, yellow
1 x HDCP, green
1 x LINK, green
1 x MODE, green
1 x POWER, green
4 x RJ-45 Ethernet, green
4 x RJ-45 Ethernet, yellow | | Switches | Each Unit:
1 x Audio Selector | | Supported Video Format | 480i, 480p, 720p, 1080i, 1080p, 1920x1200, 2k and 4k | | Maximum Resolution | 1080p 60 Hz / 4k x 2k | | Transmission Range | 328' (100 m) maximum | | Power | Transmitter Unit: 48 VDC with lock | | Material | Metal | | Dimensions (L x W x H) | 9.6 x 4.7 x 1.0" (245.0 x 120.0 x 25.0 mm) | | Weight | Transmitter Unit: 24.3 oz (690.0 g)
Receiver Unit: 24.5 oz (695.0 g) | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 11.0 x 9.4 x 3.8" |
