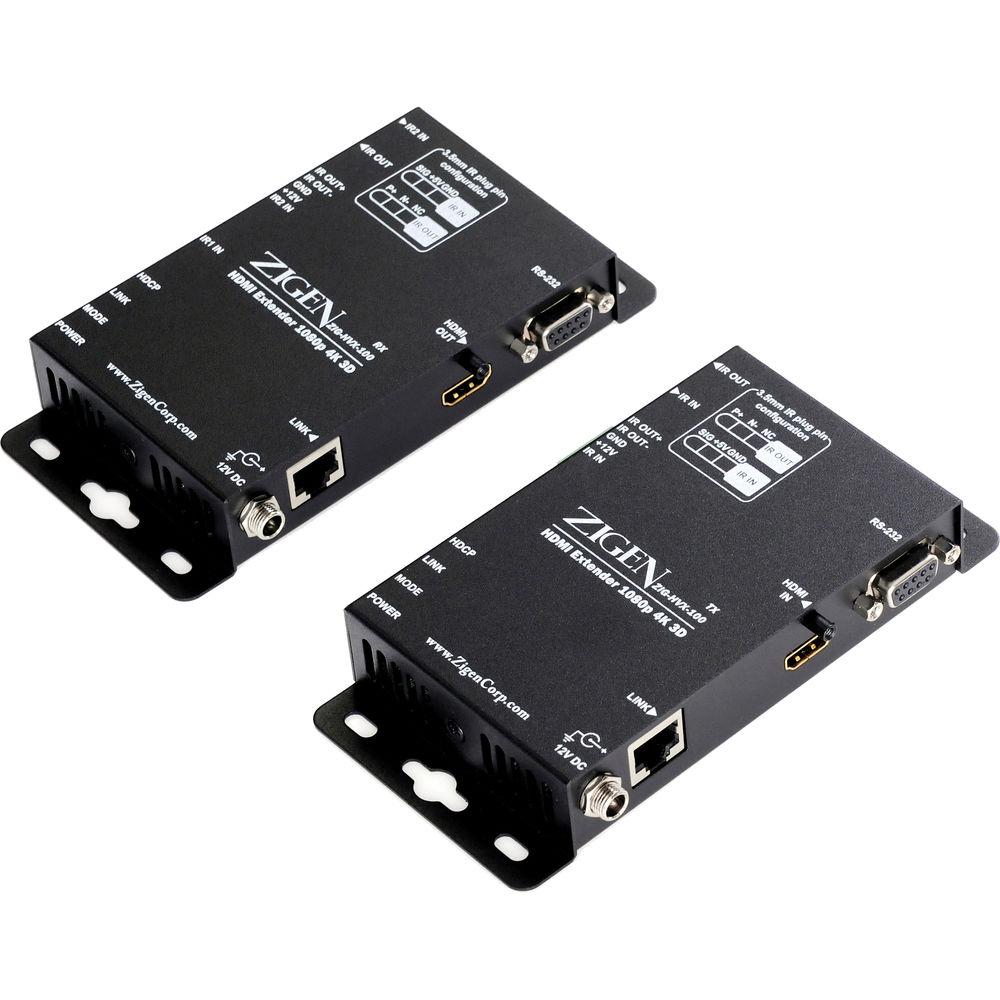

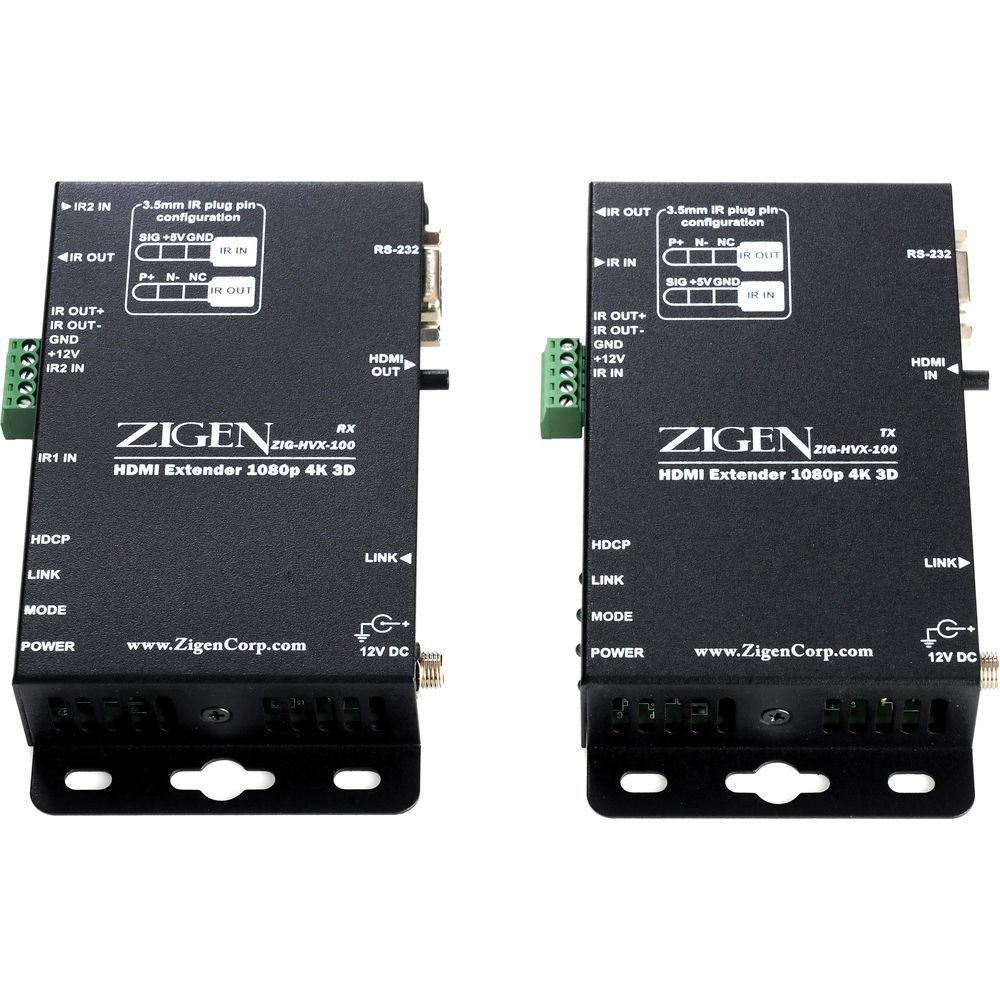

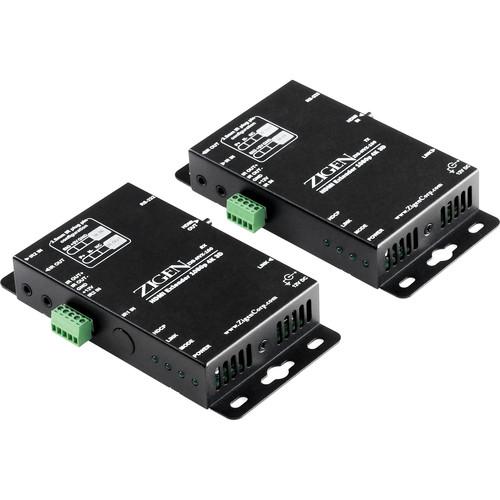

Product description The ZIG-HVX-100 HDbaseT HDMI Extender Kit from Zigen is comprised of a local transmitter and a remote receiver unit and is used for long-distance transmission of HDMI video and embedded audio plus bi-directional control signals over a single CAT 5/6 cable. It can extend signals up to 328' away. The ZIG-HVX-100 can be used either as a point-to-point solution or with Matrix switching equipment to extend inputs or outputs to remote locations. The transmitter and receiver set supports simultaneous transmission of bi-directional RS-232 and IR signals from a control system, providing remote control to source equipment or displays. This kit comes equipped with dual voltage IR receiver/emitter input/output ports. - Supports HDMI 1.2, 1.3, and 1.4 with 48-bit deep color
- Supports all frequency band IR control (bi-directional transfer)
- Supports bi-directional RS-232 transfer
- Supports CEC pass-through
UPC: 794504032550 In the Box Zigen ZIG-HVX-100 HDbaseT HDMI Extender Kit 2 x 12 VDC Power Adapter IR Receiver 4 x Screw 8 x Foot Pad 2 x Captive Screw Connector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zigen ZIG-HVX-100 HDbaseT HDMI Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZigen ZIG-HVX-100 Specs | Connectors | Transmitter Unit:
1 x IR input, 3.5mm phone jack
1 x IR output, 3.5mm phone jack
1 x IR Terminal Block
1 x HDMI input, female Type A
1 x RJ-45, LINK
1 x RS-232
1 x 12 VDC, power
Receiver Unit:
1 x IR2 input, 3.5mm phone jack
1 x IR output, 3.5mm phone jack
1 x IR Terminal Block
1 x IR1 input, on-board
1 x HDMI output, female Type A
1 x RJ-45, LINK
1 x RS-232
1 x 12 VDC, power | | LEDs | Each Unit:
1 x HDCP
1 x LINK
1 x MODE
1 x POWER | | Supported Video Formats | 480i, 480p, 720p, 1080i, 1080p, 1920 x 1200, 2k and 4k | | Maximum Resolution | 1080p 60 Hz 4k x 2k | | Transmission Range | 328' (100 m) maximum | | Power Adapter | 12 VDC with lock | | Material | Metal | | Dimensions (L x W x H) | 5.9 x 2.9 x 0.9" (150.0 x 74.0 x 24.0 mm) | | Weight | Transmitter Unit: 10.4 oz (296.0 g)
Receiver Unit: 10.7 oz (303.0 g) | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 12.2 x 10.0 x 2.7" |
