User Manual for Zigen ZIG-HVX-100R HDbaseT HDMI Extender Unit Click to enlarge the picture
Contents of the user manual for the Zigen ZIG-HVX-100R HDbaseT HDMI Extender Unit
- Product category: Video Extenders & Repeaters Zigen
- Brand: Zigen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zigen Video Extenders & Repeaters
 |
User manual for the Zigen ZIG-HVX-100R HDbaseT HDMI Extender Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zigen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zigen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zigen product will considerably shorten its lifespan!
|

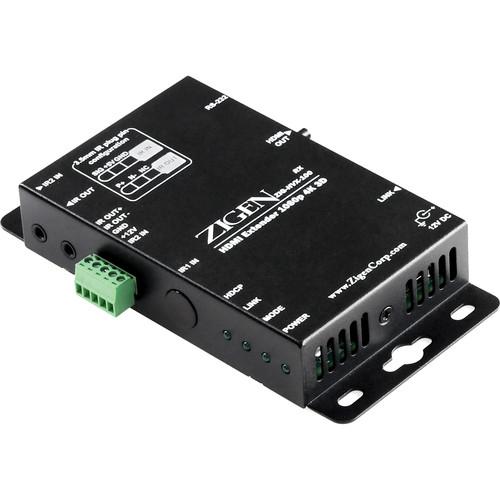

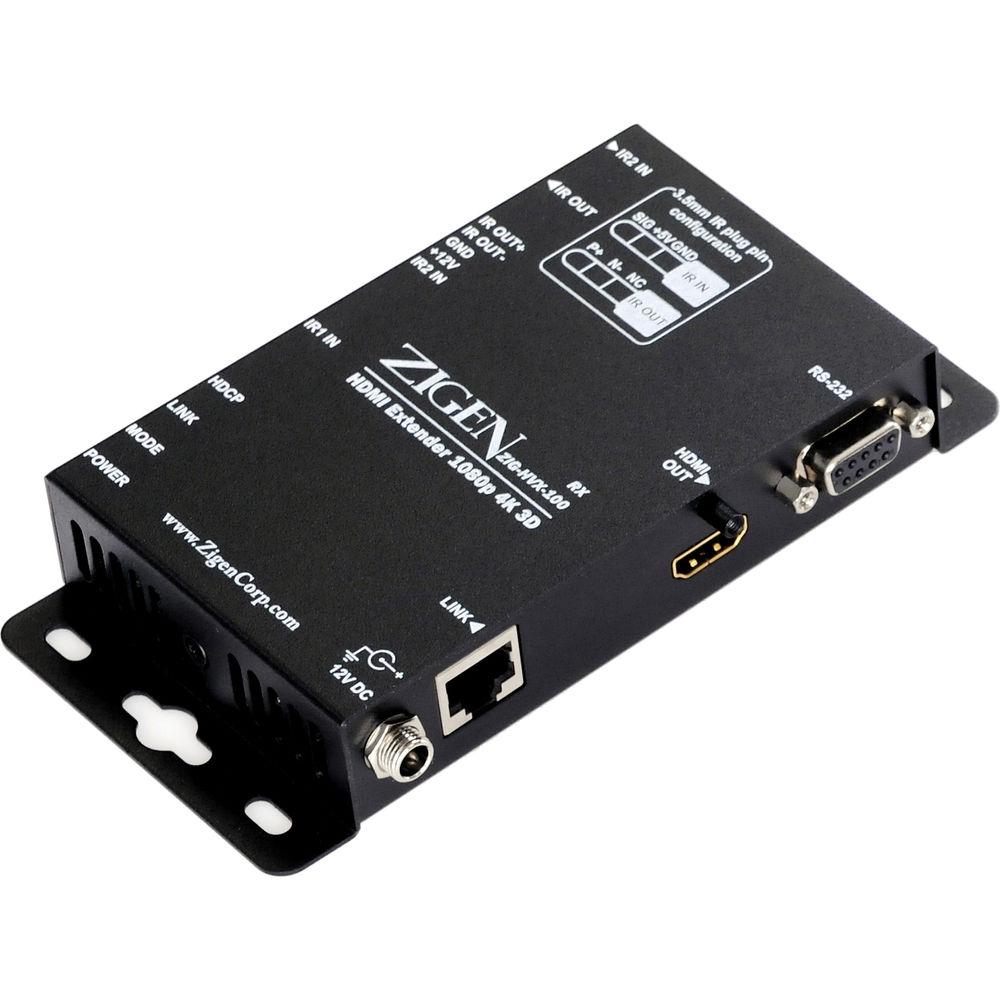

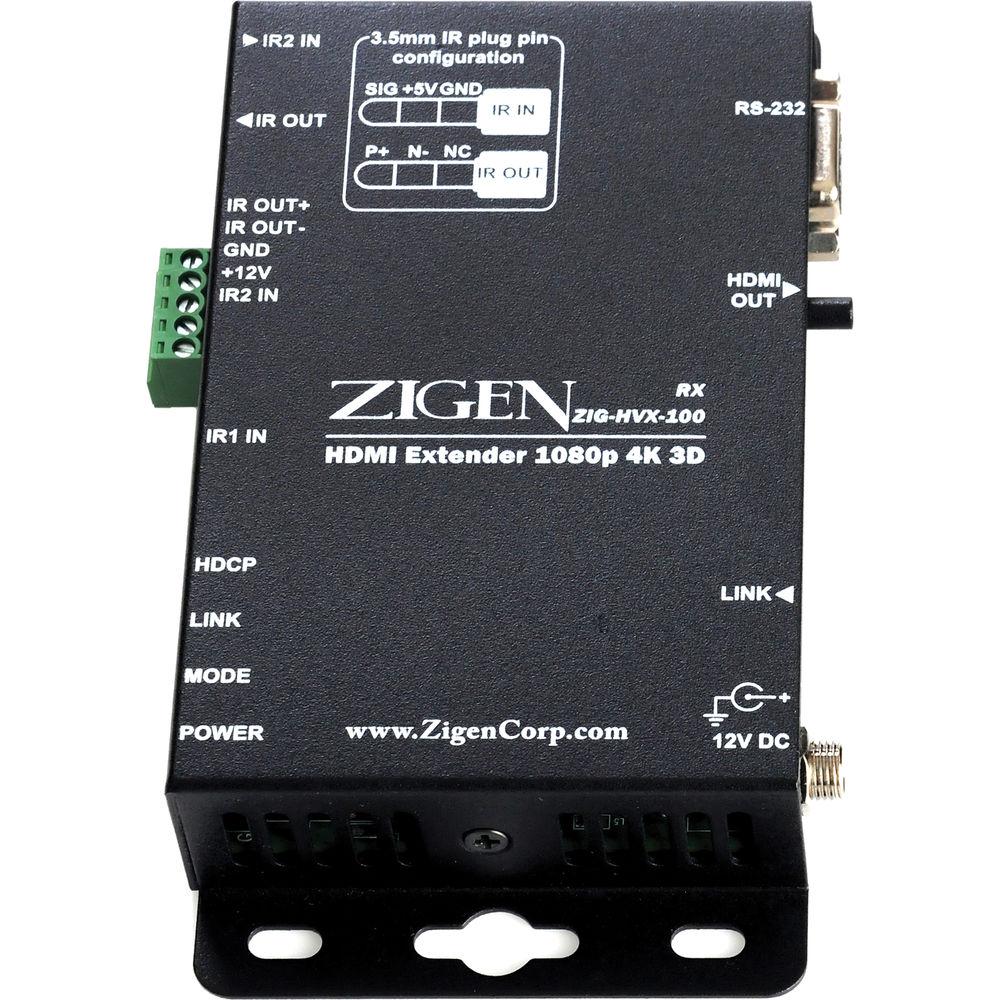

Product description The ZIG-HVX-100 HDbaseT HDMI Extender Unit from Zigen allows you to use the output of HX-44, HX-88, or HX-1616 to display an identical image and extension of HDMI signals up to 328' by using a Cat5e cable. This receiver unit supports transmission of IR signals from a control system, providing remote control to source equipment or displays. - Allows you to use the output of HX-44, HX-88, or HX-1616 to display identical image and extension of HDMI signal up to 328' on HDTV
- Receives HDMI, audio, and RS-232 signals from a compatible transmitter unit (not included)
- Supports all frequency band IR pass-through
- Supports resolution up to 4k x 2k
In the Box Zigen ZIG-HVX-100R HDbaseT HDMI Extender Unit 12 VDC Power Adapter with Lock IR Receiver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zigen ZIG-HVX-100R HDbaseT HDMI Extender Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZigen ZIG-HVX-100R Specs | Connectors | 1 x IR2 input, 3.5mm phone jack
1 x IR output, 3.5mm phone jack
1 x IR Terminal Block
1 x IR1 input, on-board
1 x HDMI Out, female Type A
1 x RJ-45, LINK
1 x F/W Upgrade, 9-pin female
1 x 12 VDC, power | | LEDs | 1 x HDCP
1 x LINK
1 x MODE
1 x POWER | | Maximum Resolution | 4k x 2k | | Transmission Range | 328' (100 m) | | Power | 12 VDC with lock | | Material | Metal | | Dimensions (L x W x H) | 5.9 x 3.1 x 1.0" (150.0 x 80.0 x 25.0 mm) | | Weight | 10.9 oz (308.0 g) |
