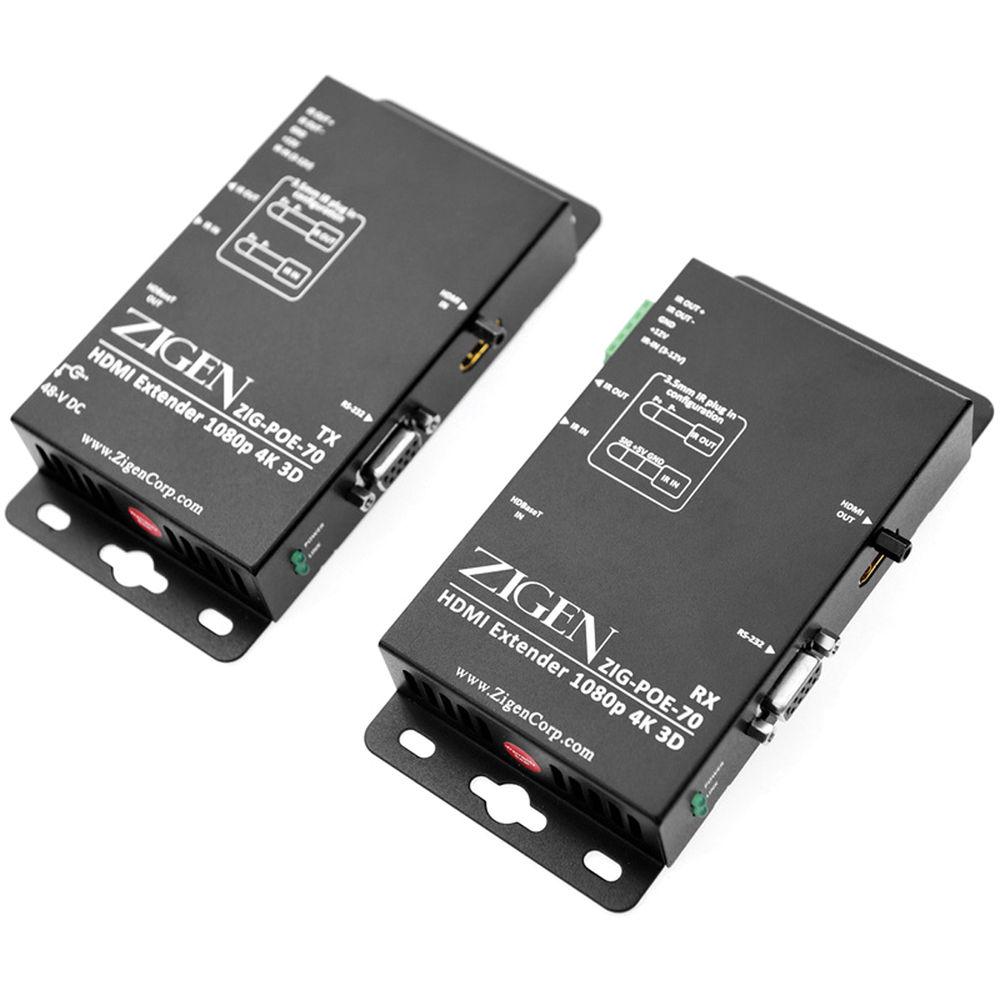

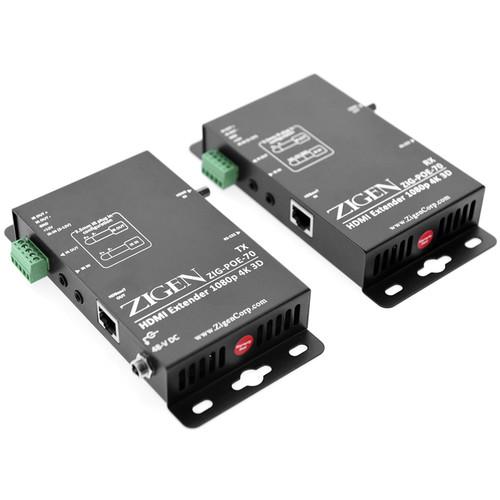

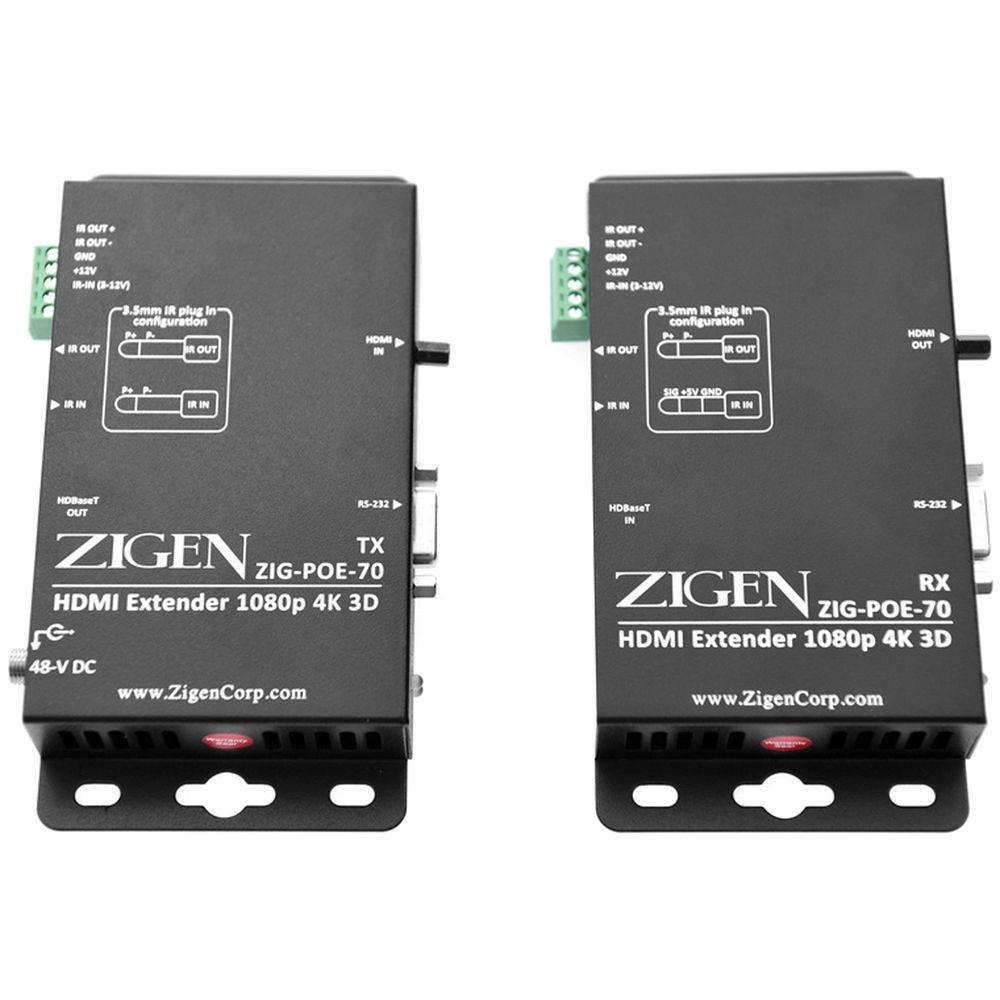

Product description Extend HDMI signals up to 230' using Power over Ethernet (PoE) connectivity with the Zigen ZIG-POE-70 HDBaseT HDMI Extender. The device supports Cat-5e/6/7 RJ45 connections and features HDMI 1.4 compliant ports on both the transmitter and receiver. The ZIG-POE-70 is compatible with 4K, 1080p, and 3D video signals as well as high-resolution audio such as Dolby TrueHD and DTS HD-Master Audio. This kit also supports HDMI CEC and HDCP connections.
The included transmitter provides a solution for detection and powering of PoE IEEE 802.3af devices such as the included receiver. The transmitter is designed to safely detect, classify, and provide up to 48V and 13W of power to the connected receiver via the HDBaseT port. Power delivery is only enabled if all communication constraints are met between the connected devices. During the power delivery the link is continuously monitored for faults or overloading conditions, and the current is limited to avoid hazardous conditions. - HDMI extender over single UTP/STP with IR, RS232, and PoE (48V)
- Supports digital video formats in 480i, 480p, 720p, 1080i, 1080p, 1920x1200, and 4K x 2K
- Supports uncompressed PCM 2-ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, and more
- Supports RS-232 and all frequency band IR control (bi-directional transfer)
- Compatible with 4K/2K, 30Hz, 24bpp and 4K/2K, 60Hz, 24bpp with 4:2:0 pixel format
- Works HDMI 1.2, 1.3, and 1.4 with 48-bit deep color video signals
- Supports 12V or 5V IR receiver/emitter
- The transmitter senses the removal of a powered device and turns off 48V power immediately when the receiver is disconnected

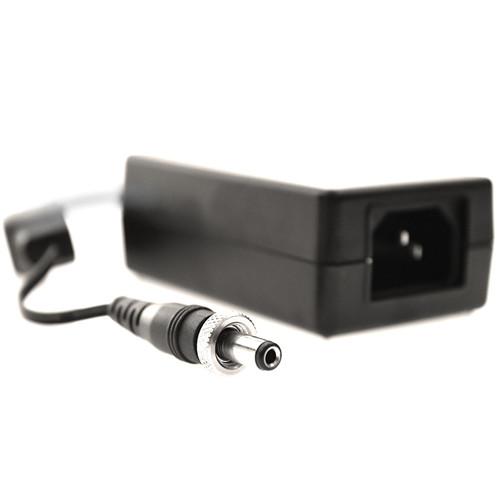

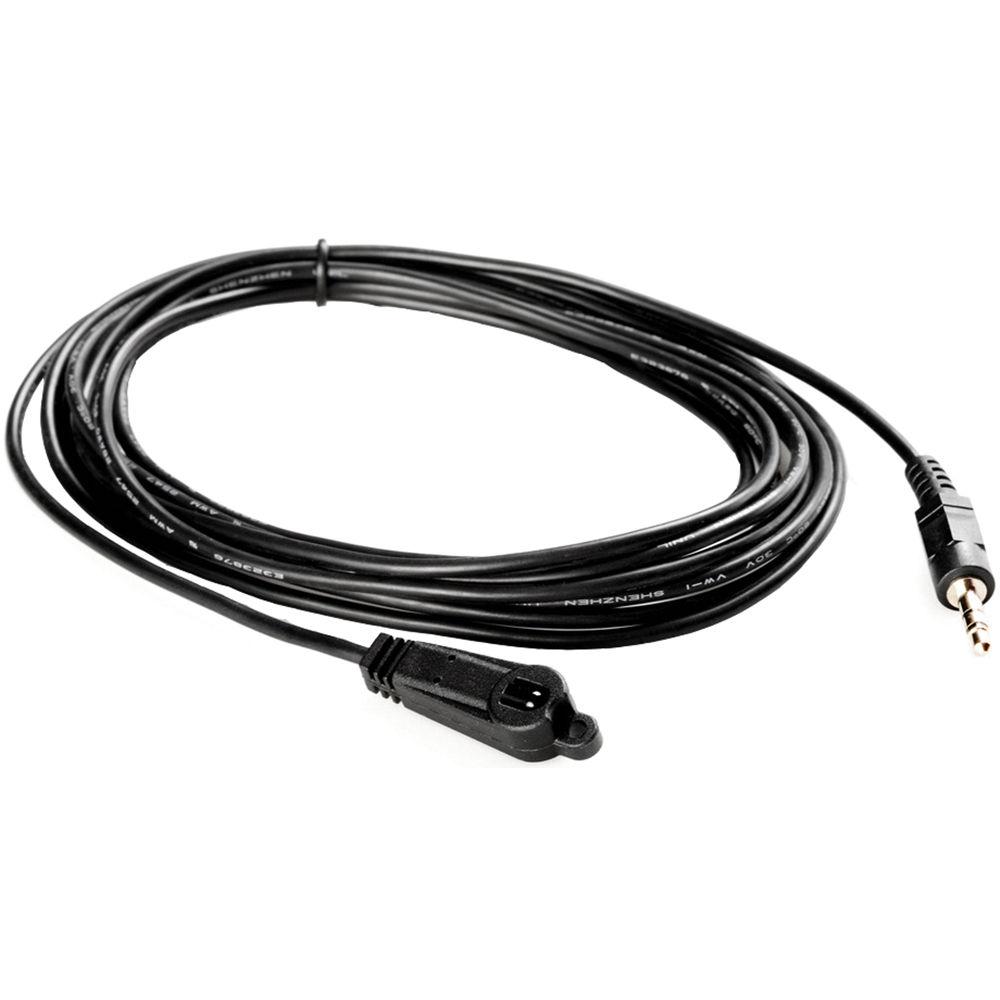

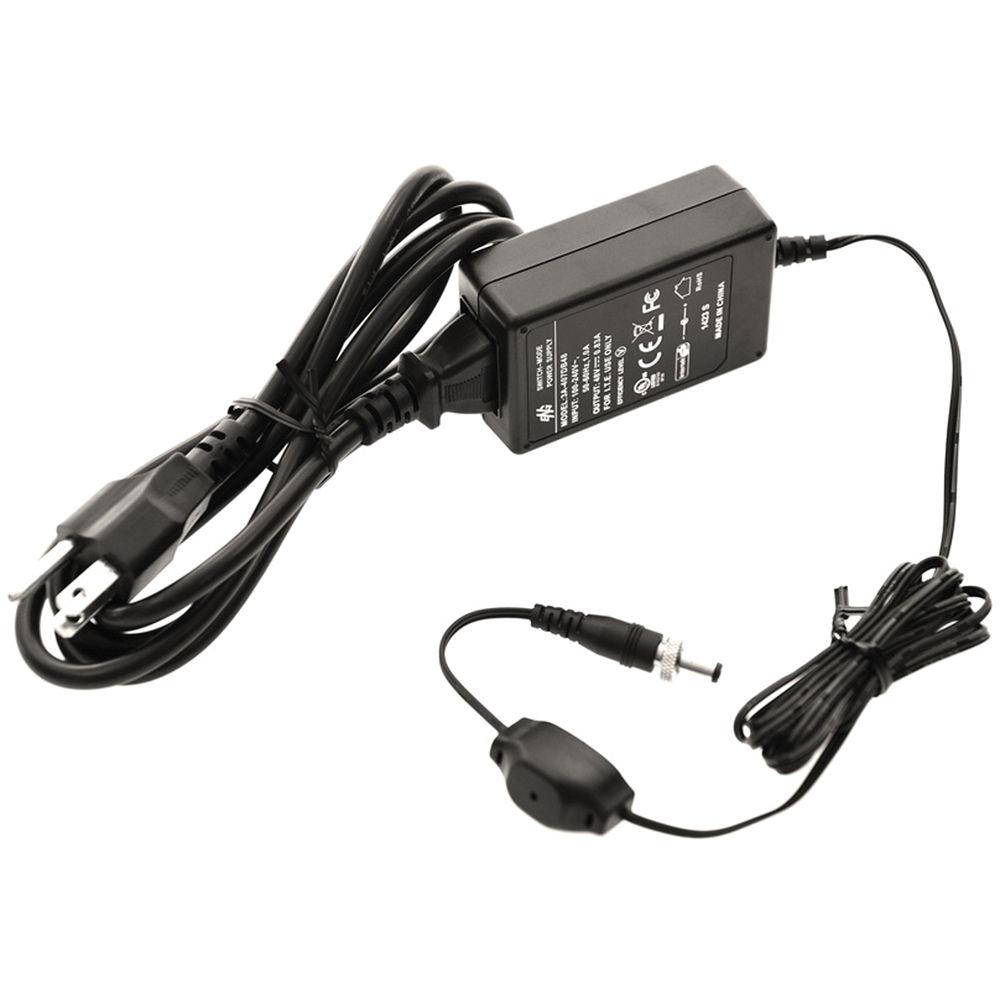

UPC: 794504033151 In the Box Zigen ZIG-POE-70 HDBaseT HDMI Extender (230') Transmitter Receiver 48 VDC Power Adapter with Lock IR Receiver 4 x Screws 8 x Foot Pads 2 x Captive Screw Connectors 2 x Phoenix Connectors IR In Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zigen ZIG-POE-70 HDBaseT HDMI Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

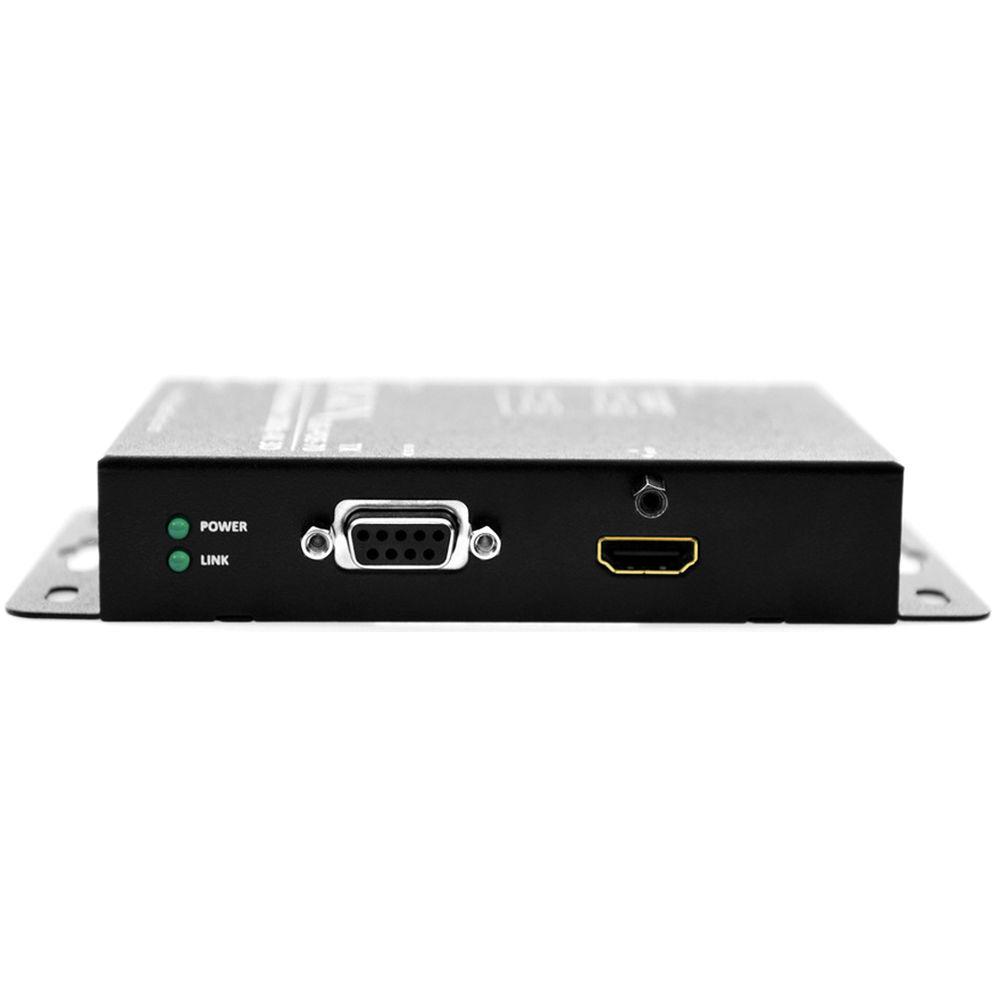

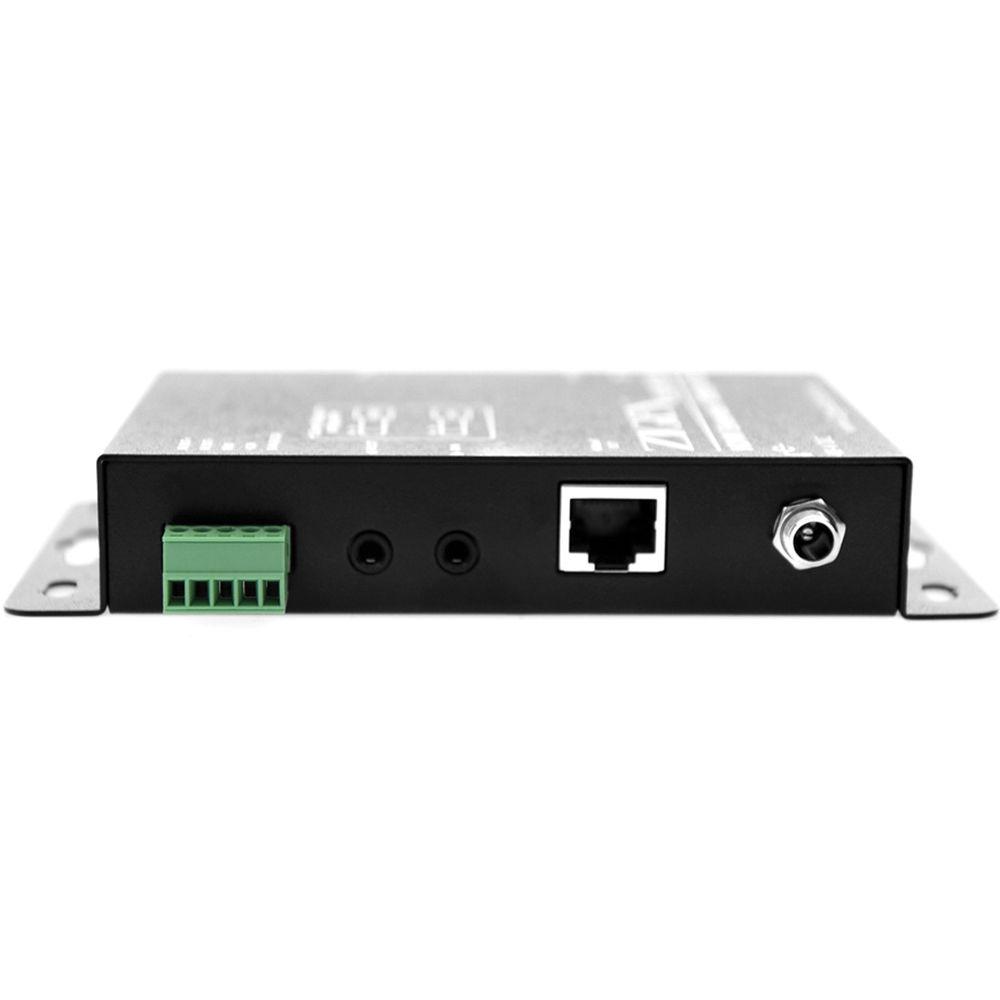

Technical parametersZigen ZIG-POE-70 Specs | Range | Up to 230' (70 m) cable distance | | Maximum Resolution | 4K UHD 2160p60 4:2:0 (HDMI 1.4) | | Supported Resolutions | 480i, 480p, 720p, 1080i, 1080p, 1920 x 1200, 4K x 2K | | HDCP Compliant | Yes | | HDMI CEC | Yes, pass-through | | Connectors | 1 x 5-pin terminal block (transmitter and receiver)
1 x IR-out (transmitter and receiver)
1 x IR-in (transmitter and receiver)
1 x RJ45 HDBaseT-out link (transmitter)
1 x RJ45 HDBaseT-in link (receiver)
1 x HDMI-In type A (transmitter)
1 x HDMI-out type A (receiver)
1 x RS-232 (transmitter and receiver)
1 x 48 VDC Power (transmitter) | | LED | Power (transmitter and receiver)
Link (transmitter and receiver) | | Power Adapter | 48 VDC with lock | | Housing | Metal | | Dimensions | Transmitter and Receiver: 5.9 x 2.9 x 0.9" (150.0 x 74.0 x 24.0 mm) | | Weight | Transmitter: 10.4 oz (296.0 g)
Receiver: 10.7 oz (303.0 g) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 12.7 x 11.3 x 2.9" |
