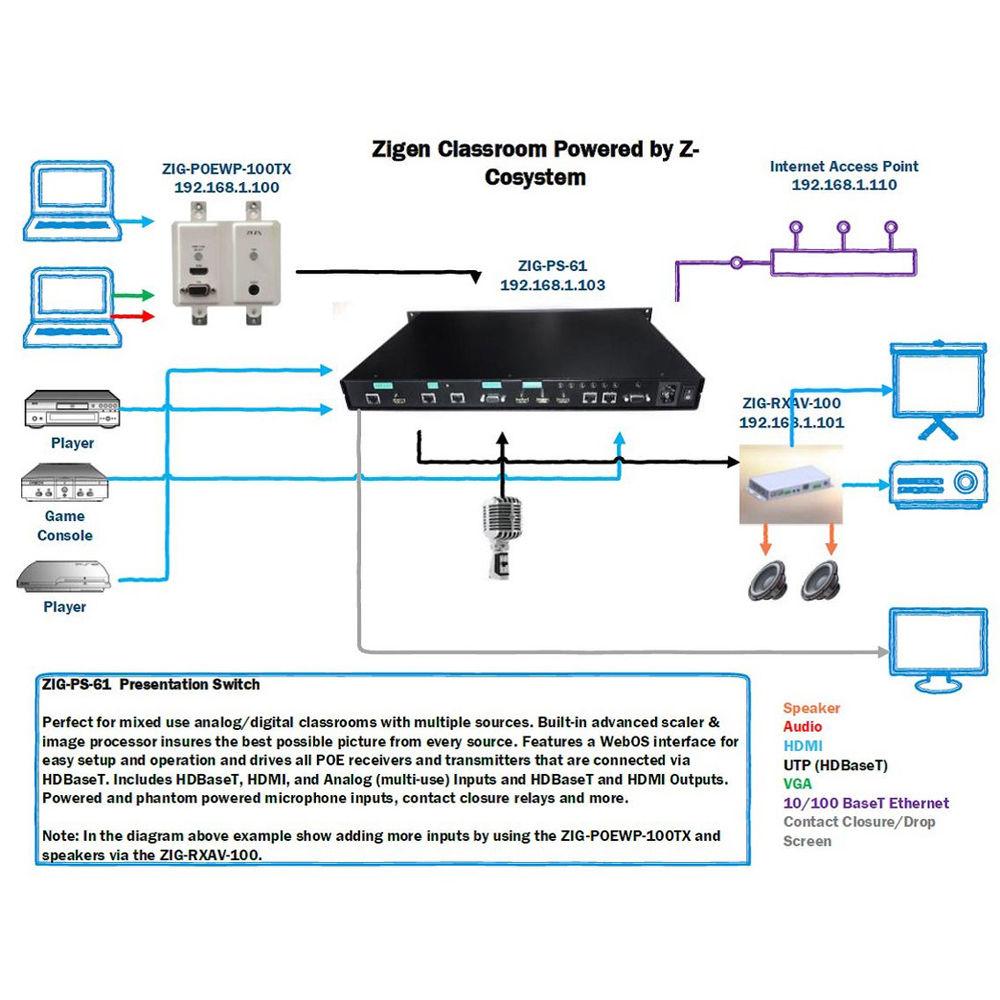

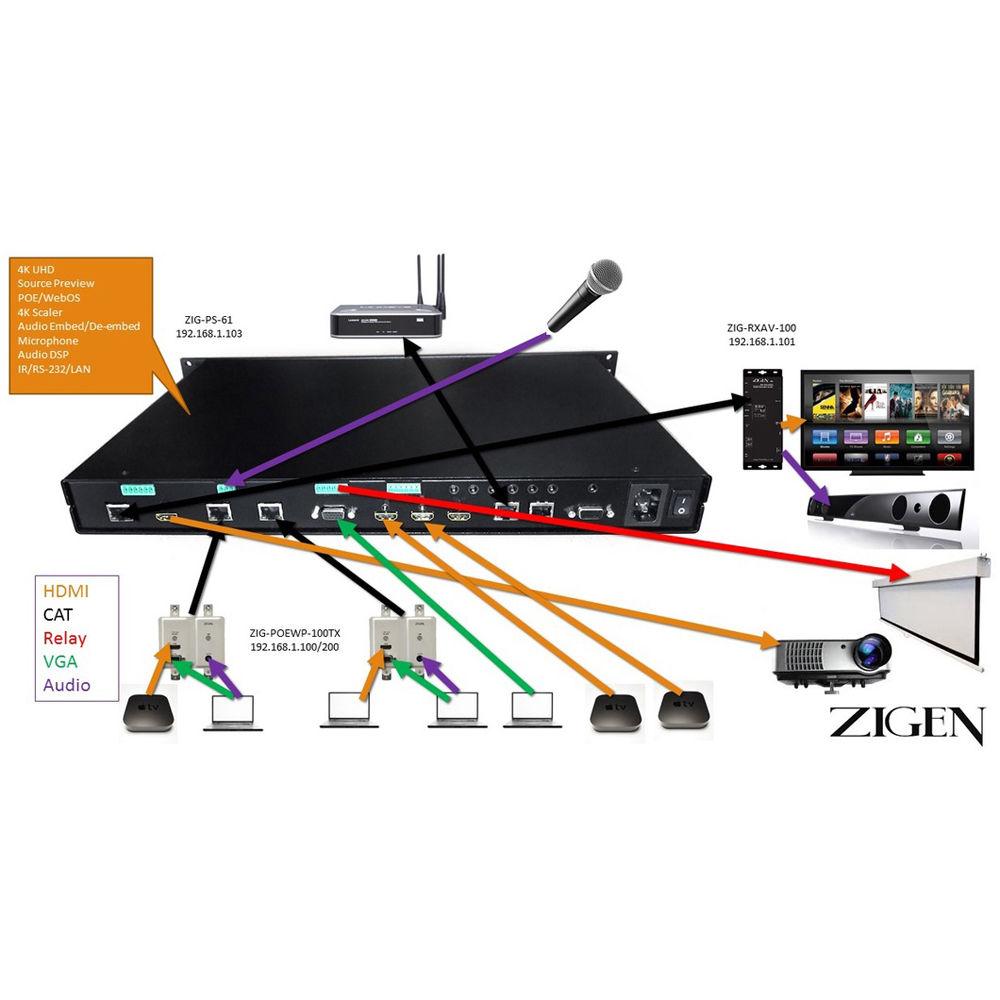

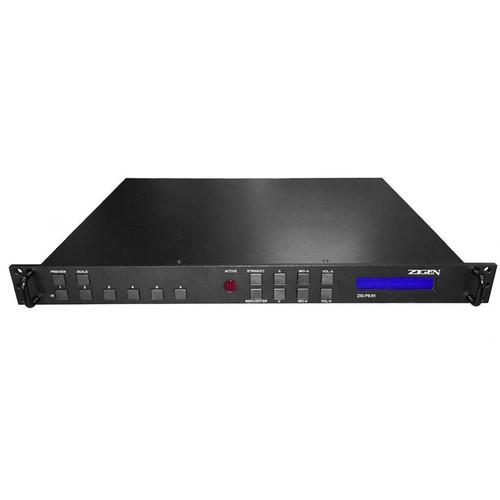

Product description The ZIG-PS-61 PoE Presentation Switch from Zigen supports six inputs, a microphone, and two outputs (mirrored). At a resolution of 2160p, the switch can be used to a distance of 328' over Cat 5e cable. It supports audio embedding and de-embedding. This rack-mountable switch is 1RU high and can work with all Zigen Z-cosystem products. - Six inputs, microphone, two PoE outputs (mirrored) to power downstream and upstream devices
- WebOS control, HDMI, VGA multiport (C, YC, Comp, RGBHV, VGA), HDBT inputs, HDMI, HDBT outputs
- Robust scaler & image processor
- Audio embedding and de-embedding, microphone input, audio DSP
- Supports digital video formats in 480i, 480p, 720p, 1080i, 1080p, 1920 x 1200, 2K, and 4K resolution; 4K/2K, 30 Hz 24 bpp. 4K/2K, 60 Hz, 24 bpp with 4:2:0 pixel format
- Supports uncompressed PCM 2-channel, 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, and more
In the Box Zigen ZIG-PS-61 PoE Presentation Switch with HDBaseT Technology Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zigen ZIG-PS-61 PoE Presentation Switch with HDBaseT Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

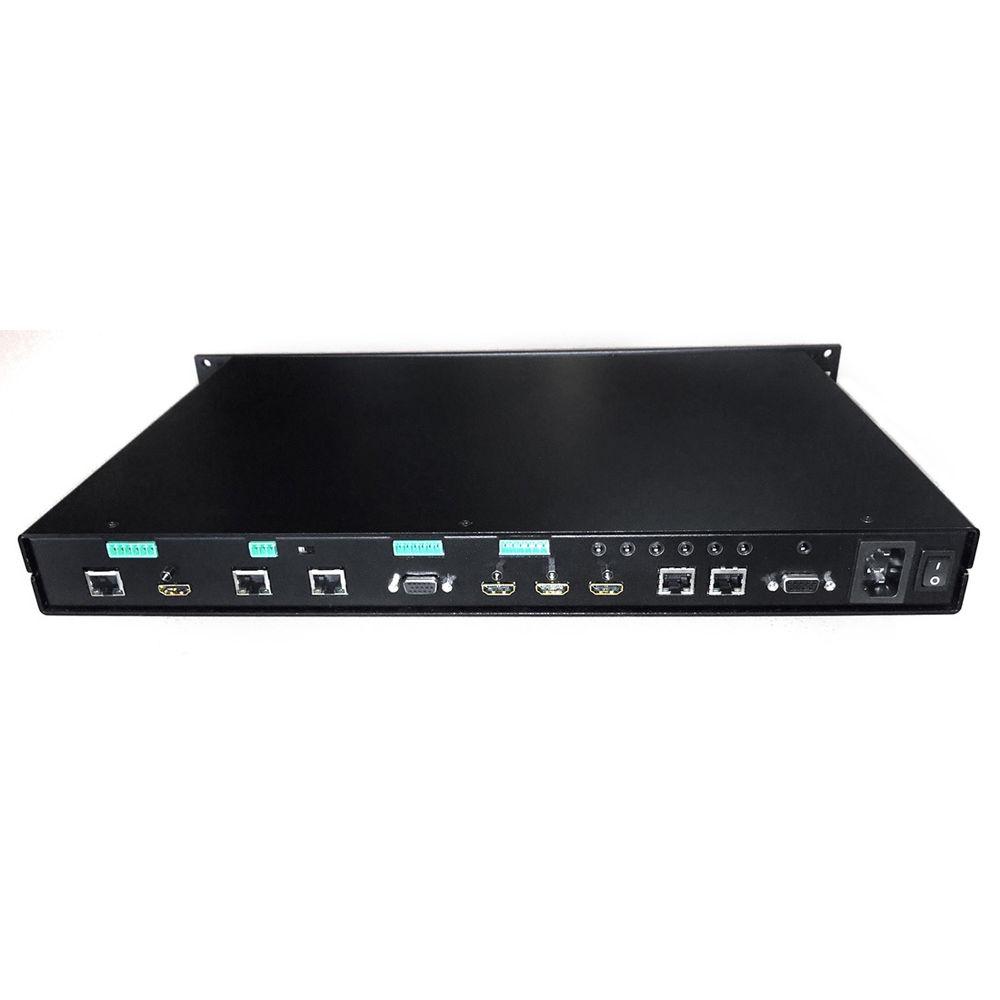

Technical parametersZigen ZIG-PS-61 Specs | Ports | HDBaseT: RJ45
2 x inputs, 1 x output (mirrored)
HDMI: Female
3 x inputs, 1 x output (mirrored)
VGA: Female
Input: Multiport via breakout cable; VGA, RGBHV, Comp, Y/C, Composite
IR: 3.5" stereo
RS-232: 9-pin serial
2 x contact closures
2 x Ethernet 10/100
Power: IEC 110/220CV Audio/Video - HDMI | | Operating Distance | 328' / 100 m at 2160p on Cat 5e | | Bandwidth | 10.2 Gb/s | | Video Resolution | Up to Ultra HD (2160p/60 4:2:0 8-bit) | | Audio | Embedding & de-embedding
Up to Dolby TrueHD and DTS-HD master | | Rack Mountable | Yes | | Certifications | FCC, HDBT, CE, RoHS | | Power Consumption | 25 W | | Works with | All Zigen Z-cosystem products | | Rack Mount Dimensions | 1RU high; 1.75" / 4.45 cm | | Weight | 7.83 lb / 3.55 kg |
