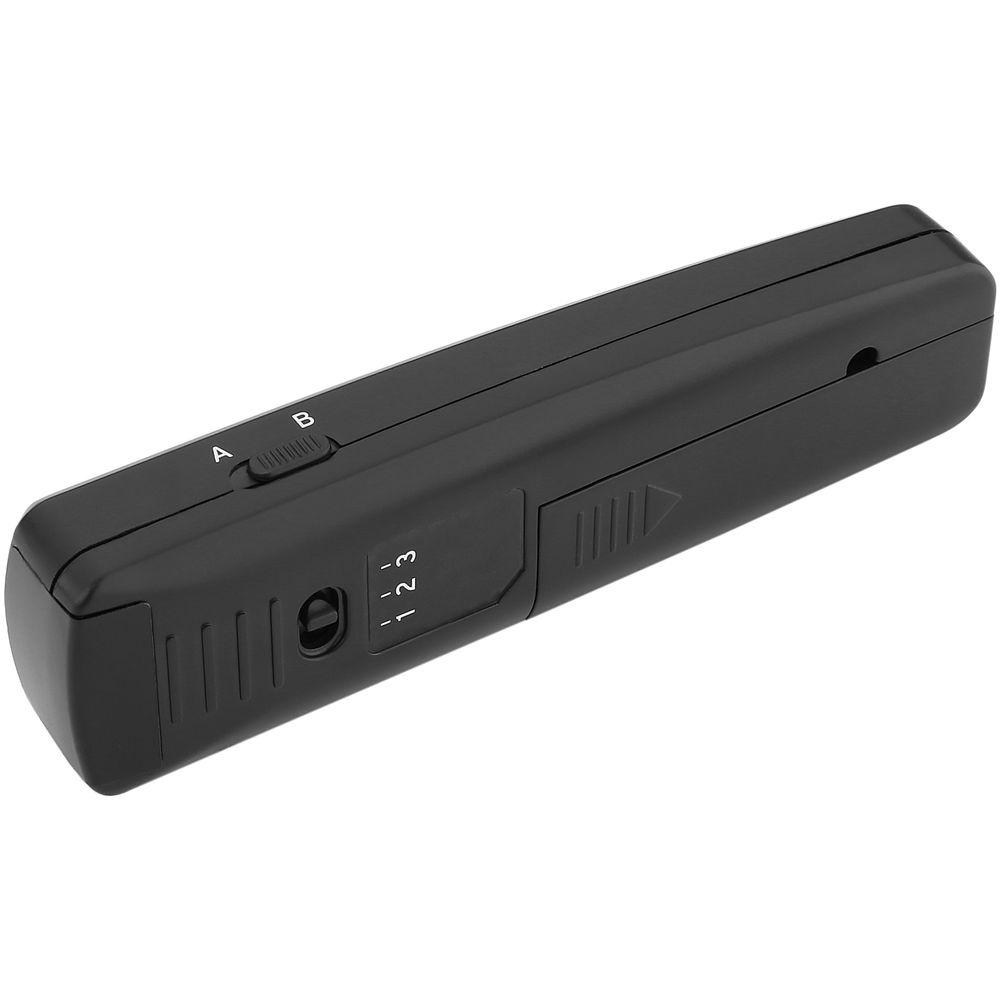

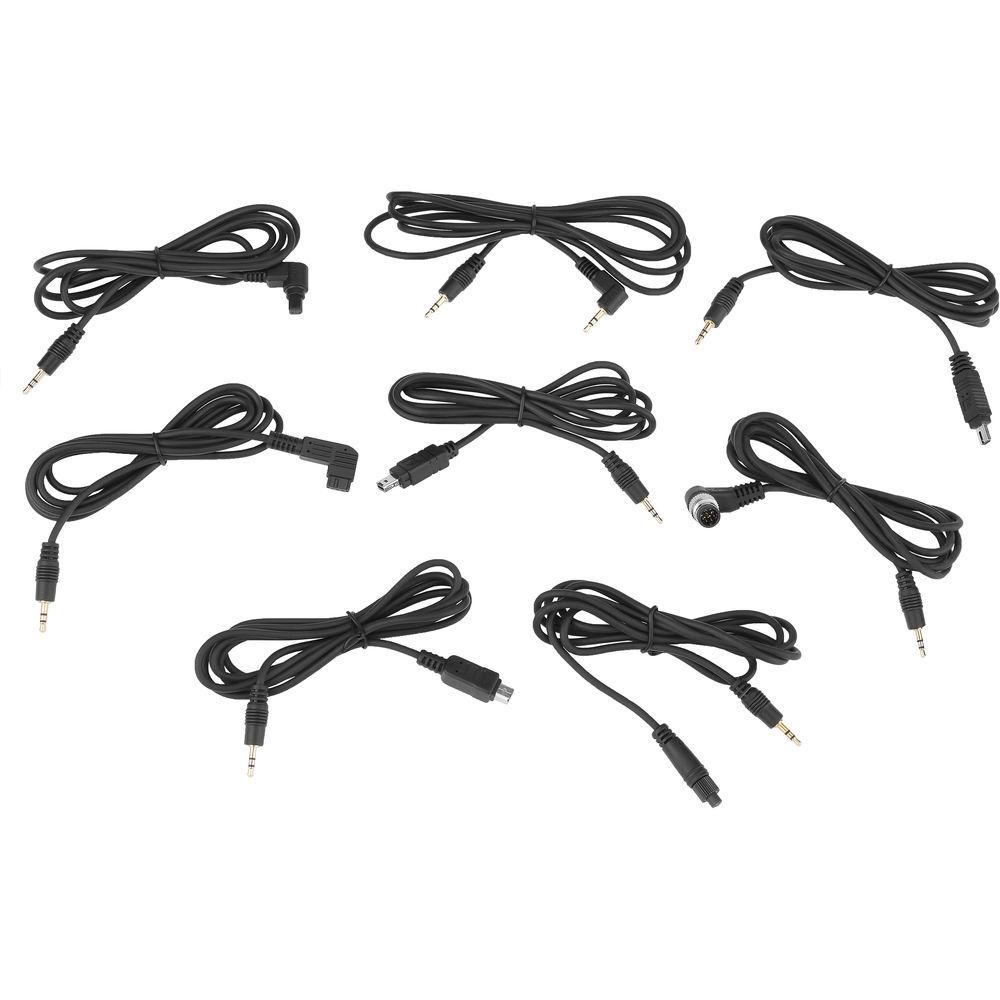

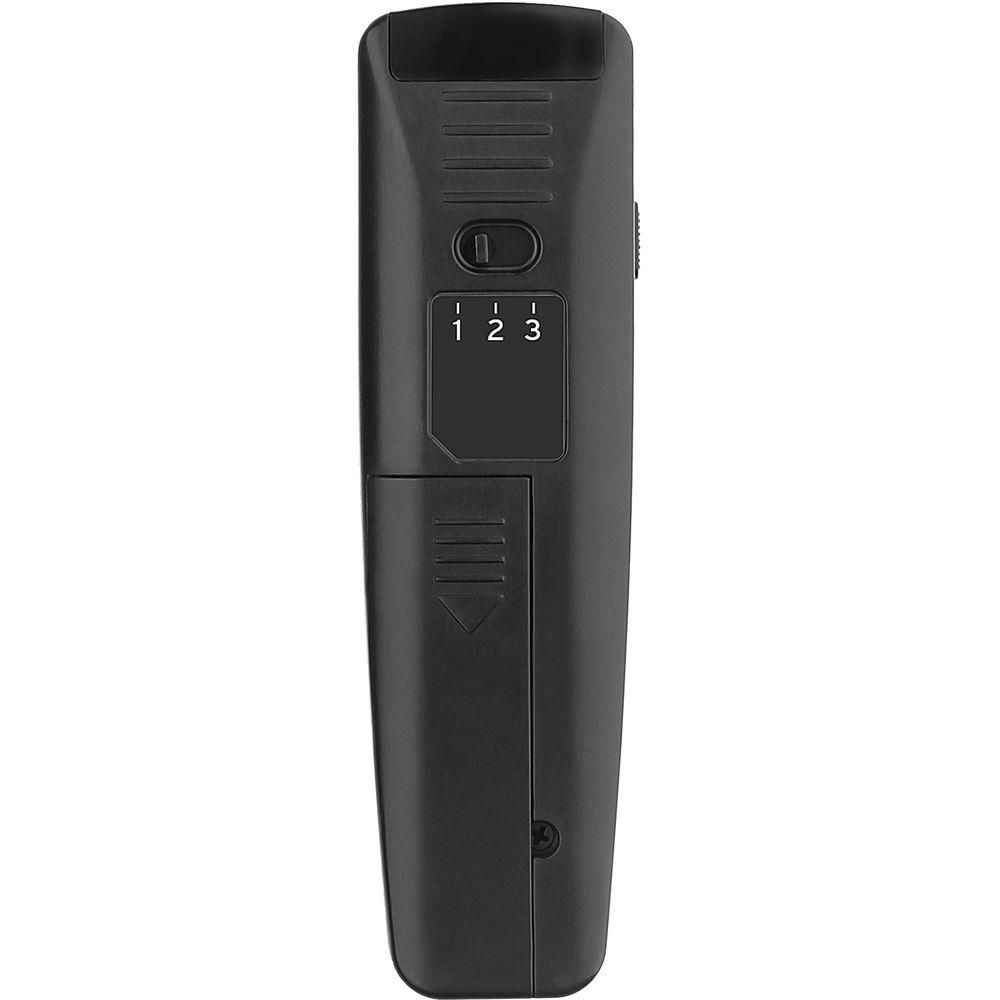

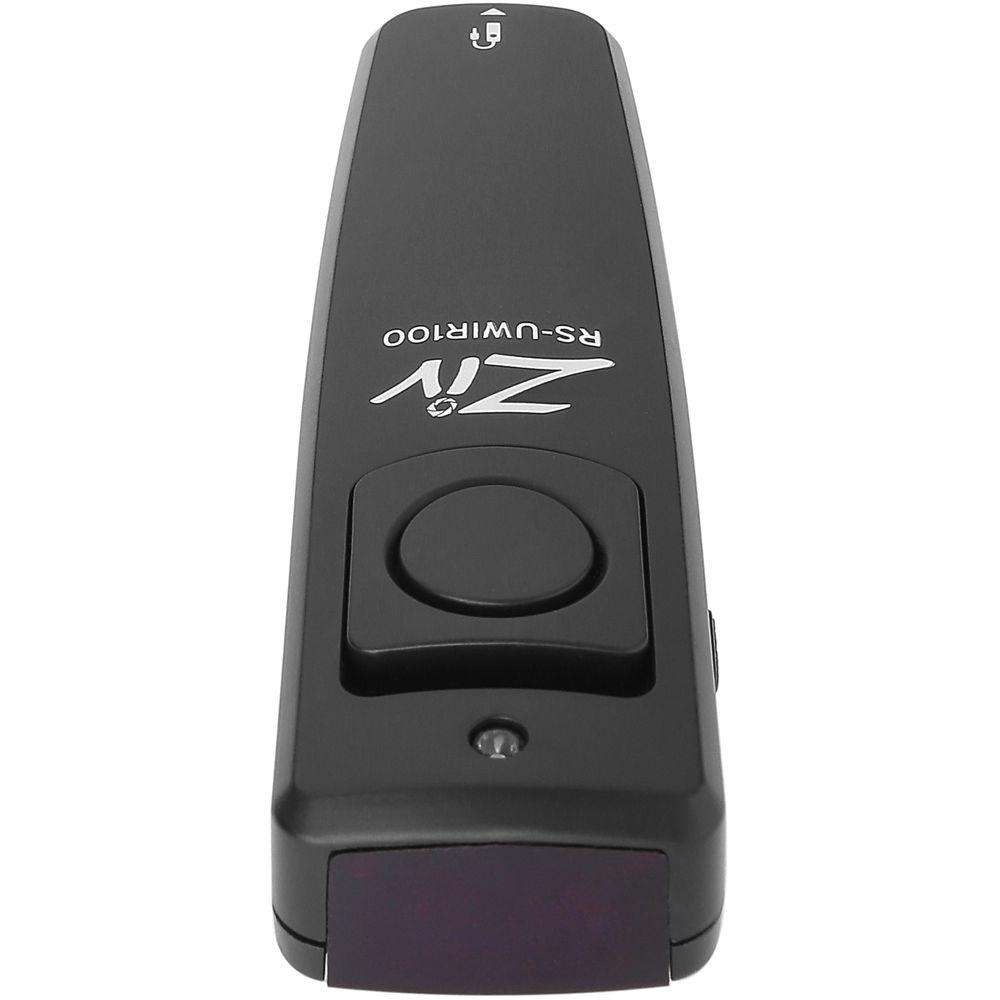

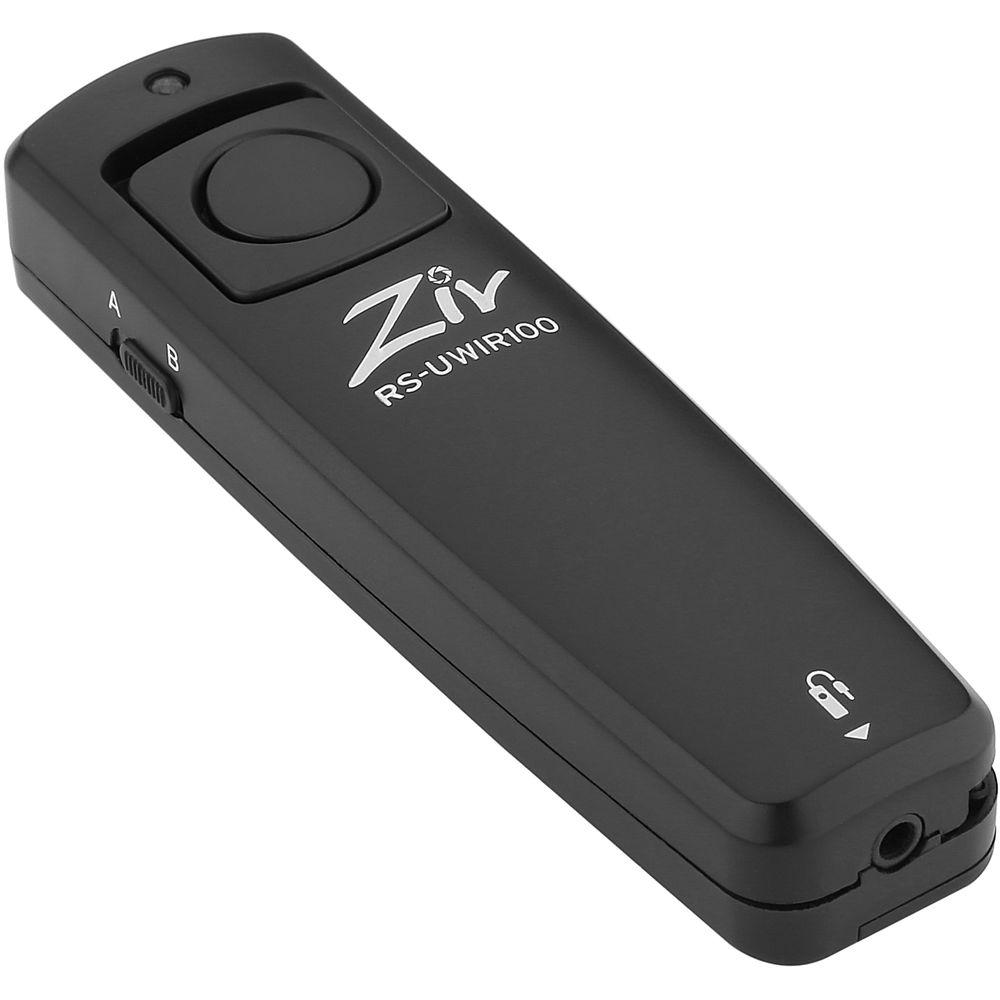

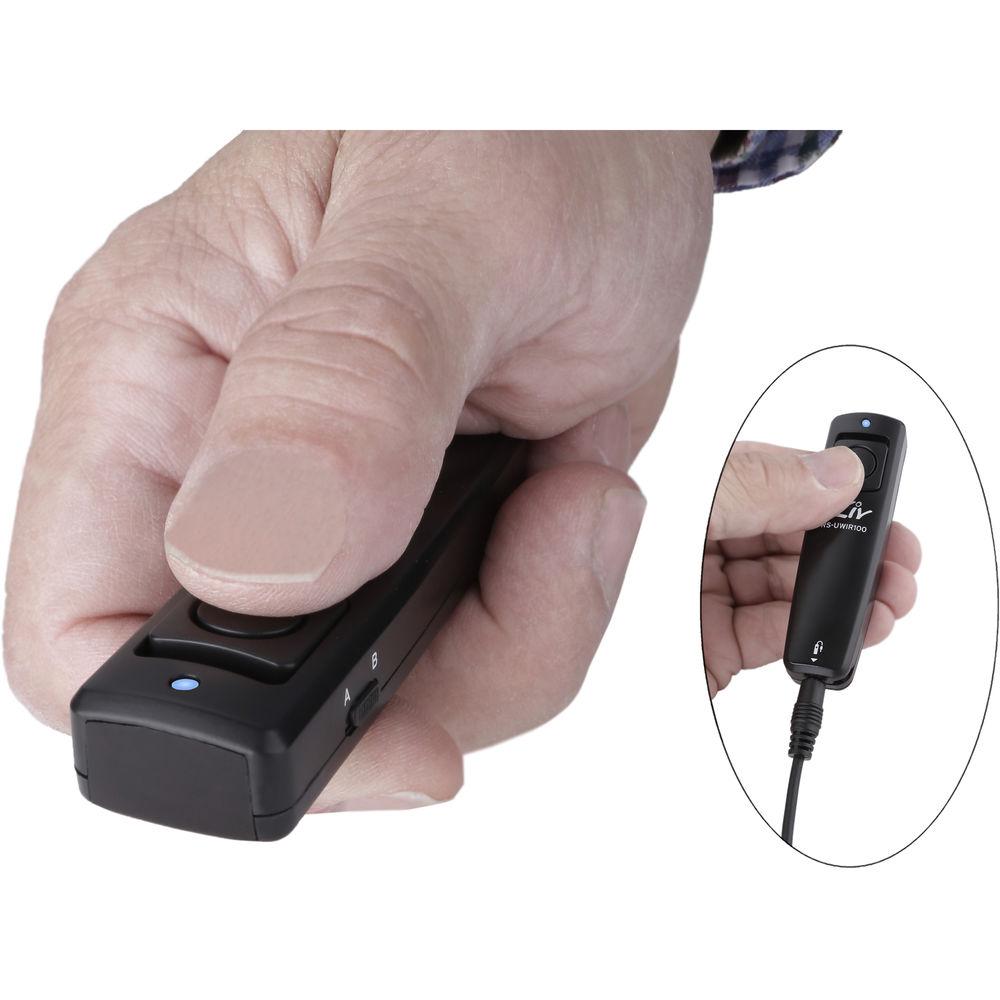

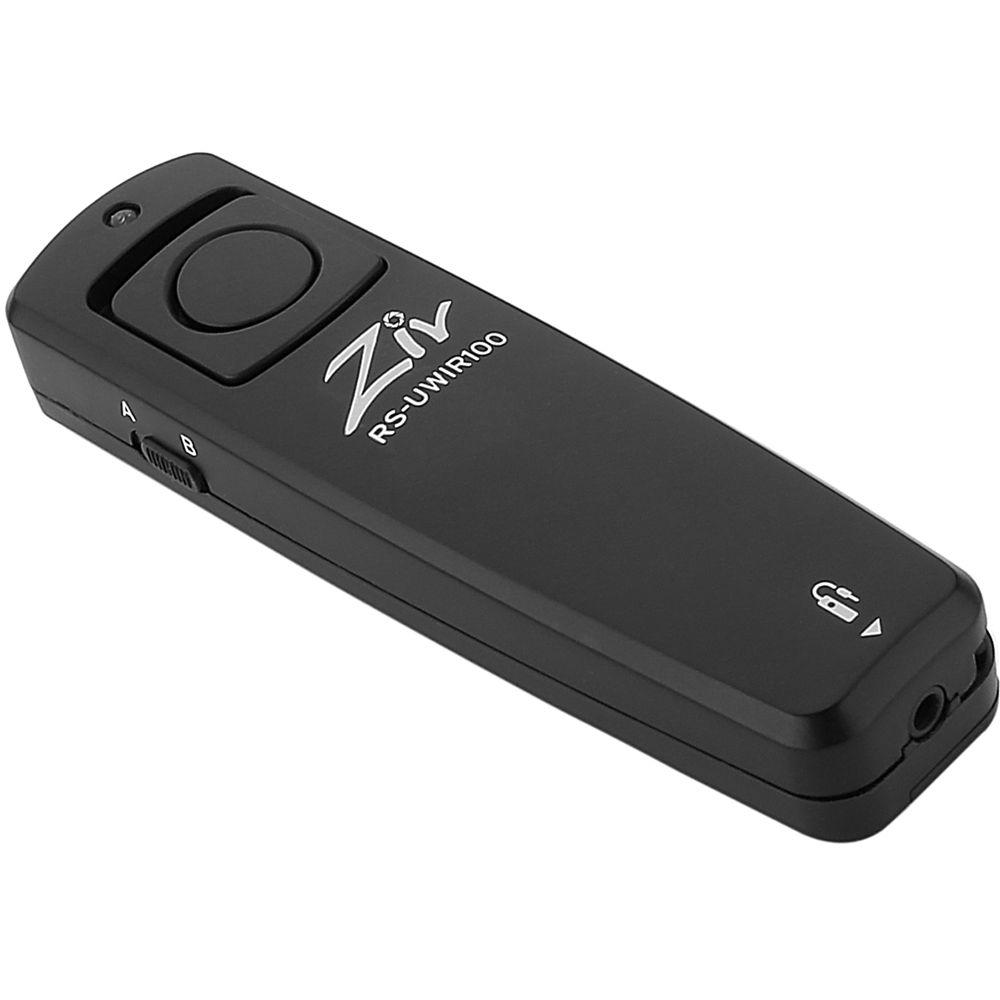

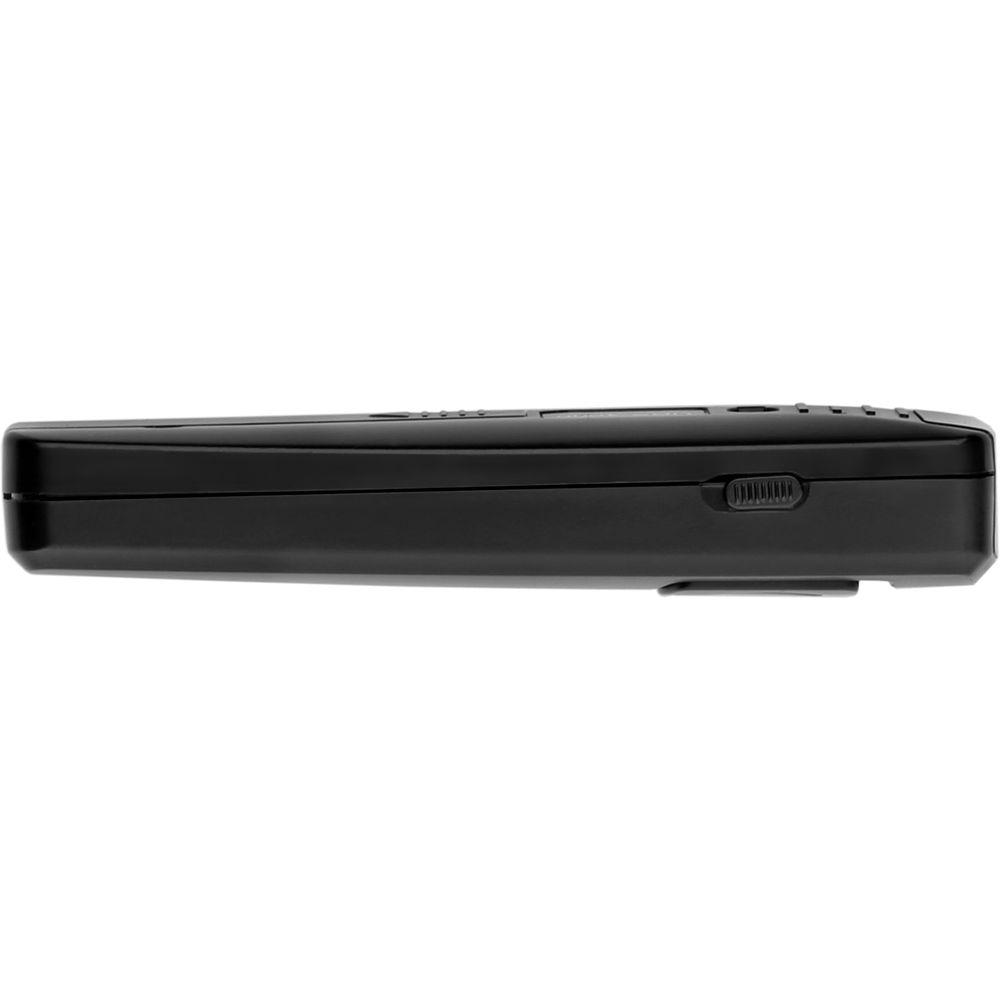

Product description Time-Lapse Tips and Tools Read More The Universal Wired and Infrared Remote Release from Ziv is a two-in-one shutter release designed to work with most DSLR cameras. The remote contains a built-in infrared transmitter which, when paired with an IR enabled DSLR, can wirelessly trigger the camera shutter from a distance of up to 15'. The infrared mode can be used with a single button press or can lock for bulb exposures.The remote can also function as a wired trigger for select DSLR cameras when used with one of the 8 included shutter release cables. The wired mode also utilizes both single press and lock modes and does not require a battery to function. The switches on the back and sides of the remote are used to control a built-in LED which blinks in different patterns to indicate that the shutter has been triggered.
Note: The Infrared feature is not compatible with Sony cameras - Compatibility:
- Canon 3-Pin: 10D, 20D, 30D, 40D, 50D, 5D, 5D Mark II, 5D Mark III, 5DS, 5DR, 6D, 7D, 7D Mark II, 1D, 1D Mark II, 1D Mark II N, 1D Mark III, 1D Mark IV, 1Ds, 1Ds Mark II, 1Ds Mark III, 1D X and 1D C
Canon Sub-Mini: EOS 30, 33, 50, 60D, 60Da, 70D, Rebel 2000 (300), Digital Rebel (300D), XT (350D), XTi (400D), XSi (450D), T1i (500D), T2i (550D), T3 (1100D), T3i (600D), T4i (650D), T5 (1200D), T5i (700D), SL1 (100D) and XS (1000D); PowerShot G10, G11, G12, G15, G16, G1 X, G1 XII, and SX50 HS
Nikon 10-Pin: D1, D1H, D1X, D2, D200, D2H, D2Hs, D2X, D2Xs, D3, D300, D300s, D3s, D3x, D4, D4s, D700, D800, D800e and D810
Nikon DC-1: D70s, D80
Nikon DC-2: D90, D3100, D3200, D5000, D5100, D5200, D5300, D5500, D7000, D7100, D7200, D600, D610, D750, Df, and COOLPIX P7800
Olympus 3-Pin: E5, E3, E1, E10, E20, E20N, E300, E-100RS, C8080, C7070, C5050, C2500L
Olympus USB: OM-D E-M1, E-M5, E-M10; Evolt E400, E410, E420, E450, E510, E520, E620; EM-1, E-P5; Pen E-P2, E-P3, E-PL2, E-PL3, E-P5, E-PL5, E-PL7, E-PM1; SP-510UZ, SP-550UZ, SP-560UZ, SP-570UZ, XZ-1
Sony 3-Pin: a100, a200, a300, a350, a500, a550, a560, a580, a700, a850, a900, a33, a35, a37, a55, a57, a65, a77, a77II, and a99
Minolta 3-Pin: 5D, 7, 7D, 7i, A1, and A2 UPC: 847628585195 In the Box Ziv Universal Wired and Infrared Remote Release Limited 1-Year Warranty User Manual PDF 203.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Ziv Universal Wired and Infrared Remote Release in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZiv RS-UWIR100 Specs | Release Type | Wired

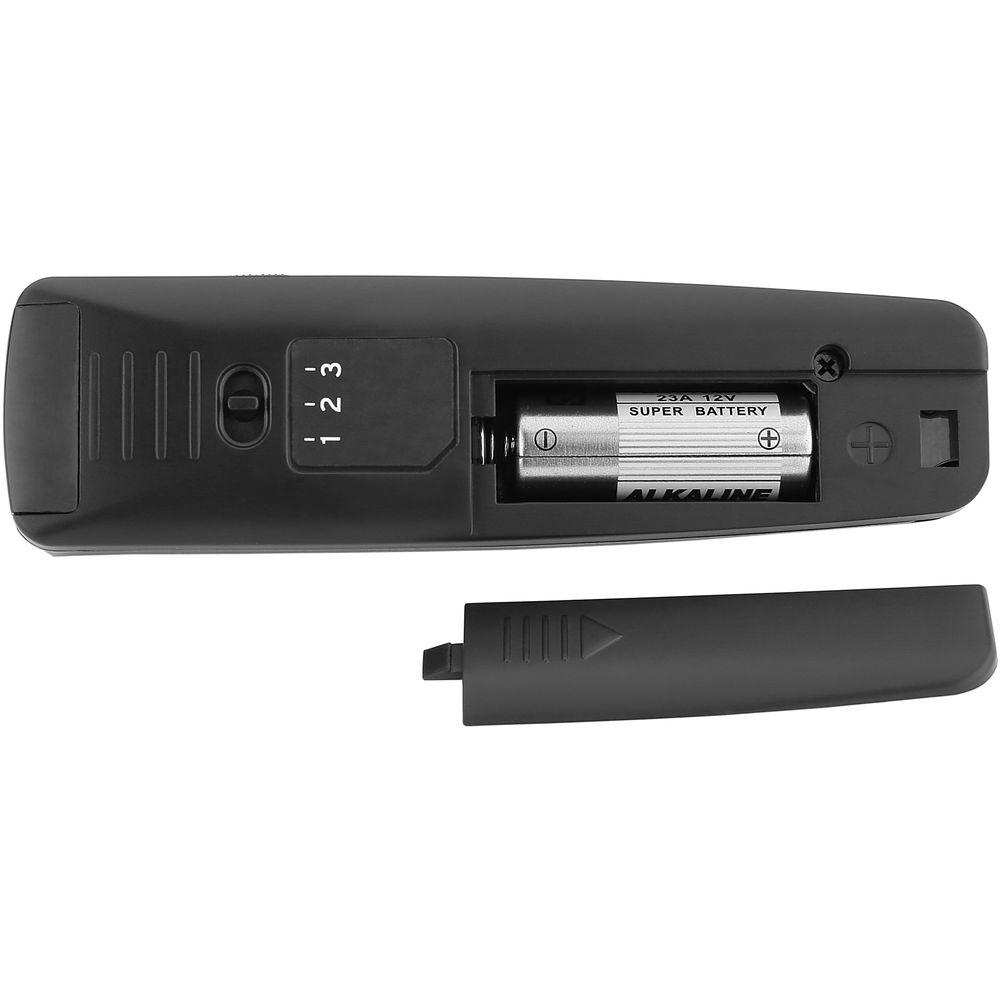

Wireless: IR (Infrared) | | Camera Connection | Various/Universal | | Interval Timer/Programmable | No | | Live View | No | | Mobile Device/App-enabled | No | | Wireless Range | 15'; / 4.6 m | | Transmitter Power Source | Battery | | Transmitter Battery Requirements | 1 x 23A | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 6.6 x 5.1 x 2.1" |
