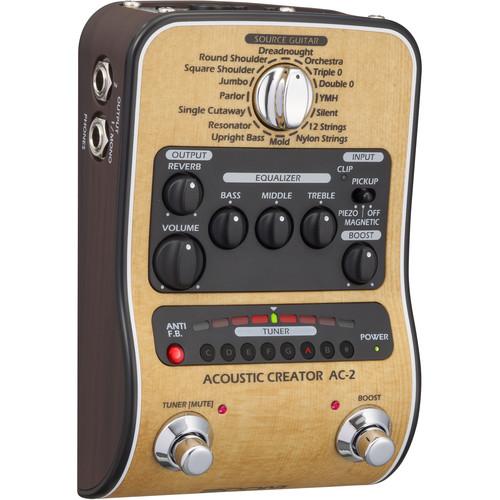

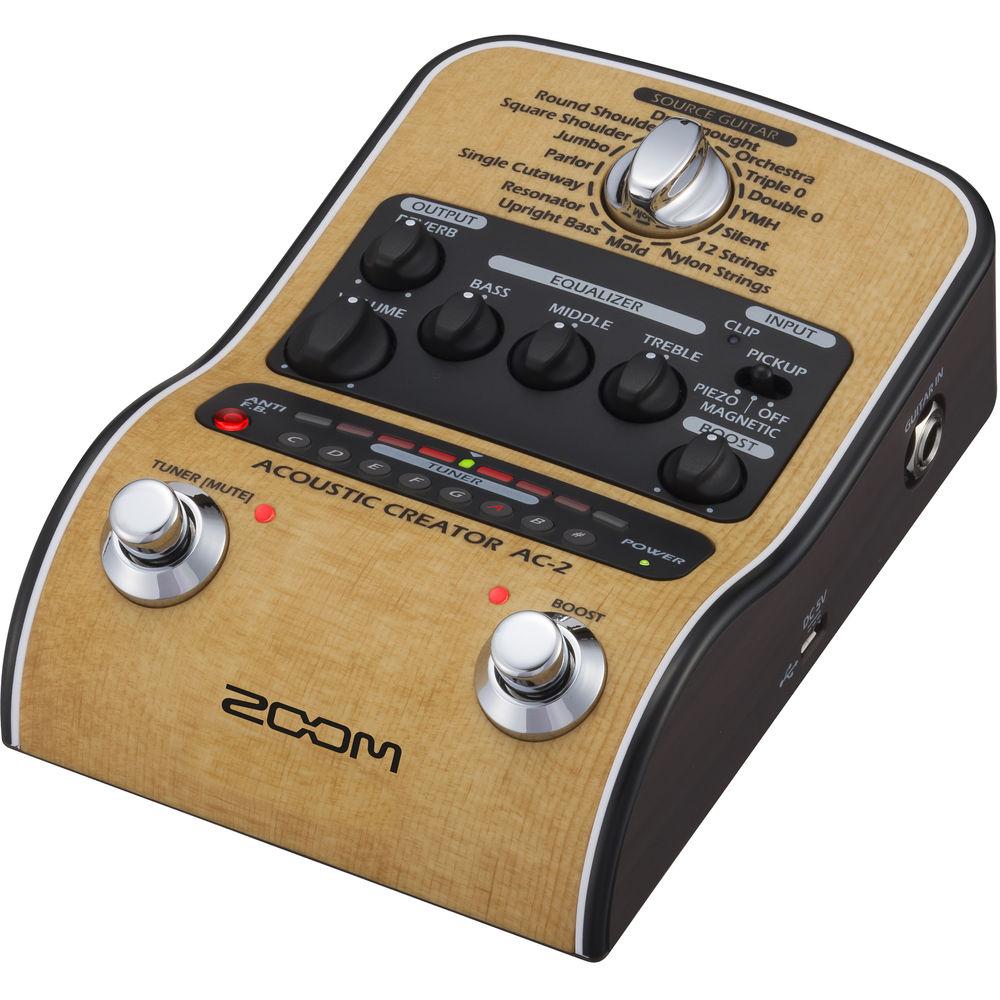

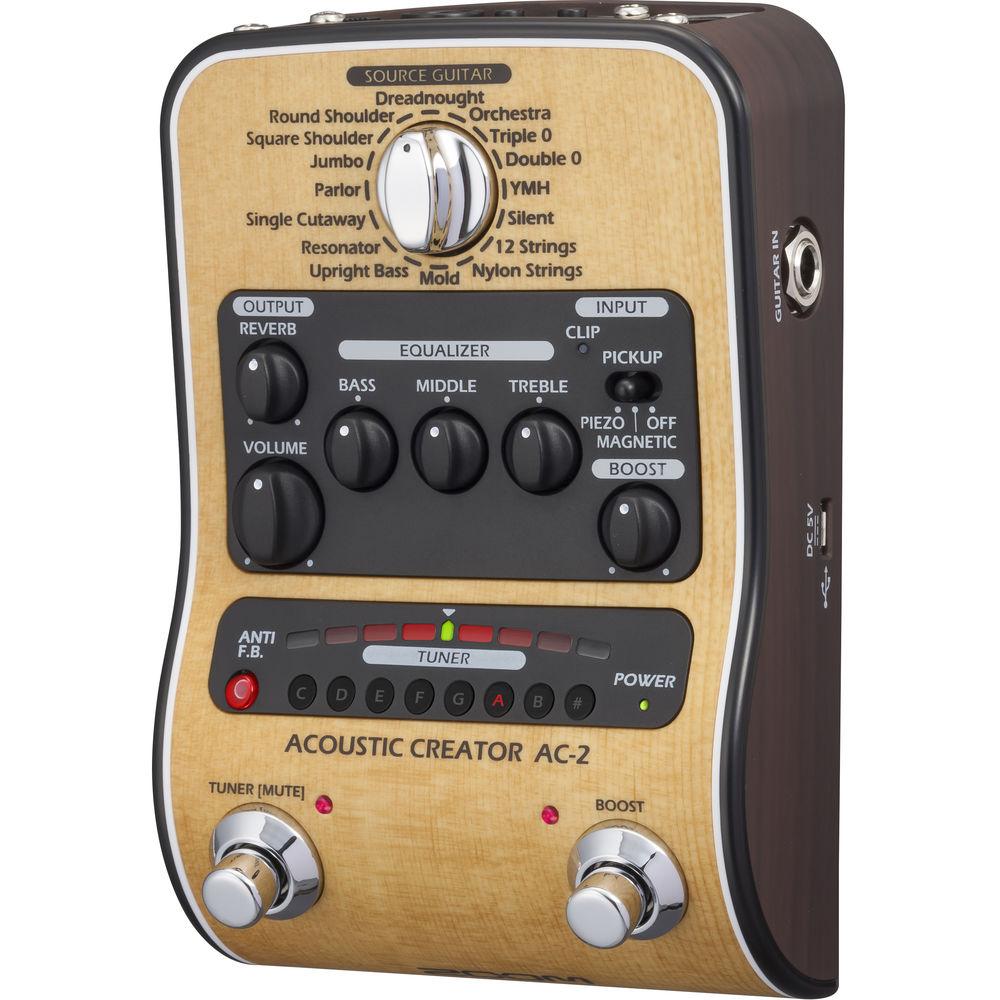

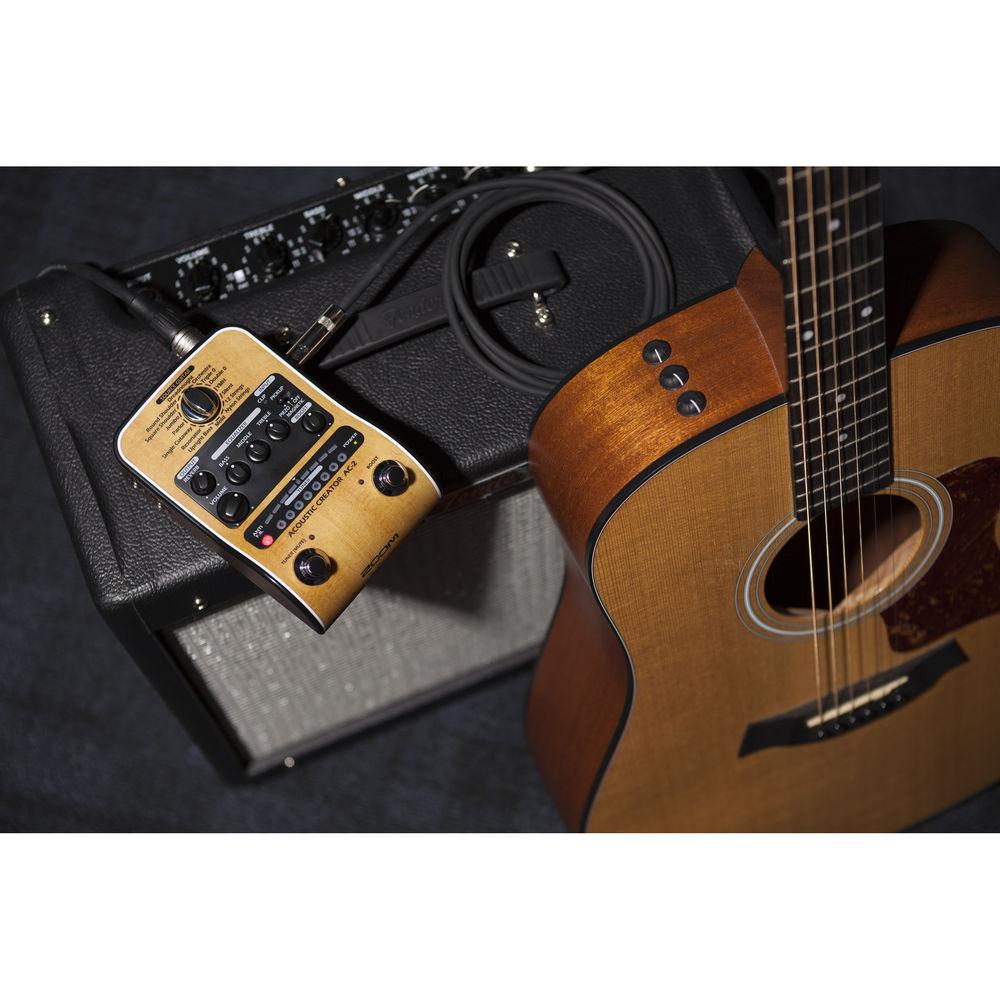

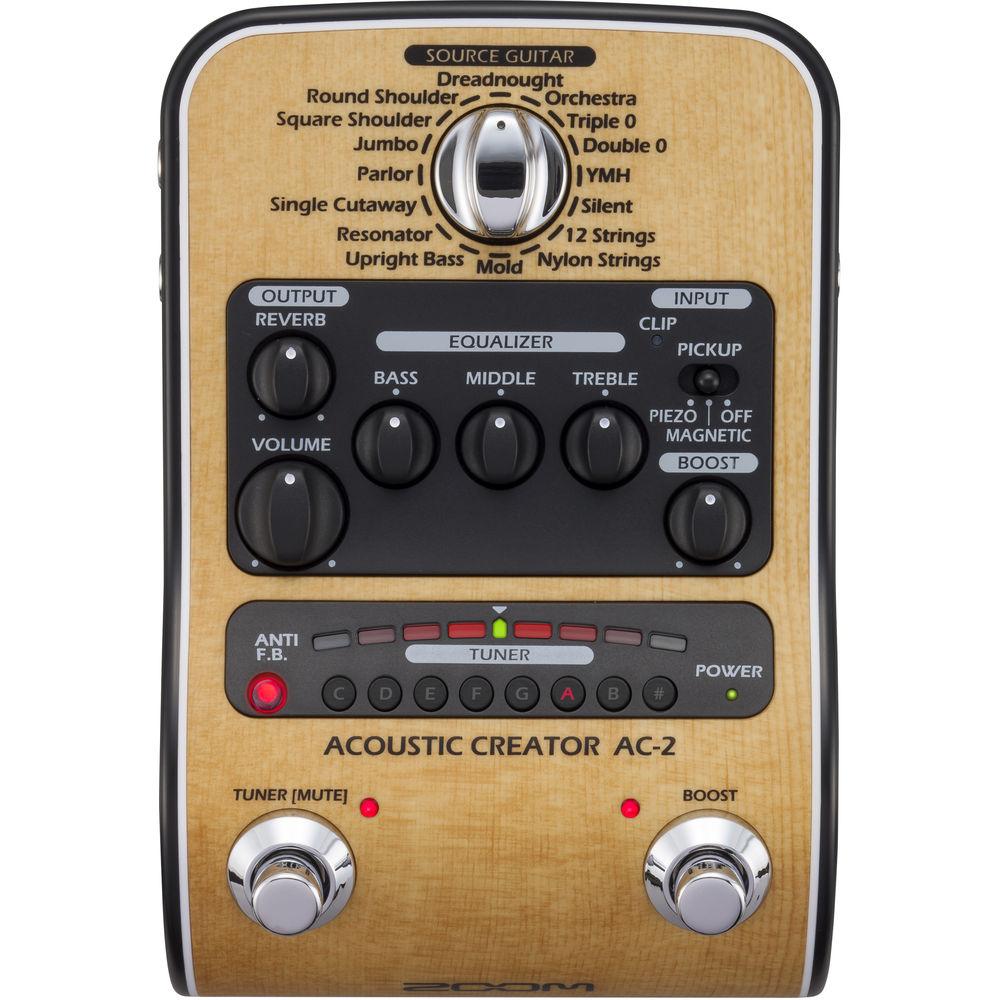

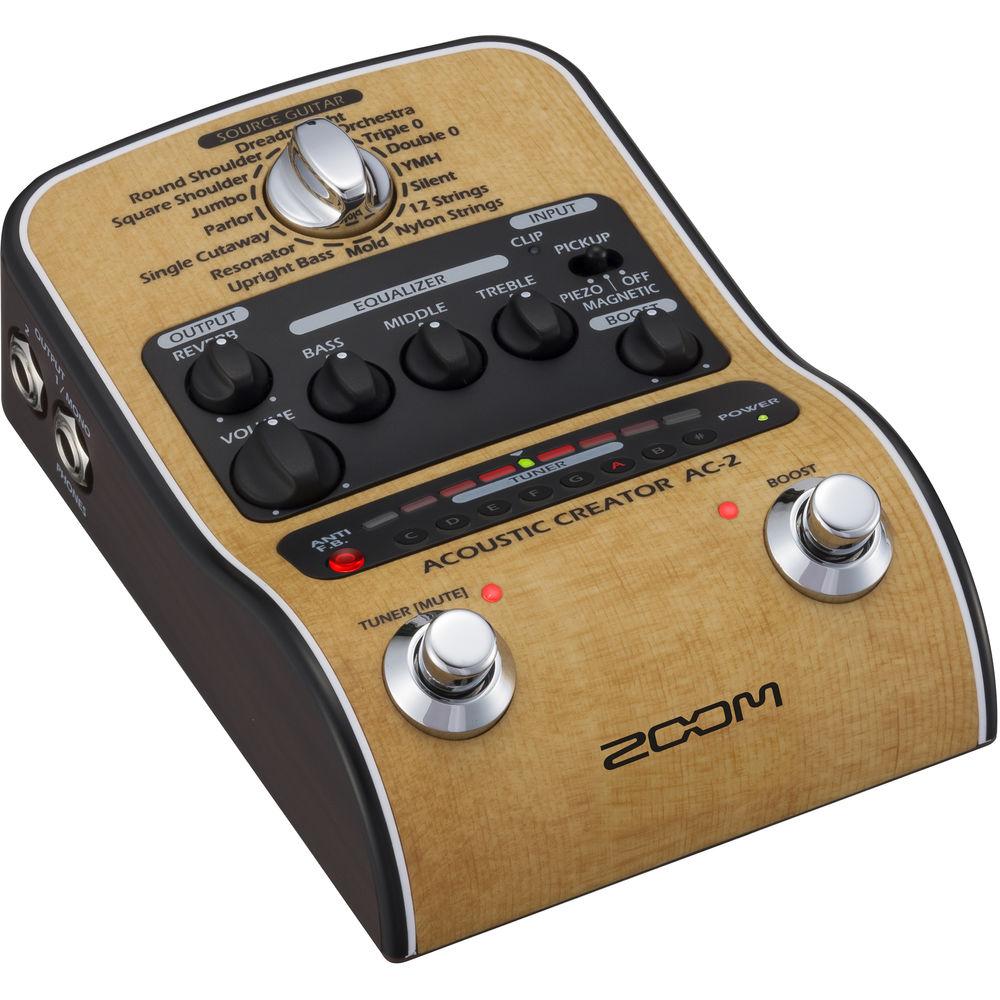

Product description Zoom Introduces the New AC-2 Acoustic Creator Read More yrufyzywvbartdctfybfuw Geared for acoustic guitar players in amplified contexts, the Zoom AC-2 Acoustic Creator is a DI which aims to recreate the natural sound of your guitar, restoring the tone that’s inevitably lost through using conventional acoustic pickups. The pedal features 16 source presets, so whether your axe is a dreadnought or a parlor guitar, this device has the right sonic signature for you. You can even select presets for upright bass, nylon-string guitars, and 12-string instruments.An onboard toggle lets you choose between magnetic and piezo, thereby tailoring the pedal’s mechanics for each type of system. A three-band equalizer helps you balance the tone of your instrument, while reverb, adjustable volume, anti-feedback control, and a built-in tuner are boons as well. There’s even a boost switch to give you up to 9 dB of gain during lead breaks or solos. Moreover, whichever tone you choose, the high-quality, low-noise preamp will help you achieve a lush and resonant sound. The prominent volume knob controls both input gain and output level, eliminating the guesswork in matching sound levels.A standard instrument input is provided for connecting to the pedal. For outputs, you can either used the balanced XLR jack, or if stereo sound is required, the dual 1/4” connections will get you to your destination. This routing facilitates use with amplifiers, mixers, interfaces, and even headphones, as one of the 1/4" jacks doubles as a headphone output for monitoring your sound right from the DI. Power is available via the included power supply, through batteries, or over USB. - Key Features
- 16 source guitar type/body presets for more accurate tone reproduction1/4" input for instrumentsXLR balanced output for house PA, mixers, and interfacesTwo 1/4” outputs for mono or stereo connection to guitar amps and headphonesOnboard reverb effectsHigh-quality, low-noise preampPiezo/magnetic input pickup selector3-band equalizerInput and output gain/sensitivity adjustable via single volume knobAnti-feedback controlBoost switch for up to 9 dB of additional gainBuilt-in chromatic visual-LED tunerUSB connection for firmware updatesDual output jacks for connection to guitar amps and mono or stereo PA systems3 power options: 2 x AA batteries, the included Zoom AD-16 power adapter (9 VDC in), or bus power via micro-USB port
UPC: 884354017705 In the Box Zoom AC-2 Acoustic Creator Pedal 9V Power Supply Adapter For Zoom Effects Pedals Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom AC-2 Acoustic Creator Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

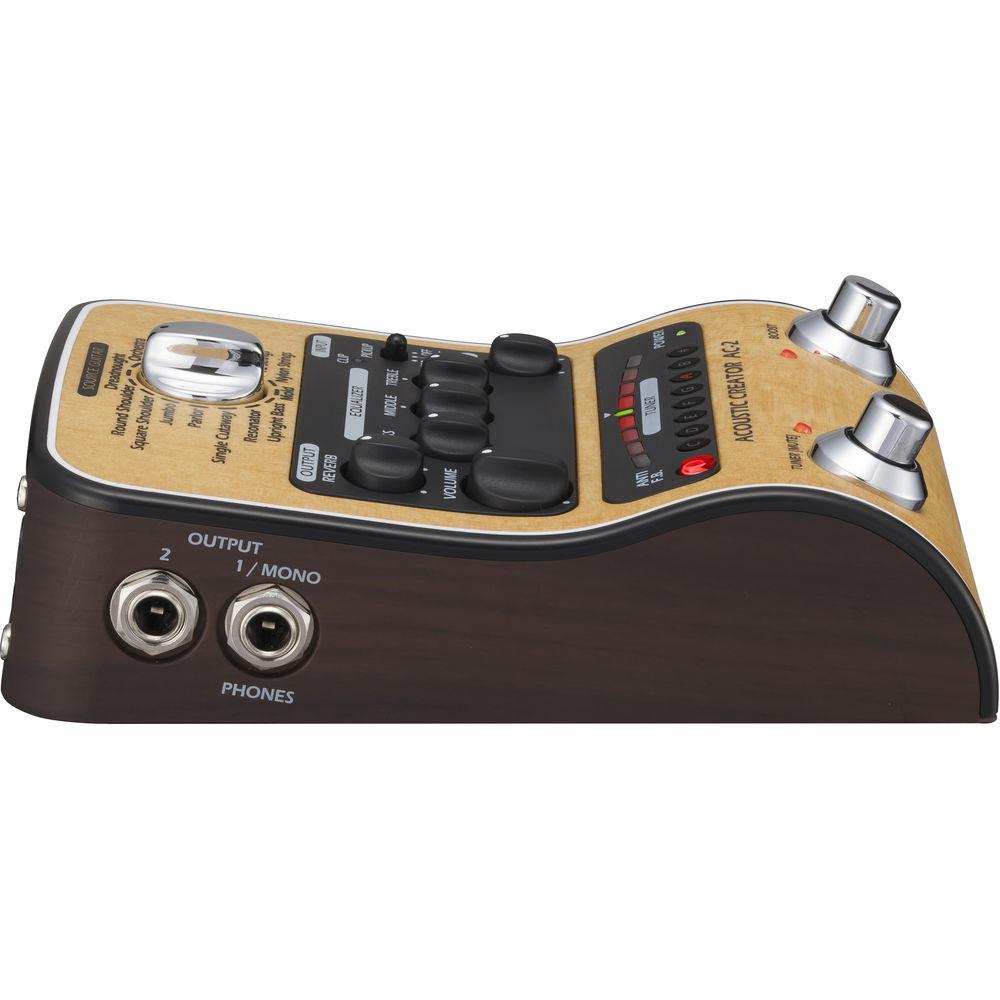

Technical parametersZoom AC-2 Specs | I/O | 1 x 1/4" input, phone type
1 x 1/4" output, phone type
1 x 1/4" output/headphone output, phone type
1 x XLR output, balanced | | Effects | 16 types | | Sampling Frequencies | 44.1 kHz | | A/D and D/A Conversion | 24-bit with 128x oversampling | | Signal Processing | 32-bit | | Frequency Characteristics | 20 Hz to 20 kHz, +1 dB, -3 dB (10-kOhm load) | | Impedance | Input: 10 MOhms
XLR output: 100 Ohms (hot-ground, cold-ground), 200 Ohms (hot-cold) 1/4" output, mono: 10 kOhms or higher
1/4" output, headphones: 32 Ohms | | Rated Input | -20 dBu | | Maximum Output Level | Output: Line +7 dBu
Phones: 8 mW + 8 mW into 32-Ohm load | | EIN | 120 dBu | | Noise Floor | -100 dBu | | Power | 9 VDC, 500 mA | | Power Supply | Zoom AD-16 power supply, bus power over USB, or 2 x AA batteries | | USB | Micro-USB, type-B | | Dimensions (D x W x H) | 6.2 x 4.2 x 2.0" / 15.8 x 10.7 x 5.2 cm | | Weight | 1.3 lb / 570.0 g (not including batteries) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 9.5 x 7.0 x 2.9" |
