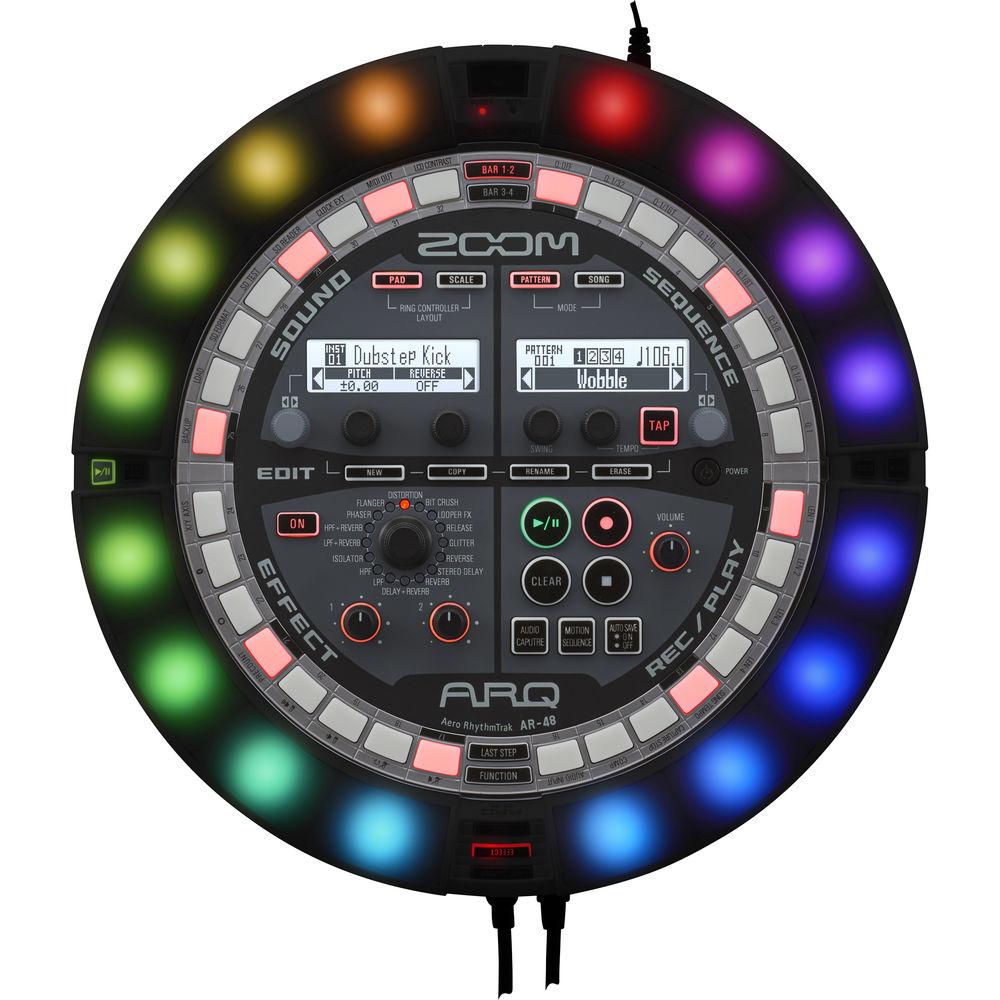

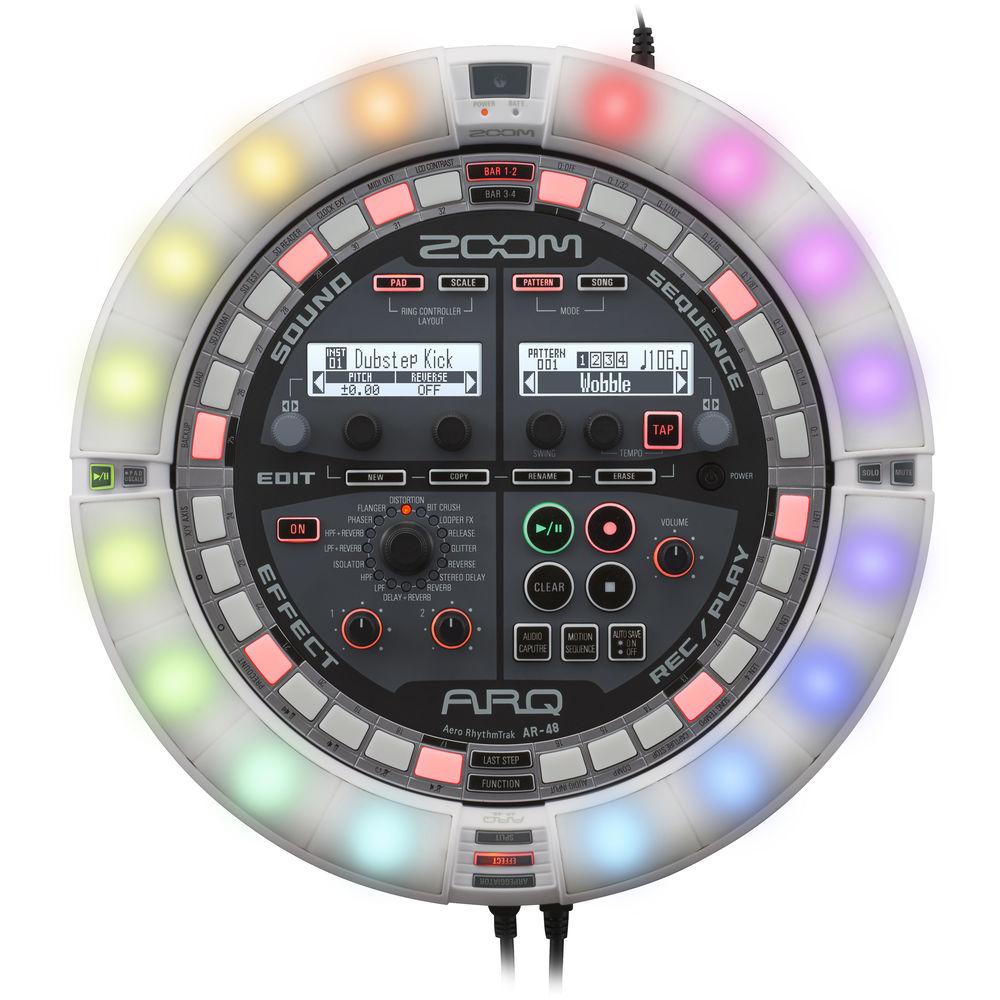

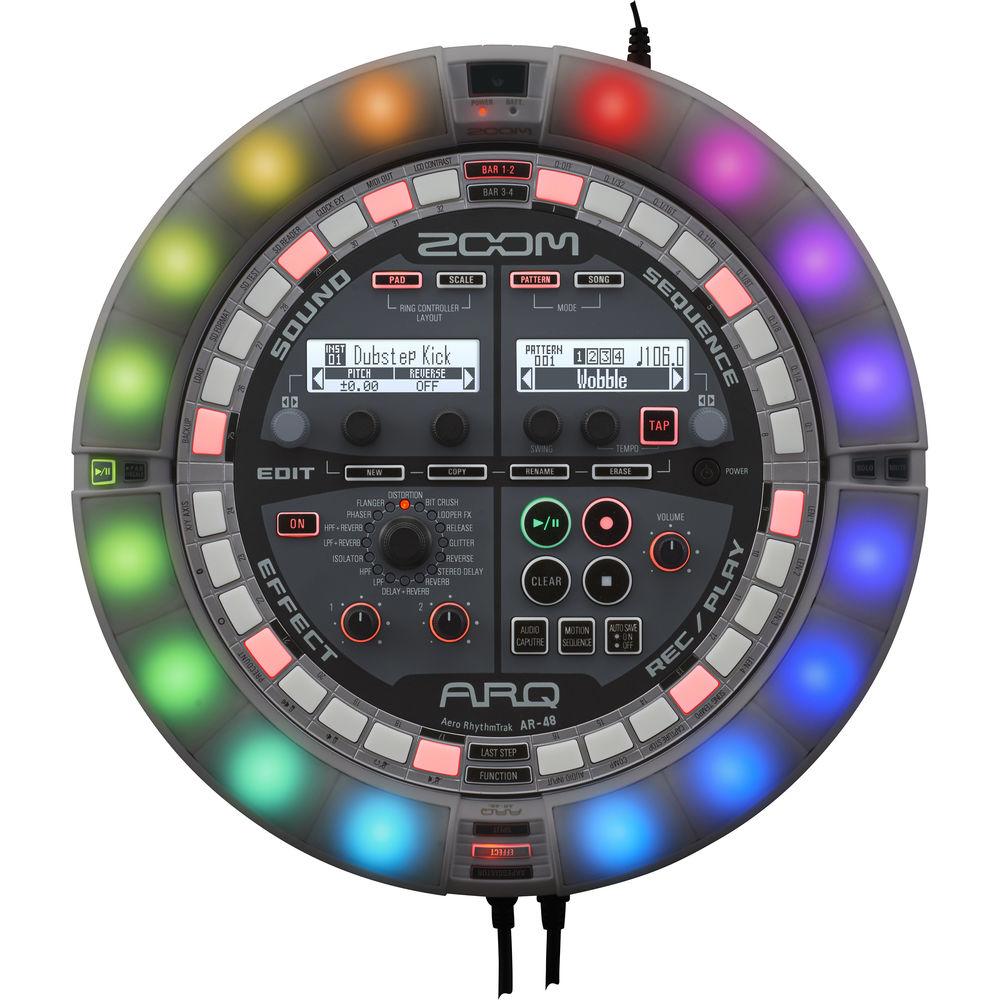

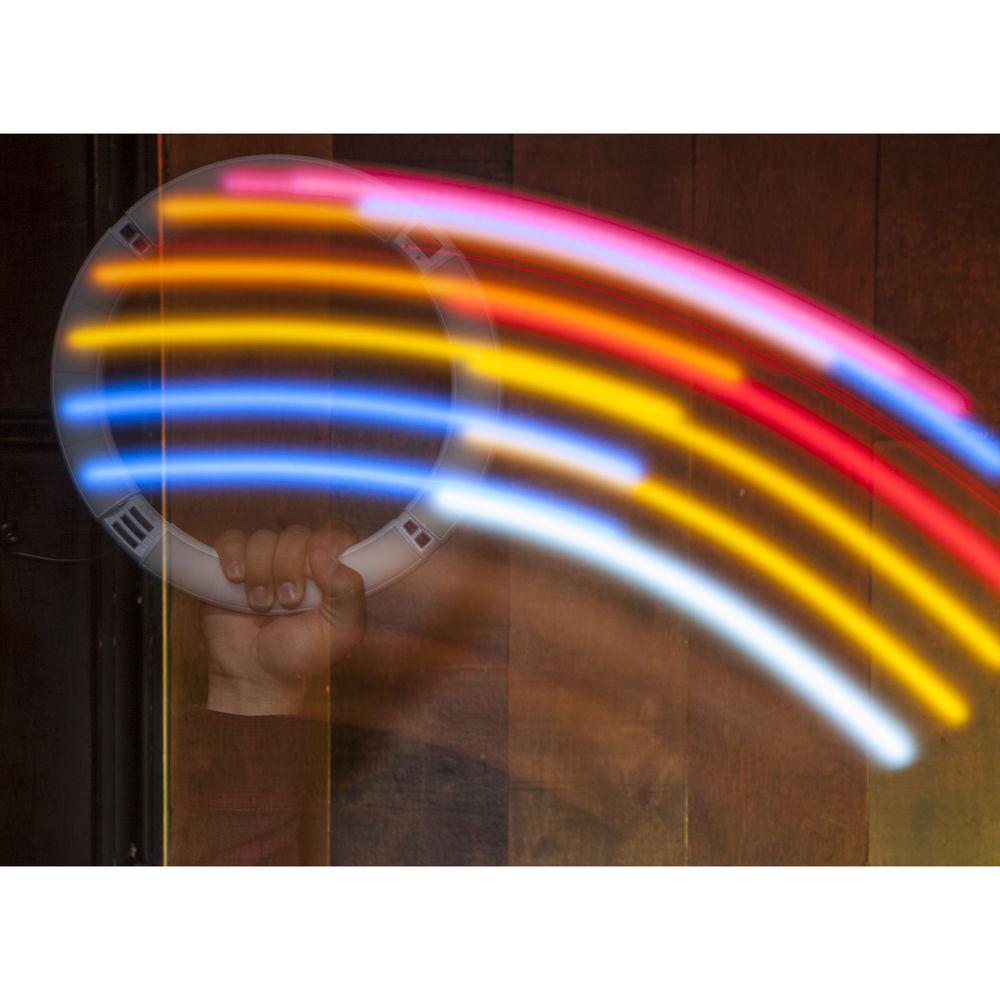

The Zoom ARQ AR-48 Aero RhythmTrak is an all-in-one production and live performance instrument with an integrated drum machine, sequencer, synthesizer, looper, clip launcher, and MIDI controller. The ARQ consists of two powerful components: the Base Station and the detachable Ring Controller. The Base Station houses all the I/O and on-board sounds and effects, including 460 drum/instrument sounds, a synthesizer with three sub-oscillators, as well as 16 master effects including reverb, high- and low-pass filters, delay, bit crush, and more. Connections include a line-level 1/8" TRS jack for sampling phrases into the looper and two 1/4” jacks for connecting to any line-level mixer, PA, or studio monitoring system. Also included is a stereo 1/8” headphone jack with a dedicated volume control. Additionally, a USB port allows for connections to a computer, while the SD card slot lets you save patterns and loops, import prerecorded audio, and update firmware.

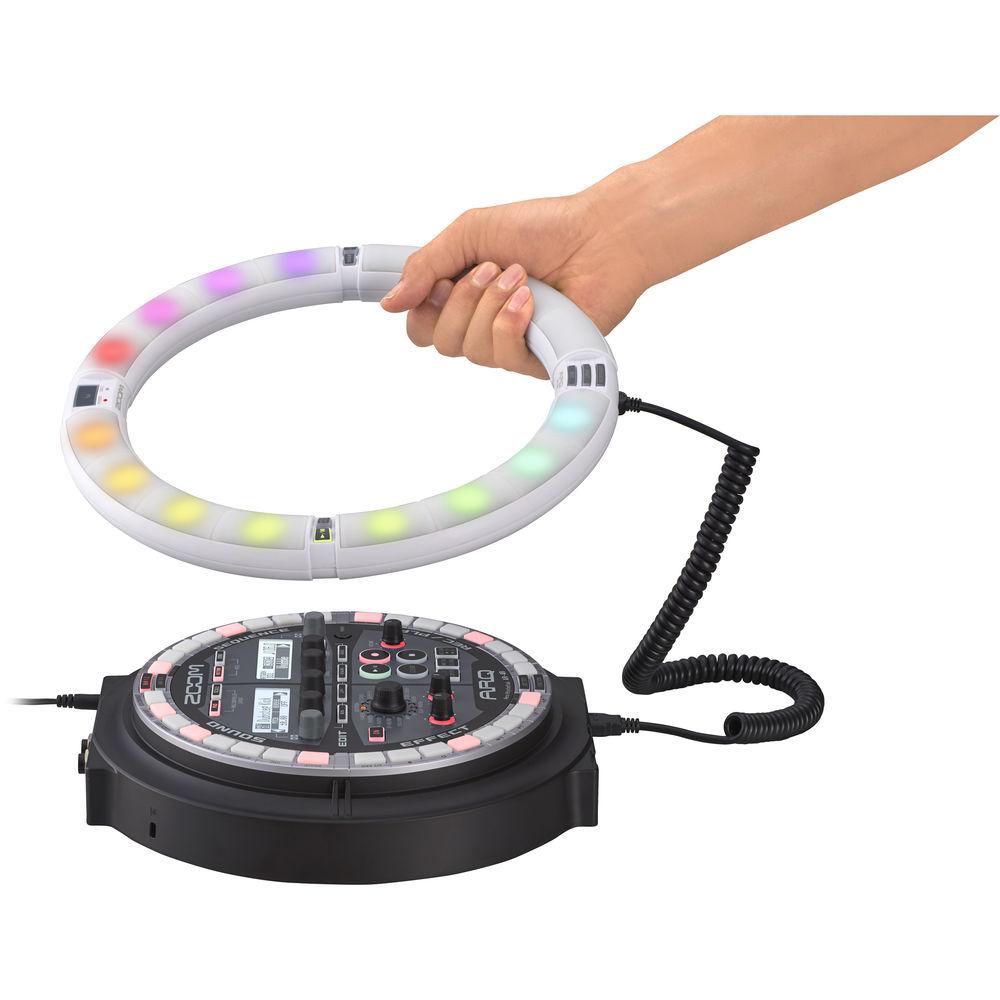

The Ring Controller communicates with the Base Station and DAWs via USB. It features 16 velocity- and pressure-sensitive pads for clip launching and playing drum sounds, instrument sounds, and sequences. Any sound or musical phrase can be played chromatically or by any of the dozens of preset scales in any key. The Ring Controller features a grip-detection circuit, which automatically prevents accidental triggering of the pads under your hands, while dedicated buttons at the top and bottom of the controller allow you to play/pause tracks, solo and mute sections, as well as split, arpeggiate, and change effects. The on-board, 3-axis accelerometer generates MIDI control messages to alter sounds and effects in real time. The Ring Controller is USB bus-powered, but it can also be powered by two AA batteries. The optional BTA-1 Bluetooth LE connector is available separately, which provides wireless control from the Ring Controller. The Zoom ARQ AR-48 Aero Rhythm Trak ships with the Base Station, Ring Controller, an AC power adapter, and a download card for Ableton Live 9 Lite.
All-in-one drum machine, sequencer, synthesizer, looper, clip launcher, MIDI controller, and live performance instrument
Includes 460 drum machine, synth, and instrument sounds
Import WAV files into the internal synth engine's oscillator
16 adjustable master effects, including reverb, filters, delay, and more
Use the Ring Controller as a handheld aerial instrument
Onboard 32-step loop sequencer for creating individual patterns or complete songs
Programmable synthesizer engine with three sub-oscillators
16 velocity- and pressure-sensitive pads with programmable color LEDs
Built-in, 3-axis accelerometer for triggering arpeggiator sounds and effects
Dedicated buttons for record/play/pause, solo, mute, split, arpeggiate, and change effects
1/8" mini stereo input for phrase recording and loop creation
Audio capture from patterns and songs, SD card, or an incoming audio signal
Play sounds chromatically, or choose from dozens of preset scales in any key
Dual 1/4" line outputs, separate 1/8" mini stereo headphone output with dedicated volume control

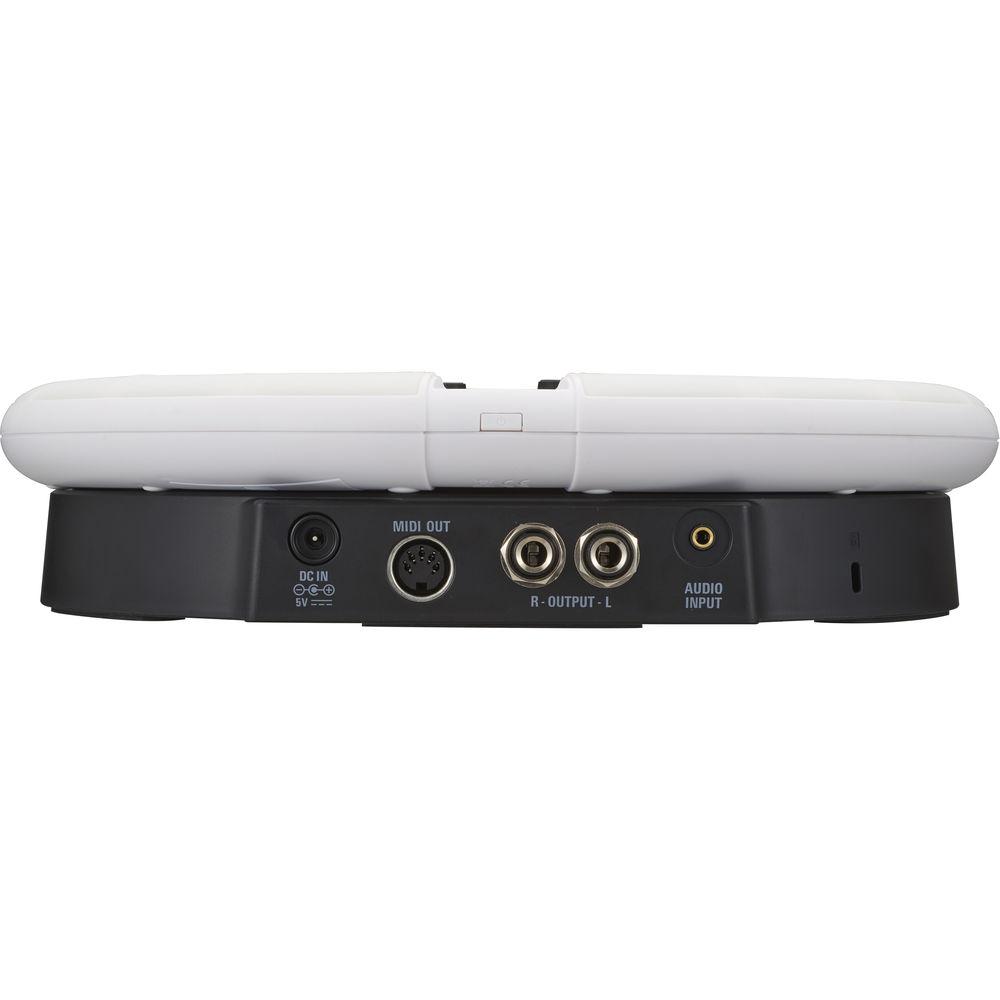

MIDI Output: Standard 5-pin DIN connector

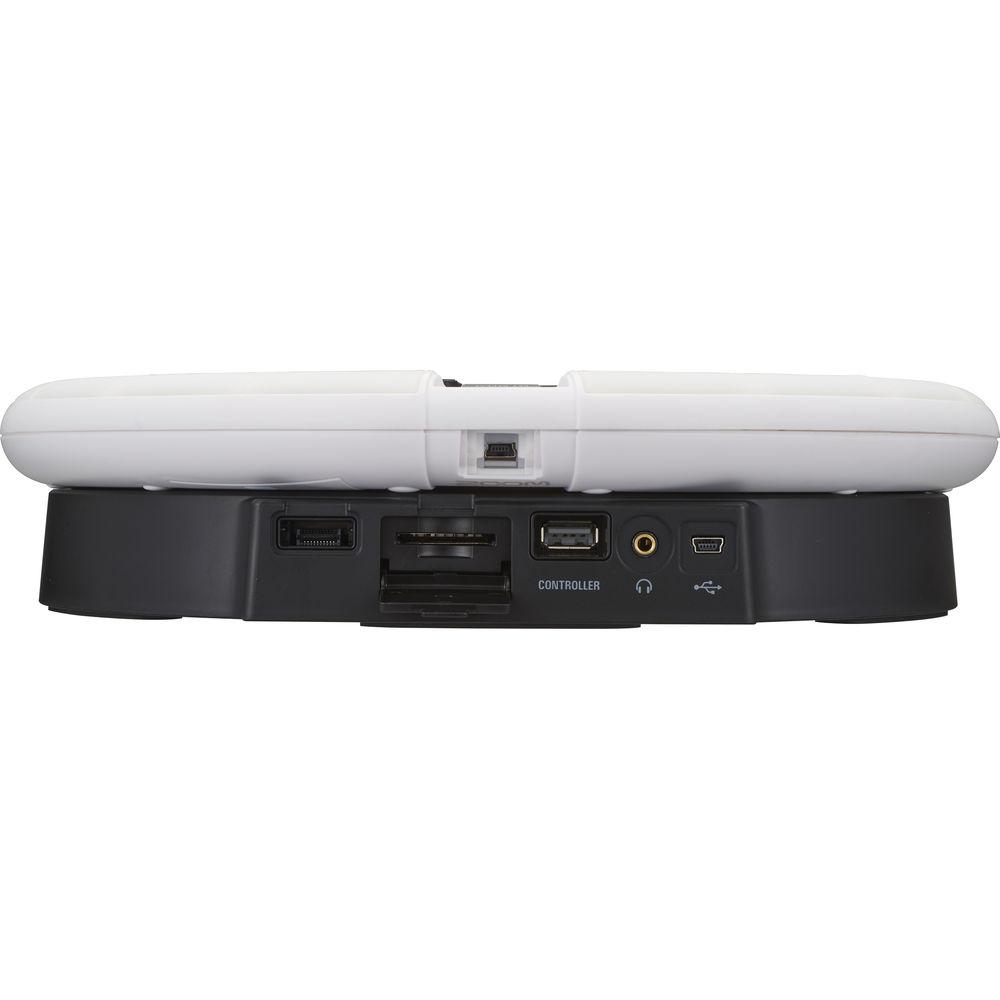

USB port for computer integration and SD card slot
Includes Ableton Live 9 Lite
Optional Bluetooth connection (BTA-1 connector sold separately)
UPC: 884354017934 In the Box Zoom ARQ AR-48 Aero RhythmTrak - All-In-One Production and Performance Instrument
Base Station
Ring Controller
AC Adapter (AD-14)
Ableton Live 9 Lite Download Card
Limited 1-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the Zoom ARQ AR-48 Aero RhythmTrak - All-In-One Production and Performance Instrument in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Zoom ARQ AR-48 Specs
Audio Input
Connector Type: Stereo mini jack 1/8" / 3.5 mm (unbalanced) Input Gain: +10 to −65 dB Input Impedance: 10 kOhms
Audio Outputs
Output L/R Connector Type: 2 x 1/4" / 6.35 mm TS (unbalanced) Output Impedance: 100 Ohms
Phones Connector Type: Stereo mini jack 1/8" / 3.5 mm TRS (20 mW x into 32 Ohm load) Output Impedance: 10 Ohms
Dynamic Range
Analog In (AD): 92 dB typ (IHF-A) Phone Out (DA): 102 dB typ (IHF-A) Main Out (DA): 106 dB typ (IHF-A)
Recording Media
SD Cards: 16 MB to 2 GB SDHC Cards: 4 to 32 GB SDXC Cards: 64 to 512 GB
Display
2 x 128x32 dot-matrix LCD
MIDI
MIDI Out: 5-pin DIN connector USB MIDI
Interface
USB: USB Type-B 2.0 MIDI class/mass storage class operation Ring Controller Connection: USB Type-A 2.0 MIDI class operation
Supported Operating Systems
Windows 7 (SP1 or later), 8 (including 8.1) or later, 10 Mac OS X 10.8 or later
Minimum Specifications: Chipset that includes USB 2.0 as standard, Intel Core i3 or faster CPU
Power
AC Adapter: 5 V, 1 A (AD-14)
Power Consumption
Base Station: 2 W max With Ring Controller: 3 W max
Sensors
Pad pressure sensors, 3-axis accelerometer
Power
USB bus power
Batteries
2 x AA alkaline or rechargeable nickel-metal hydride (NiMH) batteries
Battery Operation Time
About 8 hours (with BTA-1 installed)
Power Consumption
1 W max
Trigger Pads
Number of Pads:16 Velocity Curves: 4 types
Interface
Ring Controller: USB Type A, 2.0 MIDI class operation
Dimension (D x W x H)
Base Station: 10.2 x 10.1 x 2.5" / 259.0 x 257.6 x 63.0 mm Ring Controller: 11.0 x 11.0 x 1.2" / 280.2 x 278.8 x 29.7 mm
Weight
Base Station: 39.6 oz / 1.1 kg Ring Controller: 14.7 oz / 0.42 kg
Package Weight
5.75 lb
Box Dimensions (LxWxH)
15.0 x 13.9 x 3.8"
Rating
90% users recommend this product to others. And what about you?
