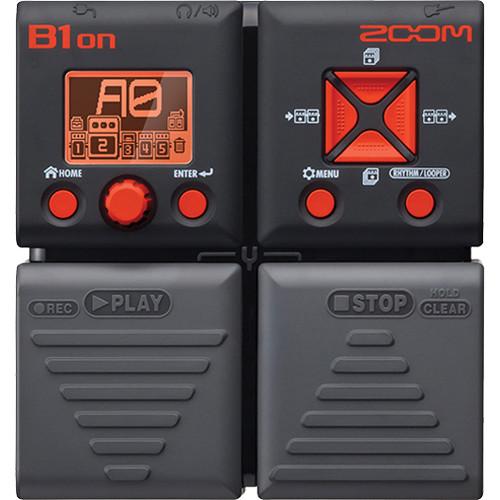

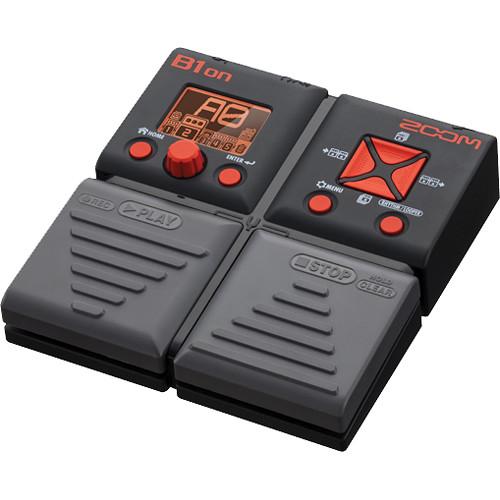

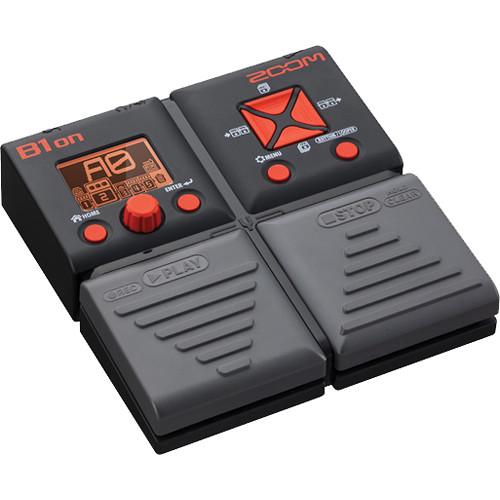

User Manual for Zoom B1on Multi-Effects Bass Pedal Click to enlarge the picture
Contents of the user manual for the Zoom B1on Multi-Effects Bass Pedal
- Product category: Effects Pedals Zoom
- Brand: Zoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zoom Effects Pedals
 |
User manual for the Zoom B1on Multi-Effects Bass Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zoom product will considerably shorten its lifespan!
|
Product description The Zoom B1on offers bassists 100 high-quality effects, including varieties of distortion, compression, modulation, delay, reverb, and amp models. It allows you to chain up to 5 effects simultaneously for customizing your sound to fit your personal playing style. You can connect headphones to the output jack and practice along with the 68 built-in rhythm accompaniment patterns, or you can connect your portable music player to the auxiliary input jack if you want to jam along with your own backing tracks.
The B1on boasts an onboard chromatic tuner that supports all standard bass tunings, and it has a phrase looper that enables you to record up to 30 seconds of CD-quality audio. It can be powered by 4 AA batteries (not included). - Onboard Effects
- 100 onboard effects including compressors, noise gates, filters, equalizers, octave dividers, boosters, overdrives, fuzzes, phasers and flangers, chorus, pitch shift, tremolo and vibrato. Also includes a sub-octave generator and an intelligent bass synthesizer that plays along in key, and a DeFret effect that changes the tone of a fretted bass into that of a fretless bass
- Pedal Simulations
- Simulations of both classic and modern pedals such as the Aphex Punch Factory, MXR DynaComp, dbx 160A, BBE Sonic Maximizer, Moog MF-101, Z. Vex Seek-Wah, Xotic EP Booster, Bass BB Preamp, Electro-Harmonix Bass Big Muff, SansAmp Bass Driver DI, MXR Bass D.I.+, Avalon Design U5, ADA Flanger, TC Electronic Corona Tri-Chorus, BOSS ODB-3, DS-1 and Metal Zone, plus more
- Amp Simulations
- A dozen amp models include emulations of classic tube amplifiers like the Ampeg SVT, Ampeg B-15, Fender Bassman, Marshall Super Bass, Polytone Mini-Brute III and acoustic 360, as well as the contemporary sounds of the Hartke HA3500, SWR SM-900, Aguilar DB750, Gallien-Krueger 800RB, Eden WT-800 and Italian Markbass Little Mark III, each with its own distinct cabinet modeling that can be used to further alter the tonal quality. What's more, you can pair any amp model to any cabinet model for creative effects
UPC: 884354012953 In the Box Zoom B1on Multi-Effects Bass Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom B1on Multi-Effects Bass Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZoom ZB1ON Specs | Effects | 100 (OS 1.2) | | Simultaneous Effects | 5 | | Effect Patches | 100 | | Sampling Frequency | 44.1 kHz | | A/D Conversion | 24-bit, 128 times over-sampling | | D/A Conversion | 24-bit, 128 times over-sampling | | Signal Processing | 32-bit floating point and 32-bit fixed point | | Frequency Response | 20 Hz to 20 kHz +1 dB -3 dB (10 kΩ load) | | Display | LCD | | Input | Input:
Standard mono 1/4" phone jack
Rated input level: -20 dBm
Input impedance (line): 470 kΩ
Aux in:
Mini stereo 1/8" phone jack
Rated input level: -10 dBm
Input impedance (line): 1 kΩ | | Output | Standard stereo 1/4" phone jack
Maximum line output level: +2 dBm (output impedance load of 10 kΩ or more)
Maximum headphones output level: 17 mW + 17 mW (into 32 Ω load) | | S/N | 119 dB | | Noise Floor | -97 dBm | | Power | AC adapter (optional): DC 9V center-negative, 500 mA
Battery: AA size (LR6) battery x 4
Continuous battery operation time: 20 hours when using 4 AA alkaline batteries
USB: USB power | | USB | Firmware update | | Dimensions | 6.1 x 5.7 x 1.7" (155 x 146 x 43 mm) | | Weight | 13.4 oz (380 g), without batteries | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 7.3 x 6.7 x 2.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
