User Manual for Zoom B3n Multi-Effects Processor for Bassists Click to enlarge the picture
Contents of the user manual for the Zoom B3n Multi-Effects Processor for Bassists
- Product category: Effects Pedals Zoom
- Brand: Zoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zoom Effects Pedals
 |
User manual for the Zoom B3n Multi-Effects Processor for Bassists contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zoom product will considerably shorten its lifespan!
|

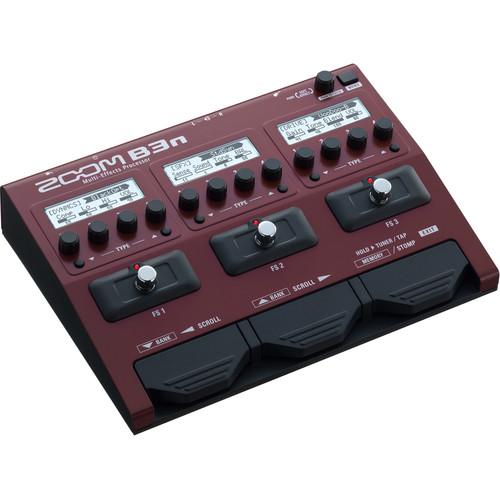

Product description Designed to put a panoply of sonic possibilities beneath the feet of electric bass players, the Zoom B3n is a multi-effects processor with 67 different effects, up to seven of which can be used simultaneously. Also provided are five amp and cabinet emulations which aim to replicate the sonic signatures of classic setups.

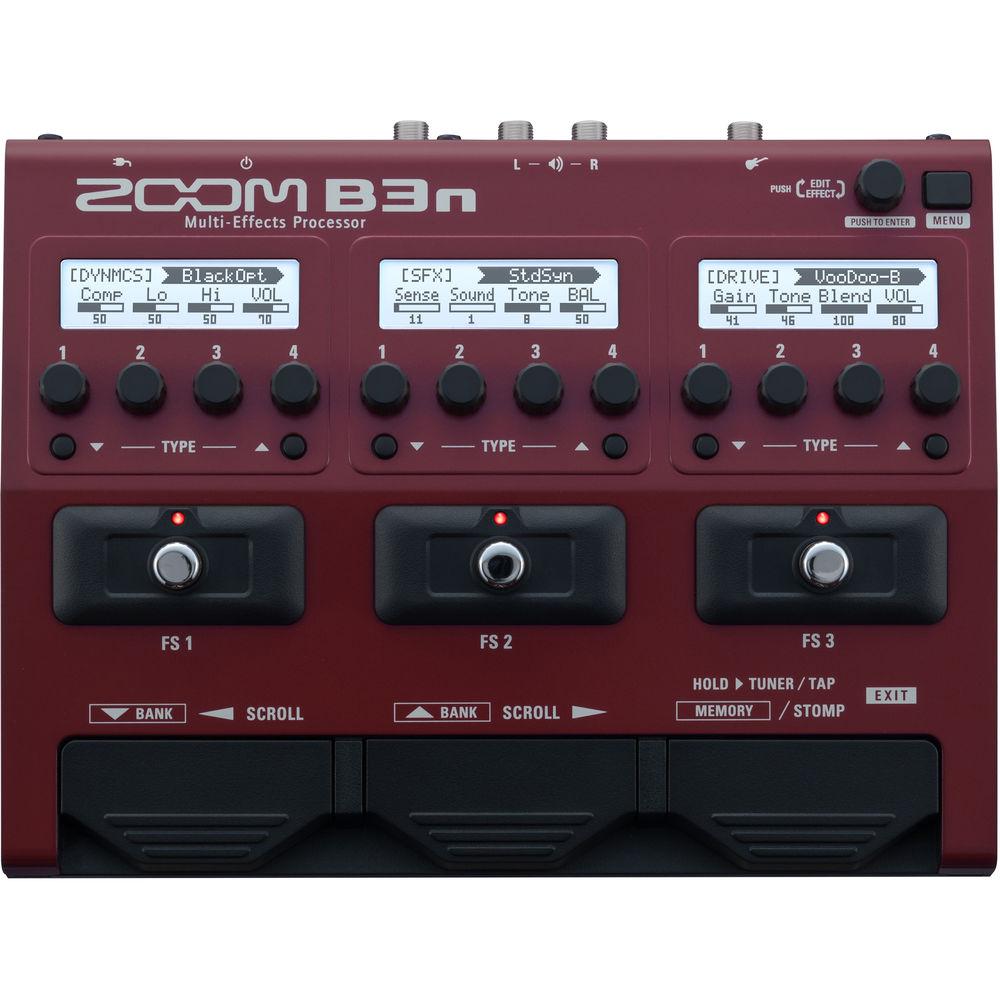

Three footswitches allow you to initiate effects, which are all editable via three separate LCD screens, each of which boasts four dedicated parameter controls, which change depending on the effect you choose. At the bottom of the pedal are three more foot controls: two scroll pedals for cycling through banks, as well as a third control for tap-tempo and tuner regulation. An 80-second phrase looper is also available to you, for all your looping needs.

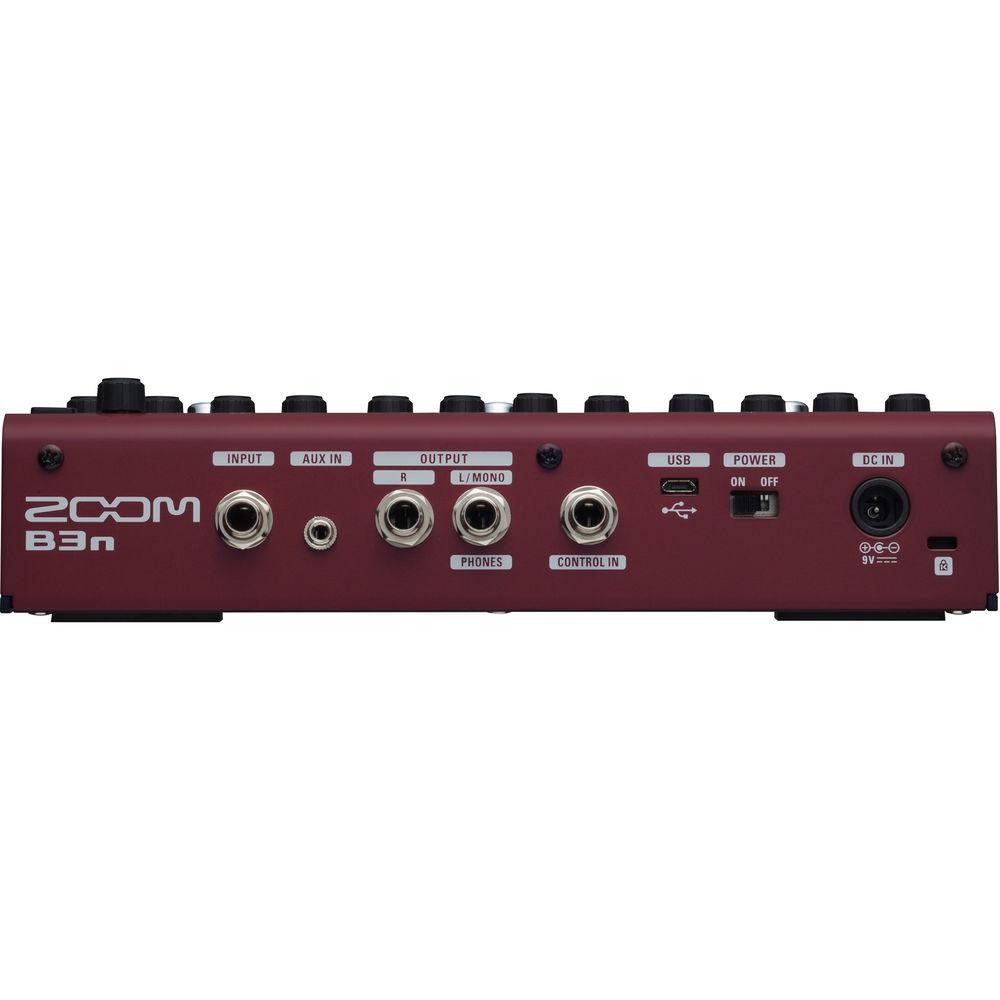

The pedal provides both instrument and auxiliary inputs, and an output section which gives you a mono 1/4" output and a stereo 1/4" output, useful for monitoring through headphones or implementing stereo effects. A controller input will allow you to hook in compatible expression control pedals, such as the FP02M. - Included Software
- The included Zoom Guitar Lab software for Mac and Windows enables you to manage patches, download new effects, and activate different amp/cabinet emulators. It includes a Patch Manager for effects chains, as well as an Effects Manager with a simple graphic user interface. This provides point-and-click control over re-naming or re-ordering your custom patches.
- Features at a Glance
-
- 67 high-quality stompbox DSP effects
- 5 new amp emulators, plus 5 cabinet emulators
- Included ZOOM Guitar Lab Mac/Windows software for allows downloading of additional effects and patches
- Use up to 7 effects simultaneously, chained together in any order
- 3 stompbox switches allow effects to instantly be brought in and out
- Stereo/mono looper allows recording of up to 80 seconds of phrase recording
- 3 independent editing displays
- Onboard chromatic tuner with dedicated footswitch supports all standard bass tunings including open and drop-tunings (tuner center-range of 435 to 445 Hz)
- 68 built-in rhythm patterns which can be used in conjunction with the looper
- Tap Tempo with dedicated footswitch
- Auxiliary stereo input jack for connection of smartphones and music players
- Dual output jacks for connection to bass amps and mono/stereo PA systems
- Dedicated stereo headphone output jack
- Control input for ZOOM FP02M external expression pedal
UPC: 884354017309 In the Box Zoom B3n Multi-Effects Processor for Bassists Zoom Guitar Lab Software for Mac/Windows Zoom AD-16 AC adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom B3n Multi-Effects Processor for Bassists in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZoom B3n Specs | Effects Types | 80x | | Simultaneous Effects | Up to 7x | | User Banks | 150 banks and patches | | Sampling Frequency | 44.1 kHz | | AD/DA Conversion | 24-bit with 128x oversampling | | Signal Processing | 32-bit | | Frequency Characteristics | 20 Hz to 20 kHz, +1 dB, -3 dB (10-kOhm load) | | LCD Display | 3x 128 x 32 dot-matrix | | Input Connections | 1 x 1/4" phone jack
1 x Stereo 3.5 mm mini jack
1 x Zoom FP02M Control input | | Input Level | 1/4" phone: -20 dBu
3.5 mm mini: -10 dBu | | Input Impedance | 1/4" phone: 470 kOhms (line)
3.5 mm: 10 kOhms (line) | | Output Connections | 1 x 1/4" phone jack, mono
1 x 1/4" phone jack, stereo (combined line / headphone) | | Output Level | Output R: Line +5 dBm (load impedance of 10 kOhms or more)
Output L: Line +5 dBm (load impedance of 10 kOhms or more); headphones 15 mW + 15 mW into 32-Ohm load | | EIN | -119 dBu | | Noise Floor | -100 dBu | | Power | Zoom AD-16 AC adapter: 9 VDC (center minus plug), 500 mA | | USB | USB MIDI, USB Micro-B | | Dimensions (D x W x H) | 7.1 x 9.2 x 2.3" / 18.1 x 23.4 x 5.8 cm | | Weight | 2.8 lb / 1.3 kg | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 12.8 x 8.1 x 3.2" |
