User Manual for Zoom F1 Field Recorder with Lavalier Microphone Click to enlarge the picture
Contents of the user manual for the Zoom F1 Field Recorder with Lavalier
- Product category: Portable Digital Recorders Zoom
- Brand: Zoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zoom Portable Digital Recorders
 |
User manual for the Zoom F1 Field Recorder with Lavalier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zoom product will considerably shorten its lifespan!
|
Product description Running Around with the Zoom F1 Field Recorder Read More - Hands-On Review | Zoom F1 Field Recorder
- F1 LP Product Intro
- Zoom Mic Capsule Overview

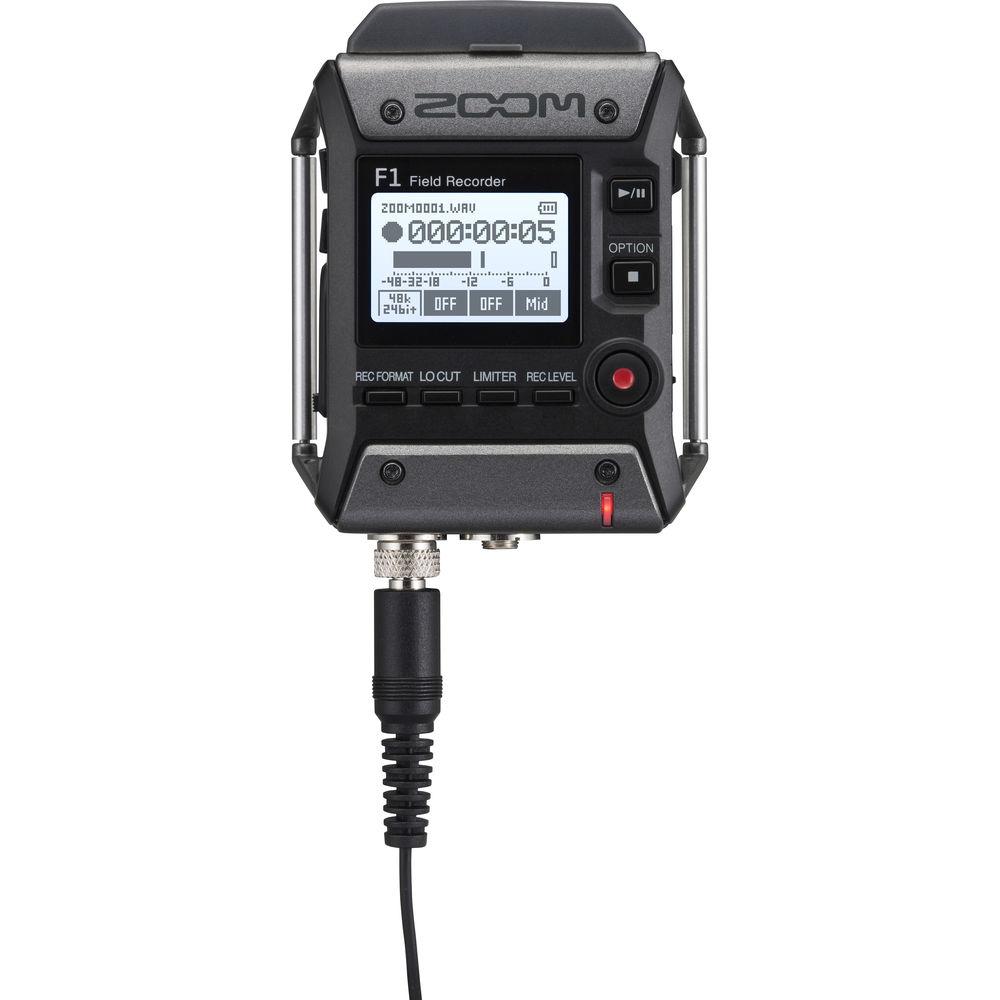

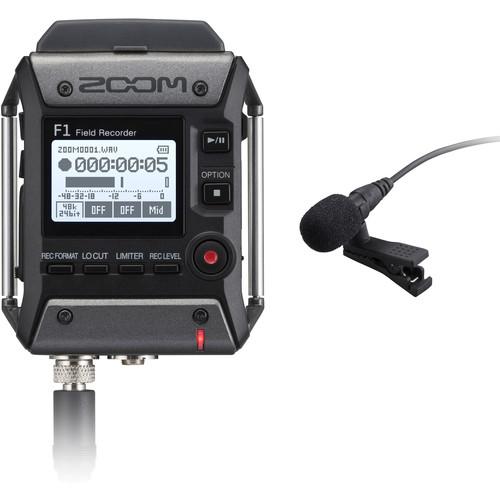

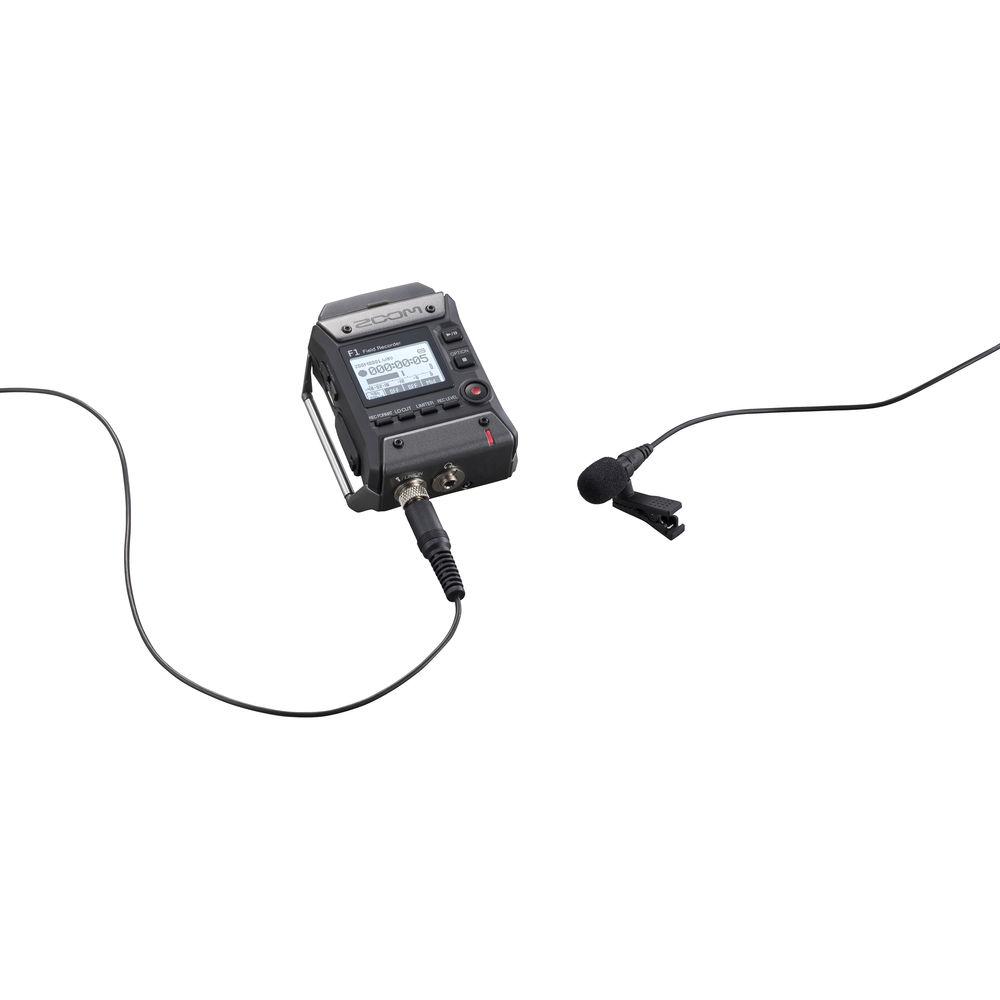

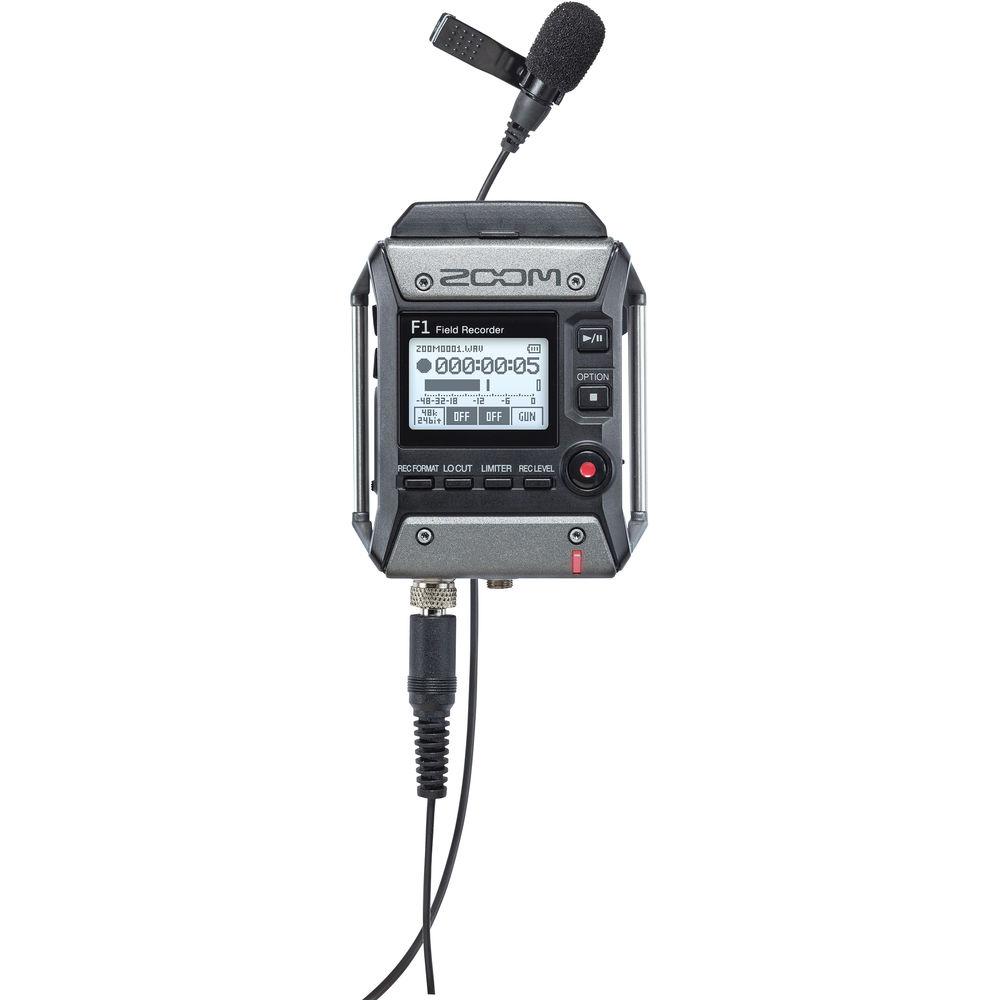

The Zoom F1 Field Recorder with Lavalier Microphone combines a two-channel, F1 audio recorder with an LMF-1 omnidirectional lavalier microphone. Lightweight (at 4.2 oz) and with a low-profile design, it attaches neatly to belts or waistbands, and fits inside pockets without being seen, providing videographers, vloggers, and journalists with a flexible solution to capture high-quality audio for video, no matter how far away the subject is from the camera.The F1 is equipped with a stereo 1/8" mic/line input that delivers plug-in power to small microphones, and a proprietary 10-pin connector compatible with all Zoom microphone capsules. It records stereo audio up to 24-bit/96 kHz in BWF-compliant WAV or a variety of MP3 formats, directly to microSD or microSDHC cards. The unit offers a series of one-touch buttons that give you quick access to record level, limiter control, lo-cut filter, and volume output as well as an 1/8" stereo phone/line output jack with a dedicated volume control, and a monochromatic LCD display, which is easy to read even in bright sunlight.The recorder comes with essential features for videographers including a tone generator for setting levels, sound markers for aligning audio and video, an on-board limiter to keep your levels in check when loud spikes in volume occur, and a Rec Hold function to avoid accidental operation of buttons. A micro-USB port is available for data exchange to and from a computer, as well as for use as an audio interface with a computer or iOS device.The F1 utilizes two standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or an AD-17 AC adapter (available separately), and offers a run time of up to 10 hours. The unit ships with a windshield, mic clip, and a belt clip. - Key Features
-
- Two-channel audio recorder
- Capture audio at weddings, interviews, and more
- Includes LMF-1 omnidirectional lavalier microphone
- Lightweight and low-profile design—attaches to belts and waistbands, or fits inside pockets without being seen
- Compatible with all Zoom microphone capsules
- Supports up to 24-bit/96 kHz audio
- Broadcast WAV format (BWF)—files are automatically time-stamped
- Multiple MP3 formats
- One-touch button controls
- 1.25" monochromatic LCD display can be read under bright light
- Record Hold function to avoid accidental operation of buttons
- Stereo 1/8" mic/line input jack with plug-in power (2.5V)
- Stereo 1/8" phone/line output jack with dedicated volume control
- Built-in limiter and auto level control to avoid clipping
- Low-cut filter
- Pre-Record function
- Tone generator for calibrating audio levels between the F1 and a DSLR video camera without the need for an attenuation cable
- Sound marker function outputs quick tone for syncing audio and video
- Records directly to microSD and microSDHC cards up to 32 GB
- Micro-USB port for data exchange to and from computer
- Use as an audio interface to record directly to your computer or iOS device
- Runs on two standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AD-17 AC adapter (available separately)
- Up to 10 hours of operation with alkaline batteries (when using lavalier)
- Includes windscreen, belt clip, mic clip

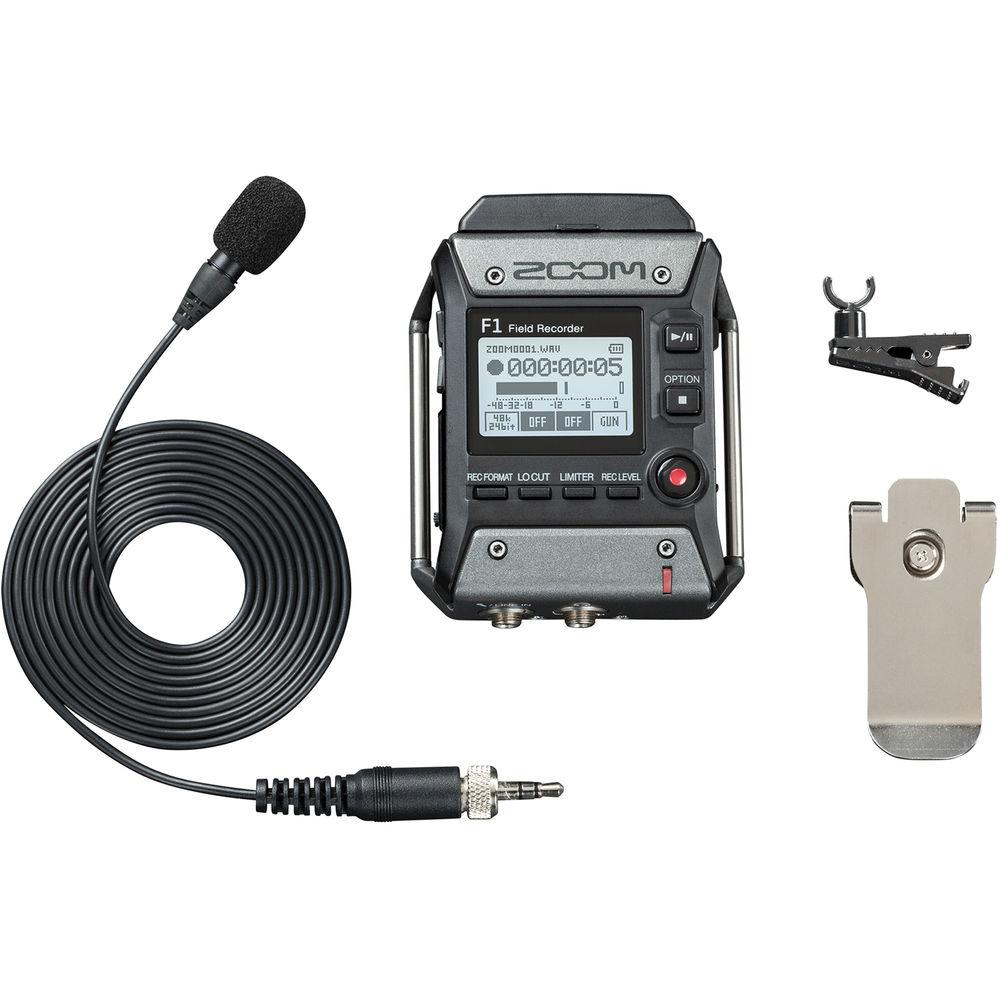

UPC: 884354018719 In the Box Zoom F1 Field Recorder with Lavalier Microphone LMF-1 Lavalier Microphone WSL-1 Windscreen MCL-1 Mic Clip BCF-1 Belt Clip 2 x AAA Batteries Limited 1-Year Warranty Guides & Manuals fbcdaurwfyzvtfucavuaybr Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom F1 Field Recorder with Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Zoom F1 Field Recorder with Lavalier Microphone can be downloaded in PDF format at the link stated below.
Technical parametersZoom F1 Specs | | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Microphone | Interchangeable Omnidirectional Lavalier | | Built-In Speaker | Yes | | Display | Monochrome LCD | | Memory Card Support | microSD, microSDHC (Up to 32 GB) Class 4 or Higher | | | | Audio File Formats | BWF, ID3v1, MP3, WAV | | Sample Rates | 44.1 / 48 / 96 kHz | | Bit Depth | 16/24-Bit | | Bit Rates | 48 to 320 kb/s | | Timecode | No | | | | Analog I/O | 1 x Proprietary 10-Pin Mic Capsule Input
1 x 1/8" / 3.5 mm TRS Line/Mic Input (Lockable)
1 x 1/8" / 3.5 mm TRS Output | | Plug-In Power | Yes, 2.5 V | | Host Connection | 1 x Micro-USB (USB 2.0) | | | | Gain Range | -12 to +36 dB | | Headphone Output Power | 11 mW per Channel into 32 Ohms | | Impedance | Inputs:
≥2 kOhms | | Microphone Sensitivity | -32 dB/Pa | | Microphone Max SPL | 115 dB SPL | | | | Power Options | Batteries, AC/DC Power Adapter | | Battery Type | 2 x AAA | | Approximate Battery Life | 48 kHz/24-Bit:
10 Hours (Alkaline, Mono, Plug-In Power On)
9 Hours (NiMH, Mono, Plug-In Power On)
16 Hours (Lithium, Mono, Plug-In Power On) with Lavalier Mic | | AC/DC Power Adapter | 5 VDC at 1 A (Not Included) Zoom AD-17 | | | | Dimensions | 2.5 x 3.1 x 1.3" / 64.0 x 79.8 x 33.3 mm | | Weight | 4.2 oz / 120.0 g (Without Batteries) | | | | Package Weight | 0.875 lb | | Box Dimensions (LxWxH) | 8.9 x 6.4 x 2.2" |
