User Manual for Zoom F1 Field Recorder with Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Zoom F1 Field Recorder with Shotgun
- Product category: Portable Digital Recorders Zoom
- Brand: Zoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zoom Portable Digital Recorders
 |
User manual for the Zoom F1 Field Recorder with Shotgun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zoom product will considerably shorten its lifespan!
|
Product description Running Around with the Zoom F1 Field Recorder Read More - Hands-On Review | Zoom F1 Field Recorder
- F1 SP Product Intro
- Zoom F1-SP: Connecting To Your Camera / Setting Levels
- Zoom Mic Capsule Overview

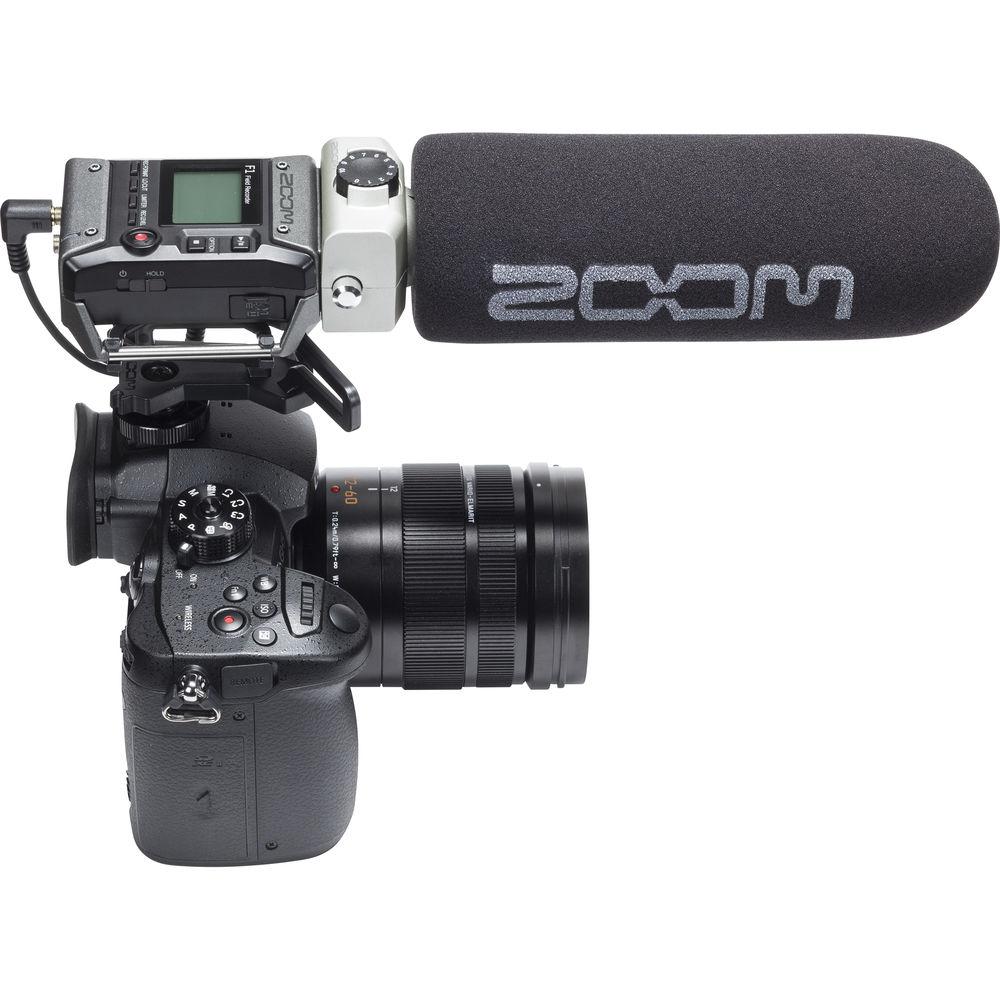

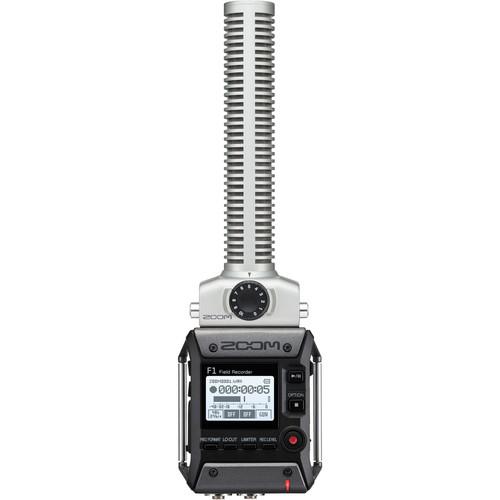

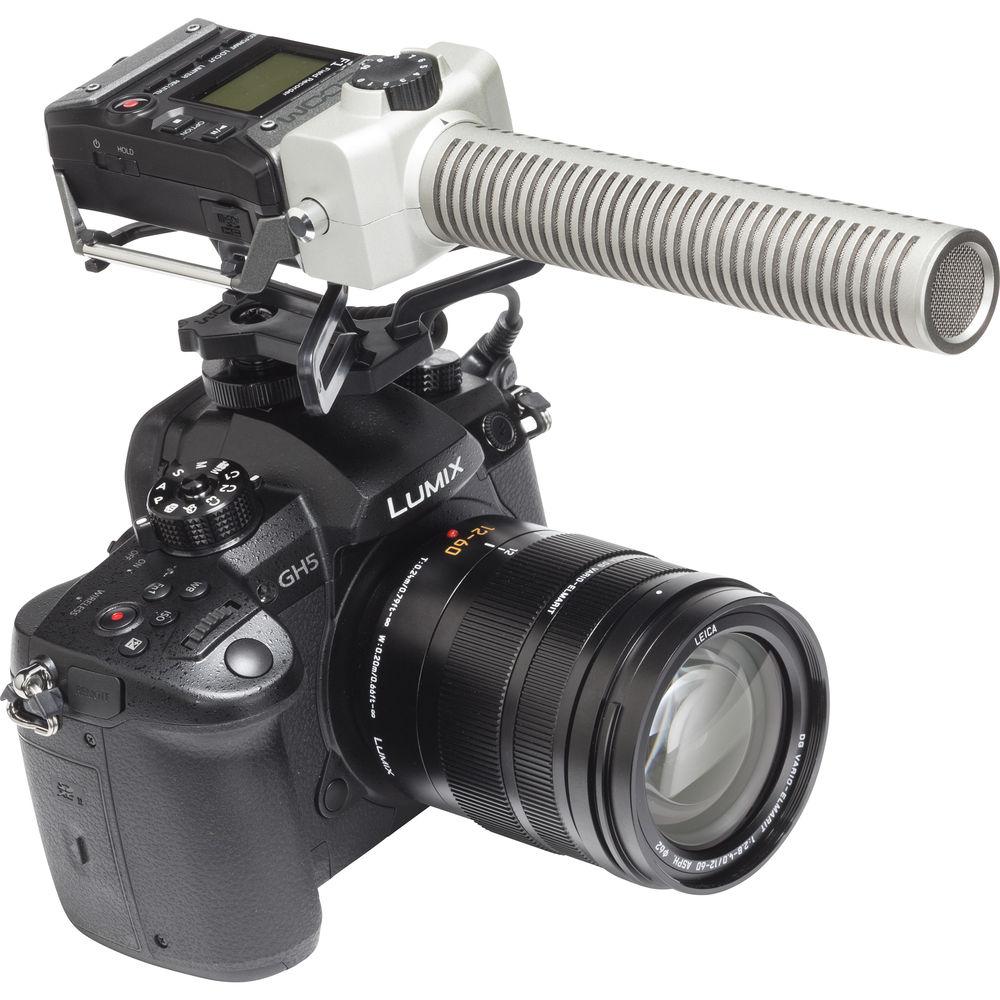

The Zoom F1 Field Recorder with Shotgun Microphone combines a two-channel, F1 audio recorder with a directional SGH-6 shotgun microphone capsule to provide run-and-gun video makers with a flexible solution for capturing high-quality audio for video. Lightweight and with a low-profile design, it attaches to a camera using the included SMF-1 shockmount, which eliminates unwanted thumping sounds caused by vibrations when shooting on the move.The F1 is equipped with a stereo 1/8" mic/line input that delivers plug-in power to small microphones, and a proprietary 10-pin connector that is compatible with all Zoom microphone capsules. It records stereo audio up to 24-bit/96 kHz in BWF-compliant WAV or a variety of MP3 formats, directly to microSD or microSDHC cards. The unit offers a series of one-touch buttons that give you quick access to record level, limiter control, lo-cut filter, and volume output as well as an 1/8" stereo phone/line output jack with a dedicated volume control, and a monochromatic LCD display, which is easy to read even in bright sunlight.The recorder comes with essential features for videographers including a tone generator for setting levels, sound markers for aligning audio and video, an on-board limiter to keep your levels in check when loud spikes in volume occur, and a Rec Hold function to avoid accidental operation of buttons. A micro-USB port is available for data exchange to and from a computer, as well as for use as an audio interface with a computer or iOS device.The F1 utilizes two standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or an AD-17 AC adapter (available separately), and offers a run time of up to 6.5 hours with alkaline batteries when using the shotgun mic. The unit ships with a windshield and a stereo cable to connect the recorder to the audio input of the camera. - Key Features
-
- Two-channel audio recorder
- Capture audio at weddings, interviews, and more
- Includes lightweight SGH-6 shotgun microphone capsule
- Includes SMF-1 shockmount to attach recorder/mic to your camera
- Lightweight and low-profile design
- Compatible with all Zoom microphone capsules
- Supports up to 24-bit/96 kHz audio
- Broadcast WAV format (BWF)—files are automatically time-stamped
- Multiple MP3 formats
- One-touch button controls
- 1.25" monochromatic LCD display can be read under bright light
- Record Hold function to avoid accidental operation of buttons
- Stereo 1/8" mic/line input jack with plug-in power (2.5V)
- Stereo 1/8" phone/line output jack with dedicated volume control
- Built-in limiter and auto level control to avoid clipping
- Low-cut filter
- Pre-Record function
- Tone generator for calibrating audio levels between the F1 and a DSLR video camera without the need for an attenuation cable
- Sound marker function outputs quick tone for syncing audio and video
- Records directly to microSD and microSDHC cards up to 32 GB
- Micro-USB port for data exchange to and from computer
- Use as an audio interface to record directly to your computer or iOS device
- Runs on two standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AD-17 AC adapter (available separately)
- Up to 6.5 hours of operation with alkaline batteries (when using shotgun mic capsule)
- Includes windshield and stereo cable to connect recorder to camera audio input

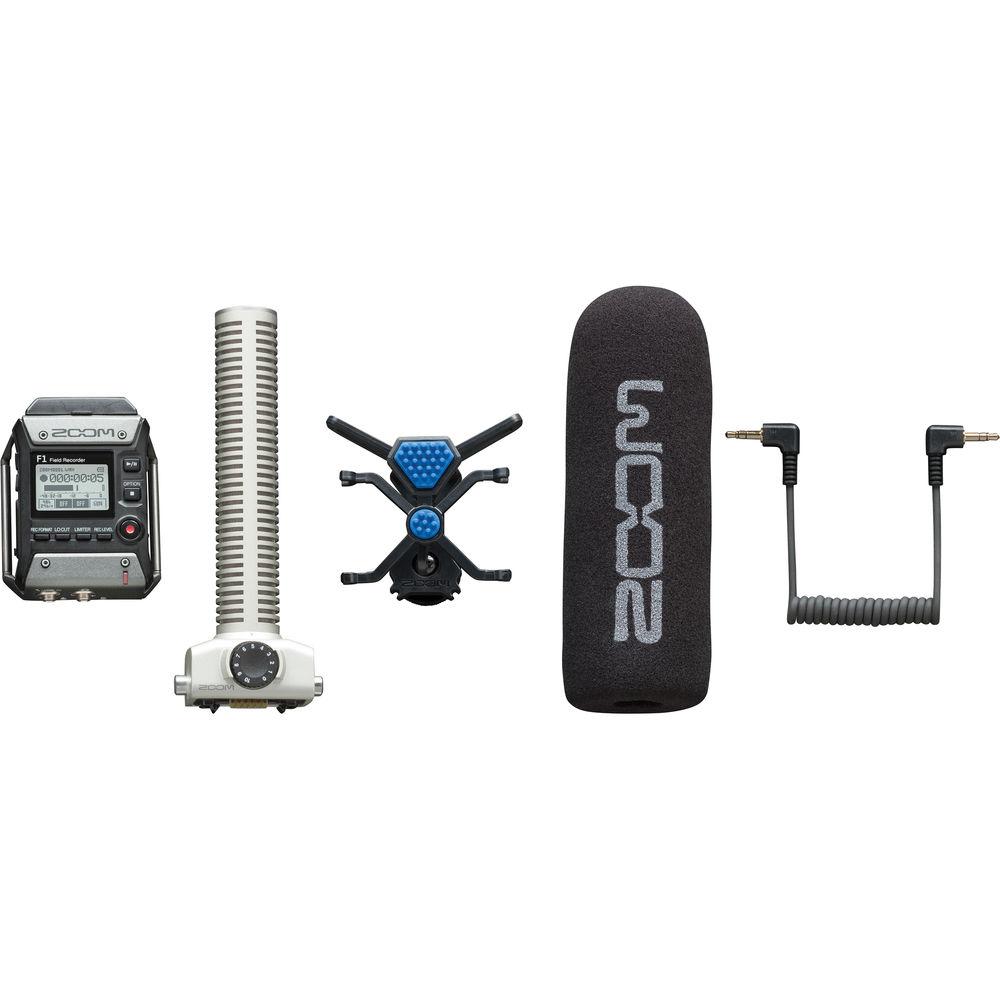

UPC: 884354018818 In the Box Zoom F1 Field Recorder with Shotgun Microphone SGH-6 Shotgun Microphone SMF-1 Shockmount WSS-6 Windscreen SMC-1 Stereo Mini Cable for Camera 2 x AAA Batteries Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom F1 Field Recorder with Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Zoom F1 Field Recorder with Shotgun Microphone can be downloaded in PDF format at the link stated below.
Technical parametersZoom F1 Specs | | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Microphone | Interchangeable Supercardioid Shotgun | | Built-In Speaker | Yes | | Memory Card Support | microSD, microSDHC (Up to 32 GB) Class 4 or Higher | | | | Audio File Formats | BWF, ID3v1, MP3, WAV | | Sample Rates | 44.1 / 48 / 96 kHz | | Bit Depth | 16/24-Bit | | Bit Rates | 48 to 320 kb/s | | Timecode | No | | | | Analog I/O | 1 x Proprietary 10-Pin Mic Capsule Input
1 x 1/8" / 3.5 mm TRS Line/Mic Input (Lockable)
1 x 1/8" / 3.5 mm TRS Output | | Plug-In Power | Yes, 2.5 V | | Host Connection | 1 x Micro-USB (USB 2.0) | | | | Gain Range | -12 to +36 dB | | Headphone Output Power | 11 mW per Channel into 32 Ohms | | Impedance | Inputs:
≥2 kOhms | | Microphone Sensitivity | -39 dB/Pa | | Microphone Max SPL | 122 dB SPL | | | | Power Options | Batteries, AC/DC Power Adapter | | Battery Type | 2 x AAA | | Approximate Battery Life | 48 kHz/24-Bit:
6.5 Hours (Alkaline, Mono)
6 Hours (NiMH, Mono)
11 Hours (Lithium, Mono) With SGH-6 Shotgun Mic Capsule | | AC/DC Power Adapter | 5 VDC at 1 A (Not Included) Zoom AD-17 | | | | Mounting Options | Shoe Mount | | Dimensions | 2.5 x 3.1 x 1.3" / 64.0 x 79.8 x 33.3 mm | | Weight | 4.2 oz / 120.0 g (Without Batteries) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 11.5 x 8.4 x 3.1" |
