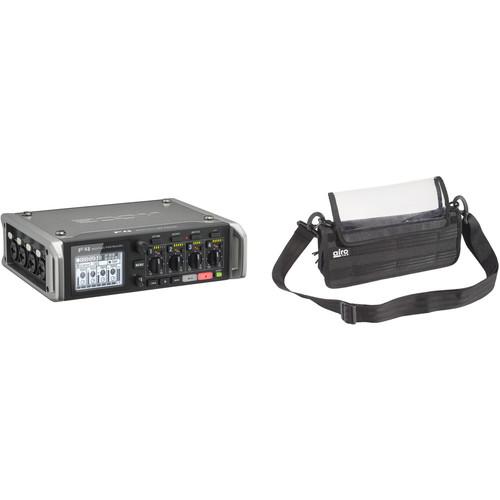

User Manual for Zoom F4 Multitrack Field Recorder with Mixer Bag 1 Kit

• Product category: Portable Digital Recorders Zoom
• Brand: Zoom
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zoom Portable Digital Recorders

Product description

• Zoom F4 Multitrack Field Recorder with Timecode - 6 Inputs / 8 Tracks
  • First Look: Zoom F4 Multitrack Recorder
  • The Zoom F4 - Hollywood Sound Goes Indie
  • Zoom Mic Capsule Overview
  Designed to provide big Hollywood sound on an affordable indie budget, the Zoom F4 is a 6-input / 8-track professional field recorder featuring super-low-noise preamps and timecode with pinpoint accuracy. The unit provides recording and playback resolutions up to 24-bit/192 kHz with impressive audio specs including an extremely low noise floor (-127 dBu EIN) and high gain (up to +75 dB), with +4 dB line-level inputs. The on-board temperature-compensated crystal oscillator (TCXO) generates timecode at 0.2 ppm accuracy and supports all standard drop-frame and non-drop formats, as well as jam sync for external devices.

  The advanced on-board limiters provide overload protection for all inputs and outputs, which lets you capture audio in a wide range of environments. Limiting can be applied simultaneously at full resolution with 10 dB of headroom and features controls for setting threshold, attack, and release.

  The F4 offers four combo XLR-1/4" inputs, a 1/8" stereo input, and includes a Zoom mic-capsule input for recording six discrete tracks with an additional stereo mix, all at full 24-bit/192 kHz resolution. With gain linking capability between the various inputs, the F4 is suitable for recording audio in VR formats, specifically Ambisonics. Plug in a mic like the Sennheiser AMBEO, for example, and you'll find you can control all four capsules at once from the F4, and thus, capture the 360° audio necessary for immersive entertainment. Additionally, inputs 5/6 can function as a camera return for audio-monitoring only for confidence checks, or can accept two additional mic/line signals via the EXH-6 combo input capsule (available separately). The dual-SD card slot features simultaneous recording to both cards allowing you to make a backup or split recording with all eight tracks on one card and a stereo mix on the other.

  Each of the four XLR-1/4" inputs offers a dedicated preamp with gain control, phantom power, a six-segment LED level meter, plus a Record Ready and PFL switch. In addition to the 1/4" headphone output with a dedicated volume control, the F4 provides two main balanced XLR outputs, as well as two sub outs on a single unbalanced 1/8" stereo mini-jack, enabling easy connection to a camera. All timecode I/O is provided on BNC connectors and the unit includes a variable-frequency slate-tone generator to confirm levels.

  The front panel offers an output button, which provides quick access to the unit's outputs, while the option button offers quick access to TC Jam, Trim Link, Clear Clip and other important shortcuts. An easy-to-read 1.9" LCD display is suitable for use in all lighting environments including dark low-light sets to bright sunlight. The on-board mixer not only provides user-adjustable level, pan, and input/output delay, but also offers high-pass filtering for noise and wind reduction, phase inversion, and Mid-Side decoding. The F4 ships with a camera-mount adapter, a DHC-1 DC-HIROSE adapter, an AC power adapter, and download codes for Cubase LE and Wavelab LE.
  • • Six-input/ eight-track multitrack field recorder with integrated mixer
    • Six discrete inputs, including with 4 locking Neutrik XLR/TRS combo connectors, a stereo 3.5mm input, and Zoom mic-capsule input
    • Input 5/6 can be used as a camera return for monitoring only, or can accept two additional mic/line signals via the EXH-6 combo input capsule (available separately)
    • Can record in Ambisonics mode for capturing audio for VR
    • Compact and lightweight metal chassis, weighing just 2 pounds (without batteries)
    • High-quality mic preamps with up to 75 dB gain, less than -127 dBu EIN, and +4 dB line inputs
    • Support for up to 24-bit/192 kHz recording as well as 96, 88.2 , 48, and 44.1 kHz, plus 47.952/48.048 kHz for HD-video compatibility; 16-/24-bit resolution
    • Accurate timecode (0.2 ppm) I/O on standard BNC connectors; drop-frame/non-drop formats with Jam Sync
    • Three different power supply options: 8 x AA batteries, external DC battery pack with 4-pin HIROSE connector, and Zoom AD-19 12V AC Adapter with DC-HIROSE cable (included)
    • Dedicated gain-control knob, 6-segment LED level meter, and PFL/Solo switch for each channel
    • Phantom power (+48/+24V) on every preamp
    • High-pass filter, phase invert, and Mid-Side decoder
    • Advanced onboard limiters for input and output
    • Input delay of up to 30 ms per channel / output delay of up to 10 frames per output
    • Compatible with all Zoom mic capsules; optional ECM extender cable enables remote positioning
    • Dedicated headphone output (100mW) with front panel volume control
    • Dual XLR-balanced Main Outs plus 1/8" stereo mini-jack Sub Out
    • Front panel OPTION button gives quick access to important shortcuts
    • 1.9” white, backlit monochrome LCD
    • Dual SD/SDHC/SDXC card slots, up to 512GB each
    • Support for extensive metadata (BWF and iXML); input time, date, project, scene number, etc.
    • Built-in tripod mount; camera-mount adapter also included
    • Use as a 6-in/4-out USB audio interface (@ 96 kHz)
  UPC: 884354016890
• Airo by K-Tek AMB1 Mixer Bag 1
  • First Look: Zoom F4 Multitrack Recorder
  • The Zoom F4 - Hollywood Sound Goes Indie
  • Zoom Mic Capsule Overview
  The AMB1 Mixer Bag 1 from Airo by K-Tek is designed for smaller mixers and recorders like the Sound Devices MixPre-3 and the MixPre-7, or the Zoom F4 and F8 (sold separately). The ANB1 mixer bag features zippers on the bottom and side openings, and is equipped with both a removable shoulder strap and removable clear shield. In addition, the bag is built with front attachment points for wireless receivers. The interior dimensions of the bag will accommodate 11.4 x 2.4 x 5.1" mixers.
  • Fits Sound Devices MixPre-3 and MixPre-6, or Zoom F4 and F8
  • Front attachment points for wireless receivers
  • Zippers for large side and bottom openings
  UPC: 649906207665

• F4 Multitrack Field Recorder with Timecode - 6 Inputs / 8 Tracks zzqvqwrryxuvustruetxrdzx
• Camera-Mount Adapter
• Zoom AD-19 12 VAC Adapter
• DHC-1 DC-HIROSE Adapter
• Cubase LE Download Code
• Wavelab LE Download Code
• Limited 1-Year Warranty

• Airo by K-Tek - AMB1 Mixer Bag 1

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Zoom F4 Multitrack Field Recorder with Timecode - 6 Inputs / 8 Tracks

  Number of Tracks	WAV: 8 (6 Inputs + Stereo Mix) MP3: 2
  Max Sample Rate/Resolution	192 kHz / 24-Bit
  Built-In Speaker	No
  Display	Monochrome LCD
  Memory Card Support	SD (16 MB to 2 GB) SDHC (4 to 32 GB) SDXC (64 to 512 GB)

  Audio File Formats	BWF, ID3v1, MP3, WAV, iXML
  Sample Rates	WAV: 44.1 / 47.952 / 48 / 48.048 / 88.2 / 96 / 192 kHz MP3: 44.1 / 48 kHz
  Bit Rates	128 to 320 kb/s
  Timecode	Yes
  Frame Rates Supported	23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF
