User Manual for Zoom G1on Multi-Effects Guitar Pedal Click to enlarge the picture
Contents of the user manual for the Zoom G1on Multi-Effects Guitar Pedal
- Product category: Effects Pedals Zoom
- Brand: Zoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zoom Effects Pedals
 |
User manual for the Zoom G1on Multi-Effects Guitar Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zoom product will considerably shorten its lifespan!
|

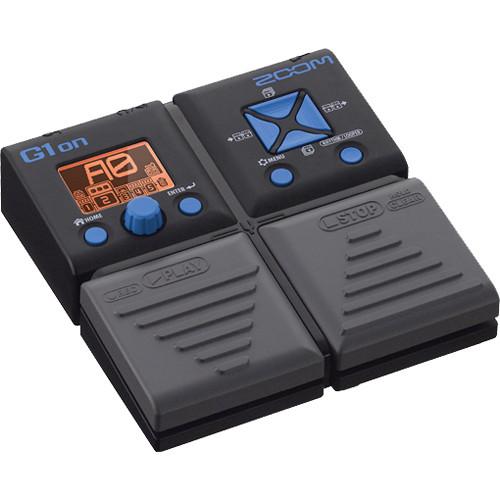

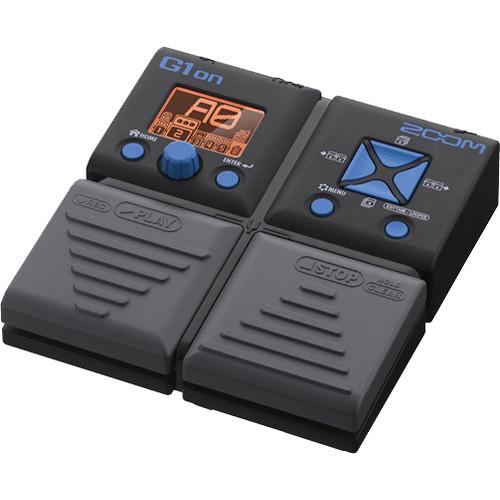

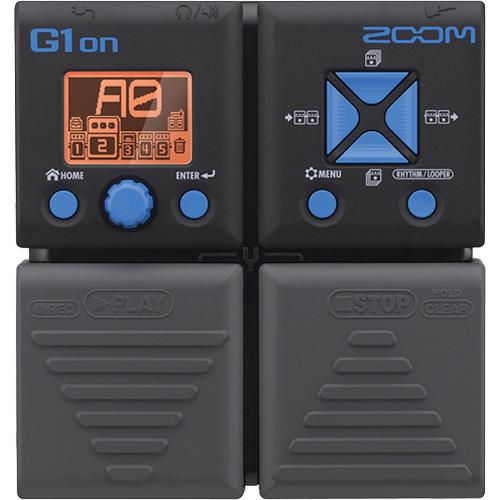

Product description The Zoom G1on offers guitarists 100 high-quality effects, including varieties of distortion, compression, modulation, delay, reverb and amp models. It allows you to chain up to 5 effects simultaneously for customizing your sound to fit your personal playing style. You can connect headphones to the output jack and practice along with the 68 built-in rhythm accompaniment patterns, or you can connect your portable music player to the auxiliary input jack if you want to jam along with your own backing tracks.
The G1on boasts an onboard chromatic tuner that supports all standard guitar tunings, including open and drop tunings. It has a phrase looper that enables you to record up to 30 seconds of CD-quality audio, and it can be powered by 4 AA batteries (not included). - Dynamics / Filter
- Dynamics / Filter effects include eleven compressors, noise gates, filters, equalizers and wah effects. Emulate the classic tone of the MXR Dynacomp, dbx 160, Moog Filter or Z. Vex Seek-Wah, or create all-new effects using the automatic slow attack, parametric equalizer or six-band graphic EQ. Also features Zoom Noise Reduction (ZNR) algorithm, designed to remove noise during pauses while still maintaining your guitar's natural tone
- Overdrive / Distortion
- Twelve boosters, overdrives, fuzzes and lead guitar sounds, including simulations of the BOSS OD-1, MXR Distortion+, Marshall Guv'nor, Fuzz Face, Big Muff and Pro Co Rat. The ExtremeDS effect offers a powerful distortion effect, and there's also a simulator that allows your electric guitar to emulate an acoustic
- Amp
- Twenty-two realistic models including simulations of classic tube and solid-state amps from manufacturers like Fender, Marshall, Vox, Hiwatt, Mesa Boogie, Orange, Bogner, Matchless and Diezel
- Modulation / Special effects
- Round out your sound with your choice of sixteen phasers and flangers, plus chorus, pitch shift, tremolo and vibrato. Included are emulations of the ADA Flanger, Boss CH-1 Super Chorus and TC Electronic Corona Chorus, as well as the Zoom HPS, an intelligent harmonizer that plays along in key, and a ring modulator that adds bell-like tones to your guitar. And for some strange and unique sounds, try out the rhythmic Slicer effect
- Delay / Reverb
- Fourteen delays and natural-sounding reverbs, including rooms, halls, plates, springs, and tape delay simulators, all designed to add depth and spaciousness to your sound, with delay times of up to 4 seconds. You'll find also find reverse delays, modulated reverbs and particle reverbs for placing your guitar in a realistic space, or an unearthly one
- Other Features:
-
• 100 memory locations (10 banks of 10) for the storage of user-created patches
• Copy and Swap functions make patch organization a breeze
• Auto Save function for automatic saving of all patch parameters
• Pre Select function allows you to scroll through patches silently while keeping the current patch operational
• Looper feature for the recording of up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times

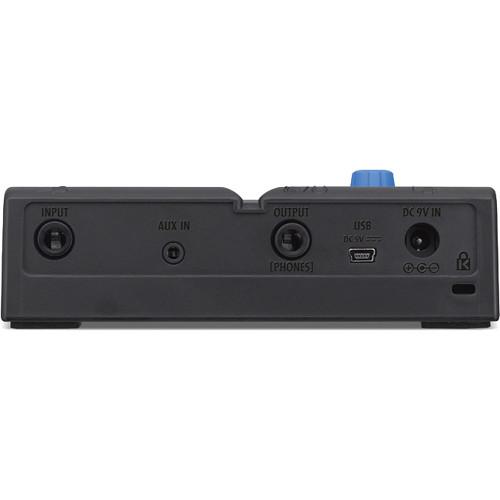

• Input jack accepts standard mono guitar cable (both active and passive instruments supported)
• Auxiliary input jack for connection of personal music players
• Output jack for connection to amp or headphones
• Backlit LCD with contrast control for easy viewing in low-light environments
• Lightweight and small enough to fit in your gig bag
• Easily integrated into any existing pedal board
• Runs on 4 AA batteries, with alkaline battery life of 20 hours
• USB port for firmware updates UPC: 884354012731 In the Box Zoom G1on Multi-Effects Guitar Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom G1on Multi-Effects Guitar Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZoom ZG1ON Specs | Effects | 100 (OS 1.2) | | Simultaneous Effects | 5 | | Effect Patches | 100 | | Sampling Frequency | 44.1 kHz | | A/D Conversion | 24-bit, 128 times over-sampling | | D/A Conversion | 24-bit, 128 times over-sampling | | Signal Processing | 32-bit floating point and 32-bit fixed point | | Frequency Response | 20 Hz to 20 kHz +1 dB -3 dB (10 kΩ load) | | Display | LCD | | Input | Input:Standard mono 1/4" phone jackRated input level: -20 dBmInput impedance (line): 470 kΩAux in:Mini stereo 1/8" phone jackRated input level: -10 dBmInput impedance (line): 1 kΩ | | Output | Standard stereo 1/4" phone jackMaximum line output level: +2 dBm (output impedance load of 10 kΩ or more)Maximum headphones output level: 17 mW + 17 mW (into 32 Ω load) | | S/N | 119 dB | | Noise Floor | -97 dBm | | Power | AC adapter (optional): DC 9V center-negative, 500 mABattery: AA size (LR6) battery x 4Continuous battery operation time: 20 hours when using 4 AA alkaline batteriesUSB: USB power | | USB | Firmware update | | Dimensions | 6.1 x 5.7 x 1.7" (155 x 146 x 43 mm) | | Weight | 13.4 oz (380 g), without batteries | | | | Package Weight | 1.425 lb | | Box Dimensions (LxWxH) | 7.25 x 6.85 x 2.3" |
