Product description - Quick Listen: Zoom G3Xn Multi-Effects Processor

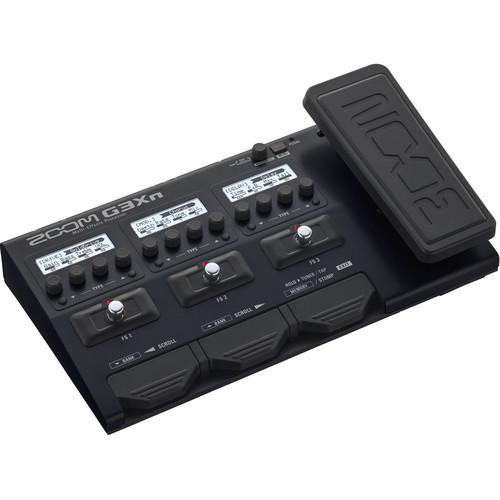

Designed to put a panoply of sonic possibilities beneath the feet of electric guitar players, the Zoom G3Xn is a multi-effects processor with 68 different effects, up to seven of which can be used simultaneously. Also provided are five amp and cabinet emulations which aim to replicate the sonic signatures of classic setups; every sonic signature from Marshall to Bogner is honored herein.

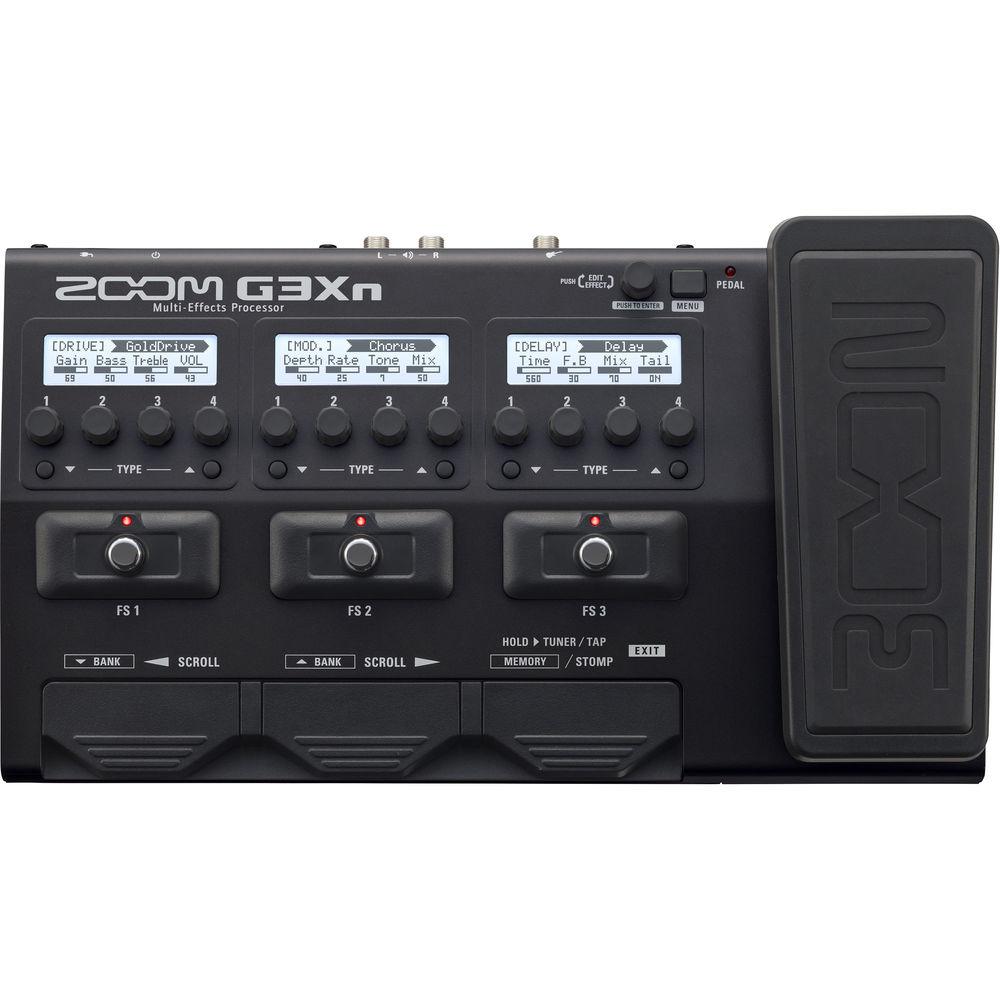

Three footswitches allow you to initiate effects, which are all editable via three separate LCD screens, each of which boasts four dedicated parameter controls, which change depending on the effect you choose. At the bottom of the pedal are three more foot controls: two scroll pedals for cycling through banks, as well as a third control for tap-tempo and tuner regulation. An 80-second phrase looper is also available for all your looping needs.

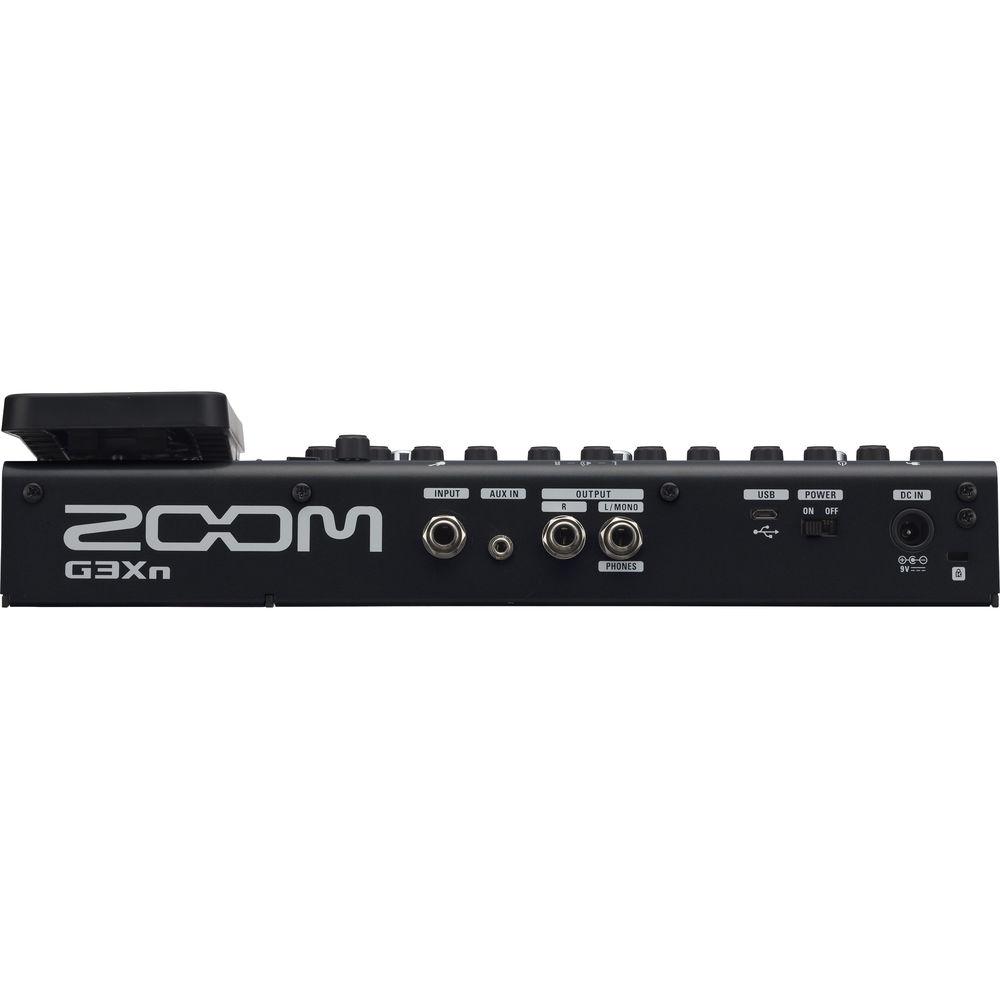

The pedal provides both instrument and auxiliary inputs, and an output section with both a mono 1/4" output and a stereo 1/4" output, useful for monitoring through headphones, implementing stereo effects, or routing stereo signal to interfaces, PAs, mixers, and recording devices. At 7.1 x 12.5 x 2.5", the G3Xn is portable enough to carry from gig to gig, and at 4.0 lb, it's lightweight enough to present only a little added stress to your existing touring rig. With this pedal, you can easily replace—or augment—your existing pedalboard. - Built-In Expression Pedal

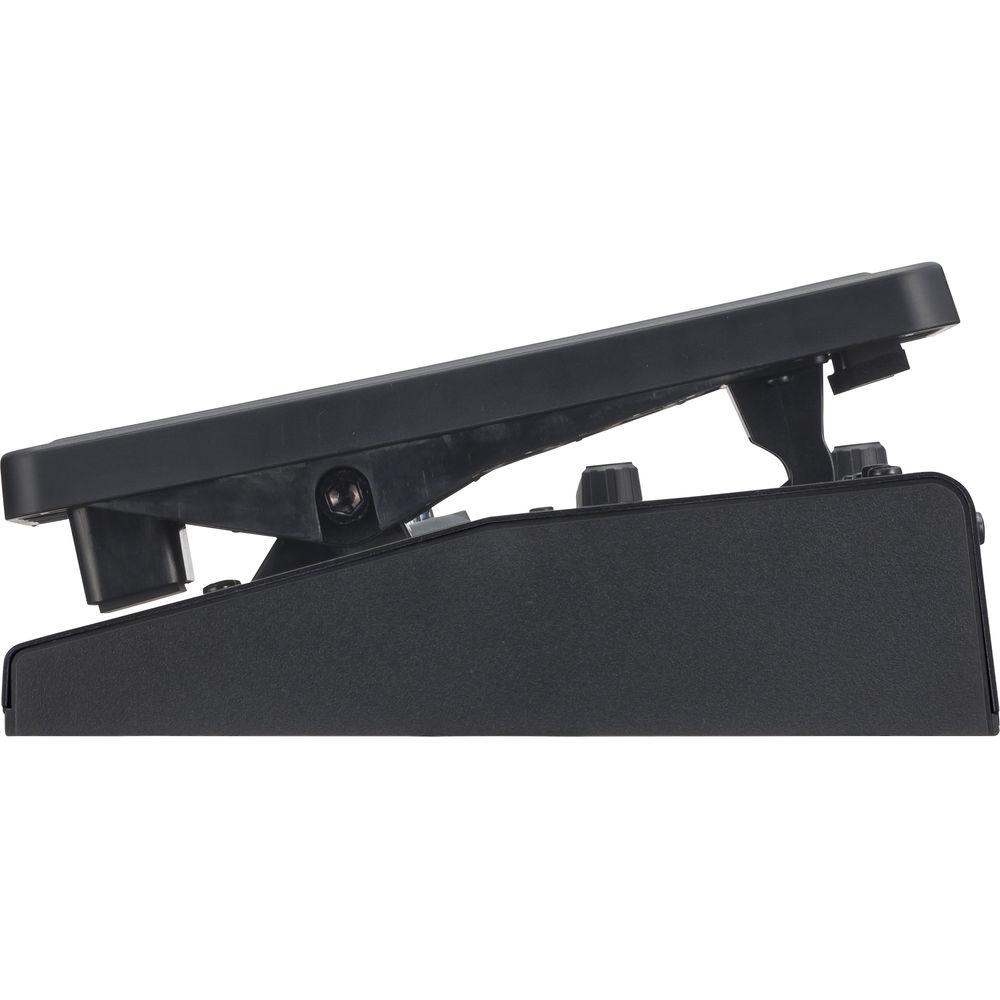

- The G3Xn features a built-in expression pedal that provides real-time control over volume, tone, or selected effects parameters.
- Included Software
- The included Zoom Guitar Lab software for Mac and Windows enables you to manage patches, download new effects, and activate different amp/cabinet emulators. It includes a Patch Manager for effects chains, as well as an Effects Manager with a simple graphic user interface. This provides point-and-click control over re-naming or re-ordering your custom patches.
- Patches from Notable Creators
- With the included Guitar Lab software, you can look for new effects and amp/cabinet emulators, and add new, exclusive patches from a diverse and growing list of creators, including:
- Kyle Bolden (Stevie Wonder)
- Eric Struthers (Aaron Neville)
- Allen Epley (The Life and Times, Shiner)
- Richard Patrick (Filter)
- Jeff Schroeder (Smashing Pumpkins)
- Andrew Elstner (Torche, Tilts, Riddle of Steel)
- Christophe Godin (Mörglbl)
- Luca Colombo
- Vinny Valentino (Steve Smith & Vital Information)
- Kiko Loureiro (Megadeth)
- Tommy Bolan (NYC, Banzai, Warlock)
- Ozielzinho
- Errol Cooney (Christina Aguilera, Stevie Wonder)
- Wes Geer (Korn, hed PE)
- Adam Hawley (Joss Stone)
- Chuck Loeb (Fourplay)
- Dan Spack (Volcano Choir)
- Craig Wedren (Shudder To Think)
- Features at a Glance
-
- 70 (68 effects, 1 looper pedal, and 1 rhythm pedal) onboard high-quality digital effects, including distortion, overdrive, EQ, compression, delay, reverb, flanging, phasing, and chorusing
- 5 amp emulators plus 5 cabinet emulators
- 75 custom-designed factory patches
- 150 available patches for your custom effect chains
- Included Zoom Guitar Lab software for Mac/Windows allows downloading of additional effects and patches
- Use up to 7 effects simultaneously, chained together in any order
- 3 stompbox switches allow effects to instantly be brought in and out
- 3 independent editing displays
- Auto Save function for automatic saving of all patch parameters
- Onboard chromatic tuner with dedicated footswitch supports all standard guitar tunings, including open and drop tunings
- Tuner range of 435 - 445 Hz
- Stereo/mono Looper allows recording of up to 80 seconds of phrase recording
- 68 built-in rhythm patterns that can be used in conjunction with the Looper
- Tap Tempo with dedicated footswitch
- Input jack accepts standard guitar cable
- Auxiliary stereo input jack for connection of smartphones and music players
- Dual output jacks for connection to guitar amps and mono or stereo PA systems
- Dedicated stereo headphone output
- Included AC adapter
UPC: 884354017200 In the Box Zoom G3Xn Multi-Effects Processor with Built-In Expression Pedal Zoom AD-16 AC Adapter Zoom Guitar Lab Software for Mac/Windows Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom G3Xn Multi-Effects Processor with Built-In Expression Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZoom G3Xn Specs | Effects Types | 80x: 70 DSP effects, 5 amp emulations, 5 cabinet emulations | | Simultaneous Effects | Up to 7x | | User Banks | 150 banks and patches | | Sampling Frequency | 44.1 kHz | | AD/DA Conversion | 24-bit with 128x oversampling | | Signal Processing | 32-bit | | Frequency Characteristics | 20 Hz to 20 kHz, +1 dB, -3 dB (10-kOhm load) | | LCD Display | 3x 128 x 32 dot-matrix | | Input Connections | 1 x 1/4" phone jack
1 x Stereo 3.5 mm mini jack | | Input Level | 1/4" phone: -20 dBu
3.5 mm mini: -10 dBu | | Input Impedance | 1/4" phone: 470 kOhms (line)
3.5 mm: 10 kOhms (line) | | Output Connections | 1 x 1/4" phone jack, mono
1 x 1/4" phone jack, stereo (combined line / headphone) | | Output Level | Output R: Line +5 dBm (load impedance of 10 kOhms or more)
Output L: Line +5 dBm (load impedance of 10 kOhms or more); headphones 15 mW + 15 mW into 32-Ohm load | | EIN | -119 dBu | | Noise Floor | -100 dBu | | Power | Zoom AD-16 AC adapter: 9 VDC (center minus plug), 500 mA | | USB | USB MIDI, USB Micro-B | | Dimensions (D x W x H) | 7.1 x 12.5 x 2.5" / 18.1 x 31.8 x 6.4 cm | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 16.3 x 8.1 x 3.2" |
