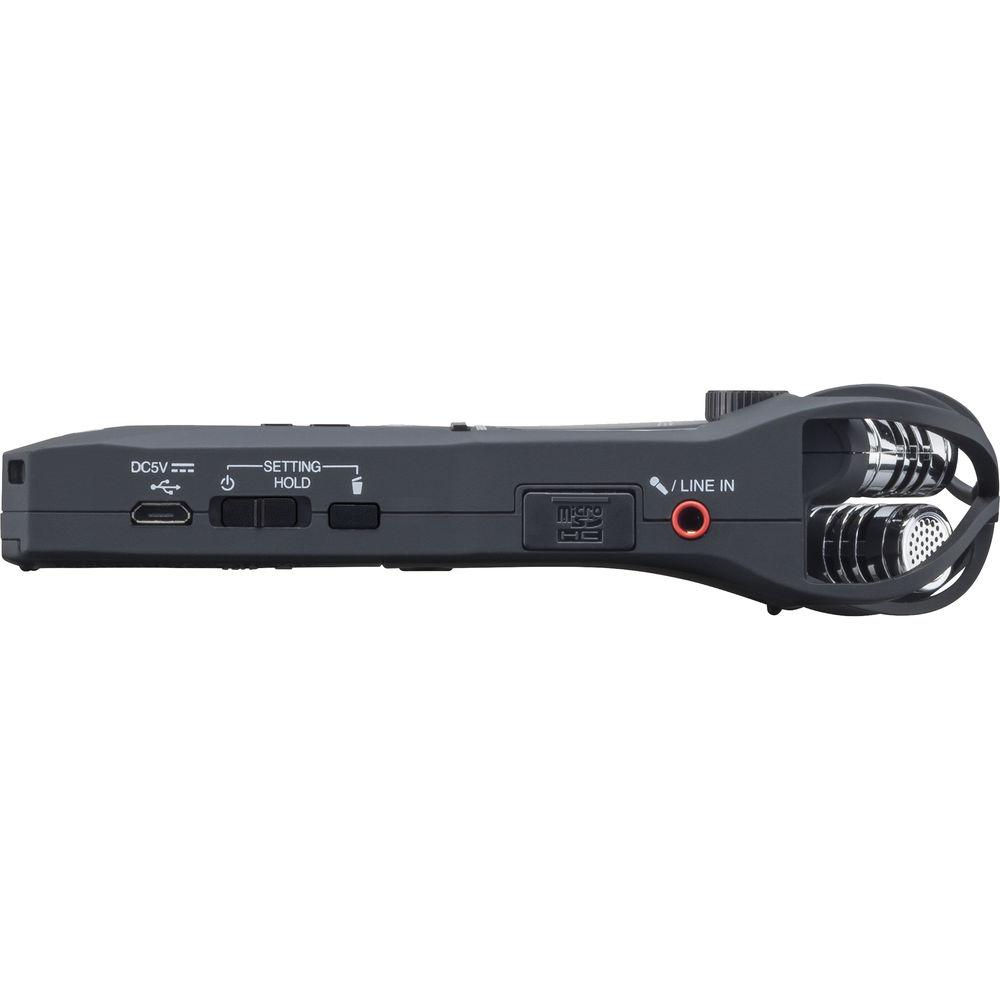

User Manual for Zoom H1n Digital Handy Recorder Click to enlarge the picture
Contents of the user manual for the Zoom H1n Digital Handy Recorder
- Product category: Portable Digital Recorders Zoom
- Brand: Zoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zoom Portable Digital Recorders
 |
User manual for the Zoom H1n Digital Handy Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zoom product will considerably shorten its lifespan!
|
Product description CES 2018: Zoom Releases the H1n Handy Recorder Read More - The Zoom H1n
- Zoom H1n: Audio Interface Mode
- Zoom H1n: Transferring Files To Your Computer

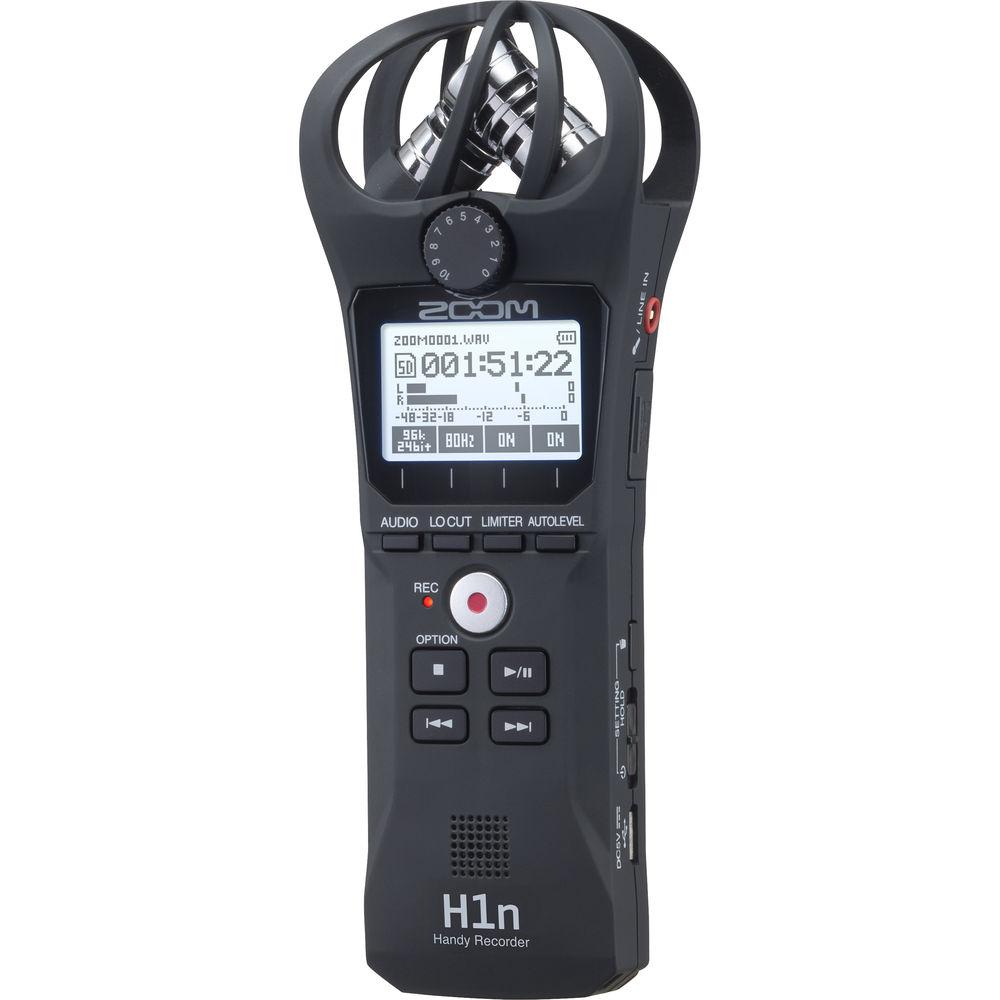

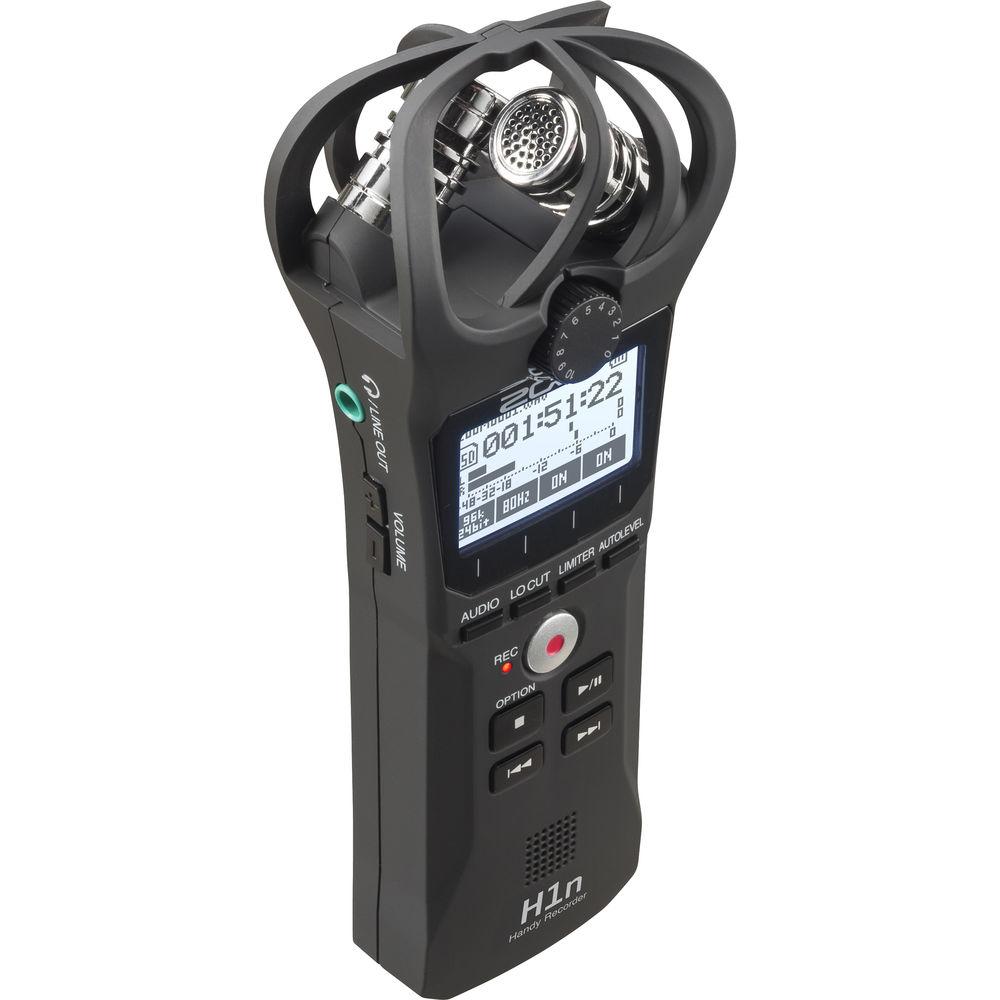

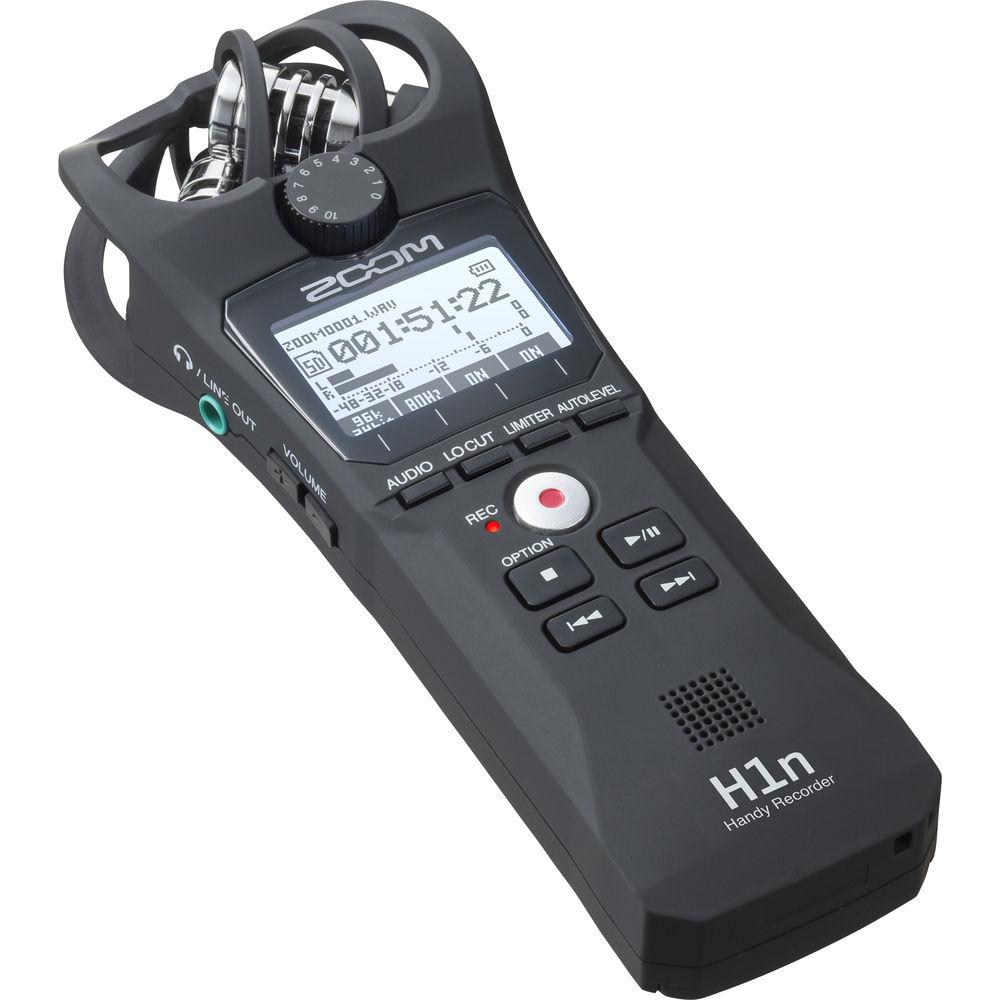

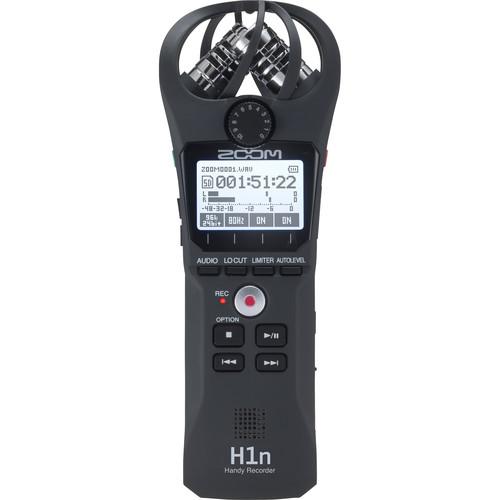

Like its predecessor, the black H1n Handy Recorder from Zoom is an easy-to-use, versatile stereo digital audio recorder that fits into the palm of your hand. However, in this iteration, Zoom has incorporated several features to make operation even simpler.Whereas the Zoom H1 featured a single record button on the front of the recorder and a whole array of buttons along the side designed for play/pause, rewind/fast forward, and diving into menus, the H1n features buttons where you can easily see them, on the front of the recorder. Now you can go from recording to pausing, and from stopping to navigating between tracks, all with your thumb. Also provided are four buttons above the record function that let you change the sample rate and resolution, apply a low-cut filter for mitigating rumble, turn the built-in limiter on and off, and enact the auto-level function, which automatically sets the gain for you.The H1n is geared for musicians, journalists, podcasters, and more, recording WAV and MP3 files to meet your professional needs. The H1n has a stereo X/Y microphone configuration that captures a realistic stereo image. The unit records audio to microSD or microSDHC flash memory cards, supporting capacities up to 32GB. The H1n records WAV audio at rates up to 24-bit / 96 kHz, and MP3 audio at rates up to 320 kbps. The pocket-sized device runs on two AAA batteries, providing up to 10 hours of continuous operation.A 3.5mm mic/line input lets you connect an external microphone or line-output source, while a 3.5mm headphone/line output lets you connect your favorite headphones or small external speakers. A high-speed USB 2.0 port allows you to easily transfer data to your Mac or Windows computer. The unit also functions as an audio interface, allowing you to record directly from the Zoom H1n to your favorite DAW. 2 AAA batteries are included. - Compact Form Factor

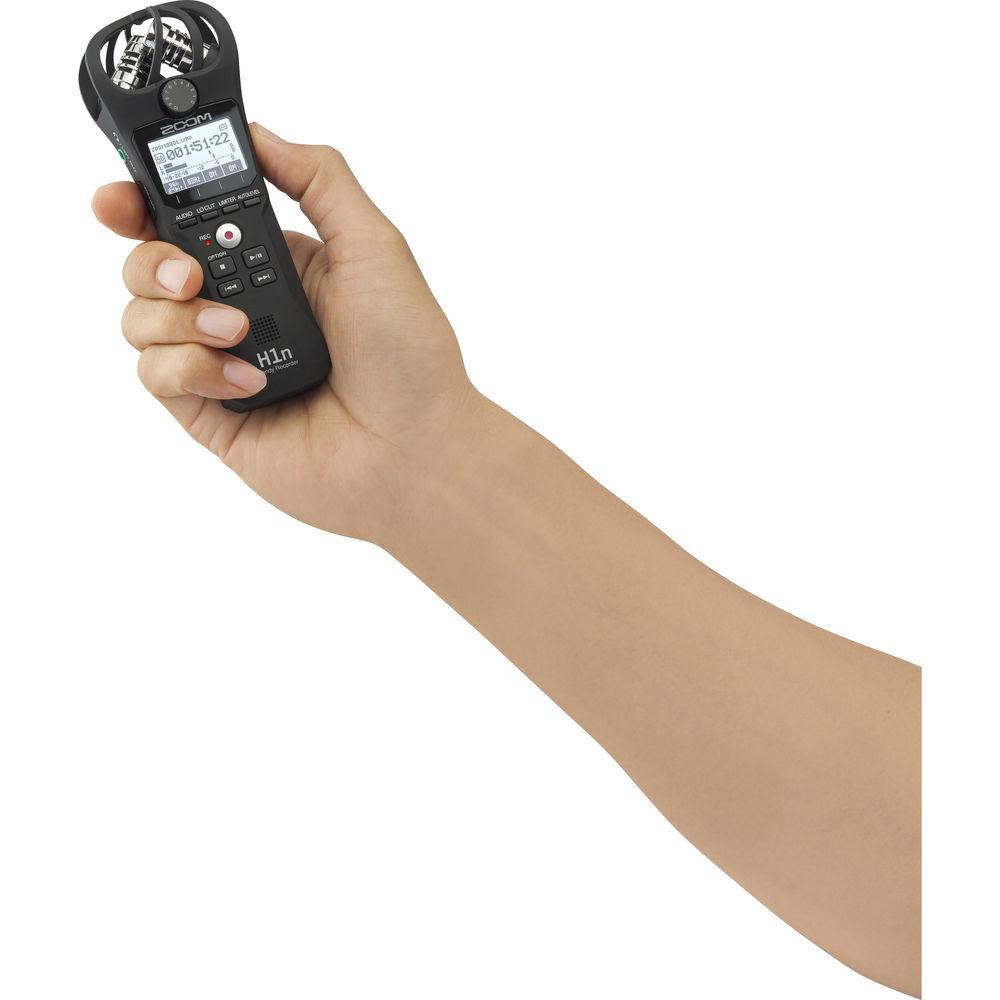

- This tiny recorder slips easily into your pocket or bag for the ultimate in portability
- High-Quality Audio
- The recorder can record WAV (BWF) files at up to 24-bit / 96 kHz or MP3 files up to 320 kbps and VBR. Broadcast Wave Format allows you to add track markers to your recording.

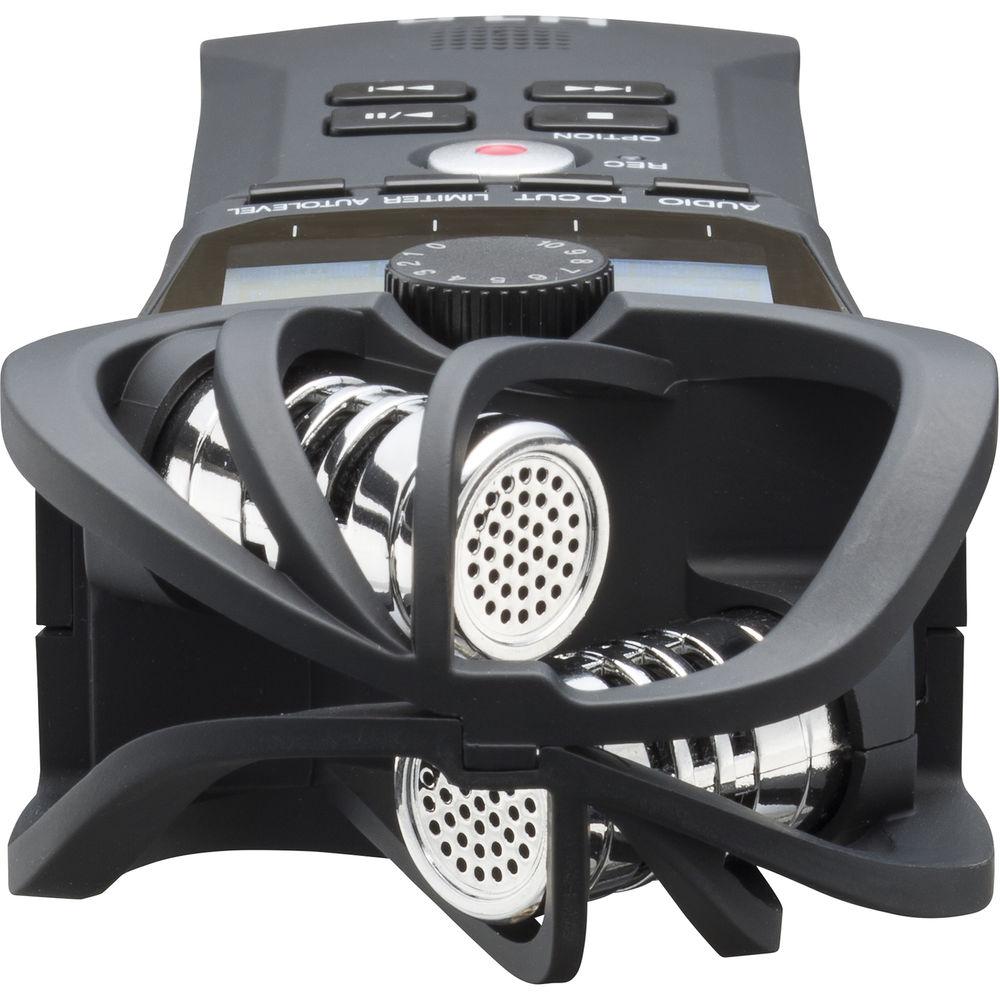

- X/Y Stereo Mic Configuration
- The X/Y stereo microphone configuration captures crisp, true stereo recordings accurately and realistically.
- microSD/SDHC Card Recording
- The H1n records to easily found microSD and microSDHC memory cards with capacities up to 32GB.
- Easy to Use
- The simple interface provides 1-button recording and offers physical controls for playback functions, input and volume levels, low-cut filter, and auto-level control—eliminating the need for complicated menus.
- Input/Output Options

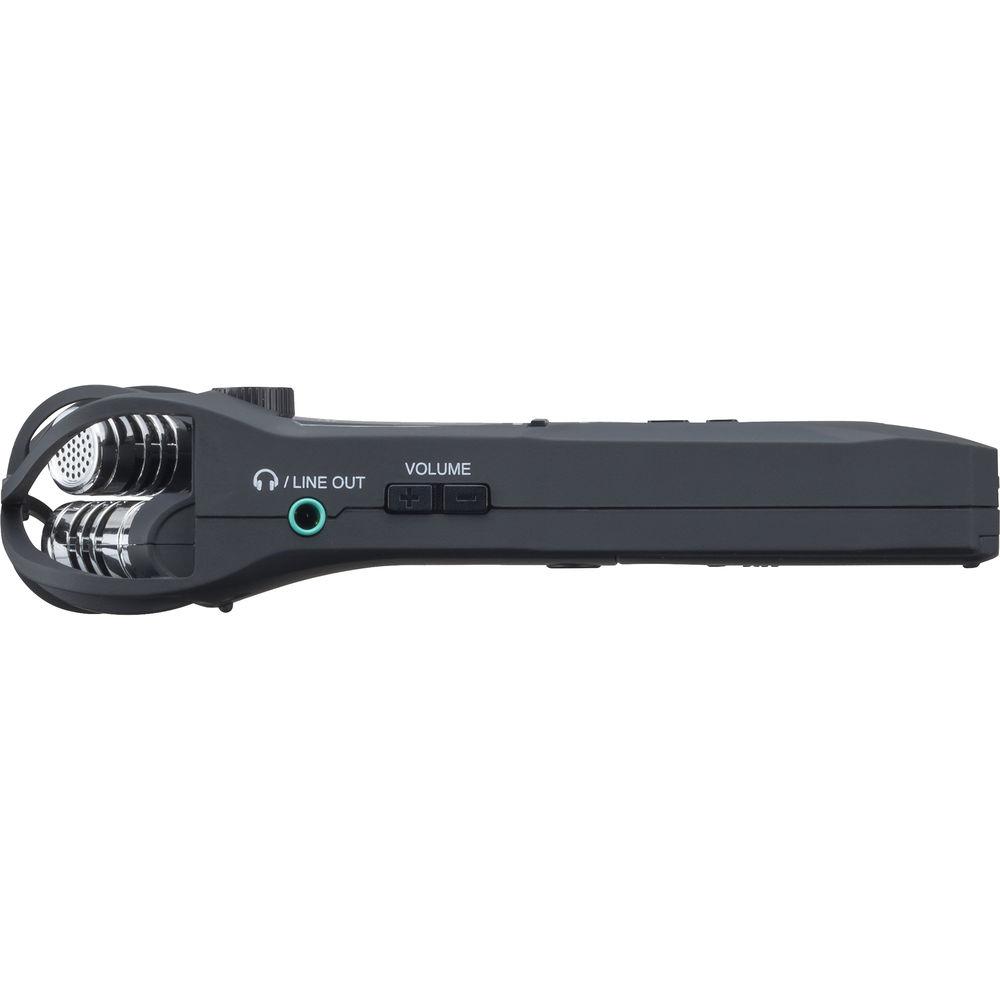

- A standard 3.5mm mic/line input lets you connect external microphones and sound sources such as MP3 players, while a 3.5mm headphone/line output lets you connect headphones or small external speakers.
- High-Speed USB 2.0
- A high-speed USB 2.0 port allows you to quickly transfer your audio files to your Mac or Windows computer.
- Works as an Audio Interface
- The H1n works as a class-compliant interface with your computer, recording audio at 44.1 or 48 kHz sample rates and 16-bit resolution, straight to your DAW.

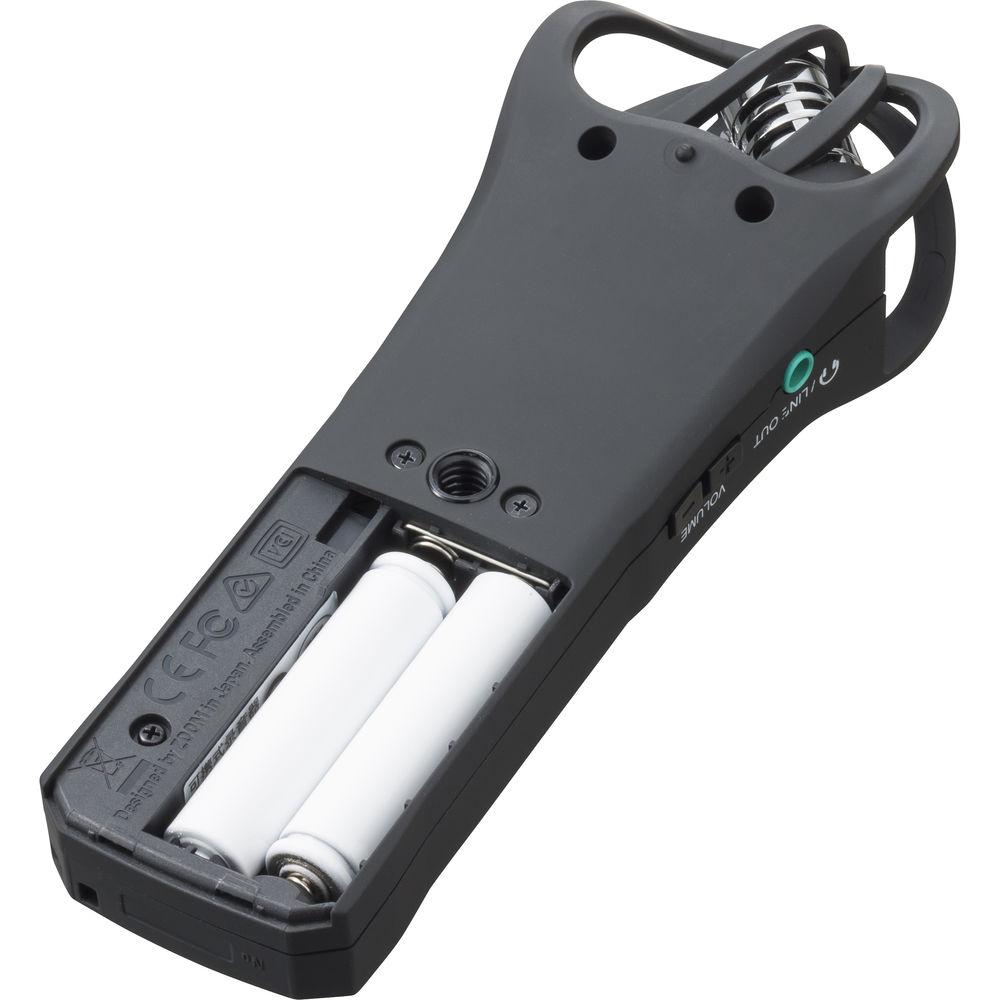

UPC: 884354018191 In the Box Zoom H1n Digital Handy Recorder (Black) 2 AAA Batteries Limited 1-Year Warranty User Manual PDF 14.1mbavztfuwwftwyyywybdwayvxbftdevbwfdd Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom H1n Digital Handy Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZoom H1n Specs | | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Microphone | Built-In Stereo Pair, X/Y Configuration | | Built-In Speaker | Yes | | Display | Monochrome LCD | | Memory Card Support | microSD, microSDHC (Up to 32 GB) Class 4 or Higher | | | | Audio File Formats | MP3, WAV | | Sample Rates | WAV:
44.1 / 48 / 96 kHz | | Bit Depth | 16/24-Bit | | Bit Rates | 48 to 320 kb/s | | Signal Processing | Limiter, Low-Cut Filter Auto-Level | | Timecode | No | | | | Analog I/O | 1 x 1/8" / 3.5 mm TRS Line/Mic Input
1 x 1/8" / 3.5 mm TRS Headphone Output | | Plug-In Power | Yes, 2.5 V | | Host Connection | 1 x Micro-USB (USB 2.0) | | | | Gain Range | Mic Inputs:
Up to 39 dB
Mic/Line Inputs:
Up to 39 dB | | Impedance | Mic/Line Inputs:
≥2 kOhms | | Microphone Max SPL | 120 dB SPL | | | | Power Options | Batteries | | Battery Type | 2 x AAA | | Approximate Battery Life | 44.1 kHz/16-Bit:
10 Hours (Alkaline) | | | | Dimensions | 2.0 x 5.4 x 1.3" / 50.0 x 137.5 x 32.0 mm | | Weight | 2.1 oz / 60.0 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 8.6 x 4.3 x 1.7" |
