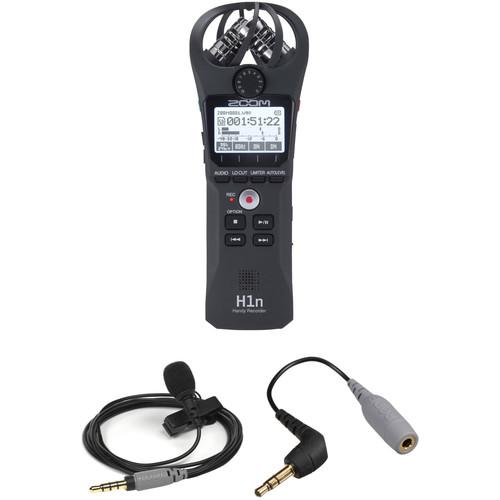

Product description Bundled together by B&H for your convenience, this Zoom H1n Recorder Kit includes a black Zoom H1n Digital Handy Recorder, a Rode smartLav+ microphone, and a Rode SC3 3.5mm TRRS to TRS Adapter to connect the mic with the recorder.
The Zoom H1n boasts its own X/Y stereo mic, records to microSD/SDHC cards, gives you a limiter and a high-cut filter, and doubles as a USB interface. The smartLav+ gives you an omnidirectional polar pattern and a mic clip with cable management. The adapter, as previously mentioned, facilitates the connection between the recorder and the lav. Now you can mic your person, lapel-style, and record directly into the H1n. - Zoom H1n Digital Handy Recorder (Black)
- Zoom H1n: Audio Interface Mode
- Zoom H1n: Transferring Files To Your Computer
Like its predecessor, the black H1n Handy Recorder from Zoom is an easy-to-use, versatile stereo digital audio recorder that fits into the palm of your hand. However, in this iteration, Zoom has incorporated several features to make operation even simpler.Whereas the Zoom H1 featured a single record button on the front of the recorder and a whole array of buttons along the side designed for play/pause, rewind/fast forward, and diving into menus, the H1n features buttons where you can easily see them, on the front of the recorder. Now you can go from recording to pausing, and from stopping to navigating between tracks, all with your thumb. Also provided are four buttons above the record function that let you change the sample rate and resolution, apply a low-cut filter for mitigating rumble, turn the built-in limiter on and off, and enact the auto-level function, which automatically sets the gain for you.The H1n is geared for musicians, journalists, podcasters, and more, recording WAV and MP3 files to meet your professional needs. The H1n has a stereo X/Y microphone configuration that captures a realistic stereo image. The unit records audio to microSD or microSDHC flash memory cards, supporting capacities up to 32GB. The H1n records WAV audio at rates up to 24-bit / 96 kHz, and MP3 audio at rates up to 320 kbps. The pocket-sized device runs on two AAA batteries, providing up to 10 hours of continuous operation.A 3.5mm mic/line input lets you connect an external microphone or line-output source, while a 3.5mm headphone/line output lets you connect your favorite headphones or small external speakers. A high-speed USB 2.0 port allows you to easily transfer data to your Mac or Windows computer. The unit also functions as an audio interface, allowing you to record directly from the Zoom H1n to your favorite DAW. 2 AAA batteries are included. - Compact Form Factor
- This tiny recorder slips easily into your pocket or bag for the ultimate in portability
- High-Quality Audio
- The recorder can record WAV (BWF) files at up to 24-bit / 96 kHz or MP3 files up to 320 kbps and VBR. Broadcast Wave Format allows you to add track markers to your recording.
- X/Y Stereo Mic Configuration
- The X/Y stereo microphone configuration captures crisp, true stereo recordings accurately and realistically.
- microSD/SDHC Card Recording
- The H1n records to easily found microSD and microSDHC memory cards with capacities up to 32GB.
- Easy to Use
- The simple interface provides 1-button recording and offers physical controls for playback functions, input and volume levels, low-cut filter, and auto-level control—eliminating the need for complicated menus.
- Input/Output Options
- A standard 3.5mm mic/line input lets you connect external microphones and sound sources such as MP3 players, while a 3.5mm headphone/line output lets you connect headphones or small external speakers.
- High-Speed USB 2.0
- A high-speed USB 2.0 port allows you to quickly transfer your audio files to your Mac or Windows computer.
- Works as an Audio Interface
- The H1n works as a class-compliant interface with your computer, recording audio at 44.1 or 48 kHz sample rates and 16-bit resolution, straight to your DAW.
UPC: 884354018191 - Rode smartLav+ Lavalier Condenser Microphone for Smartphones
- Zoom H1n: Audio Interface Mode
- Zoom H1n: Transferring Files To Your Computer
The Rode smartLav+ is a lavalier microphone for your Apple or Android mobile device that is designed to deliver high-quality audio recording. The smartLav+ clips on to your shirt or lapel, and the sensitive, omnidirectional condenser capsule captures the sound equally from all sides of the microphone. This design lends to effective, hands-free recording of speeches, interviews, dictations and more.
The smartLav+ is equipped with a Kevlar-reinforced cable that has been strain tested up to 10kg to help ensure reliable performance. It uses a grey-sleeved TRRS connector to connect into your smartphone or tablet's headphone input and it works with most audio recording apps.
The smartLav+ also features improved sensitivity and higher signal-to-noise ratio over the original smartLav. The package comes with a mic clip with cable management, a foam pop shield and a small carry pouch.
Compatible with iPhone 5S, iPhone 5, iPhone 5C, iPhone 4S, iPhone 4, iPad Air, iPad (3rd generation), iPad 2, iPad mini, iPod touch (4th and 5th generation) & many Android devices. A full list of compatible devices can be found here.rwfueycrrwravxsuedvduywsqwzxuvqfdazdz - Works with any audio app that records from the headset input
- Record, EQ, edit, and publish your audio with Rode Rec App for Apple iOS (not included)
- Foam pop shield softens vocal plosives and wind noise
- Mic clip with cable management included for neatly securing microphone to clothing
- Small pouch included for storage and transport
- Combine with SC3 adapter to use with TRS devices
- Combine with SC6 dual TRRS input adapter to use two smartLav+ with one smartphone
UPC: 698813004058 - Rode SC3 3.5mm TRRS to TRS Adapter for smartLav
- Zoom H1n: Audio Interface Mode
- Zoom H1n: Transferring Files To Your Computer
The SC3 3.5mm TRRS to TRS Adapter for smartLav from Rode allows you to connect the output of your smartLav microphone to a 3.5mm TRS equipped device, such as a camera or audio recorder. It features color coded, gold-plated connectors, with gray indicating the TRRS input, in addition to shielded construction. UPC: 698813003198 In the Box - H1n Digital Handy Recorder (Black) rwfueycrrwravxsuedvduywsqwzxuvqfdazdz
- 2 AAA Batteries
- Limited 1-Year Warranty
- Rode - smartLav+ Lavalier Condenser Microphone for Smartphones
- Rode - SC3 3.5mm TRRS to TRS Adapter for smartLav
Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom H1n Recorder Kit with Rode smartLav and TRRS to TRS Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Zoom H1n Digital Handy Recorder (Black)
| | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Microphone | Built-In Stereo Pair, X/Y Configuration | | Built-In Speaker | Yes | | Display | Monochrome LCD | | Memory Card Support | microSD, microSDHC (Up to 32 GB) Class 4 or Higher | | | | Audio File Formats | MP3, WAV | | Sample Rates | WAV:
44.1 / 48 / 96 kHz | | Bit Depth | 16/24-Bit | | Bit Rates | 48 to 320 kb/s | | Signal Processing | Limiter, Low-Cut Filter Auto-Level | | Timecode | No | | | | Analog I/O | 1 x 1/8" / 3.5 mm TRS Line/Mic Input
1 x 1/8" / 3.5 mm TRS Headphone Output | | Plug-In Power | Yes, 2.5 V | | Host Connection | 1 x Micro-USB (USB 2.0) | | | | Gain Range | Mic Inputs:
Up to 39 dB
Mic/Line Inputs:
Up to 39 dB | | Impedance | Mic/Line Inputs:
≥2 kOhms | | Microphone Max SPL | 120 dB SPL | | | | Power Options | Batteries | | Battery Type | 2 x AAA | | Approximate Battery Life | 44.1 kHz/16-Bit:
10 Hours (Alkaline) | | | | Dimensions | 2.0 x 5.4 x 1.3" / 50.0 x 137.5 x 32.0 mm | | Weight | 2.1 oz / 60.0 g | | | | Box Dimensions (LxWxH) | 8.6 x 4.3 x 1.7" | - Rode smartLav+ Lavalier Condenser Microphone for Smartphones
| Acoustic Principle | Pressure gradient | | Active Electronics | JFET | | Capsule | 0.10" / 2.54 mm | | Polar Pattern | Omnidirectional | | Address Type | End | | Frequency Range | 60 Hz to 18 kHz | | Output Impedance | 3 kOhms Typical | | Signal to Noise Ratio | 67 dB | | Maximum SPL | 110 dB SPL (@ 1 kHz, 1% THD into 1 kOhm load) | | Maximum Output Level | 189.0 dBu (@ 1 kHz, 1% THD into 1 kOhm load) | | Sensitivity | -35 dB (17.8 mV @ 94 dB SPL) | | Equivalent Noise Level | 27 dB-A | | Connector | TRRS | | Maximum Output | 189 mV | | Dynamic Range | 83 dB typical | | Dimensions | 46.5 x 0.18 x 0.18" / 1180 x 4.5 x 4.5 mm, mic and cable | | Weight | 0.211 oz / 6.00 g | | | | Box Dimensions (LxWxH) | 5.354 x 3.307 x 0.787" | - Rode SC3 3.5mm TRRS to TRS Adapter for smartLav
| Connector 1 | 1/8" (3.5 mm) Female TRRS, gold-plated | | Connector 2 | 1/8" (3.5 mm) Male TRS, gold-plated | | Dimensions (H x W x D) | 1.2 x 0.4 x 6.7" (30 x 10 x 170 mm) | | Weight | 0.7 oz (20 g) | | | | Box Dimensions (LxWxH) | 3.1 x 2.9 x 1.1" |
