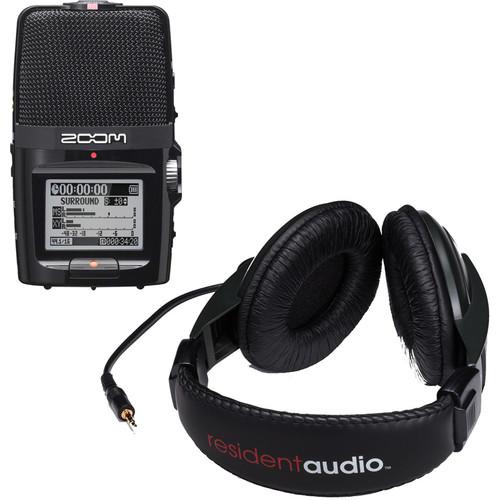

Zoom H2n Handy Recorder Kit with

User Manual for Zoom H2n Handy Recorder Kit with Resident Audio R100 Headphones

• Product category: Portable Digital Recorders Zoom
• Brand: Zoom
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zoom Portable Digital Recorders

Product description

• Zoom H2n Handy Recorder Portable Digital Audio Recorder Perfect for chamber ensembles, string quartets, and small jazz combos, the Zoom H2n offers a powerful set of features for one-mic recording. If you’re a studio cat, you’ll appreciate its ability to record 96 kHz/24-bit audio files. Recording enthusiasts will appreciate its switchable array of five microphones—all of which provide an immersive audio experience.The H2n also works as a 4-in/2-out USB audio interface, recording multi-tracked audio straight to your computer. Podcasters can use the unit as a USB mic. A simple dial on top of the recorder lets you switch between traditional XY stereo, 2-channel surround, 4-channel surround, and a mid-side stereo mode. The mid-side mode allows you to adjust the width of your stereo field for flexibility. When recording in RAW mode, you can even adjust the field after you've made a recording.

  The H2n records to widely available SD and SDHC flash memory cards, and supports capacities up to 32GB. When using a 32GB card, you can capture up to 50 hours of CD-quality WAV files, or up to 555 hours of stereo 128 kb/s MP3 files. An integrated reference speaker helps to review your recordings to make sure everything has been captured properly. The streamlined and intuitive interface puts critical controls right at your fingertips. The large 1.8" backlit LCD display makes it easy to navigate through system menus and monitor audio levels. The analog-type mic gain wheel lets you make precise adjustments on-the-fly.

  If you'd like to connect external equipment, the H2n provides you with a 3.5mm mic/line input, allowing you to hook up your favorite microphones, instruments, and other sound sources. A 3.5mm headphone/line output makes it easy to connect headphones, portable speakers, and other devices. A remote jack lets you connect the optional wired remote to start, stop, and pause recordings, as well as add marks. It also reduces handling noise for the cleanest possible recordings. A high-speed USB 2.0 port lets you transfer recordings to your Mac or PC. You can even use the H2n as a live USB mic, terrific for VoIP chats and podcasting. An activation card for Steinberg's WaveLab LE and Cubase LE software is included, and once downloaded, they will give you audio editing and mastering tools to help you turn your recordings into finished masterpieces.

  The H2n offers a number of versatile powering options. It offers over 20 hours of continuous operation on a pair of standard AA alkaline batteries. It can also be operated via USB bus power or an AC adapter (sold separately). In the event of battery failure or accidental power loss, your recordings won't vanish. A data recovery function will automatically restore your data the next time the recorder is powered on, so you don't lose one-of-a-kind audio moments. Other features of the H2n include a lo-cut filter, a compressor/limiter, auto gain, pre-rec, auto-rec, a tuner and metronome, variable speed playback, key control, A-B repeat, file dividing, normalize, MP3 post-encode, marker, and surround mixer to give you useful tools for a variety of applications.
  Key Features at a Glance
  • • Easy-to-use controls for volume, record, and other essential functions
    • Switchable compression/limiting so you never distort the mics
    • Low-cut filter to eliminate low-frequency room rumble
    • 2 seconds of pre-record so you never miss the beginning of a performance
    • 20 hours of recording from two AA batteries
  Compact Design
  • The compact design fits in the palm of your hand and can be taken practically anywhere. This makes it ideal for film and broadcast applications as well as journalism, podcasting, musical performances and rehearsals, and much more.
  5 Internal Microphones
  • The H2n has 5 high-quality mic capsules, more than any other portable recorder. This unique 5-mic design enables the H2n to record with 4 selectable patterns.
  4 Selectable Recording Patterns
  • A simple dial on top of the recorder lets you switch between traditional XY stereo, 2-channel surround, 4-channel surround, and a mid-side stereo mode.
  Mid-Side Stereo Recording
  • The mid-side mode allows you to adjust the width of your stereo field for flexibility, setting the perfect amount of ambient/surrounding noise. Commonly used in film and broadcast, mid-side recording combines a unidirectional mid mic that captures sound directly in front of you and a bidirectional side mic that captures sound from your left and right. By increasing or decreasing the level of the side mic, you can control the width of the stereo field. When recording in RAW mode, you can even adjust the field after you've made a recording.
  XY Stereo Recording
  • The 90° XY stereo condenser mics are arranged with the left and right mic capsules on the same axis to ensure perfect localization and eliminate phase shifting. This provides accurate depth and imaging for stereo recordings.
  2-Channel and 4-Channel Surround
  • By using the mid-side and XY mics together, you can create 360° surround sound recordings in either 2-channel or 4-channel modes.
  SD/SDHC Recording
  • The H2n records to widely available SD and SDHC flash memory cards, and supports capacities up to 32GB.
  Multiple File Formats
  • Depending on your needs, you can record uncompressed WAV files at up to 24-bit/96 kHz or compressed MP3 files at up to 320 kb/s in order to fit more hours of data on your memory card. When using a 32GB card, you can capture up to 50 hours of CD-quality 16-bit/44.1 kHz WAV files, or up to 555 hours of stereo 128 kb/s MP3 files.
  Reference Speaker
  • An integrated reference speaker makes it easy to review your recordings to make sure everything has been captured properly.
  Intuitive Interface
  • The streamlined and intuitive interface puts critical controls right at your fingertips. It includes a large record button on the front panel, as well as a jog dial/transport control on one side and a volume control on the other.
  Analog-Type Mic Gain
  • The mic-gain wheel allows you to set the perfect amount of gain for your application, giving you convenient tactile control, as opposed to digital volume controls, which are not always as precise.
  Backlit LCD
  • The large 1.8" backlit 128 x 64 LCD display makes it easy to monitor audio levels and navigate through system menus and functions.
  3.5mm I/O
  • The 3.5mm mic/line input allows you to hook up your favorite microphones, instruments, and other sound sources. A 3.5mm headphone/line output makes it easy to connect headphones, portable speakers, and other devices.
  Wired Remote Control
  • A remote jack lets you connect the optional wired remote to start, stop, and pause recordings, as well as add marks. It also reduces handling noise for the cleanest possible recordings.
  High-Speed USB
  • A high-speed USB 2.0 port lets you transfer recordings to your Mac or PC. You can even use the H2n as a live USB mic, suitable for VoIP chats and podcasting. The H2n can also act as a high-speed USB card reader.
  Software Included
  • Steinberg WaveLab LE and Cubase LE are both included.
  Power Options
  • The H2n offers over 20 hours of continuous operation on a pair of standard AA alkaline batteries. It can also be operated via USB bus power, or an AC adapter (sold separately).
  Data Recovery
  • In the event of battery failure or accidental power loss, your recordings won't be lost. A data recovery function will automatically restore your data the next time the recorder is powered on, so you don't lose one-of-a-kind audio moments.
  Automatic Recording and Pre-Recording
  • You can set the H2n to automatically start recording at the presence of audio. The pre-recording function will always "listen" and store a few seconds of audio in a memory buffer, so if audio starts suddenly you don't miss the beginning of a recording.
  Automatic Gain and Lo-Cut Filter
  • An advanced Auto Gain Control (AGC) and lo-cut filter allow the H2n to record audio at the most appropriate level while minimizing unwanted noise without having to adjust settings. If desired, you can also adjust the gain levels manually with the mic gain wheel.
  Compressor/Limiter
  • The built-in compressor/limiter puts a cap on maximum audio levels to ensure that your recordings remain distortion-free.
  File Dividing, Normalization, and MP3 Post-Encode
  • The H2n allows you to split any recorded file right inside the unit without external editing hardware or software. The normalizing and MP3 post-encode features let you set the optimal volume level and convert WAV files into MP3s.
  Tuner and Metronome
  • A perfect tool for musicians, the H2n has a built-in tuner and metronome to keep you on pitch and on tempo.
  Variable Speed Playback and Key Control
  • You can adjust the playback speed and key of a recording; ideal for music and singing applications.
  A-B Repeat
  • The repeat function lets you repeat a chosen segment of a recording, ideal for studying or practicing music, speeches, and more.
  Markers and Mixing
  • You can set markers at important points and also perform surround mixing right in the recorder for on-the-fly refinements.
  Accessories Available
  • The separately available APH-2n accessory package includes a wired remote with an extension cable, windscreen, USB AC adapter, USB cable, adjustable tripod stand, padded case, and a mic clip adapter so you can get even more out of your H2n.
  UPC: 884354010065
• Resident Audio R100 Stereo Headphones (Black) The black R100 Stereo Headphones from Resident Audio feature 40mm full-range drivers that deliver a frequency response of 20 Hz to 20 kHz. The lightweight headphones have an adjustable headband and a closed-back design, and can be used to provide a comfortable listening experience in applications for studios, voice-overs, and more. The headphone cable terminates with a 1/8" mini-jack connector and a 1/8" to 1/4" adapter is included. UPC: 642213345280

• H2n Handy Recorder Portable Digital Audio Recorder
• 2 x AA Batteries
• Steinberg WaveLab LE 7 Activation Card
• Limited 1-Year Warranty

• Resident Audio - R100 Stereo Headphones (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Zoom H2n Handy Recorder Portable Digital Audio Recorder

  Number of Tracks	2 Also features 4-Channel Surround Mode
  Max Sample Rate/Resolution	96 kHz / 24-Bit
  Microphone	Built-In Stereo Pair, Mid/Side and X/Y Configurations
  Built-In Speaker	Yes, 400 mW
  Display	Monochrome LCD (Backlit)
  Memory Card Support	SD, SDHC (Up to 32 GB)

  Audio File Formats	MP3, WAV
  Sample Rates	WAV: 44.1 / 48 / 96 kHz MP3: 44.1 kHz
  Bit Depth	16/24-Bit 32-Bit (Internal DSP) 24-Bit (AD/DA Conversion)
  Bit Rates	48 to 320 kb/s
  Timecode	No
  Recording Time	MP3 128 kb/s: 17 Hrs 21 Mins per GB (Stereo) MP3 320 kb/s: 6 Hrs 56 Mins per GB (Stereo) WAV 44.1 kHz/16-Bit: 1 Hr 34 Mins per GB (Stereo) 47 Mins per GB (All Channels) WAV 48 kHz/16-Bit: 1 Hr 26 Mins per GB (Stereo) WAV 48 kHz/24-Bit: 28 Mins per GB (All Channels) WAV 96 kHz/24-Bit: 28 Mins per GB (Stereo)

  Analog I/O	1 x 1/8" / 3.5 mm TRS Line/Mic Input 1 x 1/8" / 3.5 mm TRS Headphone/Line Output 1 x 2.5 mm TRRS Remote Input
  Host Connection	1 x Mini-USB (USB 2.0)

  Gain Range	0 to +39 dB
  Headphone Output Power	20 mW per Channel into 32 Ohms
  Impedance	Inputs: 2 kOhms Outputs: ≥10 kOhms
  Microphone Max SPL	120 dB

  Power Options	Batteries, USB Bus Power, AC/DC Power Adapter
  Battery Type	2 x AA
  Approximate Battery Life	20 Hours

  Dimensions	2.7 x 4.5 x 1.7" / 68.0 x 114.0 x 43.0 mm
  Weight	4.6 oz / 130.0 g (without Batteries)

  Box Dimensions (LxWxH)	6.2 x 5.9 x 2.7"

• Resident Audio R100 Stereo Headphones (Black)

  Driver Size	1.6" / 40 mm
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	20 Hz to 20 kHz
  Impedance	32 Ohms

  Audio Connector	1/8" (3.5 mm)
  Adapter (Included)	1/4" (6.3 mm)

  Box Dimensions (LxWxH)	7.8 x 6.7 x 3.8"
