Product description The New Zoom H2n Rewrites the Book on Portable Recording Read More - Portable Audio Recorders
- Zoom H2N demo
Perfect for chamber ensembles, string quartets, and small jazz combos, the Zoom H2n offers a powerful set of features for one-mic recording. If you’re a studio cat, you’ll appreciate its ability to record 96 kHz/24-bit audio files. Recording enthusiasts will appreciate its switchable array of five microphones—all of which provide an immersive audio experience.The H2n also works as a 4-in/2-out USB audio interface, recording multi-tracked audio straight to your computer. Podcasters can use the unit as a USB mic. A simple dial on top of the recorder lets you switch between traditional XY stereo, 2-channel surround, 4-channel surround, and a mid-side stereo mode. The mid-side mode allows you to adjust the width of your stereo field for flexibility. When recording in RAW mode, you can even adjust the field after you've made a recording.
The H2n records to widely available SD and SDHC flash memory cards, and supports capacities up to 32GB. When using a 32GB card, you can capture up to 50 hours of CD-quality WAV files, or up to 555 hours of stereo 128 kb/s MP3 files. An integrated reference speaker helps to review your recordings to make sure everything has been captured properly. The streamlined and intuitive interface puts critical controls right at your fingertips. The large 1.8" backlit LCD display makes it easy to navigate through system menus and monitor audio levels. The analog-type mic gain wheel lets you make precise adjustments on-the-fly.
If you'd like to connect external equipment, the H2n provides you with a 3.5mm mic/line input, allowing you to hook up your favorite microphones, instruments, and other sound sources. A 3.5mm headphone/line output makes it easy to connect headphones, portable speakers, and other devices. A remote jack lets you connect the optional wired remote to start, stop, and pause recordings, as well as add marks. It also reduces handling noise for the cleanest possible recordings. A high-speed USB 2.0 port lets you transfer recordings to your Mac or PC. You can even use the H2n as a live USB mic, terrific for VoIP chats and podcasting. An activation card for Steinberg's WaveLab LE and Cubase LE software is included, and once downloaded, they will give you audio editing and mastering tools to help you turn your recordings into finished masterpieces.

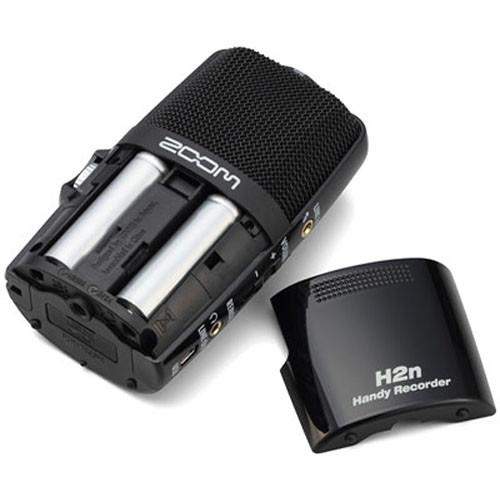

The H2n offers a number of versatile powering options. It offers over 20 hours of continuous operation on a pair of standard AA alkaline batteries. It can also be operated via USB bus power or an AC adapter (sold separately). In the event of battery failure or accidental power loss, your recordings won't vanish. A data recovery function will automatically restore your data the next time the recorder is powered on, so you don't lose one-of-a-kind audio moments. Other features of the H2n include a lo-cut filter, a compressor/limiter, auto gain, pre-rec, auto-rec, a tuner and metronome, variable speed playback, key control, A-B repeat, file dividing, normalize, MP3 post-encode, marker, and surround mixer to give you useful tools for a variety of applications. - Key Features at a Glance
-
- Easy-to-use controls for volume, record, and other essential functions
- Switchable compression/limiting so you never distort the mics
- Low-cut filter to eliminate low-frequency room rumble
- 2 seconds of pre-record so you never miss the beginning of a performance
- 20 hours of recording from two AA batteries

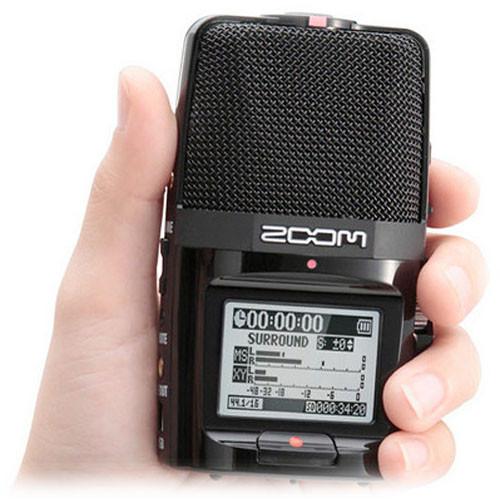

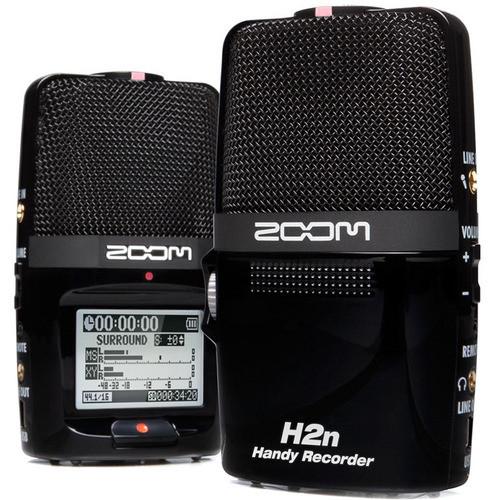

- Compact Design
- The compact design fits in the palm of your hand and can be taken practically anywhere. This makes it ideal for film and broadcast applications as well as journalism, podcasting, musical performances and rehearsals, and much more.
- 5 Internal Microphones
- The H2n has 5 high-quality mic capsules, more than any other portable recorder. This unique 5-mic design enables the H2n to record with 4 selectable patterns.
- 4 Selectable Recording Patterns

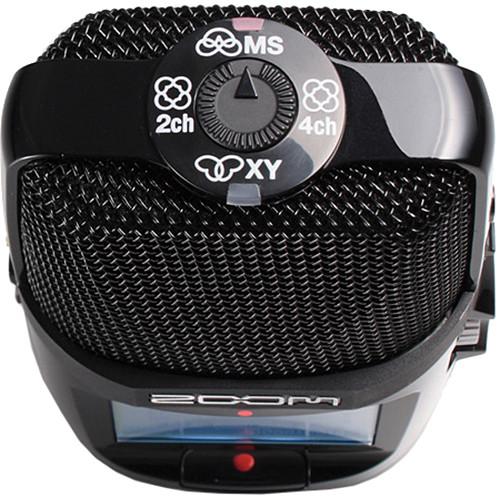

- A simple dial on top of the recorder lets you switch between traditional XY stereo, 2-channel surround, 4-channel surround, and a mid-side stereo mode.
- Mid-Side Stereo Recording
- The mid-side mode allows you to adjust the width of your stereo field for flexibility, setting the perfect amount of ambient/surrounding noise. Commonly used in film and broadcast, mid-side recording combines a unidirectional mid mic that captures sound directly in front of you and a bidirectional side mic that captures sound from your left and right. By increasing or decreasing the level of the side mic, you can control the width of the stereo field. When recording in RAW mode, you can even adjust the field after you've made a recording.
- XY Stereo Recording
- The 90° XY stereo condenser mics are arranged with the left and right mic capsules on the same axis to ensure perfect localization and eliminate phase shifting. This provides accurate depth and imaging for stereo recordings.
- 2-Channel and 4-Channel Surround
- By using the mid-side and XY mics together, you can create 360° surround sound recordings in either 2-channel or 4-channel modes.
- SD/SDHC Recording
- The H2n records to widely available SD and SDHC flash memory cards, and supports capacities up to 32GB.
- Multiple File Formats
- Depending on your needs, you can record uncompressed WAV files at up to 24-bit/96 kHz or compressed MP3 files at up to 320 kb/s in order to fit more hours of data on your memory card. When using a 32GB card, you can capture up to 50 hours of CD-quality 16-bit/44.1 kHz WAV files, or up to 555 hours of stereo 128 kb/s MP3 files.
- Reference Speaker
- An integrated reference speaker makes it easy to review your recordings to make sure everything has been captured properly.
- Intuitive Interface

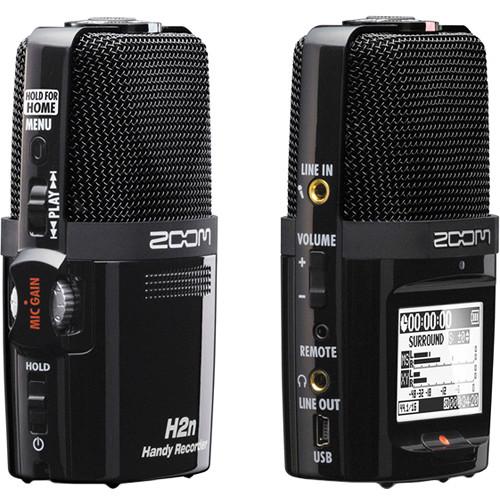

- The streamlined and intuitive interface puts critical controls right at your fingertips. It includes a large record button on the front panel, as well as a jog dial/transport control on one side and a volume control on the other.
- Analog-Type Mic Gain
- The mic-gain wheel allows you to set the perfect amount of gain for your application, giving you convenient tactile control, as opposed to digital volume controls, which are not always as precise.

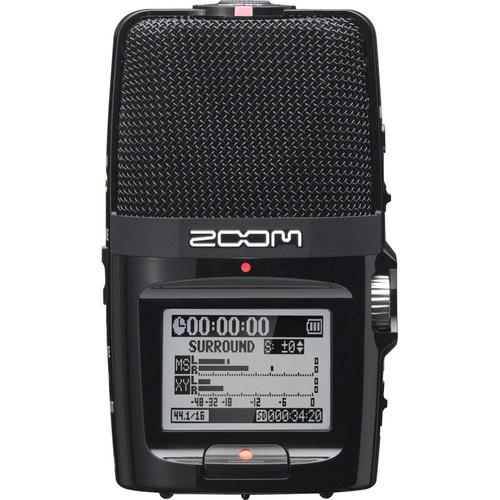

- Backlit LCD
- The large 1.8" backlit 128 x 64 LCD display makes it easy to monitor audio levels and navigate through system menus and functions.
- 3.5mm I/O
- The 3.5mm mic/line input allows you to hook up your favorite microphones, instruments, and other sound sources. A 3.5mm headphone/line output makes it easy to connect headphones, portable speakers, and other devices.
- Wired Remote Control
- A remote jack lets you connect the optional wired remote to start, stop, and pause recordings, as well as add marks. It also reduces handling noise for the cleanest possible recordings.
- High-Speed USB
- A high-speed USB 2.0 port lets you transfer recordings to your Mac or PC. You can even use the H2n as a live USB mic, suitable for VoIP chats and podcasting. The H2n can also act as a high-speed USB card reader.
- Software Included
- Steinberg WaveLab LE and Cubase LE are both included.
- Power Options
- The H2n offers over 20 hours of continuous operation on a pair of standard AA alkaline batteries. It can also be operated via USB bus power, or an AC adapter (sold separately).
- Data Recovery
- In the event of battery failure or accidental power loss, your recordings won't be lost. A data recovery function will automatically restore your data the next time the recorder is powered on, so you don't lose one-of-a-kind audio moments.
- Automatic Recording and Pre-Recording
- You can set the H2n to automatically start recording at the presence of audio. The pre-recording function will always "listen" and store a few seconds of audio in a memory buffer, so if audio starts suddenly you don't miss the beginning of a recording.
- Automatic Gain and Lo-Cut Filter
- An advanced Auto Gain Control (AGC) and lo-cut filter allow the H2n to record audio at the most appropriate level while minimizing unwanted noise without having to adjust settings. If desired, you can also adjust the gain levels manually with the mic gain wheel.
- Compressor/Limiter
- The built-in compressor/limiter puts a cap on maximum audio levels to ensure that your recordings remain distortion-free.
- File Dividing, Normalization, and MP3 Post-Encode
- The H2n allows you to split any recorded file right inside the unit without external editing hardware or software. The normalizing and MP3 post-encode features let you set the optimal volume level and convert WAV files into MP3s.
- Tuner and Metronome
- A perfect tool for musicians, the H2n has a built-in tuner and metronome to keep you on pitch and on tempo.
- Variable Speed Playback and Key Control
- You can adjust the playback speed and key of a recording; ideal for music and singing applications.
- A-B Repeat
- The repeat function lets you repeat a chosen segment of a recording, ideal for studying or practicing music, speeches, and more.
- Markers and Mixing
- You can set markers at important points and also perform surround mixing right in the recorder for on-the-fly refinements.
- Accessories Available

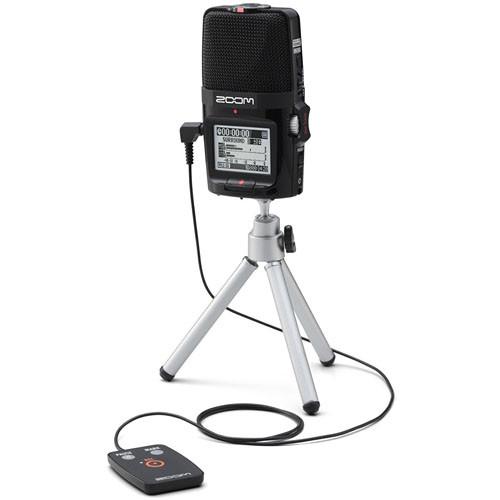

- The separately available APH-2n accessory package includes a wired remote with an extension cable, windscreen, USB AC adapter, USB cable, adjustable tripod stand, padded case, and a mic clip adapter so you can get even more out of your H2n.
UPC: 884354010065 In the Box Zoom H2n Handy Recorder Portable Digital Audio Recorder 2 x AA Batteries Steinberg WaveLab LE 7 Activation Card Limited 1-Year Warranty User Manual PDF 5.8mbcefscbswwwdsrrqtxstuscbbvxtsvu Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom H2n Handy Recorder Portable Digital Audio Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZoom H2n Specs | | | Number of Tracks | 2 Also features 4-Channel Surround Mode | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Microphone | Built-In Stereo Pair, Mid/Side and X/Y Configurations | | Built-In Speaker | Yes, 400 mW | | Display | Monochrome LCD (Backlit) | | Memory Card Support | SD, SDHC (Up to 32 GB) | | | | Audio File Formats | MP3, WAV | | Sample Rates | WAV:
44.1 / 48 / 96 kHz
MP3:
44.1 kHz | | Bit Depth | 16/24-Bit
32-Bit (Internal DSP)
24-Bit (AD/DA Conversion) | | Bit Rates | 48 to 320 kb/s | | Timecode | No | | Recording Time | MP3 128 kb/s:
17 Hrs 21 Mins per GB (Stereo)
MP3 320 kb/s:
6 Hrs 56 Mins per GB (Stereo)
WAV 44.1 kHz/16-Bit:
1 Hr 34 Mins per GB (Stereo)
47 Mins per GB (All Channels)
WAV 48 kHz/16-Bit:
1 Hr 26 Mins per GB (Stereo)
WAV 48 kHz/24-Bit:
28 Mins per GB (All Channels)
WAV 96 kHz/24-Bit:
28 Mins per GB (Stereo) | | | | Analog I/O | 1 x 1/8" / 3.5 mm TRS Line/Mic Input
1 x 1/8" / 3.5 mm TRS Headphone/Line Output
1 x 2.5 mm TRRS Remote Input | | Host Connection | 1 x Mini-USB (USB 2.0) | | | | Gain Range | 0 to +39 dB | | Headphone Output Power | 20 mW per Channel into 32 Ohms | | Impedance | Inputs:
2 kOhms
Outputs:
≥10 kOhms | | Microphone Max SPL | 120 dB | | | | Power Options | Batteries, USB Bus Power, AC/DC Power Adapter | | Battery Type | 2 x AA | | Approximate Battery Life | 20 Hours | | | | Dimensions | 2.7 x 4.5 x 1.7" / 68.0 x 114.0 x 43.0 mm | | Weight | 4.6 oz / 130.0 g (without Batteries) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.2 x 5.9 x 2.7" |
