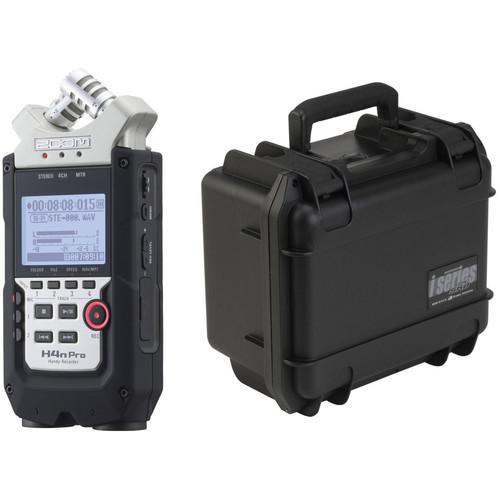

User Manual for Zoom H4n Pro Handy Recorder and Custom-Fit Waterproof Case Kit Click to enlarge the picture
Contents of the user manual for the Zoom H4n Pro Handy Recorder and
- Product category: Portable Digital Recorders Zoom
- Brand: Zoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zoom Portable Digital Recorders
|
User manual for the Zoom H4n Pro Handy Recorder and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zoom product will considerably shorten its lifespan!
|
Product description The Zoom H4n Pro Handy Recorder and Custom-Fit Waterproof Case Kit from B&H includes an H4n Pro recorder, a protective case, two AA batteries, and an SKB custom-fit iSeries waterproof case. It is well suited for transporting and protecting your H4n Pro recorder and accessories when working in the field, on live recordings, video, live broadcasts, and electronic news gathering projects.The H4n Pro's onboard X/Y mics are equipped with the same preamps as the Zoom H5 and H6, for a detailed sound. With a noise-floor significantly lower than the original H4n, the unit delivers high-resolution audio up to 24-Bit/96 kHz. It offers expanded capabilities such as a built-in chromatic tuner, five-timbre metronome, built-in effects, an audio interface mode, and more.The military-standard SKB waterproof hard case is specially designed for the H4n recorder. Its interior foam is custom cut and includes pockets for the recorder, power supply, wind screens, memory cards, and other small accessories. - Zoom H4n Pro 4-Channel Handy Recorder
- First Look: Zoom H4n Pro
- Zoom H4n Pro Product Video
If you want to record, mix, and export an entire arrangement on a high-quality pocket-sized device, try the H4n Pro from Zoom. This recorder lets you track all your guitar parts, your basses, your keys, your vocals, and your drums, all thanks to the combination XLR-1/4" inputs and the built-in stereo microphone. When you're done with tracking, apply all the guitar and mixing effects you need, balance the levels, and bounce down to a stereo track. If podcasting is your game, the H4n Pro is also a boon: simply take your favorite shogtun mic to the interview, and plug-it into the high-quality preamp. Flip on phantom power if need be, and you've got yourself everything you need to conduct a high-quality tape-sync in the field. The H4n's stereo X/Y microphone is capable of handling 140 dB SPL, making it suitable for tracking the loudest of instruments. If you're tracking or practicing, you'll appreciate the built-in metronome and the chromatic tuner. The H4n Pro can record up to four simultaneous channels of audio at resolutions and sample rates higher than CD quality, capturing sound sources in WAV and MP3 formats. It utilizes an SDHC card for storage and a USB connection for transferring material to your computer. A pair of standard AA batteries powers the device and can provide up to 10 hours of continuous recording. - Key Features at a Glance
-
- 4-Channel, 24-bit / 96 kHz recording for studio-grade audio
- Unlimited overdubbing to layer a panoply of parts
- Guitar and vocal FX including amp simulation, reverb, delay, and more
- Doubles as a 2-in/2-out USB audio interface for multitrack recording
- Phantom power for your favorite condenser mics
- 10 hours of operation from 2 AA batteries
- Built-In Stereo Mic in X/Y Configuration
- The onboard X/Y stereo microphone is capable of handling sound pressure levels of 140 dB. It can also cover a wide width whilst capturing any sound source in its center with precision. Both microphones are angle adjustable. You can change the angle of capture from 90° (for a focused stereo image) to 120° (for a wider stereo image) simply by twisting each mic's capsule.
- Back-Lit LDC Display
- This device utilizes a back-lit LDC display that makes reading its panel on stage more convenient.
- On-Board M/S Decoder
- Perhaps you'd prefer to capture stereo audio by means of an M/S technique, rather than through the H4n Pro's X/Y-configured capsules. Should you wish to plug external microphones into the unit's preamp for this very purpose, the H4n Pro provides an onboard MS decoder, allowing you to adjust the width of the stereo image within the device itself. This is useful both for sound design and for broadcasting.
- Connections
- Revamped with the same low-noise preamps as the H5 and H6, the H4n Pro provides combination inputs for XLR or 1/4" connections, both balanced and unbalanced. As such, it can handle mic/line and instrument signals. The 24 or 48V phantom power can be applied to both inputs. Additionally, a stereo 3.5mm jack for an external device, such as a lavalier microphone, is included. This jack supplies 2.5V power, if need be.
- Portable Pocket Interface
- Utilizing its mini-USB port, you can use the H4n Pro as a 2-in/2-out interface for computers, recording straight to your DAW via its preamps and monitoring through the 3.5mm stereo headphone jack.
- Multiple Recording Modes
- Record in stereo mode, four-channel mode (utilizing the on-board stereo mics in addition to the built-in preamps), or multitrack mode, which makes use of built-in effects, overdub functions, and the ability to work with prerecorded material. Additionally, you can use the prerecord function—ensuring you always capture audio starting from two seconds before the moment you press record—or the auto-record function, which allows the H4n Pro to start recording whenever it senses audio, and to stop as soon as the signal drops below a preset threshold.
- Onboard Effects
- The H4n Pro offers a variety of effects including compression, limiting, reverb, delay, echo, a low-cut filter, and more. You also get an onboard metronome and tuner, along with dozens of amp models and effects crafted for guitars and basses. Furthermore, you can loop playback, adjusting the pitch and speed of the audio independently; this makes the H4n Pro a tool suitable for transcriptions, whether you need to get the words of a particularly fast talker down on paper, or the notes of a particularly fast guitar solo under your fingers.
- Cubase LE and WaveLab LE Included
- The H4n Pro includes licenses for Steinberg's Cubase LE music production software as well as WaveLab LE audio editing software. This is particularly useful for those who hope to create their own music utilizing the Pro's USB audio interface function.
- Rubberized and Secure Construction
- The H4n Pro sports a rubberized body and revamped locking XLR/TRS connection points to keep your mic cables secure.
- Additional Features
-
- Record up to 140 dB SPL with X/Y microphones.
- Output/headphone jack with dedicated volume control.
- Built-in reference speaker for fast playback.
- Internal mix-down: Four-track to stereo and stereo to dual mono.
- Up to 99 marks per recording.
- Normalize (maximum gain) and Divide (file-splitting) functions.
- Mounts to mic stand or tripod or directly to a DSLR with optional Hot Shoe adapter.
UPC: 884354016357 - SKB Custom Fit iSeries Waterproof Case for Zoom H4N
- First Look: Zoom H4n Pro
- Zoom H4n Pro Product Video
The Custom Fit iSeries Waterproof Case for Zoom H4N from SKB provides stellar protection for an item that is rapidly gaining popularity in the independent video production market. The case is waterproof and dust resistant and is made from an ultra high-strength polypropylene copolymer resin. The material is resistant to corrosion and impact damage.
The foam insert has cut outs for the H4N itself, along with provisions for the power adapter, windscreen and a memory card. A unique feature is an automatic ambient pressure equalization valve that relieves any pressure build up that could occur inside the case due to ambient conditions. The case is perfect for those needing the ultimate in protection for their portable recorder. - Watertight/dust proof design using tongue and groove construction and a replaceable o-ring seal to achieve an IP-67 rated protective case
- Impact strength polypropylene co-polymer provides excellent protection without a weight penalty
- Automatic ambient pressure equalization valve allows case to "Free Breathe" and equalize pressures caused by altitude or temperature change while keeping water molecules out, even when submersed
- Reinforced padlock hasps allow the use of standard size padlocks for added security
- Flush snap-down rubber overmolded handle
UPC: 789270991194 In the Box - H4n Pro 4-Channel Handy Recorder aruxqfcdyzdyracarfwvdqeuerrwzaauq
- Protective Case
- 2 x AA Batteries
- Download License for Steinberg Cubase LE & WaveLab LE Software
- Limited 1-Year Warranty
- SKB - Custom Fit iSeries Waterproof Case for Zoom H4N aruxqfcdyzdyracarfwvdqeuerrwzaauq
Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom H4n Pro Handy Recorder and Custom-Fit Waterproof Case Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Zoom H4n Pro 4-Channel Handy Recorder
| | | Number of Tracks | 4 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Microphone | Built-In Cardioid Condenser Stereo Pair, X/Y Configuration | | Built-In Speaker | Yes, 400 mW | | Display | LCD (Backlit) | | Memory Card Support | SD (16 MB to 2 GB)
SDHC (4 to 32 GB) | | | | Audio File Formats | MP3, WAV | | Sample Rates | WAV:
44.1 / 48 / 96 kHz
MP3:
44.1 kHz (Record)
44.1 / 48 kHz (Playback) | | Bit Depth | 16/24-Bit
24-Bit (AD/DA Conversion) | | Bit Rates | 48 to 320 kb/s + VBR | | Signal Processing | Amp Modeling, Compressor, Delay, Limiter, Low-Cut Filter, Reverb | | Timecode | No | | Recording Time | WAV 44.1 kHz/16-Bit:
95 Mins per GB (Stereo)
MP3 128 kb/s:
17 Hrs per GB (Stereo) | | | | Analog I/O | 1 x 1/8" / 3.5 mm TRS Mic Input
1 x 1/8" / 3.5 mm TRS Headphone/Line Output
1 x 2.5 mm TRRS Remote Input
2 x Combo XLR / 1/4" TS Balanced/Unbalanced Input | | Phantom Power | +24 / 48 V | | Host Connection | 1 x Mini-USB (USB 2.0) | | | | Gain Range | Balanced Inputs:
-16 to 43 dB
Unbalanced Inputs:
-30 to 32 dB
Mic Inputs:
-16 to 51 dB | | Headphone Output Power | 20 mW per Channel into 32 Ohms | | Impedance | Inputs:
≥3 kOhms (Balanced)
≥470 kOhms (Unbalanced)
Line Outputs:
≥10 kOhms
Aux Inputs:
≥2 kOhms | | Microphone Sensitivity | -45 dB/Pa | | Microphone Max SPL | 140 dB | | | | Power Options | Batteries, AC/DC Power Adapter | | Battery Type | 2 x AA | | Approximate Battery Life | 44.1 kHz/16-Bit:
6 Hours (Alkaline, without Headphones)
8 Hours (NiMH, without Headphones)
10 Hours (Alkaline, Stamina Mode, without Headphones)
12 Hours (NiMH, Stamina Mode, without Headphones) | | | | Dimensions | 2.9 x 6.6 x 1.5" / 73.0 x 167.2 x 37.0 mm | | Weight | 10.0 oz / 294.0 g | | | | Box Dimensions (LxWxH) | 7.6 x 5.6 x 2.9" | - SKB Custom Fit iSeries Waterproof Case for Zoom H4N
| Dimensions | Inner: 9.5 x 7.4 x 4" (241 x 188 x 102mm)
Exterior: 11.5 x 10.2 x 5" (292 x 259 x 127mm)
Lid Depth: 1.2" (30.5mm)
Base Depth: 2.9" (74mm) | | Weight | 3.1 lb (1.4kg) | | | | Box Dimensions (LxWxH) | 11.5 x 10.0 x 5.3" |
