Product description Quick Look: The Zoom H4n Pro Handy Recorder Read More The H4nPro 4-Channel Recorder and On-Camera DSLR Audio Kit from features a Zoom H4n Pro 4-channel recorder, a Revo hot shoe to 1/4"-20 male post adapter, an Auray WRW-H4N custom windbuster for the Zoom H4n, a SanDisk 16GB Ultra UHS-1 SDHC (Class-10) memory card, a Kopul ACH4-25MON line-to-mic attenuator cable, an Auray RCH4N remote control for the Zoom H4n and a download license for Steinberg Cubase LE and WaveLab LE software. The H4n Pro is a portable recording device and a 2-channel USB interface in a palm-sized unit. It features a built-in stereo microphone, two low-noise preamps with XLR/1/4" inputs, multiple recording modes, on-board effects, a built-in metronome, a chromatic tuner, and much more. It can be used for film-audio capture, podcasting, and field interviews. Furthermore, the kit features a Revo hot-shoe adapter that allows you to mount camera accessories to rigs, camera brackets, and stands that only feature a flash shoe. There is an Auray windbuster for the recorder that has been custom tailored to fit over a foam windscreen or can be used on its own. The fur works in tandem with the acoustic-cloth inner lining to protect the microphone element from air burst without muffling the sound. Other accessories in the kit include a 16GB Ultra SDHC memory card with class-10 performance for full HD video (1080p), a Kopul line-to-mic attenuator cable for output from the Zoom recorder to the mic-level input of your DSLR camera, which delivers 25 dB of attenuation to step down the hot line-level audio to microphone-level signal. Finally, a wired remote control for the Zoom recorder is included that will record, play, stop, pause, fast forward, rewind, and create marks on the audio recorder for identification from up to six feet away. It also allows you to select the recording input source and then adjust record and playback levels. - Zoom H4n Pro 4-Channel Handy Recorder
- First Look: Zoom H4n Pro
- Zoom H4n Pro Product Video
If you want to record, mix, and export an entire arrangement on a high-quality pocket-sized device, try the H4n Pro from Zoom. This recorder lets you track all your guitar parts, your basses, your keys, your vocals, and your drums, all thanks to the combination XLR-1/4" inputs and the built-in stereo microphone. When you're done with tracking, apply all the guitar and mixing effects you need, balance the levels, and bounce down to a stereo track. If podcasting is your game, the H4n Pro is also a boon: simply take your favorite shogtun mic to the interview, and plug-it into the high-quality preamp. Flip on phantom power if need be, and you've got yourself everything you need to conduct a high-quality tape-sync in the field. The H4n's stereo X/Y microphone is capable of handling 140 dB SPL, making it suitable for tracking the loudest of instruments. If you're tracking or practicing, you'll appreciate the built-in metronome and the chromatic tuner. The H4n Pro can record up to four simultaneous channels of audio at resolutions and sample rates higher than CD quality, capturing sound sources in WAV and MP3 formats. It utilizes an SDHC card for storage and a USB connection for transferring material to your computer. A pair of standard AA batteries powers the device and can provide up to 10 hours of continuous recording. - Key Features at a Glance
-
- 4-Channel, 24-bit / 96 kHz recording for studio-grade audio
- Unlimited overdubbing to layer a panoply of parts
- Guitar and vocal FX including amp simulation, reverb, delay, and more
- Doubles as a 2-in/2-out USB audio interface for multitrack recording
- Phantom power for your favorite condenser mics
- 10 hours of operation from 2 AA batteries
- Built-In Stereo Mic in X/Y Configuration
- The onboard X/Y stereo microphone is capable of handling sound pressure levels of 140 dB. It can also cover a wide width whilst capturing any sound source in its center with precision. Both microphones are angle adjustable. You can change the angle of capture from 90° (for a focused stereo image) to 120° (for a wider stereo image) simply by twisting each mic's capsule.
- Back-Lit LDC Display
- This device utilizes a back-lit LDC display that makes reading its panel on stage more convenient.
- On-Board M/S Decoder
- Perhaps you'd prefer to capture stereo audio by means of an M/S technique, rather than through the H4n Pro's X/Y-configured capsules. Should you wish to plug external microphones into the unit's preamp for this very purpose, the H4n Pro provides an onboard MS decoder, allowing you to adjust the width of the stereo image within the device itself. This is useful both for sound design and for broadcasting.
- Connections
- Revamped with the same low-noise preamps as the H5 and H6, the H4n Pro provides combination inputs for XLR or 1/4" connections, both balanced and unbalanced. As such, it can handle mic/line and instrument signals. The 24 or 48V phantom power can be applied to both inputs. Additionally, a stereo 3.5mm jack for an external device, such as a lavalier microphone, is included. This jack supplies 2.5V power, if need be.
- Portable Pocket Interface
- Utilizing its mini-USB port, you can use the H4n Pro as a 2-in/2-out interface for computers, recording straight to your DAW via its preamps and monitoring through the 3.5mm stereo headphone jack.
- Multiple Recording Modes
- Record in stereo mode, four-channel mode (utilizing the on-board stereo mics in addition to the built-in preamps), or multitrack mode, which makes use of built-in effects, overdub functions, and the ability to work with prerecorded material. Additionally, you can use the prerecord function—ensuring you always capture audio starting from two seconds before the moment you press record—or the auto-record function, which allows the H4n Pro to start recording whenever it senses audio, and to stop as soon as the signal drops below a preset threshold.
- Onboard Effects
- The H4n Pro offers a variety of effects including compression, limiting, reverb, delay, echo, a low-cut filter, and more. You also get an onboard metronome and tuner, along with dozens of amp models and effects crafted for guitars and basses. Furthermore, you can loop playback, adjusting the pitch and speed of the audio independently; this makes the H4n Pro a tool suitable for transcriptions, whether you need to get the words of a particularly fast talker down on paper, or the notes of a particularly fast guitar solo under your fingers.
- Cubase LE and WaveLab LE Included
- The H4n Pro includes licenses for Steinberg's Cubase LE music production software as well as WaveLab LE audio editing software. This is particularly useful for those who hope to create their own music utilizing the Pro's USB audio interface function.
- Rubberized and Secure Construction
- The H4n Pro sports a rubberized body and revamped locking XLR/TRS connection points to keep your mic cables secure.
- Additional Features
-
- Record up to 140 dB SPL with X/Y microphones.
- Output/headphone jack with dedicated volume control.
- Built-in reference speaker for fast playback.
- Internal mix-down: Four-track to stereo and stereo to dual mono.
- Up to 99 marks per recording.
- Normalize (maximum gain) and Divide (file-splitting) functions.
- Mounts to mic stand or tripod or directly to a DSLR with optional Hot Shoe adapter.
UPC: 884354016357 - Revo Hot Shoe to 1/4"-20 Male Post Adapter
- First Look: Zoom H4n Pro
- Zoom H4n Pro Product Video
This Revo Hot Shoe to 1/4"-20 Male Post Adapter has a threaded 1/4"-20 stud on the top and a "cold" male flash shoe on the bottom. This handy little adapter allows you to mount camera accessories that only come with a 1/4"-20 socket to cameras, rigs, camera brackets, and any tripod or light stand that only feature a flash shoe. For added security, the knurled locking ring assures a tight connection to the accessory. - Attaches to Camera Hot Shoe
- This adapter attaches to your camera's hot shoe, converting it into a 1/4"-20 male post.
- Compatible With Female 1/4"-20 Threads
- Mounts any item with a female 1/4"-20 thread to the camera hot shoe.
- Lightweight, Durable Aluminum Construction
- Made from durable and lightweight aluminum, this accessory won't weigh you and your gear down with unnecessary bulk and weight.
UPC: 847628555822 - Auray WRW-H4N Custom Windbuster for Zoom H4n
- First Look: Zoom H4n Pro
- Zoom H4n Pro Product Video
The Auray WRW Series Custom Windbusters provide dual layered wind protection and are designed to substantially reduce unwanted broadband wind noise and vocal pops with minimal high frequency loss.
This WRW-H4N Custom Windbuster has been tailor-made to fit the Zoom H4n and is designed to be used either on its own or over a foam windscreen. The simulated fur outer layer works in tandem with the acoustic cloth inner lining to protect the microphone element from air bursts without muffling the sound.
When used on the Zoom H4n, this windbuster is effective in minimizing wind noise and plosive sounds. It is most effective in light breeze to moderate breeze conditions (4-17 mph) and users can generally expect a 20dB to 30dB reduction in wind noise with modest dampening of high frequencies. For most applications, the modest high frequency dampening is a worthwhile exchange for the substantial wind noise reduction.
In addition to dual layered wind protection, the WRW-H4N helps prevent moisture and dirt from damaging your recorder's microphone. The windbuster is designed to fit the Zoom H4n recorder.
The WRW-H4N Custom Windbuster for the Zoom H4n digital recorder offers an extremely effective dual layered solution for wind protection. UPC: 847628562608 - SanDisk 16GB Ultra UHS-I SDHC Memory Card (Class 10)
- First Look: Zoom H4n Pro
- Zoom H4n Pro Product Video
Record Full HD 1080p video with this Class 10 compliant 16GB Ultra UHS-I SDHC Memory Card from SanDisk. With enhanced data read speeds of up to 80 MB/s this Ultra SDHC memory card is designed to suit the needs of compact and mid-range point and shoot cameras. You can also save and store a variety of files such as music, movies, documents and more. The writable label found on the card allows you to write down what is saved to the card while the built-in write protect switch helps to prevent accidental data loss. This card, as with most SanDisk cards, comes shock, temperature, x-ray, magnet, and waterproof to take your files with you nearly anywhere you go. - Class 10 performance for Full HD Video (1080p)
- Read speeds up to 80 MB/s
- Writable label for easy identification and organization
- Engineered with UHS-I bus architecture
- This SD memory card comes shock, temperature, x-ray, magnet, and waterproof proof
UPC: 619659136451 - Kopul ACH4-25MON Line-to-Mic Attenuator Cable
- First Look: Zoom H4n Pro
- Zoom H4n Pro Product Video
The Kopul ACH4-25MON Line-to-Mic Attenuator Cable is designed to connect your digital recorder (e.g. Zoom H4n, Zoom H6, etc.) output to the mic level input of your DSLR camera with 25dB of attenuation to step down the hot line level audio to microphone level. It features a 1/8" headphone tap that allows you to monitor the signal to your camera and is shielded to reduce RF noise and provide interference-free operation.
The cable provides 25dB of attenuation to assure the output from your digital recorder is at an appropriate level for your camera's mic input. This backup recording can act as a fail-safe for your audio, as well as a reference track for easy syncing in post-production. The cable is 1-foot in length and features straight 1/8" connectors. - DSLR Compatibility
- The ACH4-25MON is compatible with DSLR cameras that feature a 1/8" unbalanced mic level input including:
Canon: - EOS Rebel T2i(550D)/T3i(600D)/T4i(650D)/T5i(700D)/SL1(100D)
- EOS 60D/70D/7D/6D
- EOS 5D MK ll/MK lll
- EOS 1DX/1DC/1D MK lV
Nikon: - D5100/D5200
- D7000/D7100
- D300S
- D600/D610
- D800/D800E
- D3S
- D4
Pentax: - K-5 ll/K-5 llS
UPC: 847628568006 - Auray RCH4N - Remote Control for Zoom H4n
- First Look: Zoom H4n Pro
- Zoom H4n Pro Product Video
The Auray RCH4N is a wired remote control that allows you to record, play, stop, pause, fast forward, rewind and create marks on your Zoom H4n audio recorder from up to six feet away. It also allows you to select the recording input source and then adjust record and playback levels. - For use with your Zoom H4n recorder
- Record, play, stop, pause, fast forward, rewind and add marks from up to six feet away
- Recording indicator that glows red during recording, and blinks during standby
- Input indicator LEDs that glow green, yellow, or red to indicate the recording level
- Ideal for preventing handling noise

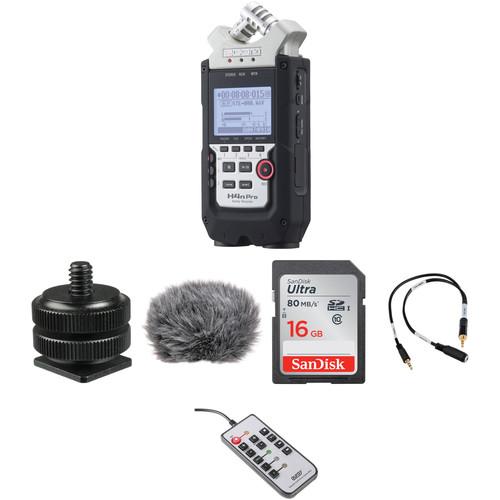

UPC: 847628570313 In the Box - H4n Pro 4-Channel Handy Recorder tdvfcbdbvryezvxzeryzzxde
- Protective Case
- 2 x AA Batteries
- Download License for Steinberg Cubase LE & WaveLab LE Software
- Limited 1-Year Warranty
- Revo - Hot Shoe to 1/4"-20 Male Post Adapter
- Auray - WRW-H4N Custom Windbuster for Zoom H4n
- SanDisk - 16GB Ultra UHS-I SDHC Memory Card (Class 10)
- Kopul - ACH4-25MON Line-to-Mic Attenuator Cable
- Auray - RCH4N - Remote Control for Zoom H4n
Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom H4nPro 4-Channel Recorder and On-Camera DSLR Audio Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Zoom H4n Pro 4-Channel Handy Recorder
| | | Number of Tracks | 4 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Microphone | Built-In Cardioid Condenser Stereo Pair, X/Y Configuration | | Built-In Speaker | Yes, 400 mW | | Display | LCD (Backlit) | | Memory Card Support | SD (16 MB to 2 GB)
SDHC (4 to 32 GB) | | | | Audio File Formats | MP3, WAV | | Sample Rates | WAV:
44.1 / 48 / 96 kHz
MP3:
44.1 kHz (Record)
44.1 / 48 kHz (Playback) | | Bit Depth | 16/24-Bit
24-Bit (AD/DA Conversion) | | Bit Rates | 48 to 320 kb/s + VBR | | Signal Processing | Amp Modeling, Compressor, Delay, Limiter, Low-Cut Filter, Reverb | | Timecode | No | | Recording Time | WAV 44.1 kHz/16-Bit:
95 Mins per GB (Stereo)
MP3 128 kb/s:
17 Hrs per GB (Stereo) | | | | Analog I/O | 1 x 1/8" / 3.5 mm TRS Mic Input
1 x 1/8" / 3.5 mm TRS Headphone/Line Output
1 x 2.5 mm TRRS Remote Input
2 x Combo XLR / 1/4" TS Balanced/Unbalanced Input | | Phantom Power | +24 / 48 V | | Host Connection | 1 x Mini-USB (USB 2.0) | | | | Gain Range | Balanced Inputs:
-16 to 43 dB
Unbalanced Inputs:
-30 to 32 dB
Mic Inputs:
-16 to 51 dB | | Headphone Output Power | 20 mW per Channel into 32 Ohms | | Impedance | Inputs:
≥3 kOhms (Balanced)
≥470 kOhms (Unbalanced)
Line Outputs:
≥10 kOhms
Aux Inputs:
≥2 kOhms | | Microphone Sensitivity | -45 dB/Pa | | Microphone Max SPL | 140 dB | | | | Power Options | Batteries, AC/DC Power Adapter | | Battery Type | 2 x AA | | Approximate Battery Life | 44.1 kHz/16-Bit:
6 Hours (Alkaline, without Headphones)
8 Hours (NiMH, without Headphones)
10 Hours (Alkaline, Stamina Mode, without Headphones)
12 Hours (NiMH, Stamina Mode, without Headphones) | | | | Dimensions | 2.9 x 6.6 x 1.5" / 73.0 x 167.2 x 37.0 mm | | Weight | 10.0 oz / 294.0 g | | | | Box Dimensions (LxWxH) | 7.6 x 5.6 x 2.9" | - Revo Hot Shoe to 1/4"-20 Male Post Adapter
| Bottom Mount | 1 x Accessory Foot | | Top Mount | 1 x 1/4"-20 Male | | | | Box Dimensions (LxWxH) | 5.9 x 3.4 x 1.1" | - Auray WRW-H4N Custom Windbuster for Zoom H4n
| | | Box Dimensions (LxWxH) | 4.0 x 2.5 x 1.2" | - SanDisk 16GB Ultra UHS-I SDHC Memory Card (Class 10)
