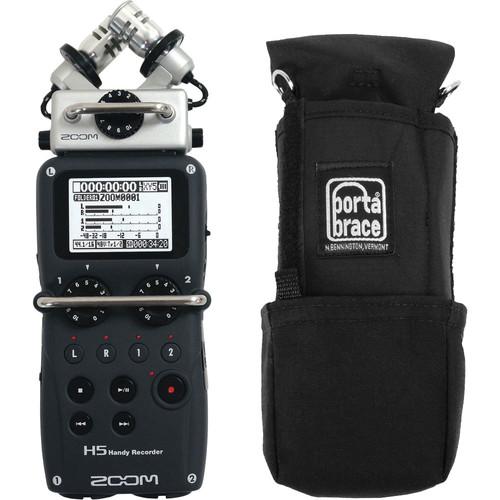

Product description The Zoom H5 Handy Recorder and Case Kit from consists of a Zoom H5 recorder and a protective case that keeps it secure from dust and rain. The H5 features Zoom's modular microphone system, and comes included with their XY mic module. It also features an addition 2 XLR inputs for a total of 4 simultaneous inputs. The H5 can record directly to SD cards for ease in swapping files. - Zoom H5 Handy Recorder with Interchangeable Microphone System
- Zoom H5 Demo
- Zoom H5 Product Video
- Zoom Mic Capsule Overview
The H5 Handy from Zoom is a compact, portable handheld digital recorder that is capable of four-track recording and features an interchangeable, modular microphone system. The recorder ships with an XY microphone capsule and is compatible with the existing line of H6 modules including the optional shotgun mic and XLR/TRS input modules.
The included XY stereo mic module provides two matched unidirectional condenser microphones set at a 90 degree angle, and features a built-in shockmount system and a maximum SPL of 140dB. Additionally, the recorder is equipped with two inputs for external sources, allowing you to record simultaneously with the included stereo XY mic for a total of four input channels. Each input is controllable by its own analog gain knob, and also has a -20dB pad.
The recorder also has an LCD screen and a side-mounted toggle control for navigating through the menu options. It gives you fast access to transport functions, offering physical control buttons right underneath the screen, and conveniently stores its recorded audio to external SD cards.
In addition to the detachable X/Y capsule, the recorder also ships with a foam windscreen, two AA batteries, a USB cable, WaveLab LE (download), Cubase LE (download), a 2GB SD card, and a hard plastic case. - Features:
-
- Includes detachable X/Y capsule (XYH-5) with extended signal capacity and shockmounted microphones for reduced handling noise
- Compatible with Zoom H6 input capsules and optional capsules including the SGH-6 shotgun mic capsule and the EXH-6 dual XLR/TRS combo input capsule
- Four-track simultaneous recording
- Large backlit LCD display
- Records directly to SD and SDHC cards up to 32GB
- Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Two mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20dB pad
- Analog-style gain controls for each input
- Protective "roll-bar" type covers prevent accidental movement of gain controls
- Plug-in power (2.5 volts)
- Built-in effects, including low-cut filtering, compression and limiting
- Chromatic tuner and metronome
- Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
- MS decoding
- Multitrack to stereo internal mixdown
- Normalize, Divide and Trim editing
- Voice memo and up to 99 marks per recording
- A/B loop playback
- Variable playback speed and variable pitch without affecting playback speed
- Multichannel and stereo USB audio interface for PC/Mac/iPad with loop back function
- Mountable to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
- Uses two standard AA alkaline or NiMH rechargeable batteries
- Over 15 hours of operation with alkaline batteries
UPC: 884354013196 - Porta Brace AR-ZH5 Case for Zoom H5 Digital Recorder
- Zoom H5 Demo
- Zoom H5 Product Video
- Zoom Mic Capsule Overview
The AR-ZH5 from Porta Brace is a durable carrying case for the Zoom H5, designed to protect your valuable recorder for use in the field. Constructed of 1000 denier Cordura nylon, this case is made to shield your H5 from rain and dust. It features clear vinyl windows that allow full view of all displays and touch fastener closures provide easy access to all controls and ports. - Can be worn on a belt or connected to an HB-15 shoulder strap (sold separately) to wear around your neck
UPC: 877547022198 In the Box - H5 Handy Recorder with Interchangeable Microphone System avavssectcrqrawacffv
- XYH-5 Microphone Capsule
- Plastic Case
- Foam Windscreen
- USB Cable
- Steinberg WaveLab LE Software (Download)
- Steinberg Cubase LE Software (Download)
- 2GB SD Card
- 2 x AA Batteries
- Limited 1-Year Warranty
- Porta Brace - AR-ZH5 Case for Zoom H5 Digital Recorder
Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom H5 Handy Recorder and Case Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Zoom H5 Handy Recorder with Interchangeable Microphone System
| | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Microphone | Built-In Cardioid Stereo Pair, X/Y Configuration | | Built-In Speaker | Yes, 400 mW Mono | | Display | LCD (Backlit) | | Memory Card Support | SD (16 MB to 2 GB)
SDHC (4 to 32 GB) | | | | Audio File Formats | BWF, MP3, WAV | | Sample Rates | WAV:
44.1 / 48 / 96 kHz (Stereo)
MP3:
44.1 kHz | | Bit Depth | 16/24-Bit | | Bit Rates | 48 to 320 kb/s
48 to 320 kb/s | | Timecode | No | | | | Analog I/O | 1 x 1/8" / 3.5 mm TRS Line/Mic Input
2 x Combo XLR / 1/4" TRS Input
1 x 1/8" / 3.5 mm TRS Line Output
1 x 1/8" / 3.5 mm TRS Headphone Output | | Phantom Power | +12 / 24 / 48 V | | Plug-In Power | Yes, 2.5 V | | Host Connection | 1 x Mini-USB (USB 2.0) | | | | Gain Range | 1/8" Inputs:
Up to 52 dB
Mic/Line Inputs:
Up to 55 dB | | Max Input Level | Mic/Line Inputs:
+22 dBu (Pad On) | | Headphone Output Power | 20 mW per Channel into 32 Ohms | | Impedance | Inputs:
≥2 kOhms
Line Outputs:
≥10 kOhms
Mic/Line Inputs:
≥1.8 kOhms | | EIN | ≤-120 dBu | | Microphone Sensitivity | -45 dB/Pa | | Microphone Max SPL | 140 dB SPL | | | | Power Options | Batteries, USB Bus Power, AC/DC Power Adapter | | Battery Type | 2 x AA | | AC/DC Power Adapter | 5 VDC at 1 A (Not Included) Zoom AD-17 | | | | Dimensions | 2.3 x 5.3 x 1.7" / 66.8 x 135.2 x 42.1 mm (Recorder)
2.6 x 2.4 x 1.6" / 65.5 x 62.2 x 41.0 mm (X/Y Mic) | | Weight | 6.2 oz / 176.0 g (Recorder)
3.3 oz / 94.0 g (Mic) | | | | Box Dimensions (LxWxH) | 9.25 x 6.6 x 3.4" | - Porta Brace AR-ZH5 Case for Zoom H5 Digital Recorder
| Material | 1000 denier Cordura nylon | | Exterior Dimensions | Not specified by manufacturer | | Weight | 0.20 lb (90 g) | | | | Box Dimensions (LxWxH) | 8.1 x 5.6 x 2.3" |
