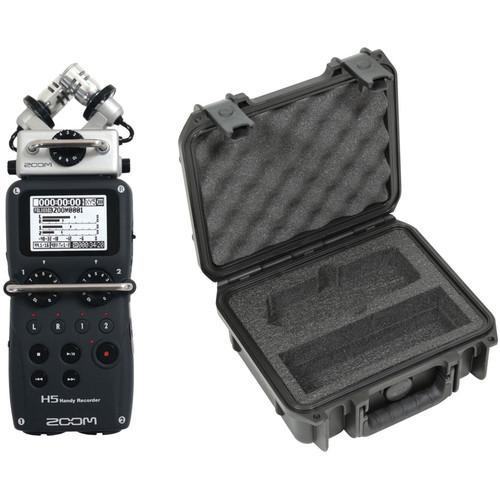

User Manual for Zoom H5 Handy Recorder and Waterproof Case Kit Click to enlarge the picture
Contents of the user manual for the Zoom H5 Handy Recorder and Waterproof
- Product category: Portable Digital Recorders Zoom
- Brand: Zoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zoom Portable Digital Recorders
|
User manual for the Zoom H5 Handy Recorder and Waterproof contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zoom product will considerably shorten its lifespan!
|
Product description The Zoom H5 Handy Recorder and Waterproof Case Kit from includes an H5 recorder, an XYH-5 X/Y microphone capsule, a 2GB SD card, two AA batteries, a foam windscreen, and an SKB iSeries waterproof case. It is well suited for transporting and protecting your H5 recorder and accessories when working in the field, on live recordings, video, live broadcasts, or electronic news gathering projects. The H5 handy recorder is a versatile, four-track, portable recorder with two mic/line inputs. It doubles as a USB interface and features an interchangeable microphone system with six capsules (one included, five available separately), which can be swapped out as easily as the lenses of a camera. Specifically designed for the Zoom H5, the SKB iSeries military-standard, waterproof hard case offers your recorder protection against water submersion, impact, corrosion, and fungus. It fits the H5, the XYH-5 capsule, and various small accessories. - Zoom H5 Handy Recorder with Interchangeable Microphone System
- Zoom H5 Demo
- Zoom H5 Product Video
- Zoom Mic Capsule Overview
The H5 Handy from Zoom is a compact, portable handheld digital recorder that is capable of four-track recording and features an interchangeable, modular microphone system. The recorder ships with an XY microphone capsule and is compatible with the existing line of H6 modules including the optional shotgun mic and XLR/TRS input modules.
The included XY stereo mic module provides two matched unidirectional condenser microphones set at a 90 degree angle, and features a built-in shockmount system and a maximum SPL of 140dB. Additionally, the recorder is equipped with two inputs for external sources, allowing you to record simultaneously with the included stereo XY mic for a total of four input channels. Each input is controllable by its own analog gain knob, and also has a -20dB pad.
The recorder also has an LCD screen and a side-mounted toggle control for navigating through the menu options. It gives you fast access to transport functions, offering physical control buttons right underneath the screen, and conveniently stores its recorded audio to external SD cards.
In addition to the detachable X/Y capsule, the recorder also ships with a foam windscreen, two AA batteries, a USB cable, WaveLab LE (download), and Cubase LE (download). - Features:
-
- Includes detachable X/Y capsule (XYH-5) with extended signal capacity and shockmounted microphones for reduced handling noise
- Compatible with Zoom H6 input capsules and optional capsules including the SGH-6 shotgun mic capsule and the EXH-6 dual XLR/TRS combo input capsule
- Four-track simultaneous recording
- Large backlit LCD display
- Records directly to SD and SDHC cards up to 32GB
- Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Two mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20dB pad
- Analog-style gain controls for each input
- Protective "roll-bar" type covers prevent accidental movement of gain controls
- Plug-in power (2.5 volts)
- Built-in effects, including low-cut filtering, compression and limiting
- Chromatic tuner and metronome
- Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
- MS decoding
- Multitrack to stereo internal mixdown
- Normalize, Divide and Trim editing
- Voice memo and up to 99 marks per recording
- A/B loop playback
- Variable playback speed and variable pitch without affecting playback speed
- Multichannel and stereo USB audio interface for PC/Mac/iPad with loop back function
- Mountable to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
- Uses two standard AA alkaline or NiMH rechargeable batteries
- Over 15 hours of operation with alkaline batteries
UPC: 884354013196 - SKB iSeries Injection Molded Case For The Zoom H5 Recorder
- Zoom H5 Demo
- Zoom H5 Product Video
- Zoom Mic Capsule Overview
The SKB iSeries Injection Molded Case For The Zoom H5 Recorder is made of a high-strength polypropylene polymer resin and is designed to resist damage from ultraviolet light, solvents, corrosion, fungus, and impacts. It features a rubber over-molded cushion grip handle for carrying comfort, a continuous molded-in hinge that automatically equalizes ambient pressure, locking loops for adding a lock, SKB's patented "trigger release" latch system, and will form a complete gasket seal to make the case watertight. The inside of the case features durable PE foam with space for the H5 recorder and an open pocket for accessories such as wind shields or the system's other modular microphone capsules. UPC: 789270995925 In the Box - H5 Handy Recorder with Interchangeable Microphone System
- XYH-5 Microphone Capsule
- Plastic Case
- Foam Windscreen
- USB Cable
- Steinberg WaveLab LE Software (Download)
- Steinberg Cubase LE Software (Download)
- 2 x AA Batteries
- Limited 1-Year Warranty
- SKB - iSeries Injection Molded Case For The Zoom H5 Recorder
Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom H5 Handy Recorder and Waterproof Case Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Zoom H5 Handy Recorder with Interchangeable Microphone System
| | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Microphone | Built-In Cardioid Stereo Pair, X/Y Configuration | | Built-In Speaker | Yes, 400 mW Mono | | Display | LCD (Backlit) | | Memory Card Support | SD (16 MB to 2 GB)
SDHC (4 to 32 GB) | | | | Audio File Formats | BWF, MP3, WAV | | Sample Rates | WAV:
44.1 / 48 / 96 kHz (Stereo)
MP3:
44.1 kHz | | Bit Depth | 16/24-Bit | | Bit Rates | 48 to 320 kb/s
48 to 320 kb/s | | Timecode | No | | | | Analog I/O | 1 x 1/8" / 3.5 mm TRS Line/Mic Input
2 x Combo XLR / 1/4" TRS Input
1 x 1/8" / 3.5 mm TRS Line Output
1 x 1/8" / 3.5 mm TRS Headphone Output | | Phantom Power | +12 / 24 / 48 V | | Plug-In Power | Yes, 2.5 V | | Host Connection | 1 x Mini-USB (USB 2.0) | | | | Gain Range | 1/8" Inputs:
Up to 52 dB
Mic/Line Inputs:
Up to 55 dB | | Max Input Level | Mic/Line Inputs:
+22 dBu (Pad On) | | Headphone Output Power | 20 mW per Channel into 32 Ohms | | Impedance | Inputs:
≥2 kOhms
Line Outputs:
≥10 kOhms
Mic/Line Inputs:
≥1.8 kOhms | | EIN | ≤-120 dBu | | Microphone Sensitivity | -45 dB/Pa | | Microphone Max SPL | 140 dB SPL | | | | Power Options | Batteries, USB Bus Power, AC/DC Power Adapter | | Battery Type | 2 x AA | | AC/DC Power Adapter | 5 VDC at 1 A (Not Included) Zoom AD-17 | | | | Dimensions | 2.3 x 5.3 x 1.7" / 66.8 x 135.2 x 42.1 mm (Recorder)
2.6 x 2.4 x 1.6" / 65.5 x 62.2 x 41.0 mm (X/Y Mic) | | Weight | 6.2 oz / 176.0 g (Recorder)
3.3 oz / 94.0 g (Mic) | | | | Box Dimensions (LxWxH) | 9.25 x 6.6 x 3.4" | - SKB iSeries Injection Molded Case For The Zoom H5 Recorder
| Material of Construction | Polypropylene copolymer resin | | Resistance | Ultraviolet light
Solvent
Corrosion
Fungus (MIL-STD-810F)
Impact | | Military Specification | Watertight: MIL-STD-C-4150J
Ambient Pressure Equalization: MIL-STD-648C &IP67 | | Lid Depth | 1.19" (3.02 cm) | | Base Depth | 2.94" (7.47 cm) | | Dimensions (L x W x D) | 10.73 x 9.690 x 4.800" (27.25 x 24.61 x 12.19 cm) | | Weight | 2.80 lb (1.27 kg) | | | | Box Dimensions (LxWxH) | 11.5 x 10.1 x 5.3" |
