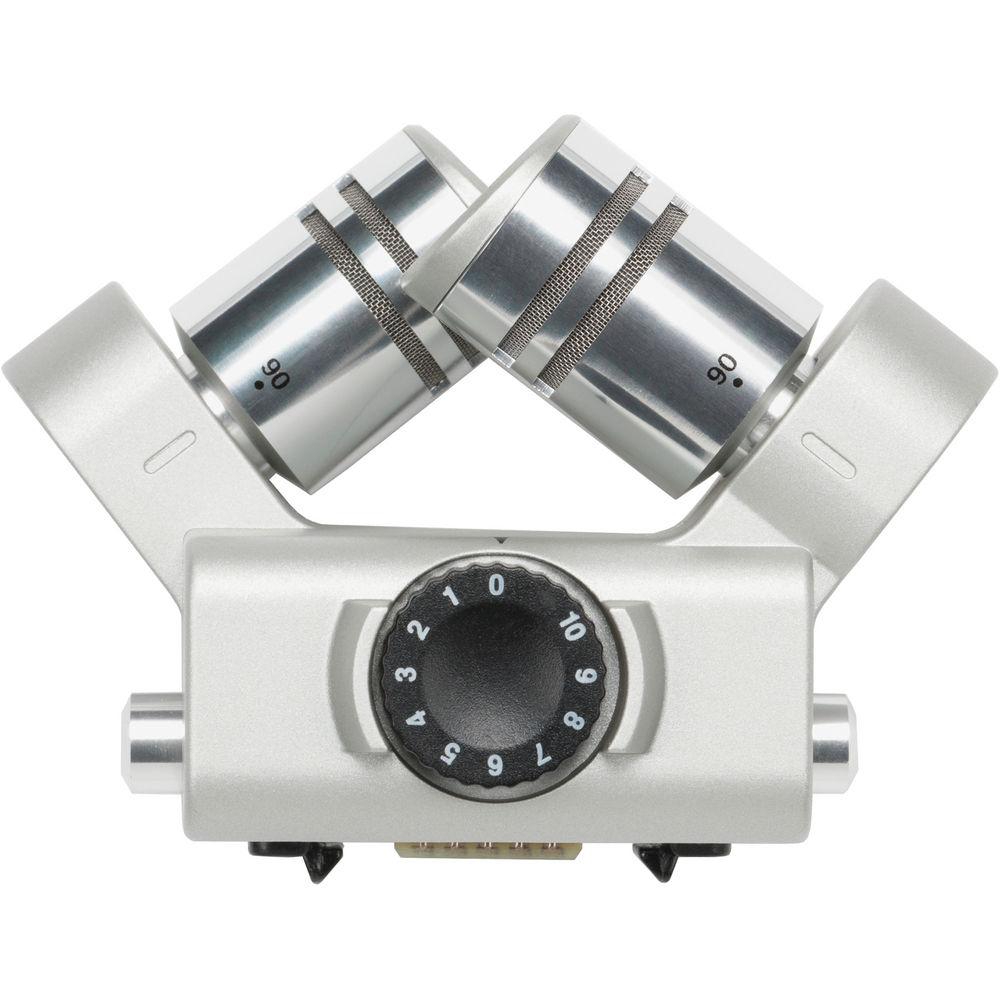

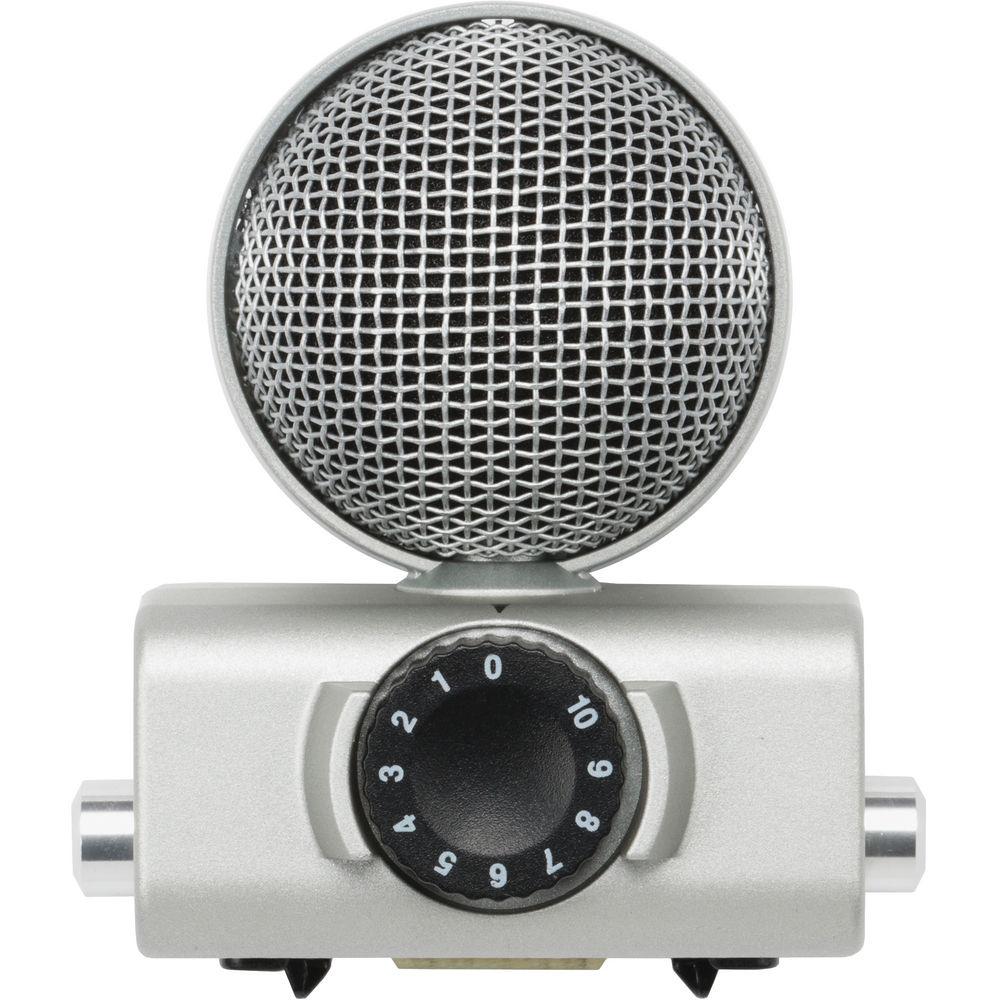

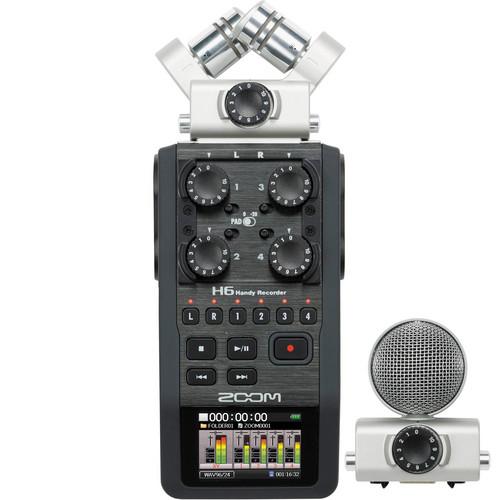

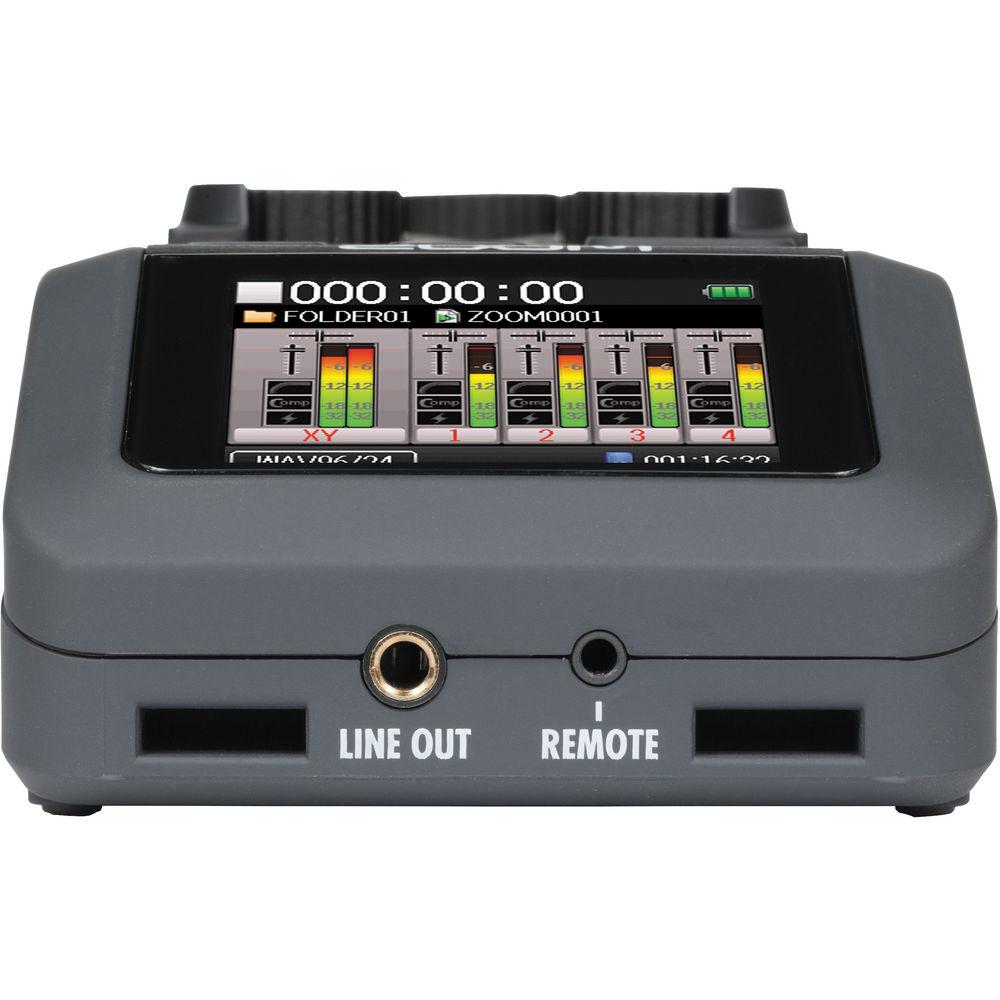

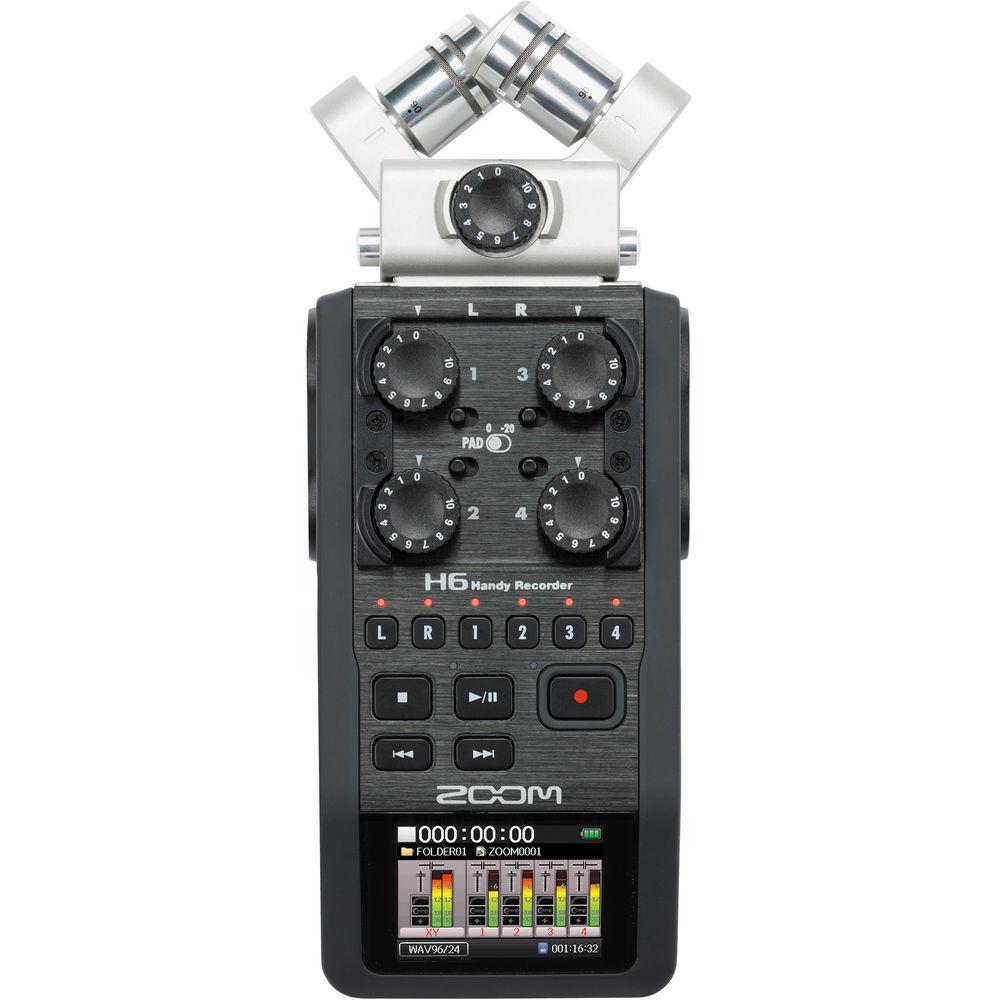

The H6 Handy from Zoom is a portable handheld recorder and USB audio interface that features an interchangeable microphone system. The recorder ships with both XY and mid-side microphone modules, foam windscreen, four AA batteries, USB cable, Cubase LE and a hard carrying case. Optional module attachments can be purchased for expanded functionality.The H6 Handy allows for versatile recording techniques, giving you several options right out of the box. The included XYH-6 XY microphone module is made up of two matched unidirectional condenser microphones and is intended for capturing accurate, phase-correct stereo audio. The module allows you to adjust the angle of the two mics to either 90 degrees, or for a wider stereo image, 120 degrees.For situations that call for audio that allows for width control over your stereo image after it has been recorded, the XY module can be switched out for the MSH-6 mid-side stereo microphone module. Contrary to the appearance of the capsule, the mid-side module actually contains two elements positioned on top of one another: a unidirectional mic which faces forward (mid), and a bi-directional mic set perpendicular to it (side). In addition to providing you the ability to adjust the width of your stereo audio after it has been recorded, MS recording also provides true mono compatibility, a factor that comes into play in situations such as television production.In addition, the H6 is equipped with four XLR/TRS combo inputs for connecting external mic/line sources such as microphones or mixers. All four inputs and each of the mic modules are equipped with their own preamps with dedicated gain knobs that are easily accessible whether you have the unit mounted to your camera, or strapped over your shoulder. Also, each of the four combo inputs has its own -20dB pad.The recorder allows you to record up to six channels at once and stores them to SDXC memory cards up to 128GB in size. It also features a backup-record option that tracks a duplicate of the left and right channels with -12db input gain. This means that if you find that you have tracked your main audio too loud and that distortion has occurred in your audio, you will have a backup stereo mix with 12 db more headroom as a fail-safe. The unit also doubles as a 6-in/2-out USB audio interface and it can be used with your computer running the included Cubase LE or other DAW software. Main Features - Large full-color angled LCD display that allows visibility whether mounted on a camera or strapped over shoulder

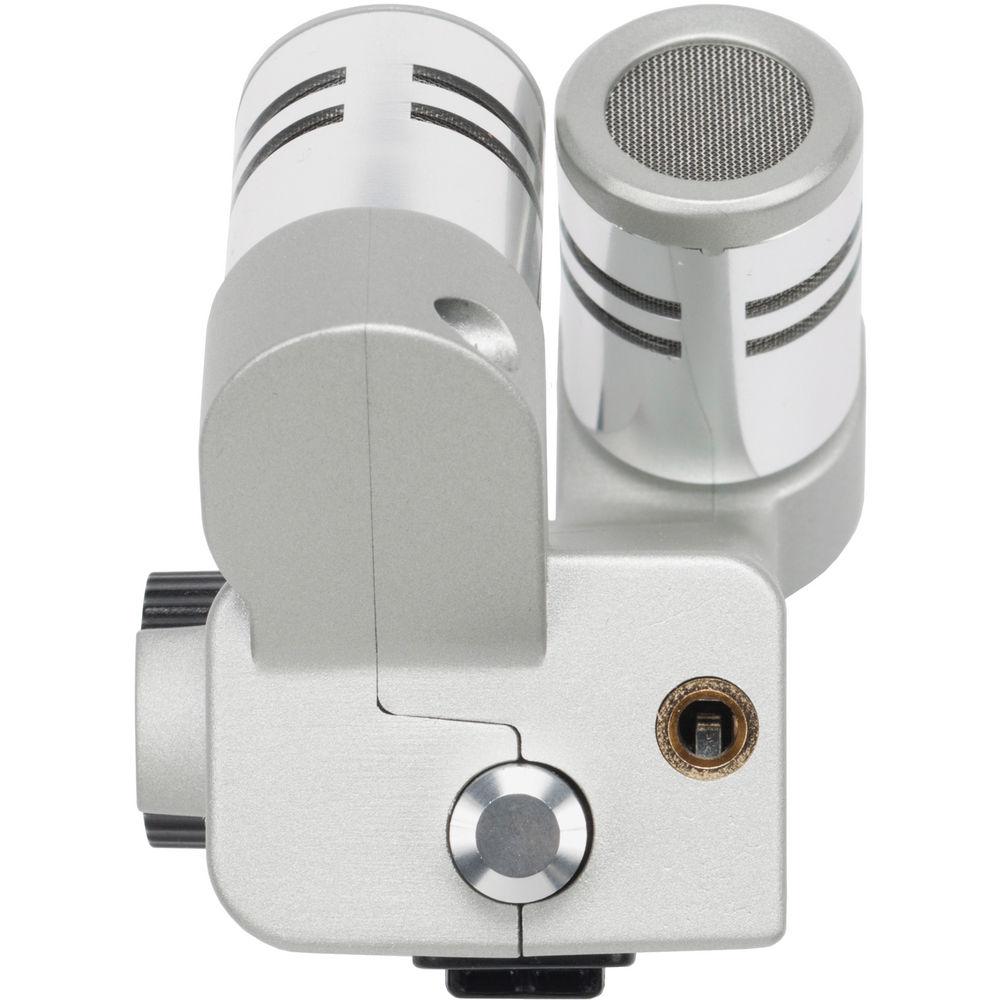

- XYH-6 X/Y capsule also provides a secondary input for connecting an external mic or line level signal via stereo 1/8" mini jack
- Optional wired controllers for remote transport controls
- Optional hairy windscreen offers improved wind diffusion

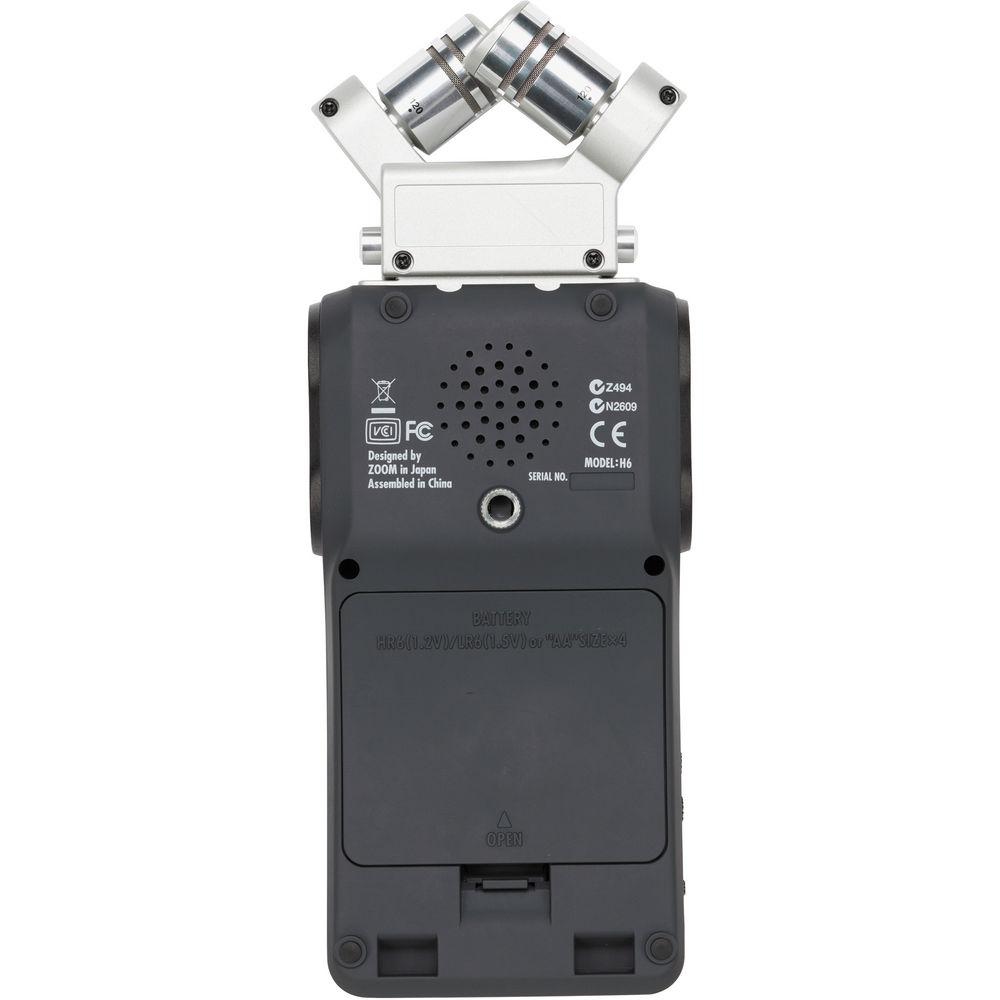

- Built-in speaker, located on the underside of the unit, for fast monophonic monitoring of the recorded signal without the need to make any connections

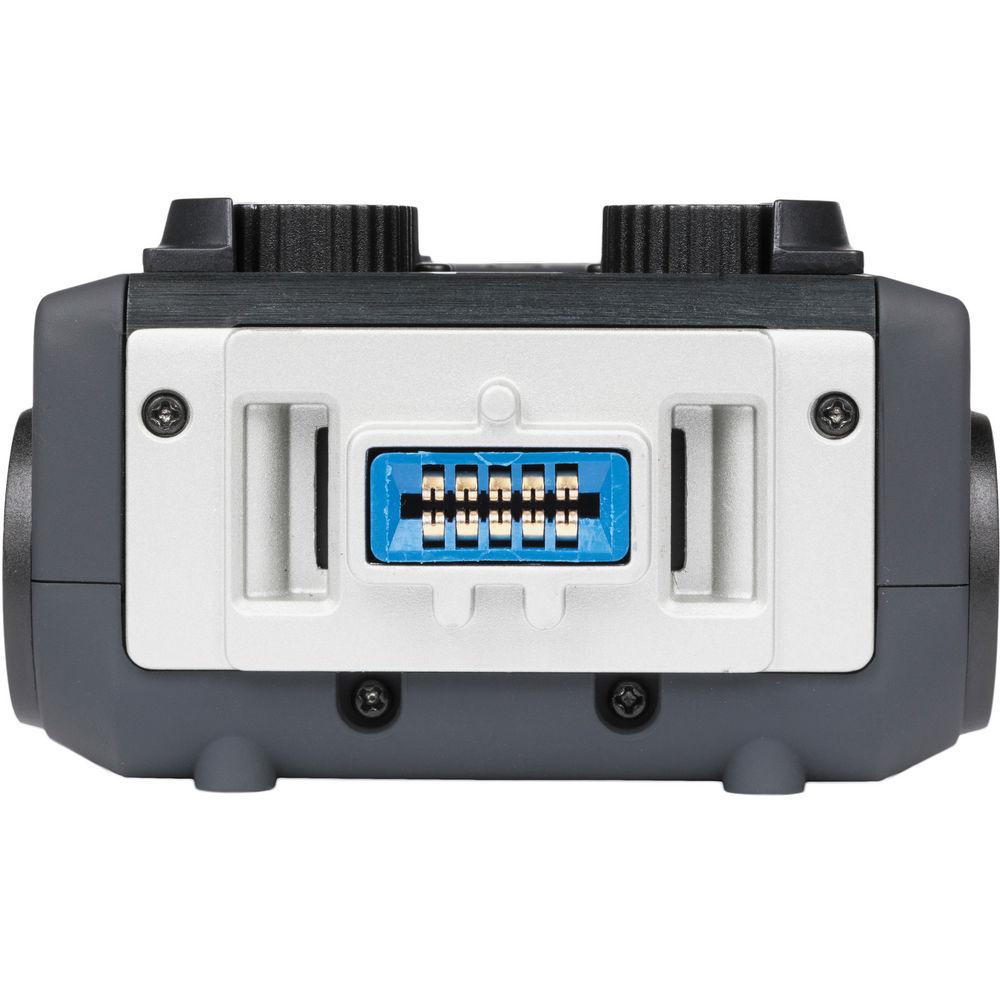

- Interchangeable input capsules that can be swapped out as easily as the lens of a camera
- Six-track simultaneous recording

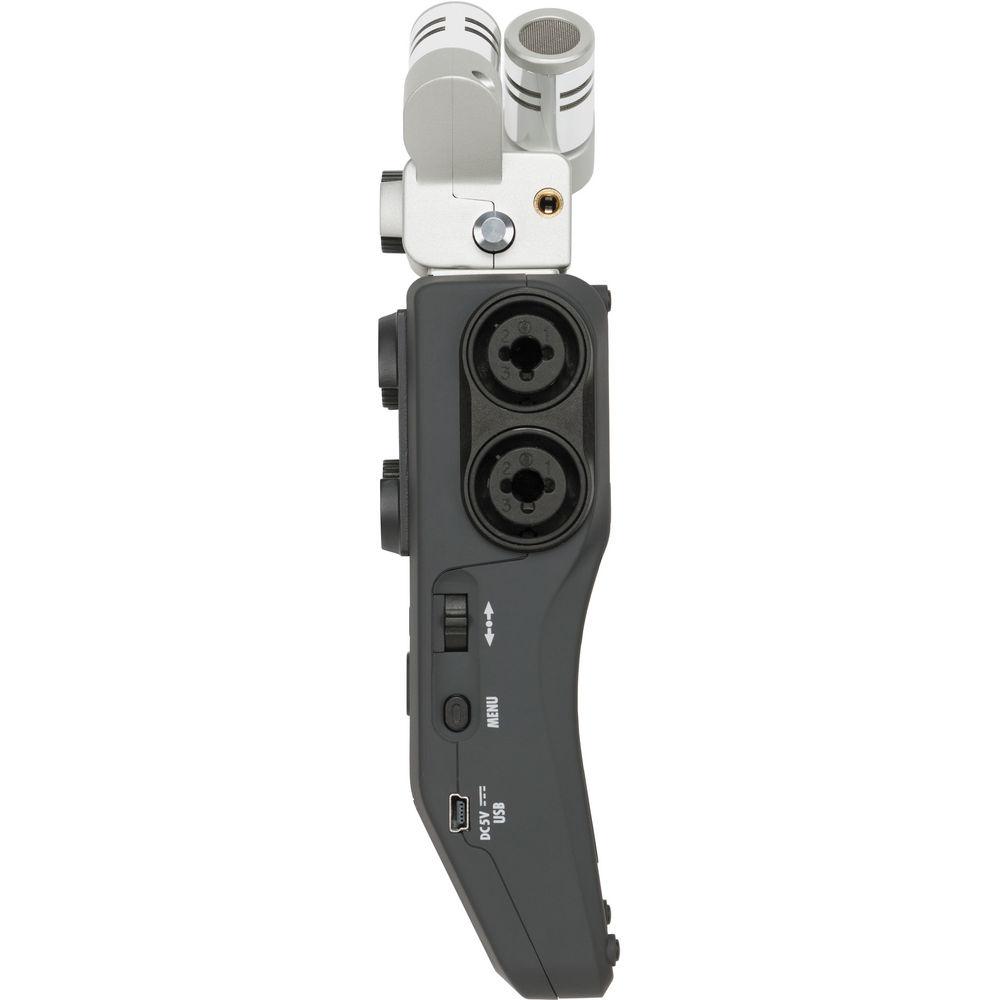

- Four mic/line inputs with XLR/TRS combo connectors
- Physical gain control knobs and -20dB pads for each input
- Phantom power for all main inputs: +12/+24/+48V

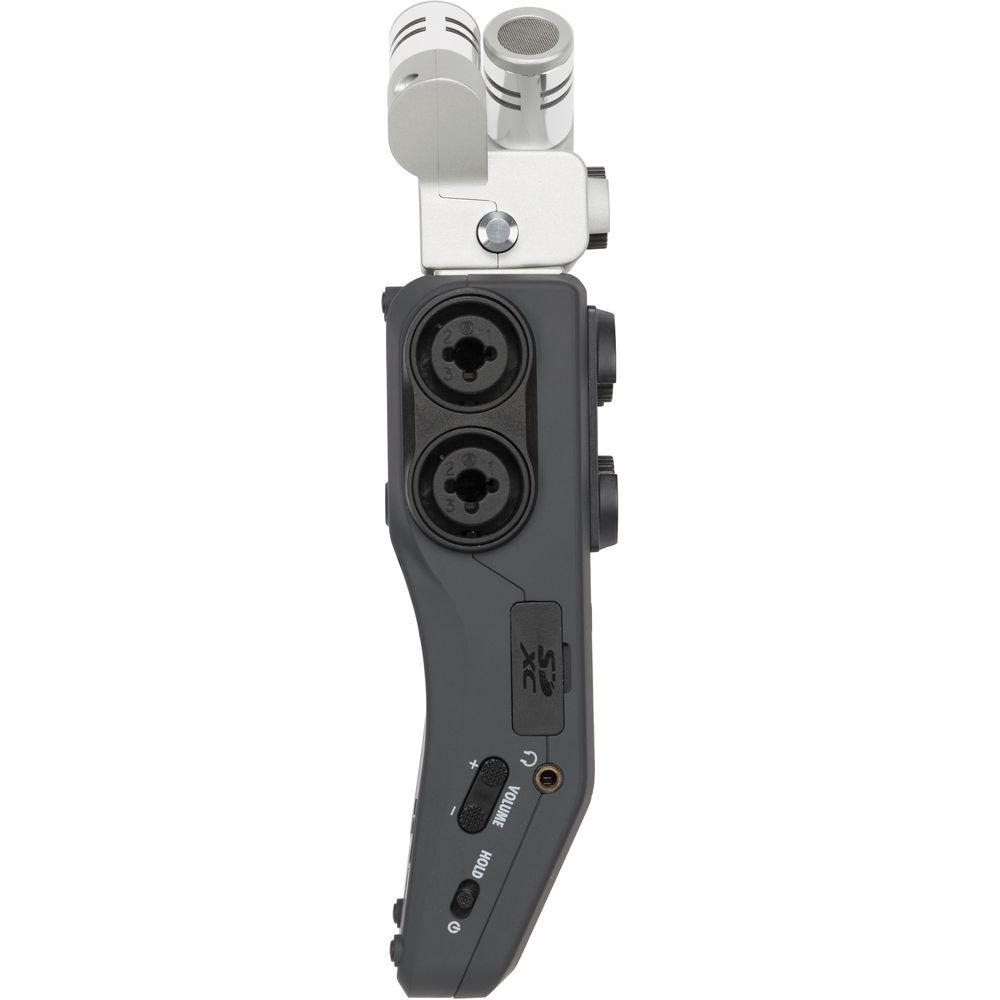

- Records directly to SD, SDHC and SDXC cards up to 128GB
- Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Auto-record, pre-record and backup-record functions
- Multitrack to stereo internal mixdown
- Independent monitor and playback mixes
- Voice memo and up to 99 marks per recording
- Overdubbing, up to 99 takes
- Built-in effects, including low-cut filtering, compression and limiting
- Normalize, Divide and Trim editing
- Chromatic tuner and metronome
- Loop Playback with user-defined start and stop points
- Variable playback speed, from 50% to 150%
- Variable pitch per track without affecting playback speed
- USB port for data exchange to and from computer
- Multichannel and stereo USB audio interface for PC/Mac/iPad
- Mounts directly to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
- Accepts standard AA alkaline or NiMH rechargeable batteries
- Over 20 hours of operation with 4 AA alkaline batteries
UPC: 884354012175 In the Box Zoom H6 Handy Recorder with Interchangeable Microphone System XY Microphone Mid-Side Microphone USB Cable 4 x AA Batteries Hard Case Cubase LE Foam Windscreen Limited 1-Year Warranty User Manual PDF 5.1mburwwfbwxttywcezyrs Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom H6 Handy Recorder with Interchangeable Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZoom H6 Specs | | | Number of Tracks | WAV:
6
MP3:
2 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Microphone | Interchangeable Cardioid Condenser Stereo Pair, X/Y Configuration
Interchangeable Cardioid Condenser Stereo Pair, Mid/Side Configuration | | Built-In Speaker | Yes, 400 mW Mono | | Display | Color LCD | | Memory Card Support | SD (16 MB to 2 GB)
SDHC (4 to 32 GB)
SDXC (64 to 128 GB) | | | | Audio File Formats | MP3, WAV | | Sample Rates | WAV:
44.1 / 48 / 96 kHz
MP3:
44.1 kHz | | Bit Depth | 16/24-Bit | | Bit Rates | 48 to 320 kb/s | | Timecode | No | | | | Analog I/O | 4 x Combo XLR / 1/4" TRS Input
1 x 1/8" / 3.5 mm TRS Line/Mic Input
1 x 1/8" / 3.5 mm TRS Line Output
1 x 1/8" / 3.5 mm TRS Headphone Output | | Phantom Power | +12 / 24 / 48 V (Selectable on Individual Inputs) | | Plug-In Power | Yes, 2.5 V On XYH-6 Mic/Line In | | Host Connection | 1 x Mini-USB (USB 2.0) | | | | Gain Range | Up to 55.5 dB
X/Y Mic Capsule:
Up to 46.5 dB
Mid-Side Mic Capsule:
Up to 42.5 dB | | Max Input Level | Inputs:
+22 dBu (Pad On) | | Headphone Output Power | 20 mW per Channel into 32 Ohms | | Impedance | Inputs:
6.8 kOhms
Mic/Line Inputs:
2 kOhms | | EIN | ≤-120 dBu | | Microphone Sensitivity | -41 dB/Pa (X/Y)
-37 dB/Pa (Mid/Side-Unidirectional)
-39 dB/Pa (Mid/Side-Bidirectional) | | Microphone Max SPL | 136 dB SPL (X/Y)
120 dB SPL (Shotgun-Unidirectional)
122 dB SPL (Shotgun-Bidirectional) | | | | Power Options | Batteries, USB Bus Power, AC/DC Power Adapter | | Battery Type | 4 x AA | | Approximate Battery Life | 20 Hours (Alkaline) | | AC/DC Power Adapter | 5 VDC at 1 A (Not Included) Zoom AD-17 | | | | Dimensions | 3.0 x 6.0 x 1.9" / 77.8 x 152.8 x 47.8 mm (Recorder)
3.1 x 2.4 x 1.8" / 78.9 x 60.2 x 45.2 mm (X/Y Mic)
2.3 x 2.6 x 1.6" / 58.0 x 67.6 x 42.1 mm (Shotgun Mic) | | Weight | 9.9 oz / 280.0 g (Recorder)
4.6 oz / 130.0 g (X/Y Mic)
3.0 oz / 85.0 g (Shotgun Mic) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 10.7 x 8.25 x 3.4" | B&H Hands-on Learning Videos Hands-on Learning with the Zoom H6 00:32:36 - Introduction 4:47
