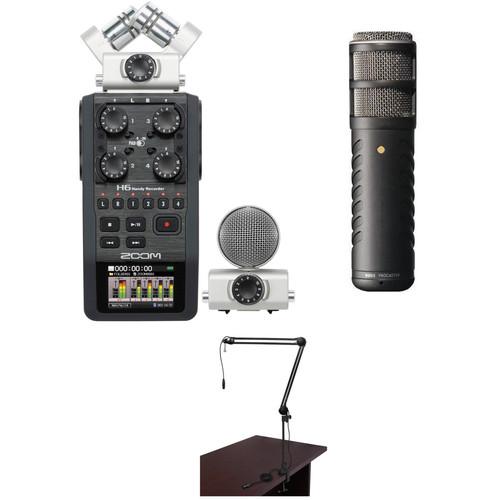

User Manual for Zoom H6 Recorder Podcast Kit with Rode Procaster Microphone

• Product category: Portable Digital Recorders Zoom
• Brand: Zoom
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zoom Portable Digital Recorders

Product description

• Zoom H6 Handy Recorder with Interchangeable Microphone System
  • Zoom H6 Demo
  • Zoom Mic Capsule Overview
  The H6 Handy from Zoom is a portable handheld recorder and USB audio interface that features an interchangeable microphone system. The recorder ships with both XY and mid-side microphone modules, foam windscreen, four AA batteries, USB cable, Cubase LE and a hard carrying case. Optional module attachments can be purchased for expanded functionality.The H6 Handy allows for versatile recording techniques, giving you several options right out of the box. The included XYH-6 XY microphone module is made up of two matched unidirectional condenser microphones and is intended for capturing accurate, phase-correct stereo audio. The module allows you to adjust the angle of the two mics to either 90 degrees, or for a wider stereo image, 120 degrees.For situations that call for audio that allows for width control over your stereo image after it has been recorded, the XY module can be switched out for the MSH-6 mid-side stereo microphone module. Contrary to the appearance of the capsule, the mid-side module actually contains two elements positioned on top of one another: a unidirectional mic which faces forward (mid), and a bi-directional mic set perpendicular to it (side). In addition to providing you the ability to adjust the width of your stereo audio after it has been recorded, MS recording also provides true mono compatibility, a factor that comes into play in situations such as television production.In addition, the H6 is equipped with four XLR/TRS combo inputs for connecting external mic/line sources such as microphones or mixers. All four inputs and each of the mic modules are equipped with their own preamps with dedicated gain knobs that are easily accessible whether you have the unit mounted to your camera, or strapped over your shoulder. Also, each of the four combo inputs has its own -20dB pad.The recorder allows you to record up to six channels at once and stores them to SDXC memory cards up to 128GB in size. It also features a backup-record option that tracks a duplicate of the left and right channels with -12db input gain. This means that if you find that you have tracked your main audio too loud and that distortion has occurred in your audio, you will have a backup stereo mix with 12 db more headroom as a fail-safe. The unit also doubles as a 6-in/2-out USB audio interface and it can be used with your computer running the included Cubase LE or other DAW software.

  Main Features

  • Large full-color angled LCD display that allows visibility whether mounted on a camera or strapped over shoulder
  • XYH-6 X/Y capsule also provides a secondary input for connecting an external mic or line level signal via stereo 1/8" mini jack
  • Optional wired controllers for remote transport controls
  • Optional hairy windscreen offers improved wind diffusion
  • Built-in speaker, located on the underside of the unit, for fast monophonic monitoring of the recorded signal without the need to make any connections
  • Interchangeable input capsules that can be swapped out as easily as the lens of a camera
  • Six-track simultaneous recording
  • Four mic/line inputs with XLR/TRS combo connectors
  • Physical gain control knobs and -20dB pads for each input
  • Phantom power for all main inputs: +12/+24/+48V
  • Records directly to SD, SDHC and SDXC cards up to 128GB
  • Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
  • Auto-record, pre-record and backup-record functions
  • Multitrack to stereo internal mixdown
  • Independent monitor and playback mixes
  • Graphical VU meters
  • Voice memo and up to 99 marks per recording
  • Overdubbing, up to 99 takes
  • Built-in effects, including low-cut filtering, compression and limiting
  • Onboard MS decoding
  • Normalize, Divide and Trim editing
  • Chromatic tuner and metronome
  • Loop Playback with user-defined start and stop points
  • Variable playback speed, from 50% to 150%
  • Variable pitch per track without affecting playback speed
  • USB port for data exchange to and from computer
  • Multichannel and stereo USB audio interface for PC/Mac/iPad
  • Camera strap mounts
  • Mounts directly to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
  • Accepts standard AA alkaline or NiMH rechargeable batteries
  • Over 20 hours of operation with 4 AA alkaline batteries
  UPC: 884354012175
• Rode Procaster Broadcast Quality Dynamic Microphone
  • Zoom H6 Demo
  • Zoom Mic Capsule Overview
  The Procaster Broadcast Quality Dynamic Microphone from Rode is designed for capturing speech in broadcast radio, voice-over recording, podcasts, and similar applications. It features a tight cardioid polar pattern and tailored frequency response that result in optimum speech reproduction without off-axis noise. The all metal contruction, internal pop-filter, and internal shockmount further minimize handling noise and contribute to the microphone's durability. The package includes a microphone stand mount and a zip pouch.
  • Tailored frequency response for maximum speech reproduction
  • Tight cardioid polar pattern minimizes off-axis noise
  • Internal shockmount and pop filter minimize handling noise and plosives
  • Durable all metal contruction
  UPC: 698813001118
• Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable
  • Zoom H6 Demo
  • Zoom Mic Capsule Overview
  The Auray BAI-2X is a two-section broadcast arm with internal springs and an integrated XLR cable. This versatile and sturdy broadcast arm is great for studio as well as home use. It's ideal for broadcast, voiceover, and podcasts.

  The BAI-2X broadcast arm is designed with internal springs that provide a clean and sleek look. The internal balance springs are precision engineered to support and hold in place microphones of up to 5 lb. (2.27 kg). The design also minimizes handling noise when re-positioning the arm. The broadcast arm features a standard 5/8"-27 microphone stud mount that is compatible with most shockmounts and microphone clips. The angle of the microphone stud mount can be adjusted and secured with the locking knob, and the angle is maintained when re-positioning the arm. This eliminates the need to readjust it every time the arm is moved. With an extension of up to 40 inches, and the ability to rotate the arm 360°, the BAI-2X allows for precise microphone placement.

  The BAI-2X also features a heavy-duty combo mount that consists of a sturdy C-clamp and a heavy-metal desktop mount. The C-clamp is capable of fastening onto desktops up to 2.3" thick. The C-clamp's slim design minimizes the clearance needed to mount it between a desk and wall. The desktop mount detaches from the C-clamp and provides the option of permanent installation to a desktop with the mounting screws (included). A 14" riser is included for adding height to the broadcast arm in order to extend over computer or studio monitors.
  Versatile
  • Ideal for studios as well as home use
  Internal Springs
  • Internal springs provide smooth, noise-free positioning and clean and sleek profile
  Sturdy
  • Supports microphones up to 5 lb. (2.27 kg)
  Compatibility
  • The 5/8"-27 standard microphone thread is compatible with most shockmounts and microphone clips
  Precision
  • Extends up to 40" (101.6 cm) and rotates 360° allowing for precise microphone placement
  XLR Cable
  • The integrated 15-foot (457.2 cm) XLR cable provides a secure, locking connection and excellent signal transfer
  Extra Height
  • A 14" (13.6 cm) riser is included. It provides extra height to the broadcast arm for extending over computer or studio monitors
  Combo Mount
  • The heavy-duty combo mount is comprised of a C-clamp for clamping to a desktop up to 2.3-inch (5.8 cm) thick, and a detachable desktop mount for permanent attachment to a desktop with the included screws
  14" Riser
  • The included riser adds 14" of height to the broadcast arm so that it can easily extend over computer or studio monitors
  UPC: 847628578272

• H6 Handy Recorder with Interchangeable Microphone System xvrybusezdcv
• XY Microphone
• Mid-Side Microphone
• USB Cable
• 4 x AA Batteries
• Hard Case
• Cubase LE
• Foam Windscreen
• Limited 1-Year Warranty

• Rode - Procaster Broadcast Quality Dynamic Microphone

• Auray - BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Zoom H6 Handy Recorder with Interchangeable Microphone System

  Number of Tracks	WAV: 6 MP3: 2
  Max Sample Rate/Resolution	96 kHz / 24-Bit
  Microphone	Interchangeable Cardioid Condenser Stereo Pair, X/Y Configuration Interchangeable Cardioid Condenser Stereo Pair, Mid/Side Configuration
  Built-In Speaker	Yes, 400 mW Mono
  Display	Color LCD
  Memory Card Support	SD (16 MB to 2 GB) SDHC (4 to 32 GB) SDXC (64 to 128 GB)

  Audio File Formats	MP3, WAV
  Sample Rates	WAV: 44.1 / 48 / 96 kHz MP3: 44.1 kHz
  Bit Depth	16/24-Bit
  Bit Rates	48 to 320 kb/s
  Timecode	No

  Analog I/O	4 x Combo XLR / 1/4" TRS Input 1 x 1/8" / 3.5 mm TRS Line/Mic Input 1 x 1/8" / 3.5 mm TRS Line Output 1 x 1/8" / 3.5 mm TRS Headphone Output
  Phantom Power	+12 / 24 / 48 V (Selectable on Individual Inputs)
  Plug-In Power	Yes, 2.5 V On XYH-6 Mic/Line In
  Host Connection	1 x Mini-USB (USB 2.0)

  Gain Range	Up to 55.5 dB X/Y Mic Capsule: Up to 46.5 dB Mid-Side Mic Capsule: Up to 42.5 dB
  Max Input Level	Inputs: +22 dBu (Pad On)
  Headphone Output Power	20 mW per Channel into 32 Ohms
  Impedance	Inputs: 6.8 kOhms Mic/Line Inputs: 2 kOhms
  EIN	≤-120 dBu
  Microphone Sensitivity	-41 dB/Pa (X/Y) -37 dB/Pa (Mid/Side-Unidirectional) -39 dB/Pa (Mid/Side-Bidirectional)
  Microphone Max SPL	136 dB SPL (X/Y) 120 dB SPL (Shotgun-Unidirectional) 122 dB SPL (Shotgun-Bidirectional)

  Power Options	Batteries, USB Bus Power, AC/DC Power Adapter
  Battery Type	4 x AA
  Approximate Battery Life	20 Hours (Alkaline)
  AC/DC Power Adapter	5 VDC at 1 A (Not Included) Zoom AD-17

  Dimensions	3.0 x 6.0 x 1.9" / 77.8 x 152.8 x 47.8 mm (Recorder) 3.1 x 2.4 x 1.8" / 78.9 x 60.2 x 45.2 mm (X/Y Mic) 2.3 x 2.6 x 1.6" / 58.0 x 67.6 x 42.1 mm (Shotgun Mic)
  Weight	9.9 oz / 280.0 g (Recorder) 4.6 oz / 130.0 g (X/Y Mic) 3.0 oz / 85.0 g (Shotgun Mic)

  Box Dimensions (LxWxH)	10.7 x 8.25 x 3.4"

• Rode Procaster Broadcast Quality Dynamic Microphone

  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Range	75 Hz to 18 kHz
  Impedance	320 Ohms
  Sensitivity	-56 dB at 1 kHz

  Output Connectors	1 x 3-Pin XLR
  Length	8.43" / 214 mm
  Diameter	2.09" / 53 mm
  Weight	1.64 lb / 745 g

  Box Dimensions (LxWxH)	11.2 x 5.3 x 2.6"

• Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable

  Length	40" (101.6 cm)
  Weight Capacity	5 lb (2.27 kg)
  Microphone Mount	5/8"-27 standard microphone thread
  Clamping Range	2.3" (5.8 cm)
  Riser	14" (35.56 cm)
  Cable	XLR M to XLR F: 15' (457.2 cm)
  Weight	4.47 lb. (2.02 kg)

  Box Dimensions (LxWxH)	23.5 x 7.4 x 3.5"
