User Manual for Zoom iQ7 Mid-Side Stereo Microphone for iOS Devices with Lightning Connector Click to enlarge the picture
Contents of the user manual for the Zoom iQ7 Mid-Side Stereo Microphone for
- Product category: Mobile Microphones Zoom
- Brand: Zoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zoom Mobile Microphones
 |
User manual for the Zoom iQ7 Mid-Side Stereo Microphone for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zoom product will considerably shorten its lifespan!
|

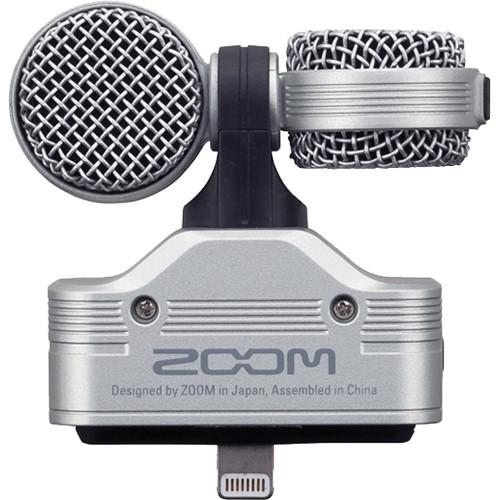

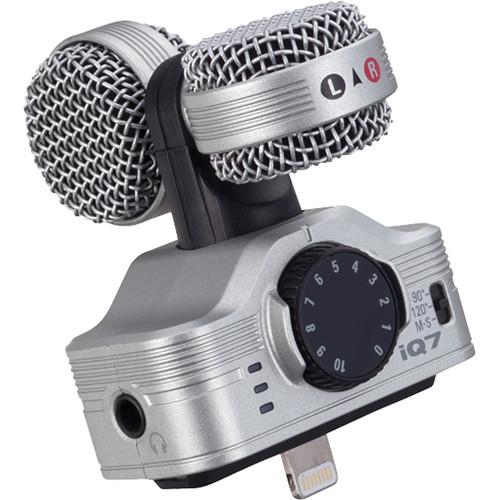

Product description The iQ7 from Zoom is a compact mid-side stereo condenser microphone for Lightning-equipped iOS devices. It allows for up to 48 kHz/16-bit, mono-compatible audio tracking and is ideal for recording live concerts, ENG, videos and more.

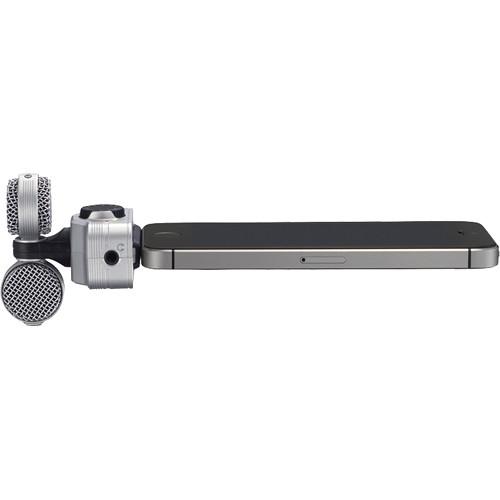

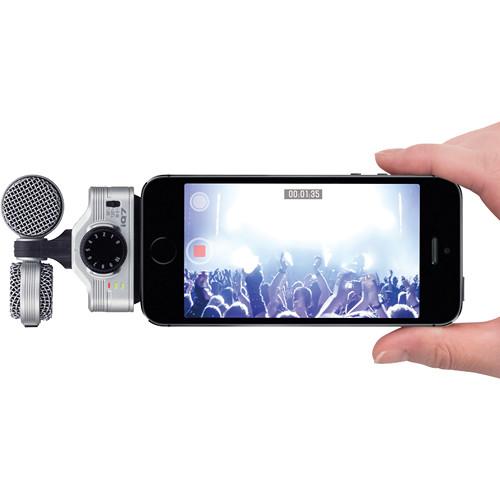

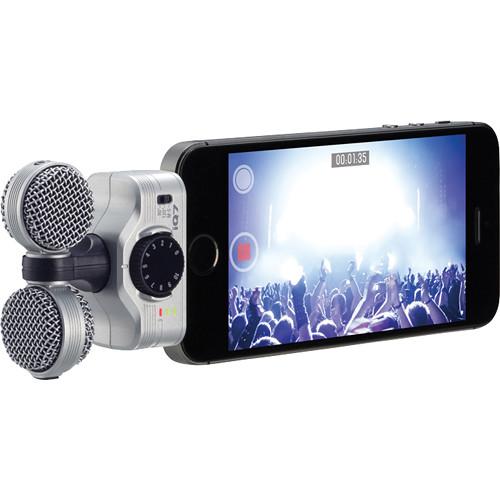

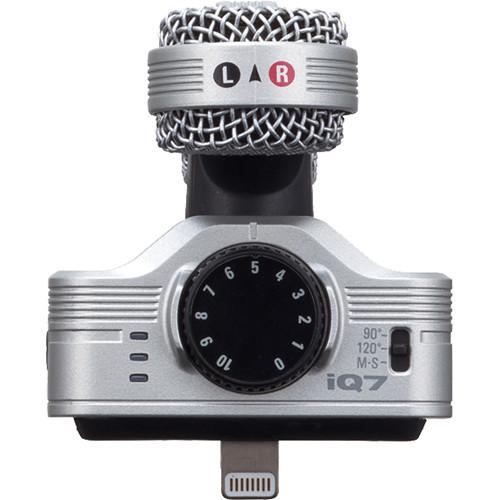

The iQ7 features a rotating capsule that enables it to be used vertically or horizontally with your iOS device. This allows you to record video with your device situated in either standard or landscape positions while ensuring that the audio is recorded with the correct left-right stereo orientation.
The mic contains two elements including a directional "mid" mic that captures audio coming from the front, and a bidirectional "side" mic that picks up ambient sounds from the sides. The stereo width can be set to either 90° or 120°, or you can record the mid and side mic signals as raw data and use Zoom's Handy Recorder iOS app to adjust the stereo width after the fact. The app also allows you to collapse the signal into phase-coherent mono, ideal for voice recordings such as interviews.

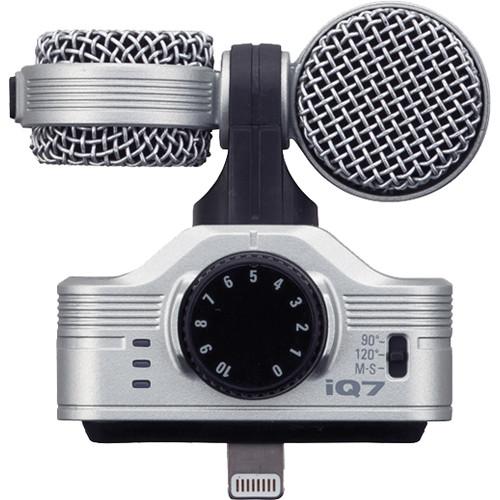

The input gain can be adjusted using the large, mic gain wheel on the front of the unit, while you monitor your levels using the 3-segment LED. The iQ7 also features a dedicated 3.5mm headphone jack, enabling direct monitoring during both recording and playback. The headphone output can also be used as a line out for making a backup recording if desired.

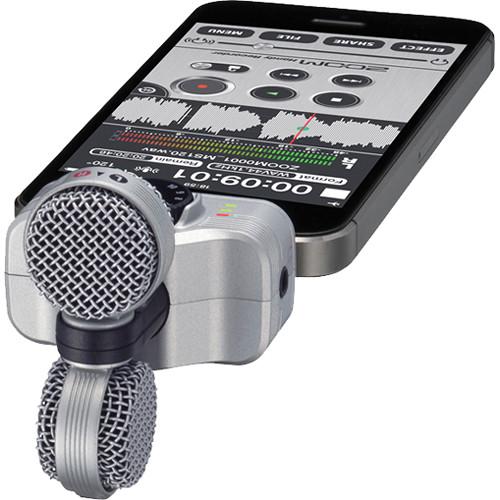

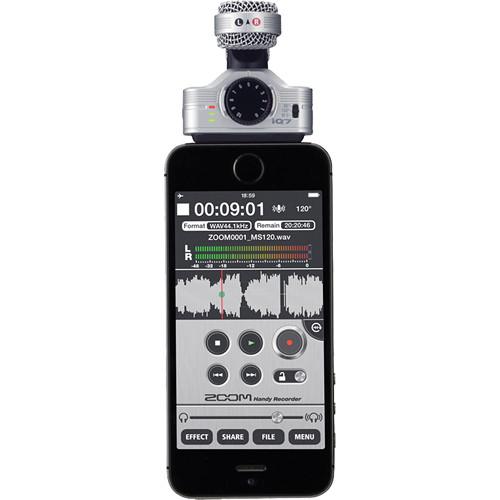

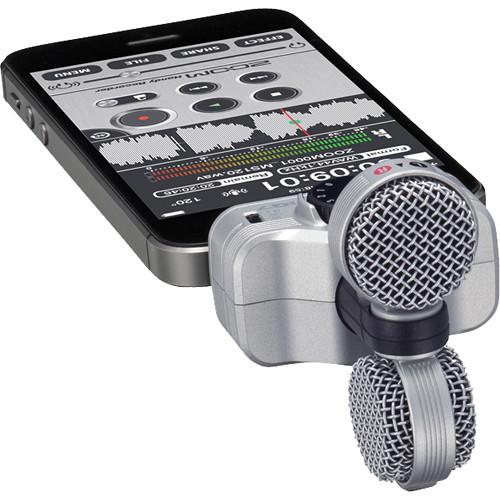

The iQ7 comes with a removable spacer that allows it to be used with most iPhone, iPad, and iPod cases. The mic is compatible with Zoom's free Handy Recorder app, which gives you the option to record as PCM or AAC files, and offers effects such as compression, EQ, and reverb. Additionally, it will work with Apple's Voice Memo app and GarageBand, as well as most apps that support input from an external microphone. - Zoom Handy Recorder App
- Zoom's free Handy Recorder app, available from the iTunes App Store, adds a wealth of audio tools to your iOS device. Overdub to the stereo recordings created with your iQ7. Perform fine editing functions in its waveform display. Save your files in either linear PCM or AAC file formats. Apply onboard effects such as compression, EQ and reverb to further enhance the sound. Handy Recorder even allows you to email the audio you create and to upload it to SoundCloud for sharing with the world
UPC: 884354014124 In the Box Zoom iQ7 Mid-Side Stereo Microphone for iOS Devices with Lightning Connector Spacer Foam Windscreen Handy Recorder App (Download) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom iQ7 Mid-Side Stereo Microphone for iOS Devices with Lightning Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZoom iQ7 Specs | Microphone | Mid-side (M-S) stereo mic (90°/120°/M-S) | | Maximum SPL | 120 dB SPL | | Input Gain | +3 to +43 dB | | Audio | 44.1 kHz / 16-bit, 48 kHz / 16-bit | | Power | Powered by the connected device | | Connector | Lightning connector
Stereo mini jack (combined headphone / line level output) | | Compatible Audio Import Formats | iPhone 5, iPhone 5s, iPhone 5c, iPod touch (5th generation), iPad (4th generation), iPad Air, iPad mini, iPad mini with Retina display | | Compatible Operating Systems | iOS 6.0 or newer | | Dimensions | 2.1 x 2.3 x 1" (54.5 x 57.2 x 26.5 mm) | | Weight | 1.1 oz (31.8 g) | | | | Package Weight | 0.375 lb | | Box Dimensions (LxWxH) | 9.15 x 4.5 x 2.3" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Zoom iQ7 Mid-Side Stereo Microphone for iOS Devices with Lightning Connector
| Subject: playback recording | | Date: 30.01.2021 23:54:28 | Name: Linda | | I record video using Zoom iq7 but sound doesn't play back on my phone. I moved it into Google Drive and it played OK. What am I doing wrong. I'm an older person - not great tech. savvy. xoxo - Linda | | Post reply |
