Product description

• Zoom LiveTrak L-12 - 12-Channel Digital Mixer & Multitrack Recorder
  • Hands-On Review | Zoom LiveTrak L-12
  The highly flexible Zoom LiveTrak L-12 is a 12-channel digital mixer and multi-track recorder, well suited for live performances, studio recording, band rehearsals, podcasts, and more. The compact mixer features 8 mono channels, each with combo mic/line XLR-1/4" inputs with high gain, low-noise microphone preamps, +48V phantom power, and a single compression knob, while the two stereo inputs offer dual 1/4" and RCA inputs. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and a send FX for sending signal to the 16 built-in high-quality effects processor with a dedicated EFX Return channel.

  The main output utilizes balanced XLR outputs, while a stereo monitor send is available via two 1/4" outputs. Additionally, the Zoom LiveTrack L-12 offers five headphone outputs, each with the ability to set up customized mixes. Simply connect your headphones and adjust the levels to taste. There are nine snap-shot presets, which allow you instant recall of different setups and sessions.

  The built-in SD recorder can simultaneously record every channel and the master fader stereo signal output for a total of 14 tracks at resolutions up to 24-bit/ 96 kHz. Files can easily be copied to a computer and used in a DAW. In addition, overdubbing and punching in/out can be done as expected when using the unit as a multi-track recorder. The L-12 can also function as a 14-in/4-out USB audio interface, allowing you to record directly to your favorite software DAW or to iOS devices. Other notable features include 12-segment LED meters on all channels, a built-in metronome, and a built-in slate mic for identifying takes. The Zoom LiveTrack L-12 ships with a power cord and a USB cable.
  • • 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4" connectivity
    • 14-track simultaneous recording, 12-track playback
    • 14-in/4-out USB audio interface connectivity
    • 5 powered headphone outputs, each with a customizable and savable mix
    • Add backing/click tracks from your computer to your live mix and recording
    • RCA and TRS line inputs
    • 48V phantom power (channels 1-4 and 5-8)
    • Hi-Z connectivity (channels 1 and 2)
    • 26 dB pad (channels 3-8)
    • Built-in compression control (channels 1-8)
    • 12-Segment Digital Level Meters: -48 to 0 dB
    • Master mute button
    • Low-cut control
    • Stereo panning
    • Master and monitor outputs (A-E)
    • Scene saving function, up to 9 scenes saved at a time
    • 16 built-in delay and reverb effects with adjustable parameters
    • Built-in slate mic
    • Class-compliant mode (for iOS compatibility)
    • SD card input
    • Built-in metronome
    • Automatic recording starting/stopping capability
    • Project protection
    • Import/export projects with USB 2.0 host port
    • Latency adjustment for A-to-D conversion
    • Compatible functions for optional Zoom FS01 footswitch

  UPC: 884354018054

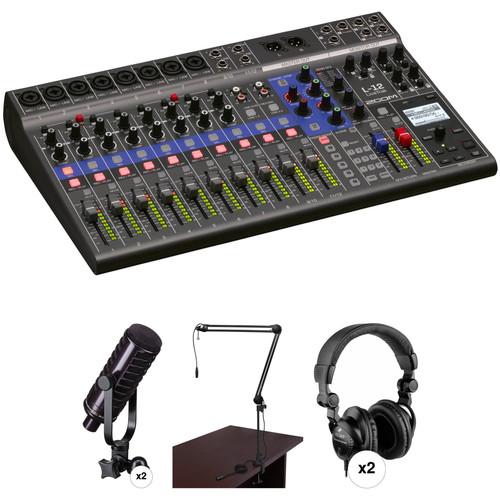

• 2 x MXL BCD-1 Live Broadcast Dynamic Microphone (Midnight Purple)
  • Hands-On Review | Zoom LiveTrak L-12
  The midnight purple BCBD-1 Live Broadcast Dynamic Microphone from MXL is an end address, professional microphone with a cardioid polar pattern that is designed for radio broadcasts, voice overs, podcasts, announcers, and more. It delivers a warm, rich tone making vocals stand out in any performance or recording. The BCD-1 features a built-in shockmount that prevents unwanted noise and vibration. The flexible BCD-1 includes a windscreen and a swivel mount that allows for perfect positioning on any mic stand.
  • High-quality dynamic mic built for broadcast and voice-over productions
  • Excellent side rejection
  • 3 selectable roll-off switches to help pinpoint precision sound
  • Built-in isolation shockmount
  UPC: 801813192377
• Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable
  • Hands-On Review | Zoom LiveTrak L-12
  The Auray BAI-2X is a two-section broadcast arm with internal springs and an integrated XLR cable. This versatile and sturdy broadcast arm is great for studio as well as home use. It's ideal for broadcast, voiceover, and podcasts.

  The BAI-2X broadcast arm is designed with internal springs that provide a clean and sleek look. The internal balance springs are precision engineered to support and hold in place microphones of up to 5 lb. (2.27 kg). The design also minimizes handling noise when re-positioning the arm. The broadcast arm features a standard 5/8"-27 microphone stud mount that is compatible with most shockmounts and microphone clips. The angle of the microphone stud mount can be adjusted and secured with the locking knob, and the angle is maintained when re-positioning the arm. This eliminates the need to readjust it every time the arm is moved. With an extension of up to 40 inches, and the ability to rotate the arm 360°, the BAI-2X allows for precise microphone placement.

  The BAI-2X also features a heavy-duty combo mount that consists of a sturdy C-clamp and a heavy-metal desktop mount. The C-clamp is capable of fastening onto desktops up to 2.3" thick. The C-clamp's slim design minimizes the clearance needed to mount it between a desk and wall. The desktop mount detaches from the C-clamp and provides the option of permanent installation to a desktop with the mounting screws (included). A 14" riser is included for adding height to the broadcast arm in order to extend over computer or studio monitors.
  Versatile
  • Ideal for studios as well as home use
  Internal Springs
  • Internal springs provide smooth, noise-free positioning and clean and sleek profile
  Sturdy
  • Supports microphones up to 5 lb. (2.27 kg)
  Compatibility
  • The 5/8"-27 standard microphone thread is compatible with most shockmounts and microphone clips
  Precision
  • Extends up to 40" (101.6 cm) and rotates 360° allowing for precise microphone placement
  XLR Cable
  • The integrated 15-foot (457.2 cm) XLR cable provides a secure, locking connection and excellent signal transfer
  Extra Height
  • A 14" (13.6 cm) riser is included. It provides extra height to the broadcast arm for extending over computer or studio monitors
  Combo Mount
  • The heavy-duty combo mount is comprised of a C-clamp for clamping to a desktop up to 2.3-inch (5.8 cm) thick, and a detachable desktop mount for permanent attachment to a desktop with the included screws
  14" Riser
  • The included riser adds 14" of height to the broadcast arm so that it can easily extend over computer or studio monitors
  UPC: 847628578272
• 2 x Polsen HPC-A30 Closed-Back Studio Monitor Headphones
  • Hands-On Review | Zoom LiveTrak L-12
  The HPC-A30 Closed-Back Studio Monitor Headphones from Polsen are designed for monitoring audio in studio, field, mobile, and DJ applications. They feature 50mm drivers that provide a frequency response of 18Hz to 22kHz for accurate reproduction of your audio.

  The ear cups on the HPC-A30 have an around-ear (circumaural), closed-back design, allowing for the increased isolation often desired while tracking or monitoring playback. Additionally, the ear cups can be pivoted for single-ear monitoring. The headphones have a collapsible folding mechanism for compact storage and transport. A padded and adjustable headband provides comfort during extended use. The 32 ohm impedance allows for ample volume when used with mobile devices. The headphones have a single-sided, 9.8-foot cable that terminates in a 3.5mm stereo connector. A 1/4" adapter is included for additional compatibility. UPC: 847628568488

• LiveTrak L-12 - 12-Channel Digital Mixer & Multitrack Recorder btyuaweszu
• Power Cable
• USB Cable
• Limited 1-Year Warranty

• 2 x MXL - BCD-1 Live Broadcast Dynamic Microphone (Midnight Purple) btyuaweszu

• Auray - BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable

• 2 x Polsen - HPC-A30 Closed-Back Studio Monitor Headphones

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Zoom LiveTrak L-12 - 12-Channel Digital Mixer & Multitrack Recorder

  Number of Inputs	Mono (Mic/Line): 8 x Combo XLR-1/4" / 6.35 mm Stereo (Line): 2 x 1/4" / 6.35 mm TRS, 4 x RCA (2 x stereo pairs)
  Number of Outputs	Master Out: 2 x XLR Monitor Out: A-E Monitor A: 2 x 1/4" / 6.35 mm TRS Monitor A-E: 5 x Headphone 1/4" / 6.35 mm TRS
  Input Gain	Pad Off: +16 to +60 dB Pad On: −10 to +34 dB Hi-Z ON: +6 to +50 dB
  Input Impedance	XLR: 3 kOhms TRS: 10 kOhms/1 MOhm (when Hi-Z on)
  Maximum Input Levels	Mono (Mic/Line) Pad Off: 0 dBu (at 0 dBFS) Pad On: +26 dBu (at 0 dBFS) Stereo (Line): +16 dBu
  Phantom Power	48 V
  Maximum Output Levels	Master Out: +14.5 dBu Monitor A (TRS): +14.5 dBu Monitor A-E (Headphones): 42 mW + 42 mW at 60 Ohms
  Output Impedances	100 Ohms
  Buses	Master: 1 Monitor: 5 Send EFX: 1
  Channel Control	Channel Strip Comp: Yes, channels 1 to 8 Low Cut: 75 Hz, 12 dB/oct EQ High: 10 kHz, ±15 dB, shelving Mid: 100 Hz to 8 kHz, ±15 dB, peaking Low: 100 Hz, ±15 dB, shelving
  Level Meters	12-segment
  Effects	16 types
  Recorder	Maximum Simultaneous Recording Tracks: 14 at 44.1/48 kHz 12 at 96 kHz Maximum Simultaneous Playback Tracks: 12 Recording Format: WAV 44.1, 48, 96 kHz, 16/24-bit, mono/stereo WAV format Recording Media: 16 MB to 2 GB SD cards 4 to 32 GB SDHC cards 64 to 512 GB SDXC cards
  Audio Interface	44.1 / 48 kHz Recording: 14 channels Playback: 4 channels Bit depth: 24-bit Interface: USB 2.0
  Card Reader	SDHC
  USB Host	Class-compliant USB 2.0 high-speed
  Sample Rate (Audio)	44.1, 48, 96 kHz
  Frequency Characteristics	44.1 kHz: 20 Hz - 20 kHz (-1.0 dB) 96 kHz: 20 Hz - 40 kHz (-3.0 dB)
  Equivalent Input Noise	Actual Measurements: 128 dB EIN (IHF-A) with +60 dB/150 Ohms input
  Display	LCD with backlight (128×64 resolution)
  Power Supply	AD-19 AC Adapter: 12 VDC / 2 A
  Dimensions (W x D x H)	17.5 x 11.1 x 2.8" / 445.0 x 282.0 x 70.5 mm
  Weight	5.6 lb / 2.5 kg

  Box Dimensions (LxWxH)	21.25 x 13.0 x 4.5"

• 2 x MXL BCD-1 Live Broadcast Dynamic Microphone (Midnight Purple)

  Sound Field	Mono
  Transducer	Dynamic
  Polar Pattern	Cardioid
  Sensitivity	54 dBV/Pa

  Output Connectors	1 x 3-Pin XLR
  Length	6.20" / 157.5 mm
  Diameter	2.00" / 50.8 mm
  Weight	1.25 lb / 567 g

  Box Dimensions (LxWxH)	11.8 x 7.55 x 3.85"

• Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable

  Length	40" (101.6 cm)
  Weight Capacity	5 lb (2.27 kg)
  Microphone Mount	5/8"-27 standard microphone thread
  Clamping Range	2.3" (5.8 cm)
  Riser	14" (35.56 cm)
  Cable	XLR M to XLR F: 15' (457.2 cm)
  Weight	4.47 lb. (2.02 kg)

  Box Dimensions (LxWxH)	23.5 x 7.4 x 3.5"

• 2 x Polsen HPC-A30 Closed-Back Studio Monitor Headphones

  Driver Size	2" / 50 mm
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	18 Hz to 22 kHz
  Sensitivity	93 dB at 1 kHz / 1 mW
  Impedance	32 Ohms
  Maximum Power Handling	600 mW
  Total Harmonic Distortion (THD)	5%

  Audio Connector	1/8" (3.5 mm) TRS
  Adapter (Included)	1/4" (6.3 mm)

  Design	Single-Sided
  Color	Black
  Detachable	No
  In-Line Remote/Microphone	No
  Cable Length	9.84' / 3 m

  Certifications	CE, RoHS, as per Manufacturer
  Weight	6.5 oz / 184 g

  Box Dimensions (LxWxH)	8.7 x 7.4 x 3.8"
