Product description Now at B&H: Record, Mix, and More with the Zoom LiveTrack L-12 Digital Mixer Read More sebyfvyxtxfdrsuedebuqtaf - Hands-On Review | Zoom LiveTrak L-12

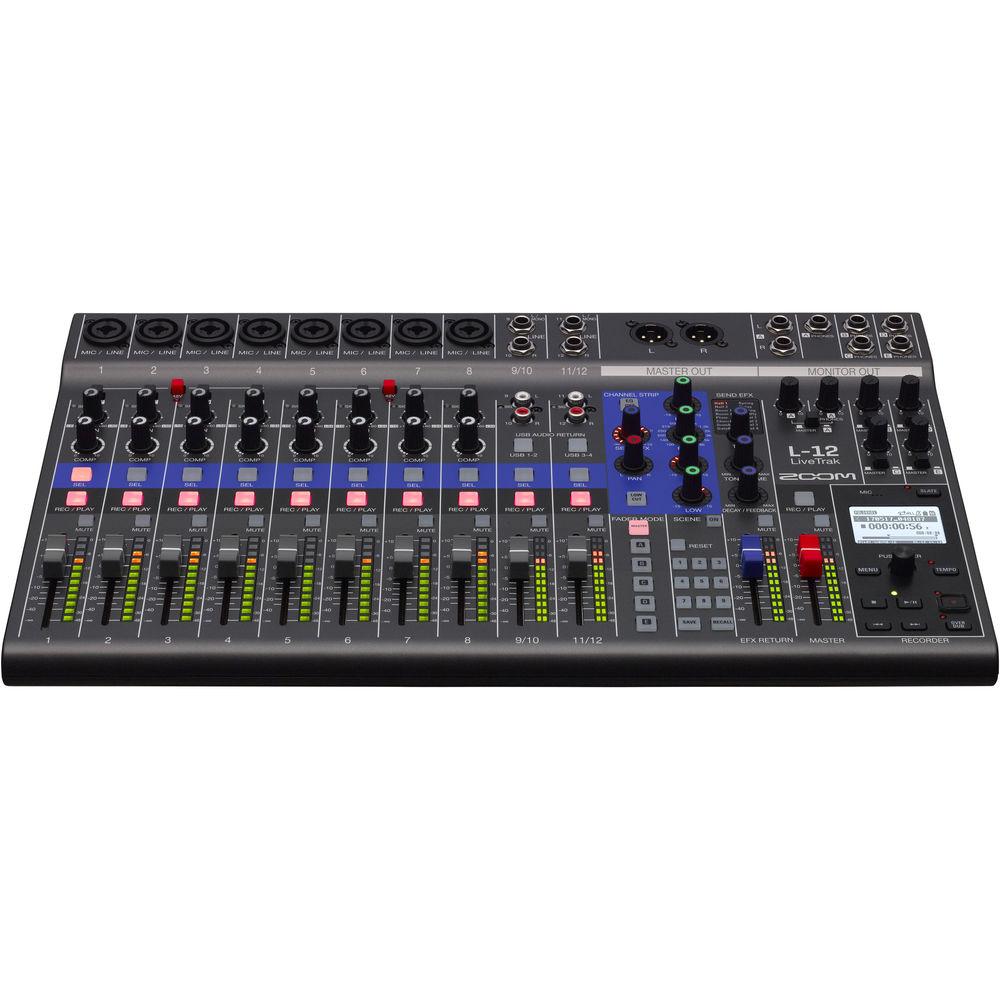

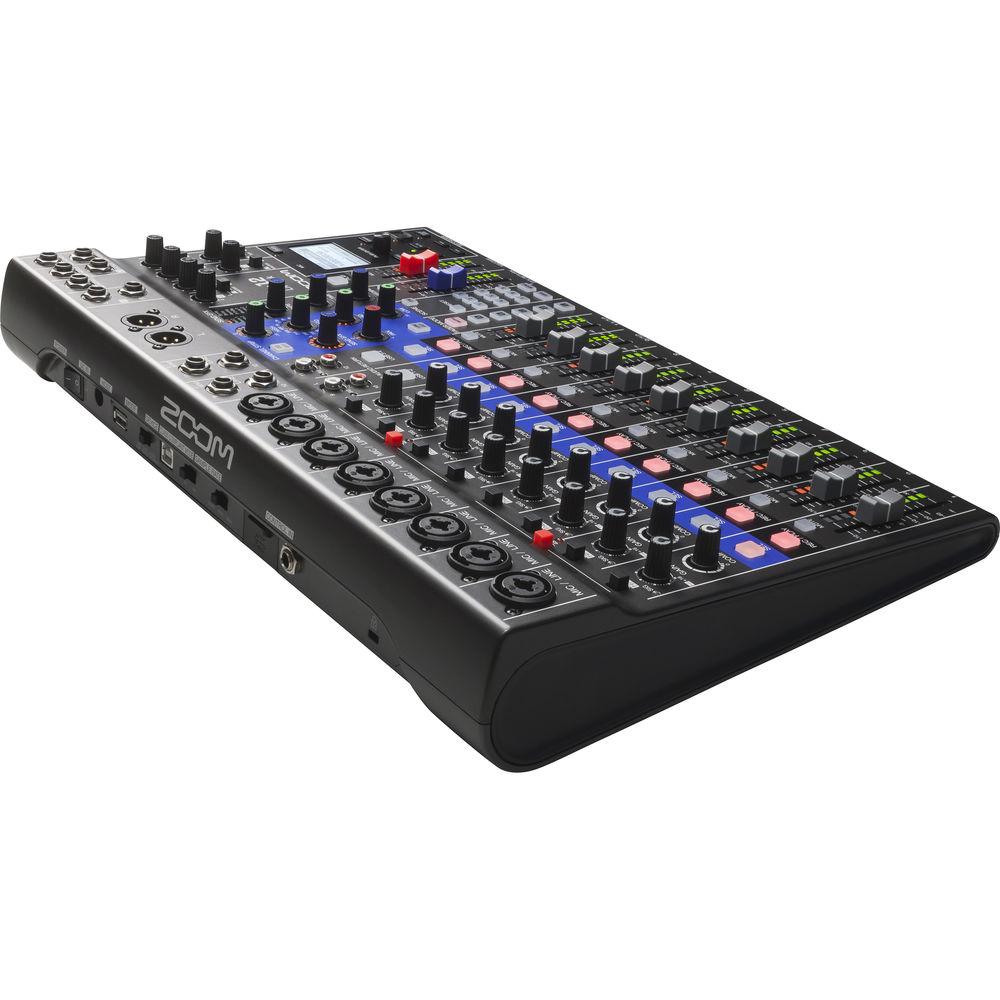

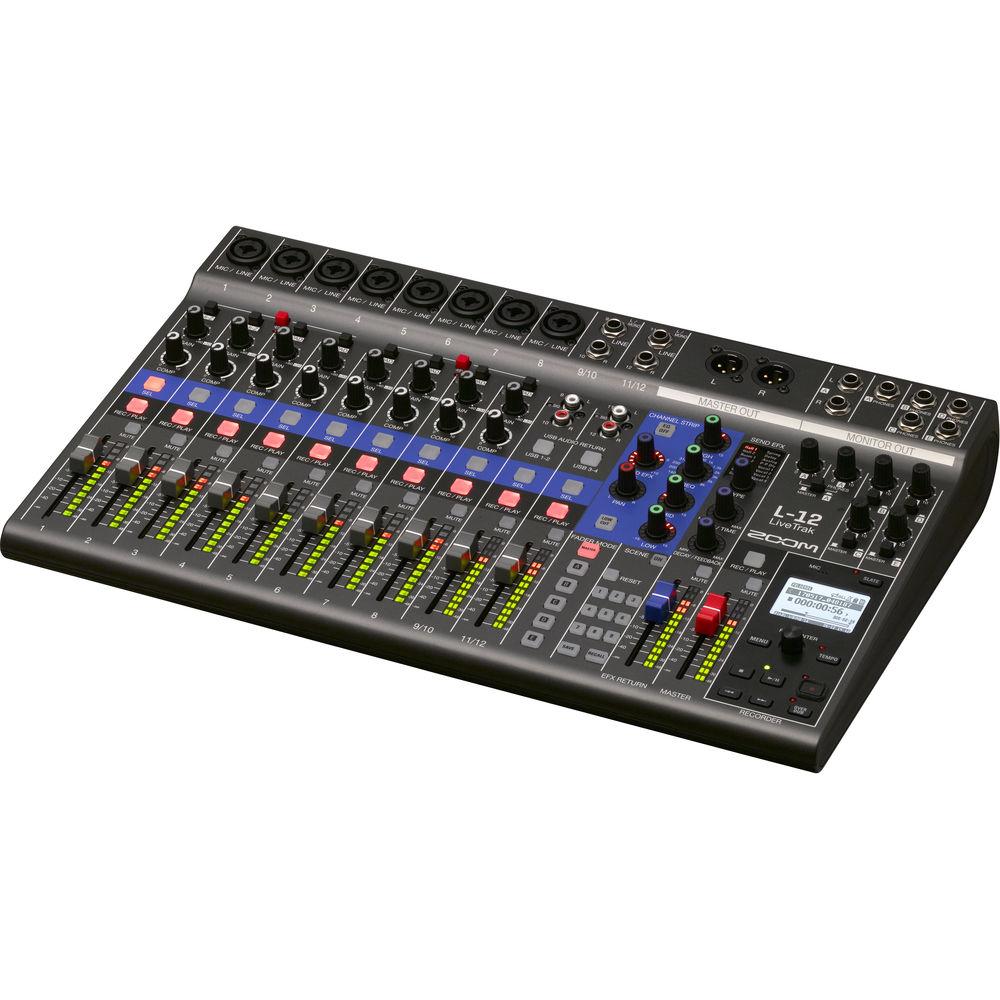

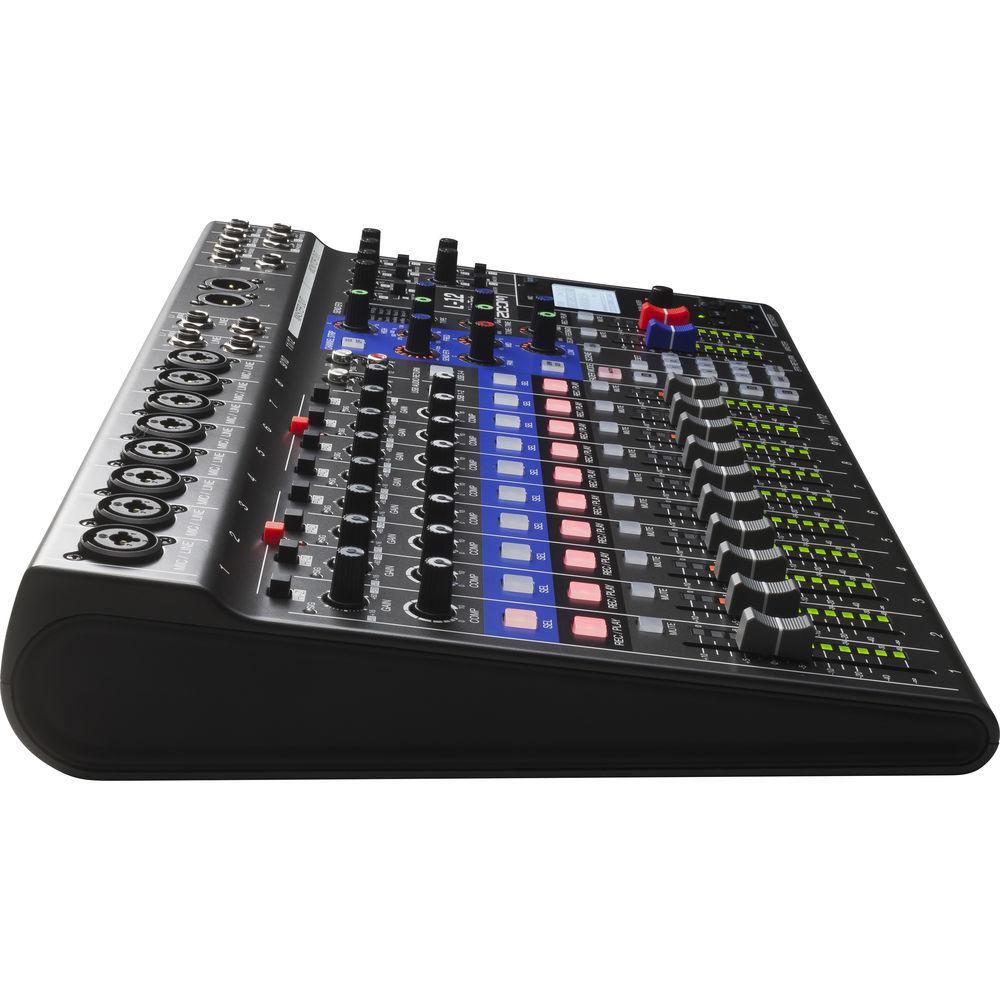

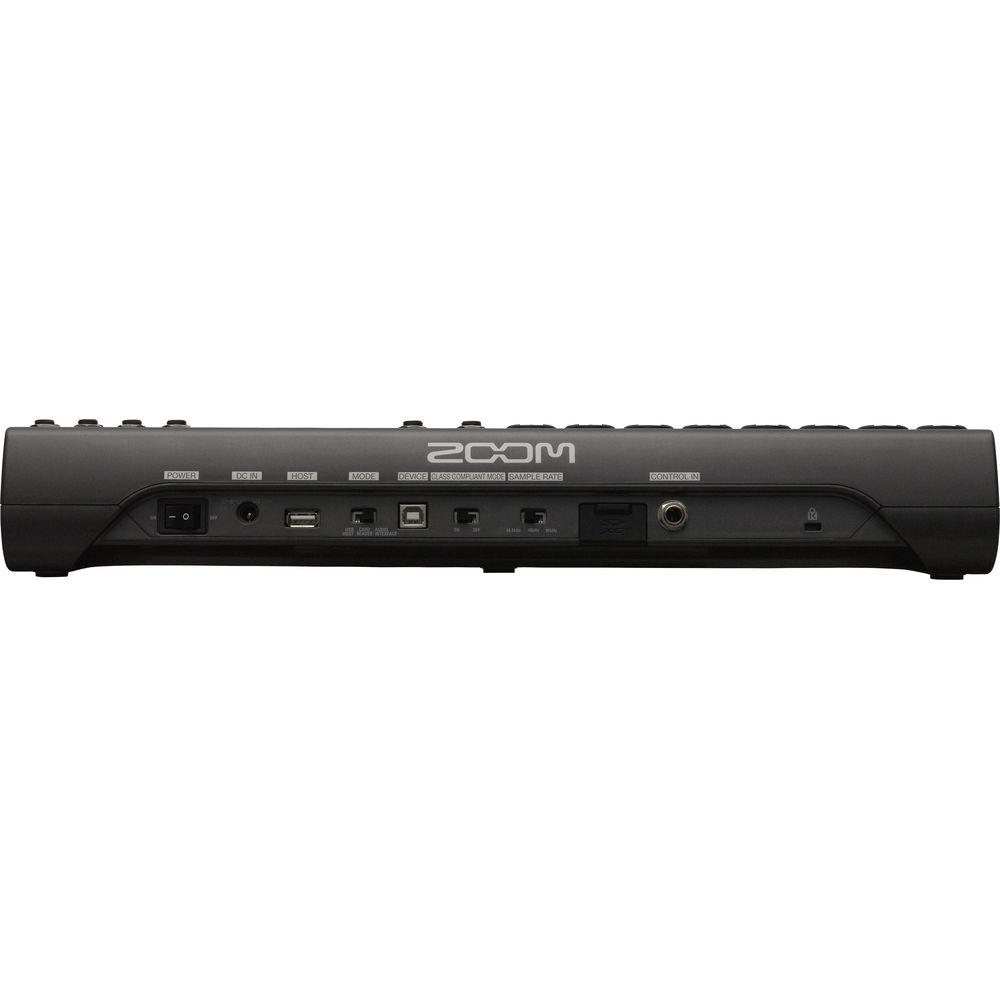

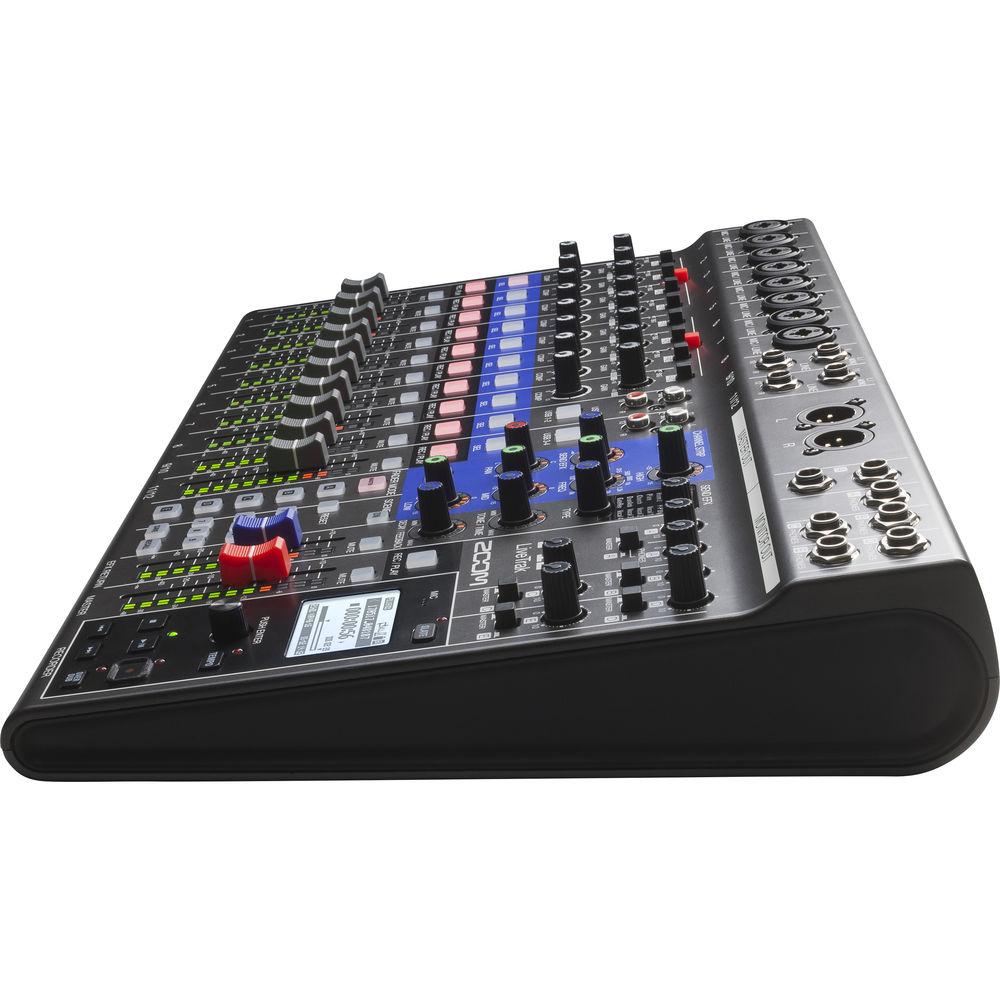

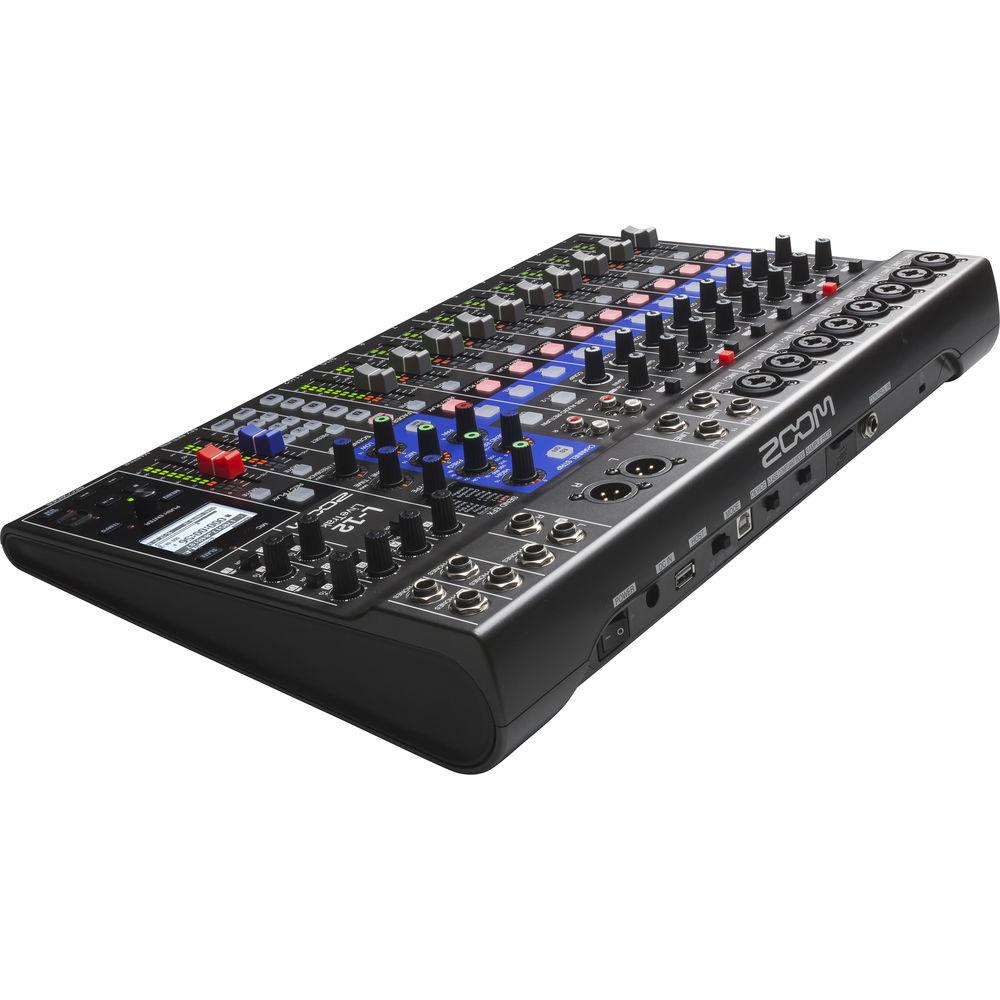

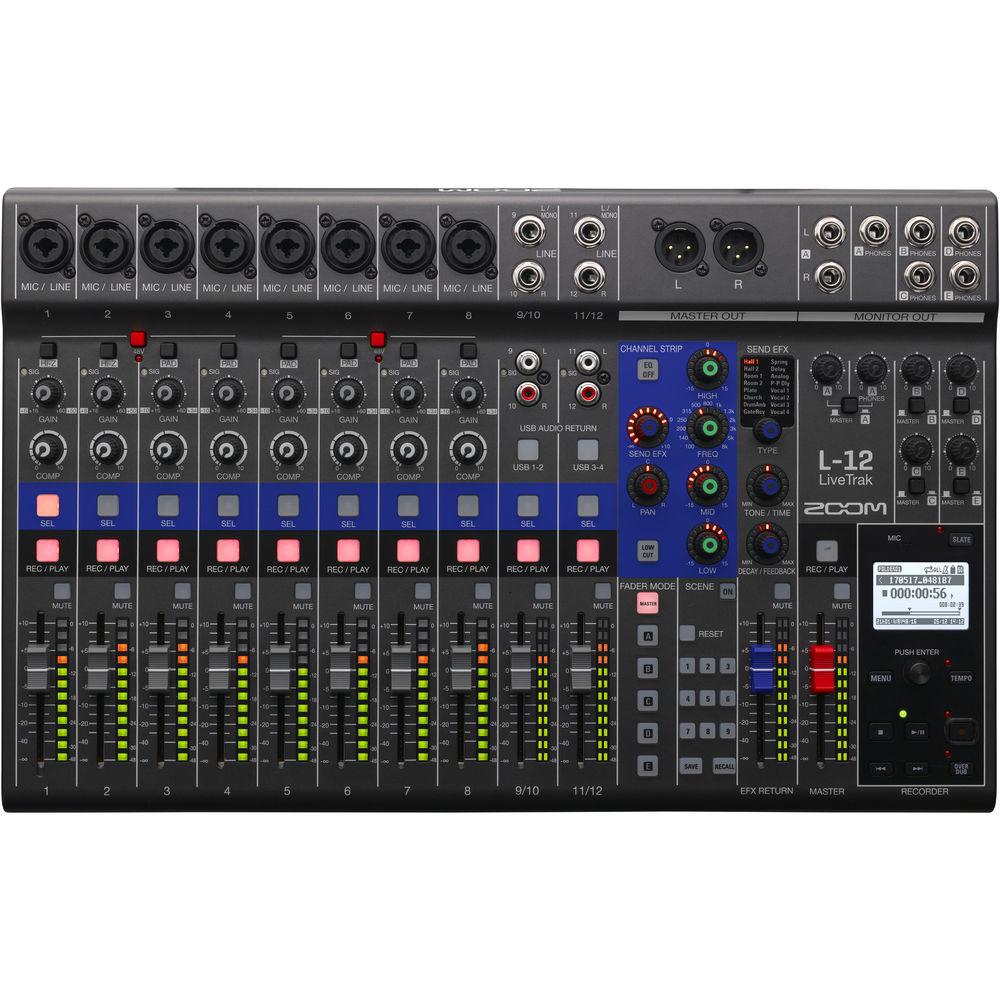

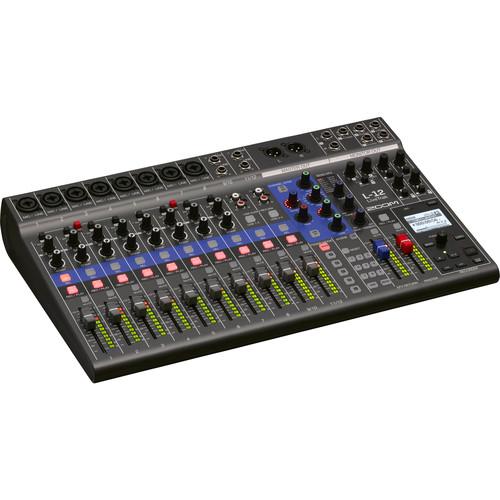

The highly flexible Zoom LiveTrak L-12 is a 12-channel digital mixer and multi-track recorder, well suited for live performances, studio recording, band rehearsals, podcasts, and more. The compact mixer features 8 mono channels, each with combo mic/line XLR-1/4" inputs with high gain, low-noise microphone preamps, +48V phantom power, and a single compression knob, while the two stereo inputs offer dual 1/4" and RCA inputs. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and a send FX for sending signal to the 16 built-in high-quality effects processor with a dedicated EFX Return channel.
The main output utilizes balanced XLR outputs, while a stereo monitor send is available via two 1/4" outputs. Additionally, the Zoom LiveTrack L-12 offers five headphone outputs, each with the ability to set up customized mixes. Simply connect your headphones and adjust the levels to taste. There are nine snap-shot presets, which allow you instant recall of different setups and sessions.
The built-in SD recorder can simultaneously record every channel and the master fader stereo signal output for a total of 14 tracks at resolutions up to 24-bit/ 96 kHz. Files can easily be copied to a computer and used in a DAW. In addition, overdubbing and punching in/out can be done as expected when using the unit as a multi-track recorder. The L-12 can also function as a 14-in/4-out USB audio interface, allowing you to record directly to your favorite software DAW or to iOS devices. Other notable features include 12-segment LED meters on all channels, a built-in metronome, and a built-in slate mic for identifying takes. The Zoom LiveTrack L-12 ships with a power cord and a USB cable. -
- 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4" connectivity
- 14-track simultaneous recording, 12-track playback
- 14-in/4-out USB audio interface connectivity
- 5 powered headphone outputs, each with a customizable and savable mix
- Add backing/click tracks from your computer to your live mix and recording
- RCA and TRS line inputs
- 48V phantom power (channels 1-4 and 5-8)
- Hi-Z connectivity (channels 1 and 2)
- 26 dB pad (channels 3-8)
- Built-in compression control (channels 1-8)
- 12-Segment Digital Level Meters: -48 to 0 dB
- Master mute button
- Low-cut control
- Stereo panning
- Master and monitor outputs (A-E)
- Scene saving function, up to 9 scenes saved at a time
- 16 built-in delay and reverb effects with adjustable parameters
- Built-in slate mic
- Class-compliant mode (for iOS compatibility)
- SD card input
- Built-in metronome
- Automatic recording starting/stopping capability
- Project protection
- Import/export projects with USB 2.0 host port
- Latency adjustment for A-to-D conversion
- Compatible functions for optional Zoom FS01 footswitch
UPC: 884354018054 In the Box Zoom LiveTrak L-12 - 12-Channel Digital Mixer & Multitrack Recorder Power Cable USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom LiveTrak L-12 - 12-Channel Digital Mixer & Multitrack Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZoom LiveTrak L-12 Specs | Number of Inputs | Mono (Mic/Line): 8 x Combo XLR-1/4" / 6.35 mm
Stereo (Line): 2 x 1/4" / 6.35 mm TRS, 4 x RCA (2 x stereo pairs) | | Number of Outputs | Master Out: 2 x XLR
Monitor Out: A-E
Monitor A: 2 x 1/4" / 6.35 mm TRS
Monitor A-E: 5 x Headphone 1/4" / 6.35 mm TRS | | Input Gain | Pad Off: +16 to +60 dB
Pad On: −10 to +34 dB
Hi-Z ON: +6 to +50 dB | | Input Impedance | XLR: 3 kOhms
TRS: 10 kOhms/1 MOhm (when Hi-Z on) | | Maximum Input Levels | Mono (Mic/Line)
Pad Off: 0 dBu (at 0 dBFS)
Pad On: +26 dBu (at 0 dBFS)
Stereo (Line): +16 dBu | | Phantom Power | 48 V | | Maximum Output Levels | Master Out: +14.5 dBu
Monitor A (TRS): +14.5 dBu
Monitor A-E (Headphones): 42 mW + 42 mW at 60 Ohms | | Output Impedances | 100 Ohms | | Buses | Master: 1
Monitor: 5
Send EFX: 1 | | Channel Control | Channel Strip
Comp: Yes, channels 1 to 8
Low Cut: 75 Hz, 12 dB/oct
EQ
High: 10 kHz, ±15 dB, shelving
Mid: 100 Hz to 8 kHz, ±15 dB, peaking
Low: 100 Hz, ±15 dB, shelving | | Level Meters | 12-segment | | Effects | 16 types | | Recorder | Maximum Simultaneous Recording Tracks:
14 at 44.1/48 kHz
12 at 96 kHz
Maximum Simultaneous Playback Tracks: 12
Recording Format: WAV 44.1, 48, 96 kHz, 16/24-bit, mono/stereo WAV format
Recording Media:
16 MB to 2 GB SD cards
4 to 32 GB SDHC cards
64 to 512 GB SDXC cards | | Audio Interface | 44.1 / 48 kHz Recording: 14 channels
Playback: 4 channels
Bit depth: 24-bit
Interface: USB 2.0 | | Card Reader | SDHC | | USB Host | Class-compliant USB 2.0 high-speed | | Sample Rate (Audio) | 44.1, 48, 96 kHz | | Frequency Characteristics | 44.1 kHz: 20 Hz - 20 kHz (-1.0 dB)
96 kHz: 20 Hz - 40 kHz (-3.0 dB) | | Equivalent Input Noise | Actual Measurements: 128 dB EIN (IHF-A) with +60 dB/150 Ohms input | | Display | LCD with backlight (128×64 resolution) | | Power Supply | AD-19 AC Adapter: 12 VDC / 2 A | | Dimensions (W x D x H) | 17.5 x 11.1 x 2.8" / 445.0 x 282.0 x 70.5 mm | | Weight | 5.6 lb / 2.5 kg | | | | Package Weight | 8.25 lb | | Box Dimensions (LxWxH) | 21.25 x 13.0 x 4.5" |
