Product description
Steve Gadd and the Zoom Q2n: Live at the Blue Note
Josh Turner and the Zoom Q2n: "Pretty Polly"
Kenneth Crouch and the Zoom Q2n
Dave Weckl: Introducing the Zoom Q2n
Josh Turner: Introducing the Zoom Q2n
Danny Seraphine and the Zoom Q2n: "Full Circle," (rehearsal) live at the Cutting Room
Zoom Q2n With Facebook Live
As a musician, having a camera like the Zoom Q2n Handy Video Recorder lets you easily record yourself, whether for the intent of practicing or building a fan base. Video clips are recorded as high-quality MOV files in 1080p or 720p resolutions at either 24 or 30 fps onto convenient microSD cards. The fixed-focus wide-angle lens with a 160° FOV can capture you and your instrument from only a few feet away, ensuring that the microphones can pick up sound clearly. A wide f/2.0 aperture on the lens can produce clear images in dimly lit situations and is augmented by ten selectable scene modes that correspond to popular performance situations. These modes include 'Concert Light'—which automatically adjusts for changing lighting conditions—to 'Concert Lo-Lit' for dimly lit rooms. An automatic setting, which chooses the optimal scene mode based on ambient light, is also available.The Q2n houses its stereo condenser mics arranged in an X/Y pattern for clear stereo imaging without phase cancellation issues. Since the mics can handle sound pressure levels up to 120 dB, the Q2n won't shy away from loud rock stages. Audio can be recorded separately from video and saved directly to high-quality WAV files at up to 24-bit/96 kHz.Plugging the Q2n into your computer or iOS device via USB (may require separately available hardware) unlocks even more functionality. Open up your DAW and you can record directly to new or existing projects. Alternatively, the Q2n can be used as a high-quality webcam for streaming over the web using YouTube Live or other popular streaming platforms.For power, the Q2n conveniently uses two AA batteries (included) which offer up to two hours of recording time in 1080p, or three hours at 720p. A 1/4"-20 tripod thread lets you secure the Q2n to any standard tripod or mounting accessory for versatile placement options. Whether on the road recording impromptu sound ideas, or reaching out to your fan base over the web, the Q2n can be a valuable tool to any musician.
Sound Quality
High-resolution 24-bit/96 kHz audio recording and SPL handling up to 120 dB ensures clean recordings from nearly any source that will hold up through post-production and publishing.
Wide-Angle Lens

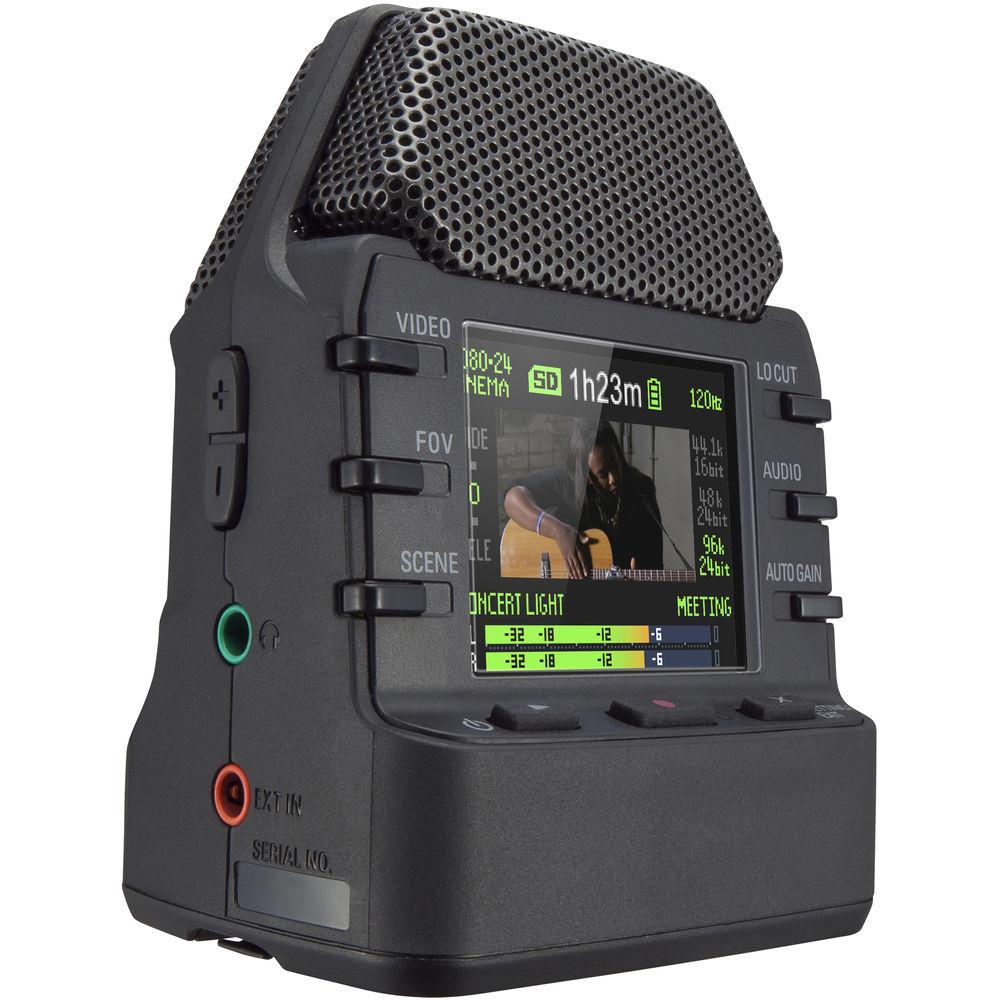

The Q2n features a 160-degree wide-angle lens, and it records in 720p or 1080p HD resolution using 24 or 30 fps frame rates. An f/2.0 aperture makes the Q2n perfect for musicians who perform in a wide variety of lighting environments. Plus, a color LCD screen makes it easy to create the perfect shot or review your videos.
Audio-Only Mode
The Q2n is also capable of recording audio only. Simply use the 'Camera Off' setting to capture demos or live performances in stereo sound using the built-in X/Y mics.
External Connections

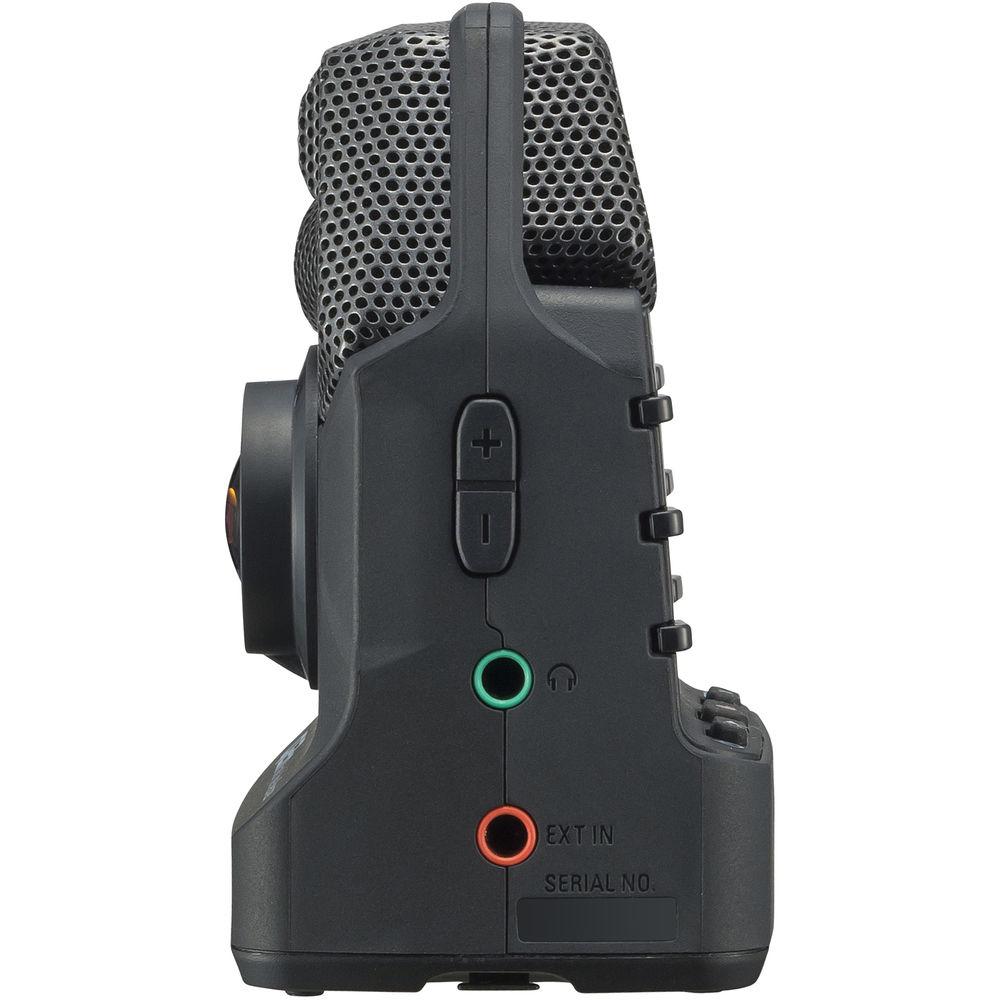

The Q2n features a 3.5mm (1/8") stereo input jack that lets you connect external mics and other audio devices. And the 3.5mm (1/8") stereo output jack makes it simple to listen to audio with headphones, on your home audio system, or even in your car.To view your video recording in high definition, you can connect to an HDMI TV using the micro-HDMI type D output. A USB port allows for connection to a computer or iOS device (requires separately available adapter) so you can use the Q2n as a web camera for live streaming, as a USB microphone for podcasts, or as a card reader to transfer recordings (computer connection only).
Quick Features
High-quality 160° wide-angle lens
Ten scene options for use in different lighting environments, plus 'Auto' setting for automatically adjusting how the camera captures specific scene conditions
Built-in X/Y stereo microphones capable of handling sound levels up to 120 dB SPL
Can be used as standalone audio recorder, with data saved in WAV format, up to 24-bit/96 kHz
Records directly to microSD/SDHC/SDXC cards up to 128 GB for extended recording times
Easy one-button recording
Color LCD
1080p and 720p recording at 24 or 30 fps up to 24 Mbps
HDMI video output for connection to HDTVs
Records video (with audio) in MOV format
Analog-style level control with onscreen level metering and two-color status LCD on lens
Auto Gain function for automatic control over audio input level
Stereo input for use with external devices, plus support for plug-in power
Headphone/line-level output for convenient audio monitoring
Low-cut filter for the elimination of low-frequency noise and rumble
USB interface for live streaming and data transfer
Compatible with Ustream Producer, Flash Live Media Encoder, Skype, and other popular streaming applications
Webcam and USB mic function (with direct monitoring) when used with computers and iOS devices (requires separately available Apple Camera Connection Kit, or Lightning to USB Camera Adapter for use with iOS devices)

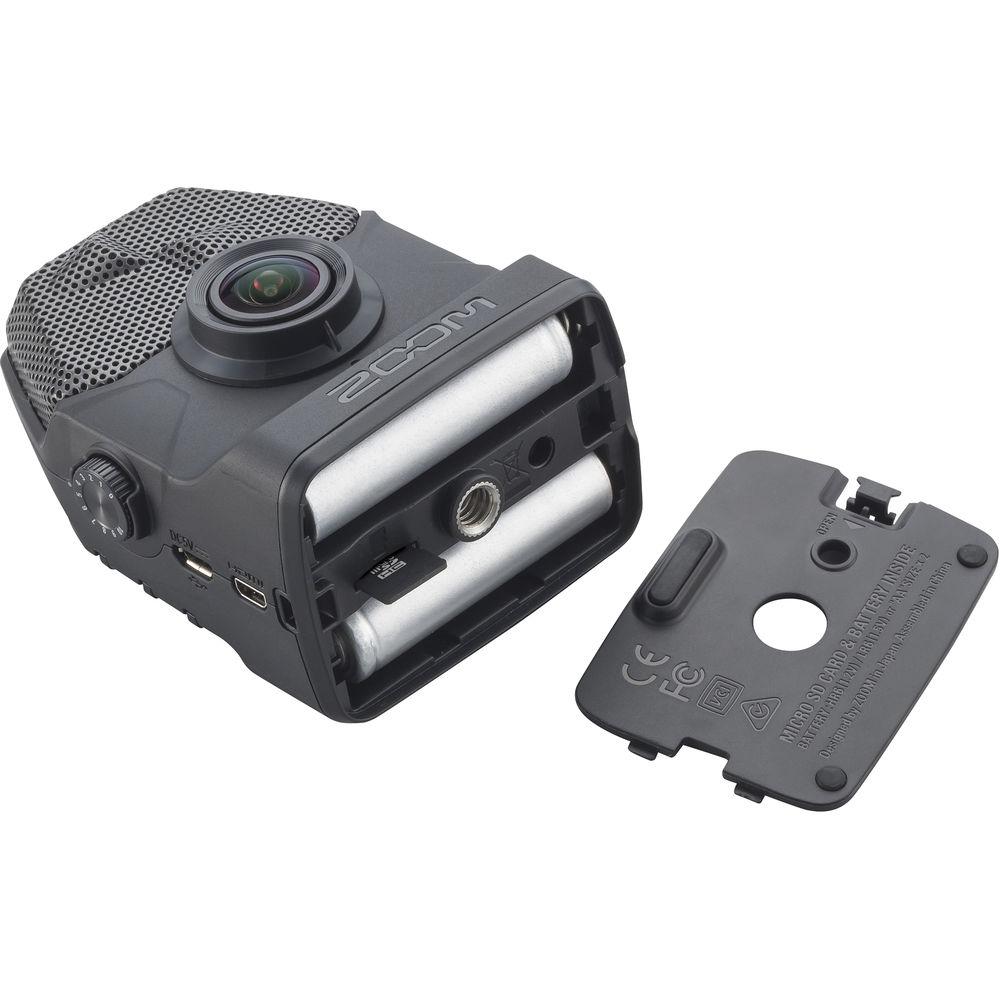

Operates with two AA batteries for approximately two hours
Built-in 1/4"-20 standard tripod thread mount
UPC: 884354017422 In the Box Zoom Q2n Handy Video Recorder
2 x AA Batteries
Limited 1-Year Warranty
User Manual PDF 3.5mbrdrxzwyvbrezwfqdxtbzqacwxbdrzsvreyv Table of Contents
Upload User Manual
Have you got an user manual for the Zoom Q2n Handy Video Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Zoom Q2n Specs
Sensor
1-Chip 1/3" CMOS
Sensor Resolution
3 MP
Focal Length
2.4mm
35mm-Equivalent Focal Length
16.6
Maximum Aperture
f/2
Fixed Focus
Yes
Angle of View
160°
Recording Media
x microSD (128 GB Maximum)
Video Format
1920 x 1080p at 24/30 fps (24 Mb/s MOV) 1280 x 720p at 24/30 fps (24 Mb/s MOV)
Aspect Ratio
16:9
Channels
2.0-Channel Stereo
Audio Format
WAV
Sampling Frequency
WAV: 96.0 kHz WAV: 48.0 kHz WAV: 44.1 kHz
Bit Rate
WAV: 24.0-Bit WAV: 16.0-Bit
Display Type
LCD
Screen Size
1.7"
Resolution
160 x 128
Built-In Mic
Yes
Built-In Speaker
Yes
Tripod Mount
1/4" - 20
Inputs
1 x 1/8" / 3.5 mm Stereo (Supports plug-in power)
Outputs
1 x Micro-HDMI (Type D) 1 x 1/8" / 3.5 mm Stereo (Headphone/Line Level) 1 x USB 2.0
Microphone Input
Yes
Headphone Jack
Yes
Battery
2 x AA Battery Charge Time: 2 hours
Dimensions (W x H x D)
2.5 x 3.3 x 1.8" / 6.3 x 8.4 x 4.6 cm
Weight
0.2 lb / 90.7 g
Package Weight
0.75 lb
Box Dimensions (LxWxH)
6.9 x 6.3 x 2.7"
