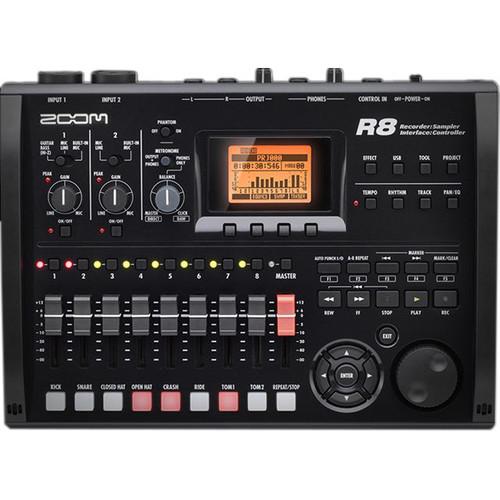

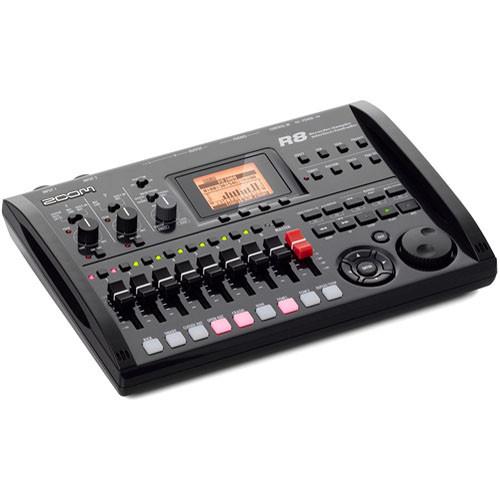

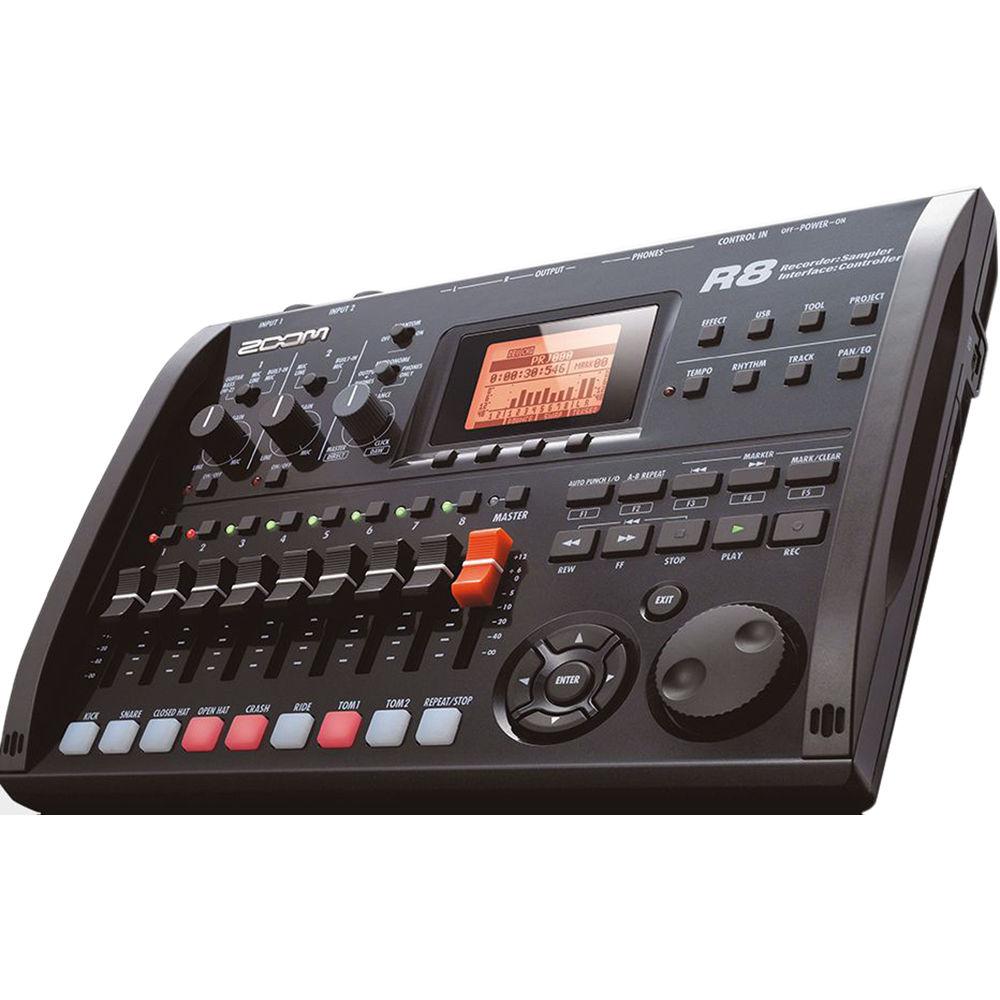

User Manual for Zoom R8 8-Track Digital Recorder Interface Controller Sampler Click to enlarge the picture
Contents of the user manual for the Zoom R8 8-Track Digital Recorder Interface
- Product category: Digital Recorders & Players Zoom
- Brand: Zoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zoom Digital Recorders & Players
 |
User manual for the Zoom R8 8-Track Digital Recorder Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zoom product will considerably shorten its lifespan!
|
Product description The R8 8-Track Digital Recorder/Interface/Controller/Sampler from Zoom is an ultra-portable music production solution, ideal for the musician on the go. The R8 packs the versatility of the larger R24 into a fresh compact design. Not only is the R8 an 8-track recorder that writes to SD flash memory cards, it's also a USB audio interface, a controller, and a pad sampler!
The R8 has 2-track simultaneous recording and 8-track playback. It can record WAV files at sample rates of 44.1/48kHz and bit rates of 16/24-bit. The files are captured to SD memory cards with capacities up to 32GB for making lengthy recordings. There are built-in stereo condenser mics for making recordings without extra equipment. There are also XLR/TRS combo inputs for connecting external microphones and instruments. There is 48V phantom power available on 2 tracks for supporting condenser mics. You can choose from over 140 DSP effects to add to your recordings, including guitar amp models and mastering effects.
The R8 has a USB connector, allowing you to use it as a high-definition audio interface with your computer. It supports rates up to 24-bit/96kHz and offers 2 x 2 in/out over the USB connection. Steinberg Cubase LE DAW software is included so you can record, mix, and edit on your computer right away. The R8's controls provide full mixing and transport options for Cubase, Logic, Sonar, and other popular DAW software options. The control surface uses Mackie Control emulation for wide compatibility.
Other features of the R8 include a pad sampler with 8 voices, as well as a loop-based audio sequencer for music creation. The R8 can operate on 4 standard AA batteries, USB bus power, or the included AC adapter for excellent versatility. General - Compact design for ultimate portability, ideal for traveling musicians
- Operates on 4 standard AA batteries, USB bus power, or the included AC adapter for excellent versatility
Recorder - 8-track recorder with 2-track simultaneous recording and 8-track playback
- Records WAV files at sample rates of 44.1/48kHz and bit rates of 16/24-bit
- Files are captured to SD memory cards with capacities up to 32GB for making lengthy recordings of up to 100 track hours. Flash memory is lightweight and reliable, with no concern of hard drive failure
- Built-in stereo condenser mics are provided for making recordings without extra equipment
- XLR/TRS combo inputs let you connect external microphones and instruments. The R8 also has a stereo 1/4" output for connecting external speakers, plus a 1/4" headphone jack for private monitoring. A 1/4" control input supports wired remote control
- 48V phantom power is available on 2 tracks for supporting condenser mics
- You can choose from over 140 DSP effects to add to your recordings, including guitar amp models and mastering effects
Interface - The R8's USB connector allows you to use it as a high-definition audio interface with your computer
- The USB connection supports rates up to 24-bit/96kHz and offers 2 x 2 simultaneous in/out. If you only work at a 44.1kHz sampling rate, you can also use the R8's internal DSP effects on your computer tracks
- A dedicated control lets you adjust the mix balanced between DAW playback sound and direct sound for monitoring
- Steinberg Cubase LE DAW software is included so you can record, mix, and edit on your computer right away
Controller - The R8's controls provide full mixing and transport options for Cubase, Logic, Sonar, and other popular DAW software options
- The control surface uses Mackie Control emulation for wide compatibility
Sampler/Drum Machine - The R8 has 8 built-in pads that can trigger 8 different voices. Samples can be assigned to each pad for creating loops
- There are 500 internal drum loops
UPC: 884354009977 In the Box Zoom R8 8-Track Digital Recorder/Interface/Controller/Sampler AC Adapter USB Cable Cubase LE Installation DVD 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom R8 8-Track Digital Recorder Interface Controller Sampler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZoom R8 Specs | Tracks | 8 x Mono Recording Tracks
2 x Simultaneous Recording Tracks
8 x Simultaneous Playback Tracks + Metronome | | Recording Format | 44.1/48kHz, 16/24-bit WAV | | Recording Time | 200 Minutes per GB (Mono) | | Functions | Projects: 1000
Markers: 100/Project
Locator: Hours/Minutes/Seconds/Milliseconds and Bars/Beats/Ticks
File Editing: Divide, Trim
Punch-In/Out (Manual, Auto)
Bounce
A-B Repeat
Undo/Redo | | Interface | 2 x Recording Channels
2 x Playback Channels
24-bit, 44.1/48/88.2/96kHz | | Mixer | 9 x Faders (8 Mono, 1 Master)
3 Band EQ
Pan (Balance)
2 x Effect Sends
Invert
Tracks 1/2 and 7/8 Selectable in Pairs for Stereo Link | | Effects | Algorithms: 8 (Clean, Distortion, Aco/Bass Sim, Bass, Mic, Dual Mic, Stereo, Mastering)
Patches: 310 Insert, 60 Send-Return
Effect Modules: 7 Insert, 2 Send
Tuner: Chromatic, Guitar, Bass, Open A/D/E/G, D Modal | | Rhythm Patterns | Voices: 8
Format: Linear PCM
Drum Kits: 10
Pads: 8, Velocity-Sensitive
Precision: 48 ppqn
Patterns: 511/Project
Tempo: 40.0 to 250.0 BPM | | Sampling | Playback Formats: 44.1/48kHz, 16/24-bit WAV
Editing: Trim, Time-Stretch | | Recording Media | SD Card (16MB - 2GB)
SDHC Card (4GB - 32GB) | | AD/DA Conversion | 96kHz, 24-bit, Delta-Sigma | | Display | 128 x 64 Pixel Backlit LCD | | Microphone | 2 x Omnidirectional Condenser Microphones (Stereo Pair)

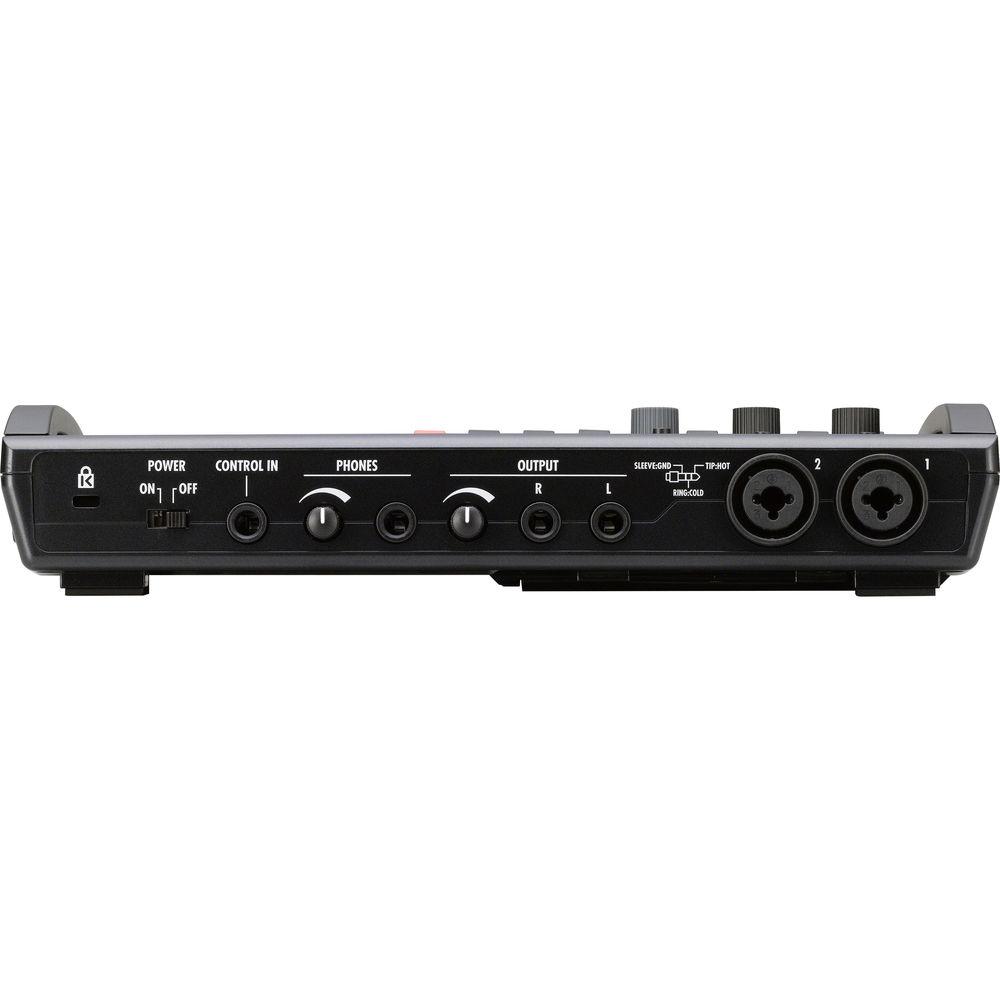

Gain: -50dBm < Continuous < +4dBm | | Connectors | 2 x Balanced XLR/TRS Combo Inputs
1 x Stereo 1/4" Output (2 Jacks, L/R)
1 x Stereo 1/4" Headphone Jack (2 x 20mW, 32 Ohm Load)
1 x 1/4" Control Input (FS01)
1 x USB 2.0 Mini-B High-Speed Connector (Interface/Control and Mass Storage)
1 x DC Power Input | | Input Level | -50dBm < Continuous < +4dBm | | Input Impedance | Balanced: 1 kOhm
Unbalanced: 50 kOhms
Hi-Z: 470 kOhms | | Signal to Noise Ratio | 93dB | | Phantom Power | 48V, 24V | | Power | 4 x AA Batteries (Up to 5.5 Hours Operation with Backlight On and Phantom Power Off)
USB Bus Power
5VDC, 1A via AC Adapter (Zoom AD-17, Included) | | Dimensions (WxDxH) | 10.1 x 7.48 x 2" (257 x 190 x 51mm) | | Weight | 27.5 oz (780g) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 13.4 x 8.2 x 3.5" |
