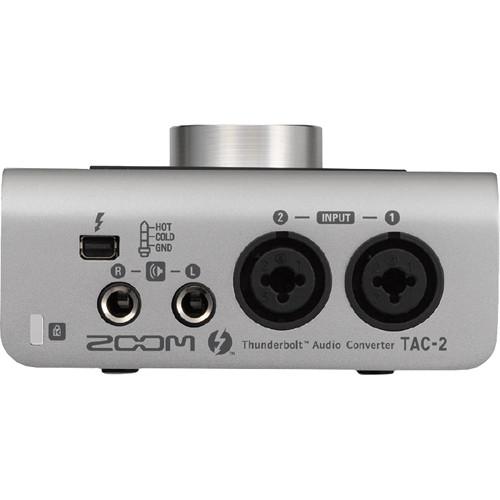

Product description The Zoom TAC-2 is a compact 2-in, 2-out bus-powered Thunderbolt audio interface that allows for ultra-low latency and supports audio up to 24-bit/192kHz. It features two balanced XLR/TRS inputs with 48V phantom power, a Hi-Z input jack for electric guitars and basses and two balanced TRS outputs for connecting an amplifier or powered speakers.
The TAC-2 also features a Burr Brown PCM4202 analog-to-digital converter with mic preamps that provide up to +60dB of amplification. It uses the AKM AK4396 digital-to-analog converter to provide high-quality output to your monitors, and thanks to the Thunderbolt connectivity, provides lower latency than is possible with USB 3.0. -
- •Works with all Thunderbolt-equipped Macintosh computers running OS X 10.6.8 or later•Dedicated headphone jack with independent level control
•7-position LED metering for input, output and headphone volume
•4x up-sampling during A/D and D/A conversion for reduced noise and enhanced fidelity
•Asynchronous transfer system unaffected by computer jitter
•Simple user interface-all operations controlled by a single rotary knob
•Bus powered--no AC power required• Downloadable TAC-2 MixEfx software allows you to set mix parameters and add high-quality effects such as reverb and echo
•Rugged yet compact and lightweight UPC: 884354012656 In the Box Zoom TAC-2 Thunderbolt Audio Interface for Mac 3.3' (1 m) Thunderbolt Cable Limited 1-Year Warranty User Manual PDF 3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom TAC-2 Thunderbolt Audio Interface for Mac in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZoom TAC-2 Specs | Input Connectors | XLR / TRS combo jacks (XLR: 2 hot / TRS: TIP hot) | | Input Gain | 0,9 to 60 dB (3 dB step) | | Input Impedance | 3 kΩ | | Maximum Input Level | +12 dBu (@ 0 dBFs) | | Output Connectors | 1/4" TRS phone jack (balanced) | | Maximum Output Level | +15 dBu (@ 0 dBFs) | | Output Impedance | 100 Ω | | Headphone Connector | 1/4" stereo phone jack
20 mW + 20 mW (into 32Ω load) | | Maximum Headphone Output Level | +10 dBu (@ 0 dBFs) | | AD/DA Conversion | Type: 4 x up-sampling
Chipset: Burr Brown PCM4202 (A/D), AKM AK4396 (D/A) | | Frequency Response | -2.0 dB: 20 Hz - 50 kHz @ 192kHz setting
-1.0 dB: 20 Hz - 34 kHz @ 96kHz setting
-0.4 dB: 20 Hz - 20 kHz @ 44.1kHz setting | | Dynamic Range | A/D: 118dB typical (IHF-A)
D/A: 120dB typical (IHF-A) | | S/N Ratio | 125 dB (IHF-A) @ 60dB, 150 Ω input | | Audio Channels | Recording: 2
Playback: 2 | | Sampling Frequency | 92 kHz, 176.4 kHz, 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz | | Bit Depth | 24-bit | | Interface | Thunderbolt | | Power | Thunderbolt Bus Power | | Dimensions | 5.1 x 4.7 x 2.0" (129.5 x 120.0 x 51.3 mm) | | Weight | 14.8 oz (420 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 6.929 x 6.85 x 2.756" |
