User Manual for Zoom U-24 Portable Audio Interface Click to enlarge the picture
Contents of the user manual for the Zoom U-24 Portable Audio Interface
- Product category: Audio Interfaces & Systems Zoom
- Brand: Zoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zoom Audio Interfaces & Systems
 |
User manual for the Zoom U-24 Portable Audio Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zoom product will considerably shorten its lifespan!
|
Product description The U-24 from Zoom is a compact, 2-in/4-out audio interface with 48V phantom power that provides all of the essential tools you need for recording and performing high-resolution, 24-bit/96 kHz audio anywhere you go. It can be used to connect to your Mac or Windows computer, or iPad* via USB, to record with mics, instruments, and more.The U-24 interface uses the same high-quality, low-noise preamps as the Zoom H5 and H6 handy recorders. It features two TRS/XLR combo jacks for inputs, MIDI In/Out, two TRS 1/4" unbalanced jack outputs, RCA line-level outputs and a standard stereo headphone jack. In addition, it is powered by two AA batteries, providing up to four hours of continuous operation with phantom power turned off. The U-24 includes a download code for Ableton Live 9 Lite software to get you started right away.Purchasers of the U-24 can also register for a free download of a special version of Pro Tools | First, which contains a valuable collection of twenty-one AAX audio software plug-ins. - The Go-Everywhere Interface
- The bus-powered U-24 packs all the essential tools into a compact unit that fits in the palm of your hand. Record with mics, instruments, and more at home or on the go – the U-24 is iPad* compatible and small enough to take anywhere. It can run on two AA batteries for recording in any remote location.
* Requires two AA batteries or optional AC adapter for power, plus an Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter for connection to iPad. - Pristine Recording and Playback
- Inspired by the Zoom H-series recorders, the U-24 is equipped with high-performance, low-noise mic preamps (-119.5 dB EIN) that enable recording and playback at resolutions up to 24-bit/96 kHz. You can also use U-24 as a studio-quality headphone amp and listen to your favorite music in full fidelity.
- Get Connected with the U-24

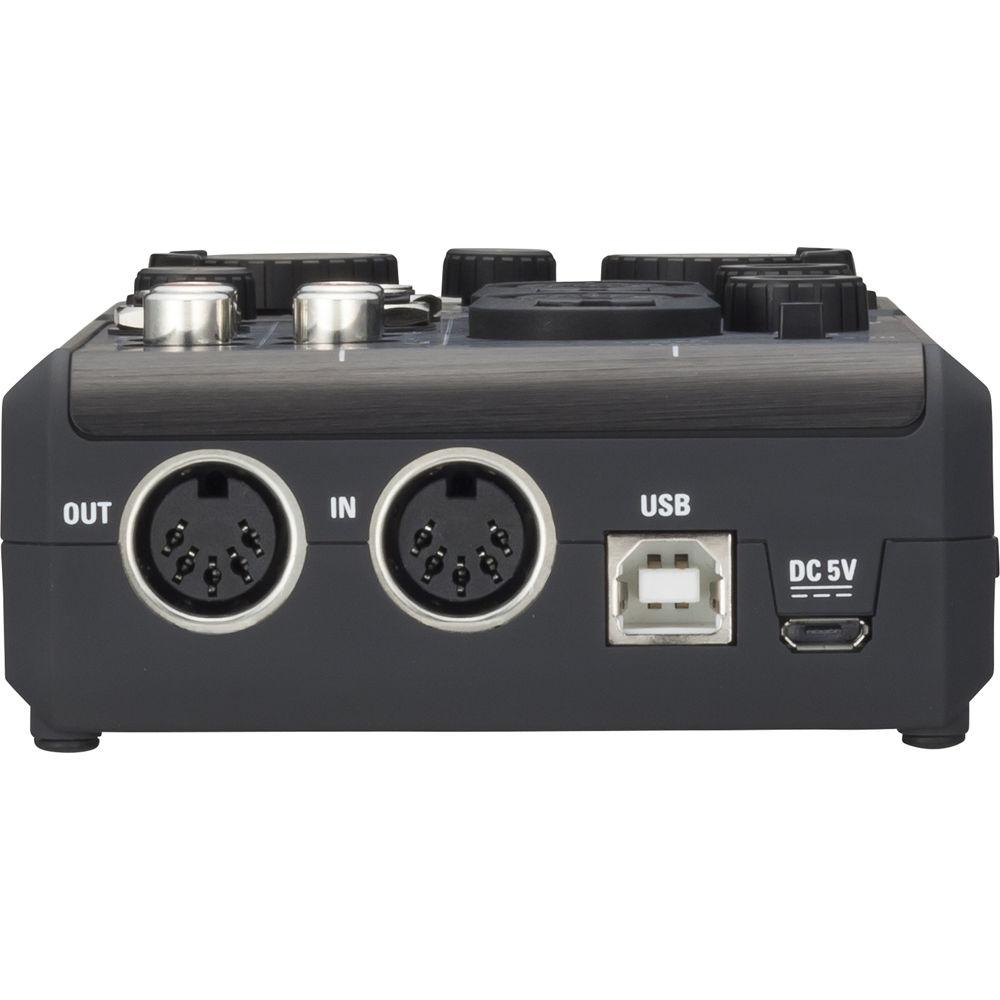

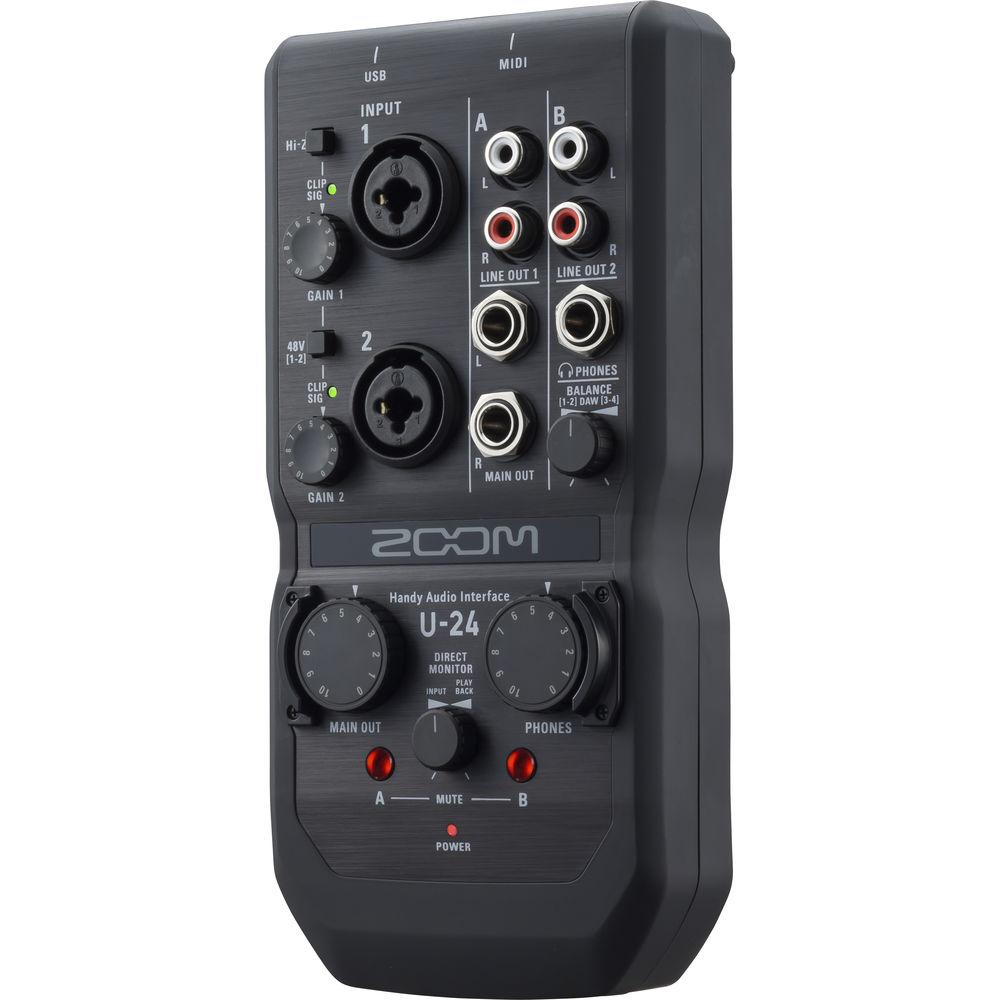

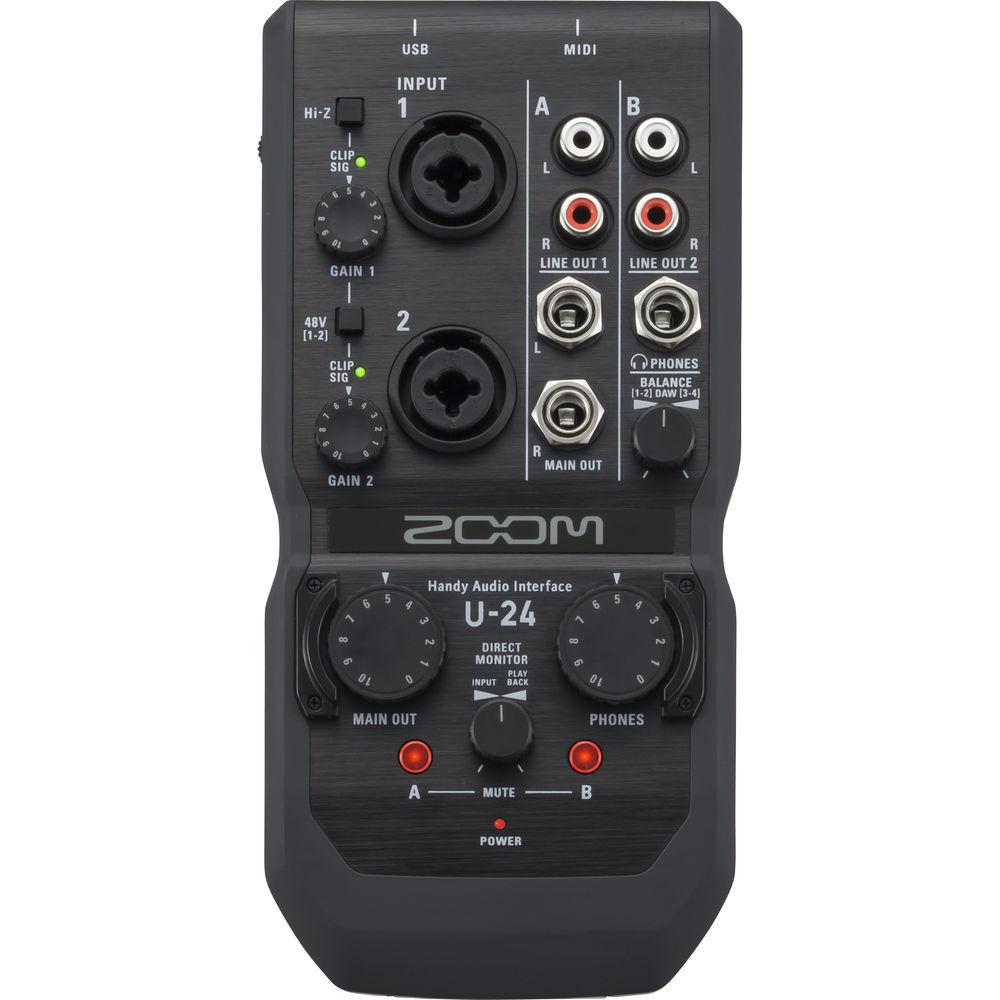

- The U-24 is equipped with an essential collection of inputs and outputs for streamlined recording. Two combo inputs with independent gain knobs and multi-color level indicators allow you to connect mics, keyboards, mixers, and more. 48V phantom power can be supplied to both inputs, and input 1 supports Hi-Z for connecting guitars, basses, or other passive instruments. MIDI input and output jacks allow you to use devices like keyboards, controllers, synthesizers, and drum machines.
- Your Mix, Your Way
- The U-24 has flexible monitoring options for dialing in the perfect mix with zero latency. Balance the cue and main out signals when you're DJ'ing, or create a mix of click-track and main-out signals during live performances. Each connector and knob is strategically positioned for fast access, so you can set up and control the U-24 with ease.
- Create More with Your U-24
- When you combine the U-24 with Ableton Live 9 Lite, you have everything the modern music creator needs. Record your tracks quickly and intuitively, enhancing them with studio-quality effects like EQ, compression, reverb, delay, chorus, filter, and more.
Purchasers can also register for a free download of a special version of Pro Tools | First, with a collection of twenty-one AAX audio software plug-ins. UPC: 884354016159 In the Box Zoom U-24 Portable Audio Interface Ableton Live 9 Lite Software Download Code USB Cable Limited 1-Year Warranty User Manual PDF 4.8mbeczcaecsuaedyyxxftezuvd Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom U-24 Portable Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZoom U-24 Specs | | | Channels of I/O | 2 Inputs / 4 Outputs | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 2.0) | | Analog I/O | 2 x Combo XLR / 1/4" TRS Input
1 x 1/4" (6.3 mm) TRS Headphone Output
2 x Stereo RCA Line Output
2 x 1/4" (6.3 mm) TRS Unbalanced Output | | Phantom Power | +48 V | | Digital I/O | None | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | Frequency Response | Interface:
20 Hz to 20 kHz +0/-1 dB (at 44.1 kHz)
20 Hz to 40 kHz +0/-3.5 dB (at 96 kHz) | | Gain Range | Inputs:
0 to 43 dB | | Max Input Level | Line Inputs:
+20.7 dBu
Mic Inputs:
+2.7 dBu | | Max Output Level | Headphone Outputs:
+10 dBu at 0 dBFS
Line Outputs:
+8 dBu at 0 dBFS
Outputs:
+10 dBu at 0 dBFS | | Headphone Output Power | 30 mW per Channel into 32 Ohms | | Impedance | Headphone Outputs:
33 Ohms
Hi-Z Inputs:
1.1 MOhms
Mic Inputs:
2.6 kOhms
Outputs:
1 kOhm
Line Outputs:
330 Ohms | | EIN | Inputs:

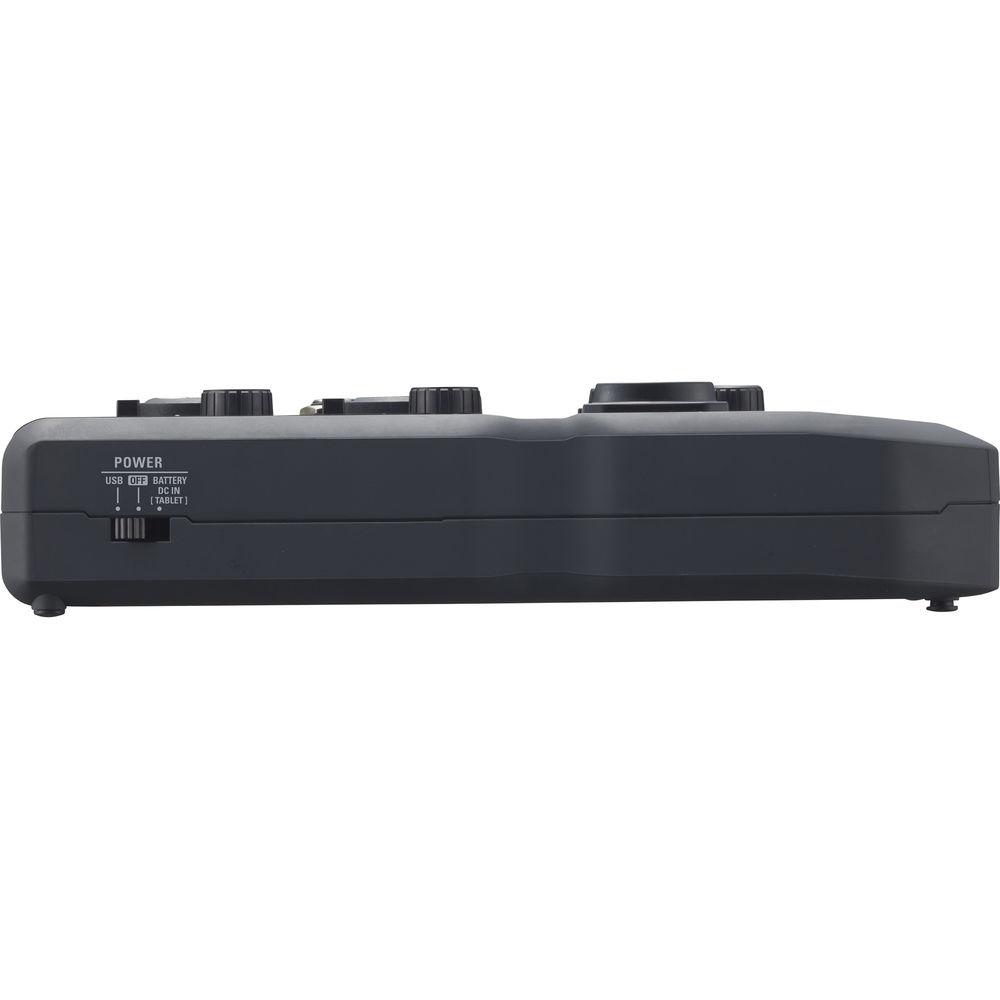

-119.5 dBA | | | | Sample Rates | 44.1, 48, 88.2, and 96 kHz | | Bit Depth | 24-Bit | | | | Power Requirements | USB Bus-Power Host, Zoom AD-17, or DC 5 V Power Supply (Micro-B) | | Power Consumption | 5 W (Maximum) | | Battery Type | 2 x AA | | | | Dimensions | 7.6 x 3.6 x 1.7" / 192 x 92 x 43 mm | | Weight | 10.0 oz / 285.0 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 9.291 x 6.772 x 2.284" |
