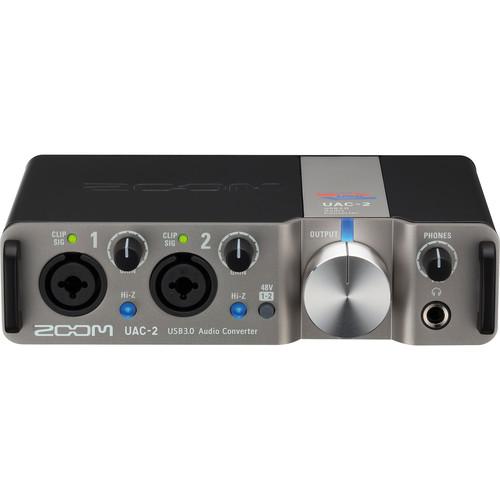

Product description The UAC-2 from Zoom is a 2x2 USB 3.0 audio interface that offers near zero latency and up to 24-bit/192 kHz resolution. The compact and robust housing makes the interface perfect for studio and field recording of microphones and instruments, for onstage playback and audio streaming, and with its dedicated MIDI input and output connectors, it can even serve as a stable MIDI interface.
The unit features two XLR/TRS combo inputs with microphone preamps and two balanced 1/4" outputs. Phantom power is available for use with condenser microphones. Additionally, input 1 and 2 offer a Hi-Z instrument input for guitars and bass. The headphone output has a dedicated volume control and a free Mac application is available for setting mix parameters and adding effects such as reverb and echo. The interface is bus powered, but may be powered by the optional AD-14 power adapter. The UAC-2 ships with a USB 3.0 cable and a Steinberg Cubase LE software license card. -
- 2-in/2-out USB 3.0 High-Speed audio interface
- Support for recording and playback up to 24-bit/192 kHz
- Ultra-low latency audio streaming (2.2ms roundtrip @ 96 kHz / 32 samples)
- Two combo balanced XLR/TRS input connectors accept both mic and line-level signal
- Hi-Z switches allow direct connection of electric guitar or bass
- Switchable +48V phantom power
- Two balanced TRS output jacks for connection to amplifiers or self-powered speakers
- 1/4" headphone jack with dedicated level control
- Independent gain controls and clip LEDs for each input
- Large knob output volume control
- Direct Monitoring switch for zero latency monitoring in mono or stereo
- MIDI In and Out
- Compatible with all popular DAW software, including Cubase, Logic, Garage Band, Pro Tools, Ableton Live, and others
- High-performance mic preamps with up to +60dB of amplification
- 120dB of dynamic range
- 4x upsampling during A/D and D/A conversion for reduced noise and enhanced fidelity
- Asynchronous transfer system unaffected by computer jitter
- Bus powered—no AC power required
- Robust metal housing ensures roadworthiness
- Works with all USB 2.0 and 3.0-equipped computers and iPads*
* Optional power adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter required UPC: 884354014469 In the Box Zoom UAC-2 USB 3.0 Audio Interface USB 3.0 Cable Steinberg Cubase LE Software Authorization Code Limited 1-Year Warranty User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom UAC-2 USB 3.0 Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZoom UAC-2 Specs | | | Channels of I/O | 2 Inputs / 2 Outputs | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 3.0) | | Analog I/O | 2 x Combo XLR / 1/4" TRS Balanced Mic/Line Input
2 x 1/4" (6.3 mm) TRS Hi-Z Input
2 x 1/4" (6.3 mm) TRS Balanced Monitor Output
1 x 1/4" (6.3 mm) TRS Headphone Output Hi-Z Disables Input 1 & 2 When In Use | | Phantom Power | +48 V | | Digital I/O | None | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | Frequency Response | 20 Hz to 20 kHz +0/-1 dB (at 44.1 kHz)
20 Hz to 40 kHz +0/-1 dB (at 96 kHz)
20 Hz to 60 kHz +0/-1 dB (at 192 kHz) | | Gain Range | Inputs:
0 to 60 dB | | Max Input Level | Inputs:
+12 dBu (at 0 dBFS) | | Max Output Level | Headphone Outputs:
+8 dBu at 0 dBFS
Line Outputs:
+14 dBu at 0 dBFS | | Headphone Output Power | 20 mW per Channel into 32 Ohms | | Dynamic Range | A/D Converters:
118 dBA
D/A Converters:
120 dBA | | Impedance | Headphone Outputs:
30 Ohms
Hi-Z Inputs:
1 MOhm
Mic/Line Inputs:
5 kOhm
Outputs:
100 Ohms | | SNR | 125 dB | | | | Sample Rates | 44.1, 48, 88.2, 96, 176.4, and 192 kHz | | Bit Depth | 24-Bit | | | | Power Requirements | AC/DC Power Adapter (Not Included), USB Bus-Power | | AC/DC Power Adapter | 5 VDC at 1 A (Not Included) | | Power Consumption | 5 W | | | | Dimensions | 4.5 x 6.9 x 1.8" / 11.4 x 17.6 x 4.6 cm | | Weight | 1.6 lb / 0.8 kg | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 9.4 x 6.8 x 3.2" |
