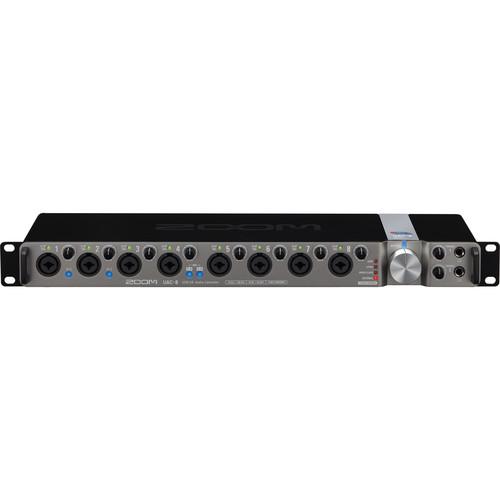

User Manual for Zoom UAC-8 USB 3.0 Audio Interface Click to enlarge the picture
Contents of the user manual for the Zoom UAC-8 USB 3.0 Audio Interface
- Product category: Audio Interfaces & Systems Zoom
- Brand: Zoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zoom Audio Interfaces & Systems
|
User manual for the Zoom UAC-8 USB 3.0 Audio Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zoom product will considerably shorten its lifespan!
|
Product description The UAC-8 from Zoom is an 18x20 USB 3.0 audio interface that offers near zero latency and up to 24-bit/192 kHz resolution. The robust housing makes the interface perfect for studio and field recording of microphones and instruments, for onstage playback and audio streaming, and with its dedicated MIDI input and output connectors, it can even serve as a stable MIDI interface.
The unit features eight XLR/TRS combo inputs with microphone preamps and ten balanced 1/4" outputs. Phantom power is available for use with condenser microphones. The UAC-8 also offers a full complement of digital I/O, including ADAT, S/PDIF, and word clock. Additionally, inputs 1 and 2 offer a Hi-Z instrument input for guitars and bass. The two headphone outputs have dedicated volume controls and a free Mac application is available for setting mix parameters and adding effects such as reverb and echo. The UAC-8 ships with a power supply, USB 3.0 cable, and a Steinberg Cubase LE software license card. -
- 18-in/20-out USB 3.0 High-Speed audio interface
- Record and play back 8 tracks simultaneously
- Support for up to 24-bit/192 kHz high‐definition audio
- Ultra-low latency audio streaming (2.0ms roundtrip @ 96 kHz / 32 samples)
- 8 combo balanced XLR/TRS analog input connectors accept both mic and line-level signal
- High‐performance mic preamps with up to +60dB of amplification
- Hi-Z switches allow direct connection of electric guitar or bass (INPUT1, INPUT2)
- Independent gain controls and clip LEDs for each input
- Switchable +48V phantom power (INPUTS 1‐4, INPUTS 5‐8)
- 10 balanced TRS output jacks for connection to mixers, amplifiers, self-powered speakers, or effects devices
- Dual front-panel 1/4" headphone outputs with dedicated volume controls
- Large knob output volume control
- 4x upsampling during A/D and D/A conversion for reduced noise and enhanced fidelity
- Asynchronous transfer system unaffected by computer jitter
- Robust metal housing ensures roadworthiness
- S/PDIF IN/OUT: 2IN / 2OUT, up to 24‐bit/192 kHz audio resolution
- ADAT Optical IN/OUT: 2 IN / 2 OUT at 192/176.4 kHz (S/MUX4 compatible), 4 IN/4 OUT at 96/88.2 kHz (S/MUX compatible), 8 IN / 8 OUT at 48/44.1 kHz
- Word Clock in/out
- Clock source indicator
- MIDI in/out
- Rack-mountable (1U space)
- Works with all USB 2.0 and 3.0-equipped computers and iPads*
- Steinberg Cubase LE software download
* Optional power adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter required UPC: 884354014964 In the Box Zoom UAC-8 USB 3.0 Audio Interface Power Adapter USB 3.0 Cable Steinberg Cubase LE Software Authorization Code Limited 1-Year Warranty User Manual PDF 3.1mbfcdfxcbtywacrzcsqtx Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom UAC-8 USB 3.0 Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZoom UAC-8 Specs | | | Channels of I/O | 18 Inputs / 20 Outputs at 48 kHz
14 Inputs / 16 Outputs at 96 kHz
12 Inputs / 14 Outputs at 192 kHz | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 3.0) | | Analog I/O | 8 x Combo XLR / 1/4" TRS Input
2 x 1/4" (6.3 mm) TRS Hi-Z Input
8 x 1/4" (6.3 mm) TRS Balanced Line Output
2 x 1/4" (6.3 mm) TRS Balanced Monitor Output
2 x 1/4" (6.3 mm) TRS Headphone Output Hi-Z Input Disables Input 1 & 2 When In Use | | Phantom Power | +48 V | | Digital I/O | None | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | Frequency Response | 20 Hz to 20 kHz +0/-1 dB (at 44.1 kHz)
20 Hz to 40 kHz +0/-1 dB (at 96 kHz)
20 Hz to 60 kHz +0/-1 dB (at 192 kHz) | | Gain Range | Inputs:
0 to 60 dB | | Max Input Level | Line Inputs:
+21 dBu (at 0 dBFS)
Mic Inputs:
+13 dBu (at 0 dBFS) | | Max Output Level | Headphone Outputs:
+10 dBu at 0 dBFS
Line Outputs:
+14 dBu at 0 dBFS | | Headphone Output Power | 20 mW per Channel into 32 Ohms | | Dynamic Range | A/D Converters:
118 dBA
D/A Converters:
120 dBA | | Impedance | Headphone Outputs:
33 Ohms
Hi-Z Inputs:
1 MOhm
Mic/Line Inputs:
5 kOhm
Outputs:
150 Ohms
Word Clock:
75 Ohms | | SNR | 125 dB | | | | Sample Rates | 44.1, 48, 88.2, 96, 176.4, and 192 kHz | | Bit Depth | 24-Bit | | | | AC/DC Power Adapter | 12 VDC at 2 A (Included) | | | | Dimensions | 6.2 x 19 x 1.8" / 15.8 x 48.3 x 4.6 cm | | Weight | 4.9 lb / 2.2 kg | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 23.0 x 8.0 x 4.0" |
