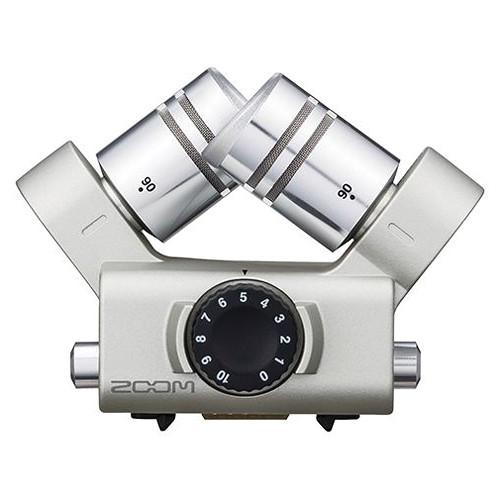

User Manual for Zoom XYH-6 - X Y Microphone Capsule for Zoom H5 and H6 Field Recorders Click to enlarge the picture
Contents of the user manual for the Zoom XYH-6 - X Y Microphone
- Product category: Portable Recorder Accessories Zoom
- Brand: Zoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zoom Portable Recorder Accessories
|
User manual for the Zoom XYH-6 - X Y Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zoom product will considerably shorten its lifespan!
|
Product description - Zoom Mic Capsule Overview
The Zoom XYH-6 - X/Y Microphone Capsule for Zoom H5 and H6 Field Recorders is an interchangeable component in Zoom's H5 and H6 modular recorder system. The capsule features two matched unidirectional microphone elements positioned in an X/Y pattern with an adjustable angle of between 90 and 120 degrees. This arrangement enables allows the recorder to pickup sounds in a cardioid polar pattern, and is predominately sensitive to sounds directly in front of the recorder and less sensitive to sounds on the side or to the rear of the device. The XY pattern allows recordings played back in mono to have a fuller sound than would normally be possible from a single microphone element. The unit can be used for a wide range of applications including studio, live performance, rehearsals, and TV broadcast, among others. UPC: 884354013899 In the Box Zoom XYH-6 - X/Y Microphone Capsule for Zoom H5 and H6 Field Recorders Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zoom XYH-6 - X Y Microphone Capsule for Zoom H5 and H6 Field Recorders in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZoom XYH-6 Specs | Microphone Type | Unidirectional | | Sensitivity | -41 dB, 1 kHz at 1 PA | | Input Gain | -∞ to 46.5 dB | | Max SPL Level | 136 dB SPL | | | | Connector | 1/8" stereo mini jack | | Input Level | -∞ to 46.5 dB | | Input Impedance | 2 kΩ | | Plug-in power | 2.5 V supported | | | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 0.515 lb | | Box Dimensions (LxWxH) | 4.2 x 3.85 x 3.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
