User Manual for ZOTAC CI620 nano PLUS Desktop Computer Click to enlarge the picture
Contents of the user manual for the ZOTAC CI620 nano PLUS Desktop Computer
- Product category: Desktop Computers ZOTAC
- Brand: ZOTAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZOTAC Desktop Computers
|
User manual for the ZOTAC CI620 nano PLUS Desktop Computer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZOTAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZOTAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZOTAC product will considerably shorten its lifespan!
|
Product description - The Highly Rated ZOTAC ZBOX Passively Cooled C Series Mini PCs

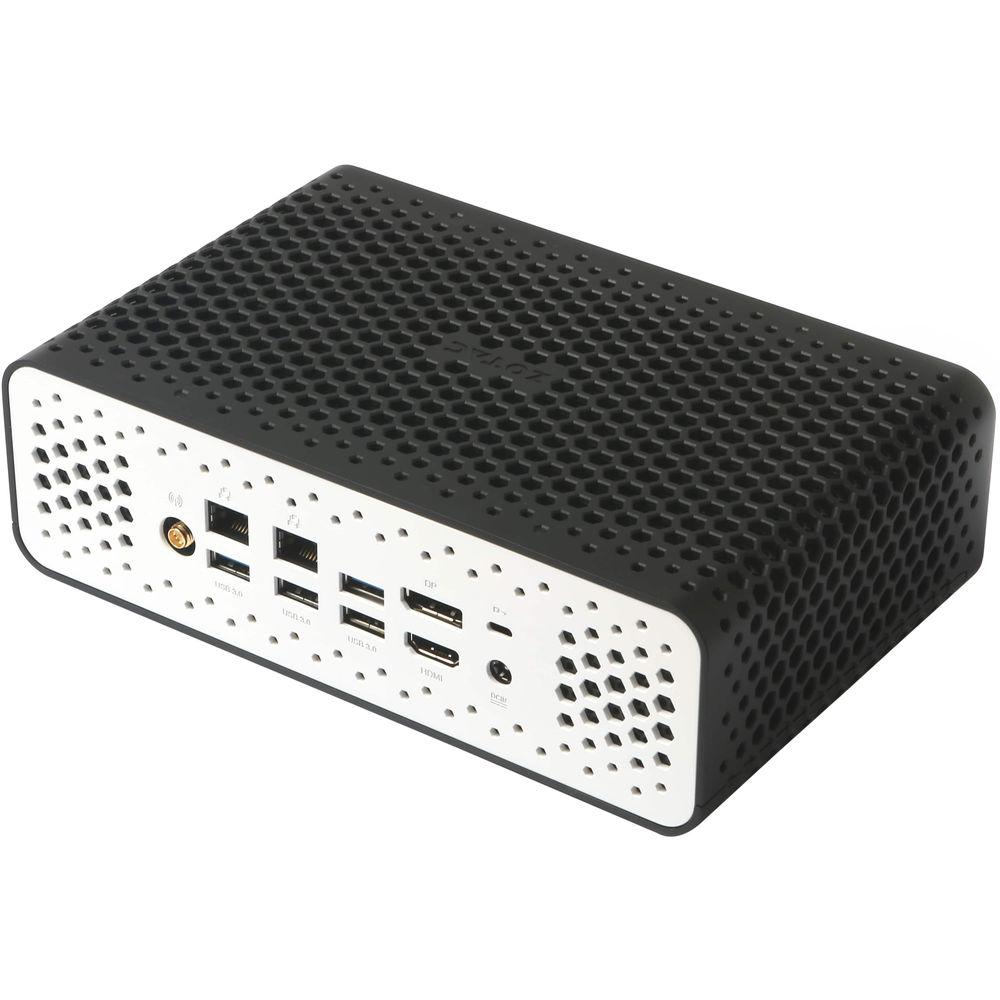

The ZOTAC CI620 nano PLUS Desktop Computer features a unique compact design with passive cooling and no moving parts. The honeycomb chassis allows 90% of the surface area to have open ventilation. The compact design allows you to use the included VESA mount to place the computer on the back of a monitor. With available HDMI 2.0 and DisplayPort 1.2 ports, the nano Plus is dual-display ready. The integrated Intel UHD Graphics 620 brings 4K @ 60 Hz display resolutions in addition with H.265/HEVC Main10 profile in hardware with 10-bit colors. The system is powered by an 8th-Gen Kaby Lake R 2.2 GHz Intel Core i3-8130U dual-core processor. It also has 4GB of DDR4 RAM, a 120GB 2.5" SATA SSD, a SDXC media card reader, dual Gigabit Ethernet LAN ports, Wi-Fi 5 (802.11ac), Bluetooth 4.2, USB 3.1 Gen 2 Type-C, USB 3.1 Gen 1 Type-A, a 3.5mm headphone jack, and a 3.5mm microphone jack. Windows 10 Home (64-bit) is the installed operating system. Zbox nano Plus - Dual-Core 8th Gen Kaby Lake R Intel Core Performance
- The Zbox nano Plus houses an 8th Gen Kaby Lake R Intel Core i3-8130U processor. Its dual cores have a base speed of 2.2 GHz. The processor can also be boosted to 3.4 GHz when needed.
- Passively Cooled

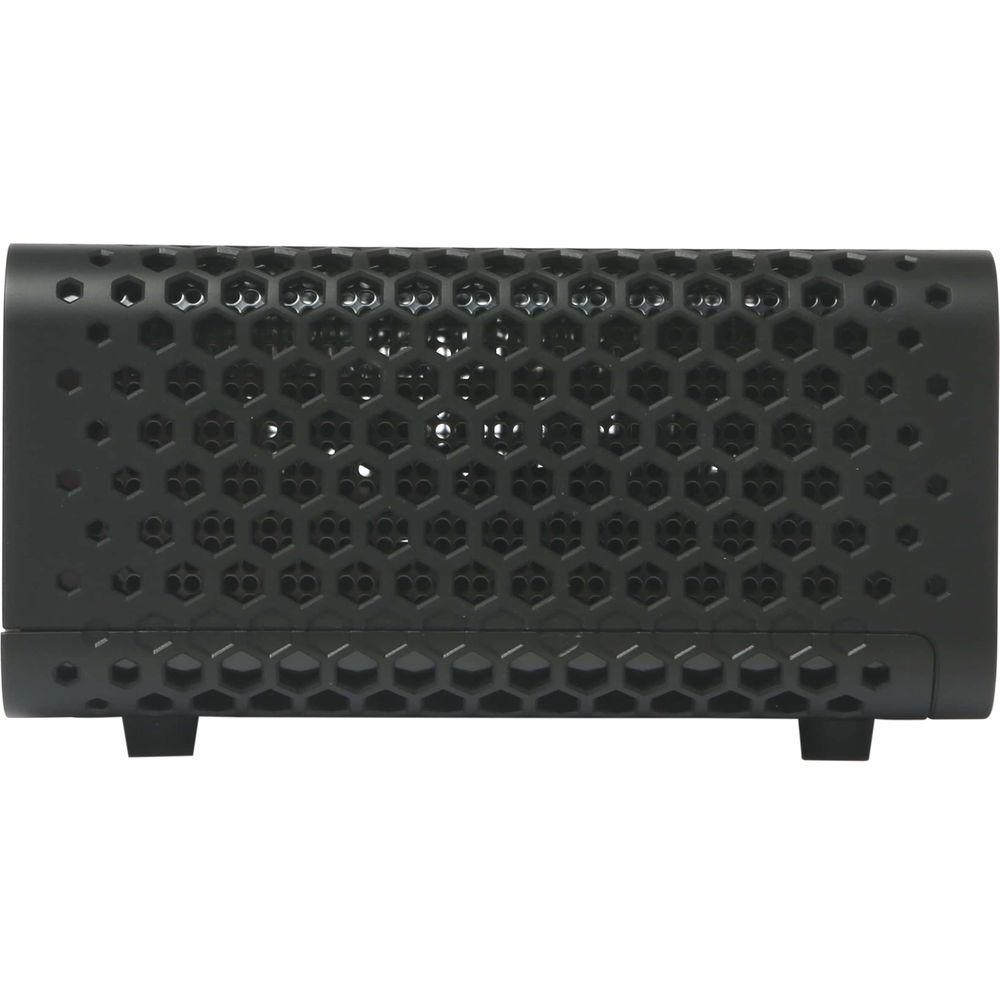

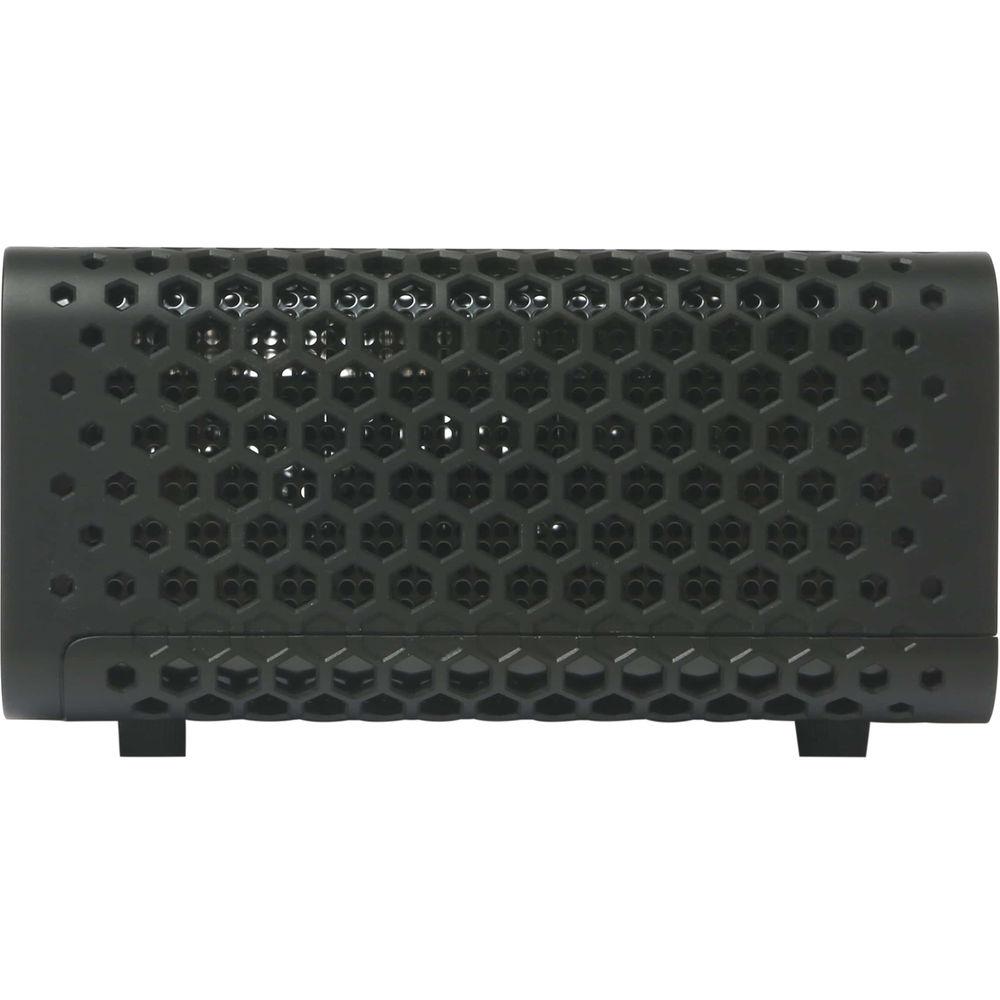

- The compact Zbox nano Plus utilizes passive cooling, thanks to its honeycomb design.
- VESA Mount Ready
- This computer comes with an included VESA mount so you can mount it behind a monitor to save desktop space.
Windows 10 Home - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.

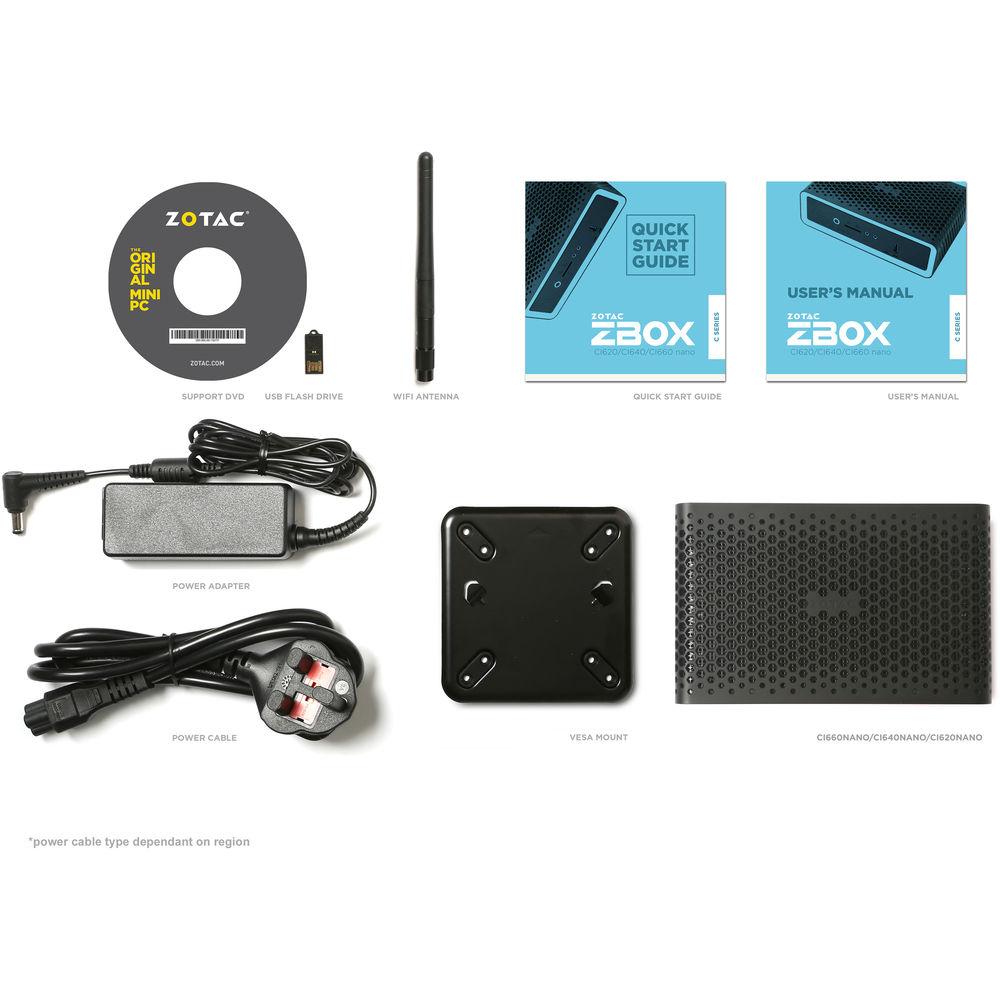

UPC: 816264019951 In the Box ZOTAC CI620 nano PLUS Desktop Computer Wi-Fi Antenna Driver Disc AC Adapter Power Cord VESA Mount with 4 Screws Limited 1-Year Warranty More info from ZOTAC Table of Contents
|
Upload User Manual
Have you got an user manual for the ZOTAC CI620 nano PLUS Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZOTAC CI620 nano PLUS Specs Operating System | Windows 10 Home (64-Bit) | | CPU | 2.2 GHz Intel Core i3-8130U Dual-Core | Maximum Boost Speed | 3.4 GHz | L3 Cache | 4 MB | Memory Type | DDR4 | Total Installed Memory | 4 GB | Memory Configuration | 1 x 4 GB (Onboard) | Maximum Memory Capacity | 32 GB | Graphics Type | Integrated | GPU | Intel UHD Graphics 620 | | Total Drive Bays | None | Solid State Storage | 1 x 120 GB 2.5" SATA | PCI Expansion | None | Optical Drive | None | | Ports | 5 x USB Type-A (USB 3.1 Gen 1) | USB Type-C Ports | 2 x USB 3.1 Gen 1 | Display | 1 x HDMI 2.0 1 x DisplayPort 1.2 | Audio | 1 x 1/8" / 3.5 mm Headphone Output 1 x 1/8" / 3.5 mm Microphone Input | Media Card Slots | 1 x SDXC | | Ethernet | 2 x RJ45 (Gigabit) | Wi-Fi | Wi-Fi 5 (802.11ac) | Bluetooth | 4.2 | | Power Supply | 65 W | Dimensions | 8 x 5.1 x 2.7" / 20.3 x 13 x 6.9 cm |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
