User Manual for ZOTAC GeForce GT 730 Zone Edition Graphics Card Click to enlarge the picture
Contents of the user manual for the ZOTAC GeForce GT 730 Zone Edition
- Product category: Graphic Display Cards ZOTAC
- Brand: ZOTAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZOTAC Graphic Display Cards
 |
User manual for the ZOTAC GeForce GT 730 Zone Edition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZOTAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZOTAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZOTAC product will considerably shorten its lifespan!
|

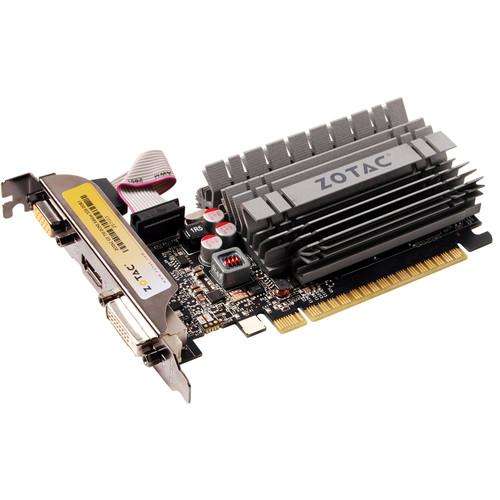

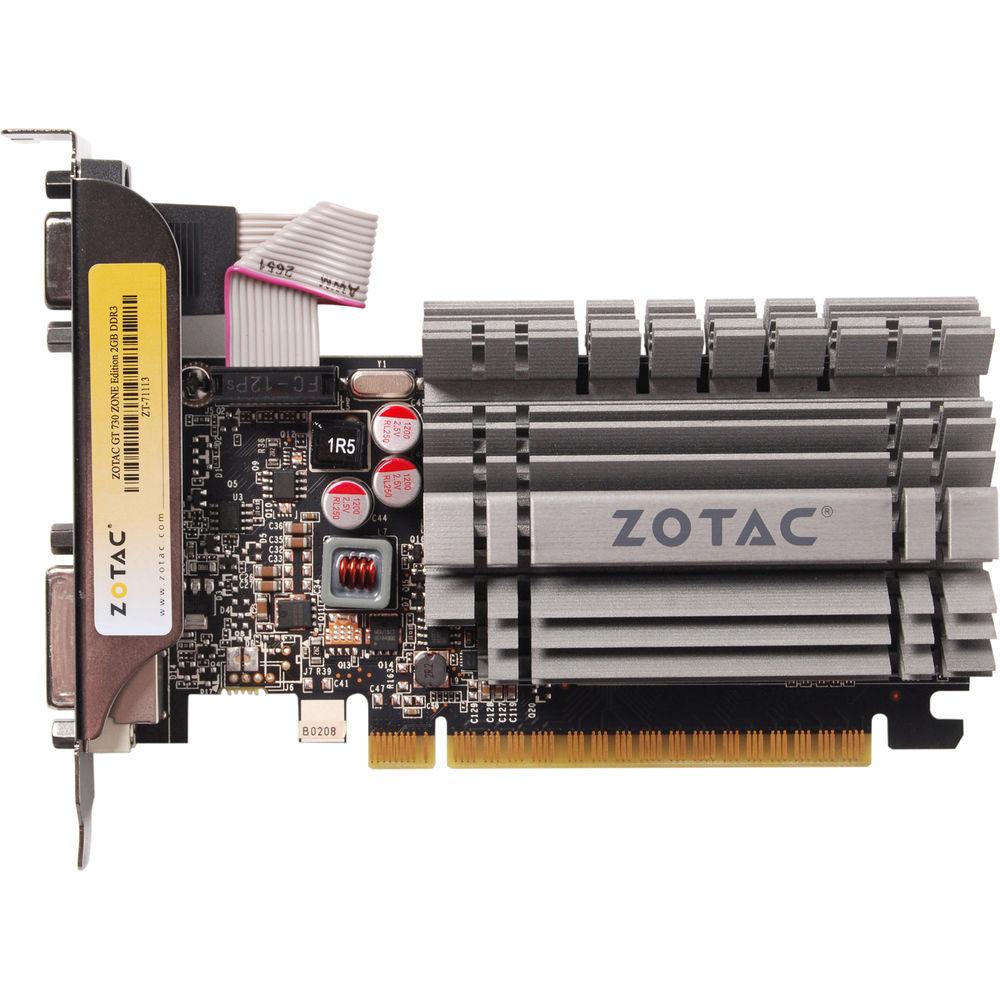

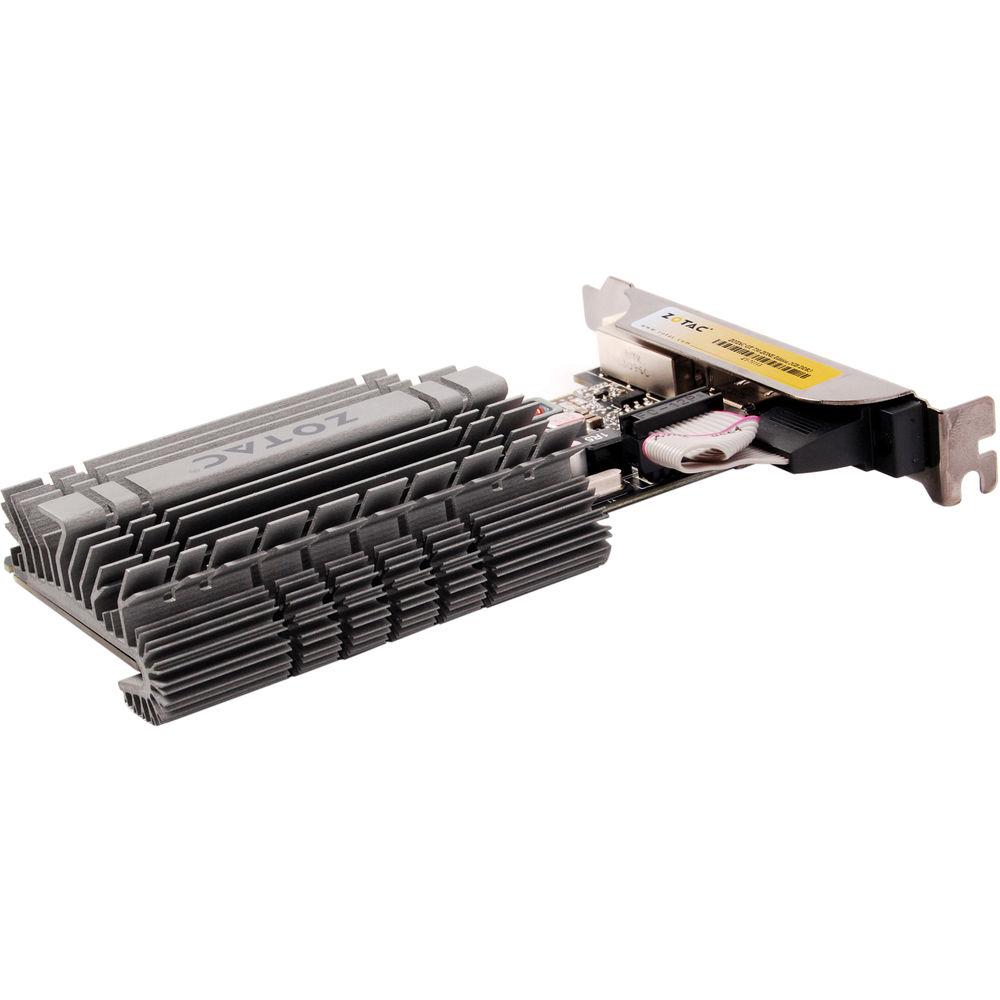

Product description Enjoy all your videos and pictures in HD with the ZOTAC GeForce GT 730 Zone Edition Graphics Card. With 2GB of DDR3 RAM, the GT 730 provides faster video editing, photo editing, and web browsing than integrated graphics. You can also get drivers and optimize game settings with a single click using the GeForce experience. For cooling, this card uses a passive heatsink. Features - CUDA
- NVIDIA's parallel computing platform which enables an increase in computing performance by harnessing the parallel nature of GPU processing. CUDA compatible applications can assign intensive parallel computing tasks, such as real-time video rendering, to the GPU to process, freeing up the computer's CPU to run other tasks.
- NVIDIA PhysX Technology
- NVIDIA's hardware accelerated physics engine computes how objects move in space in real time. Having a physics engine precludes the need for programs to pre-animate rendered objects which can give an unrealistic "canned animation" feel. The PhysX engine also allows for designers to create more detailed objects, relying on the GPU's processing power rather than a bloated programming back end.
- 3D Vision Support
- When used with a 3D Vision compatible monitor and 3D Vision active-shutter glasses, full-HD resolution images are delivered to each eye. Additionally, with a 3D LightBoost compatible screen, image brightness will be maintained while using the glasses and ghosting will be reduced.
- Adaptive V-Sync
- NVIDIA's Adaptive Vertical Sync minimizes stuttering and tearing by monitoring and adjusting the card's frame rate output. At high frame rates, Adaptive V-Sync is enabled to slow down the output frame rate to prevent tearing as a result of losing sync with your monitor. At lower frame rates, Adaptive V-Sync will automatically be disabled to minimize stuttering.

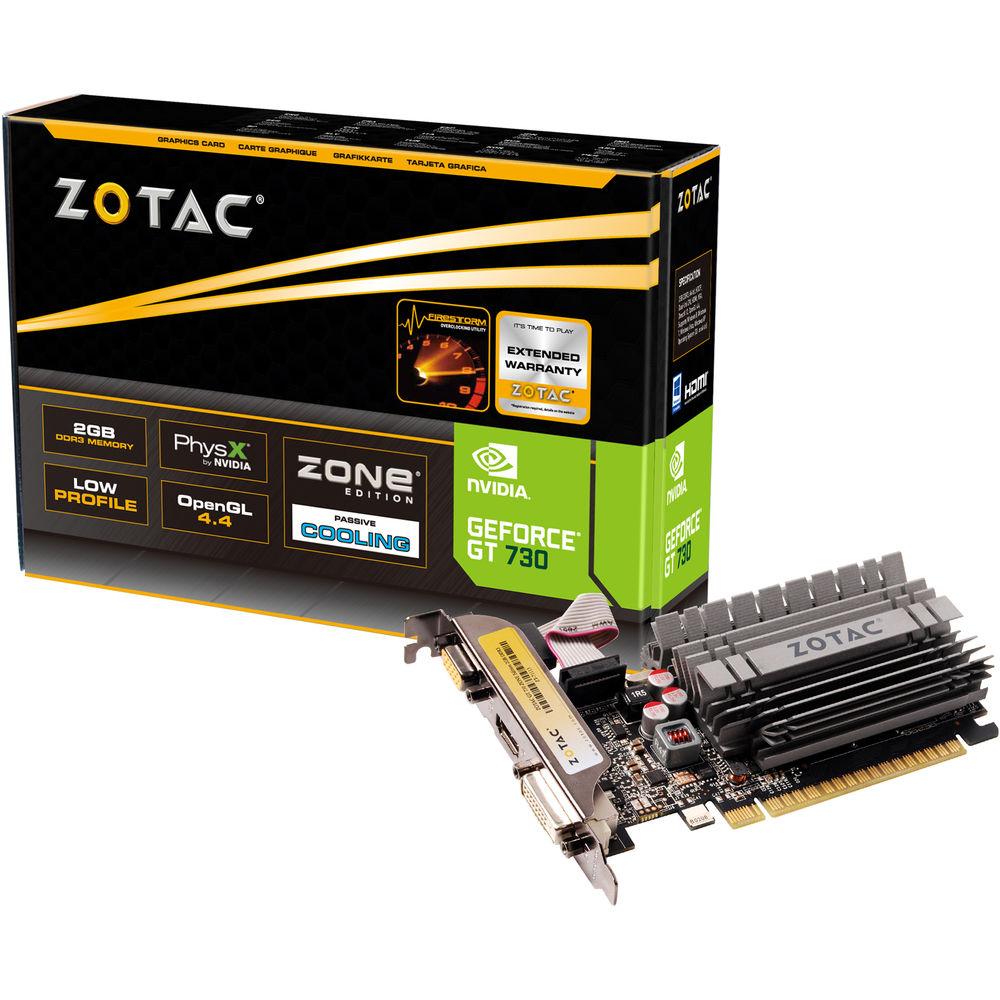

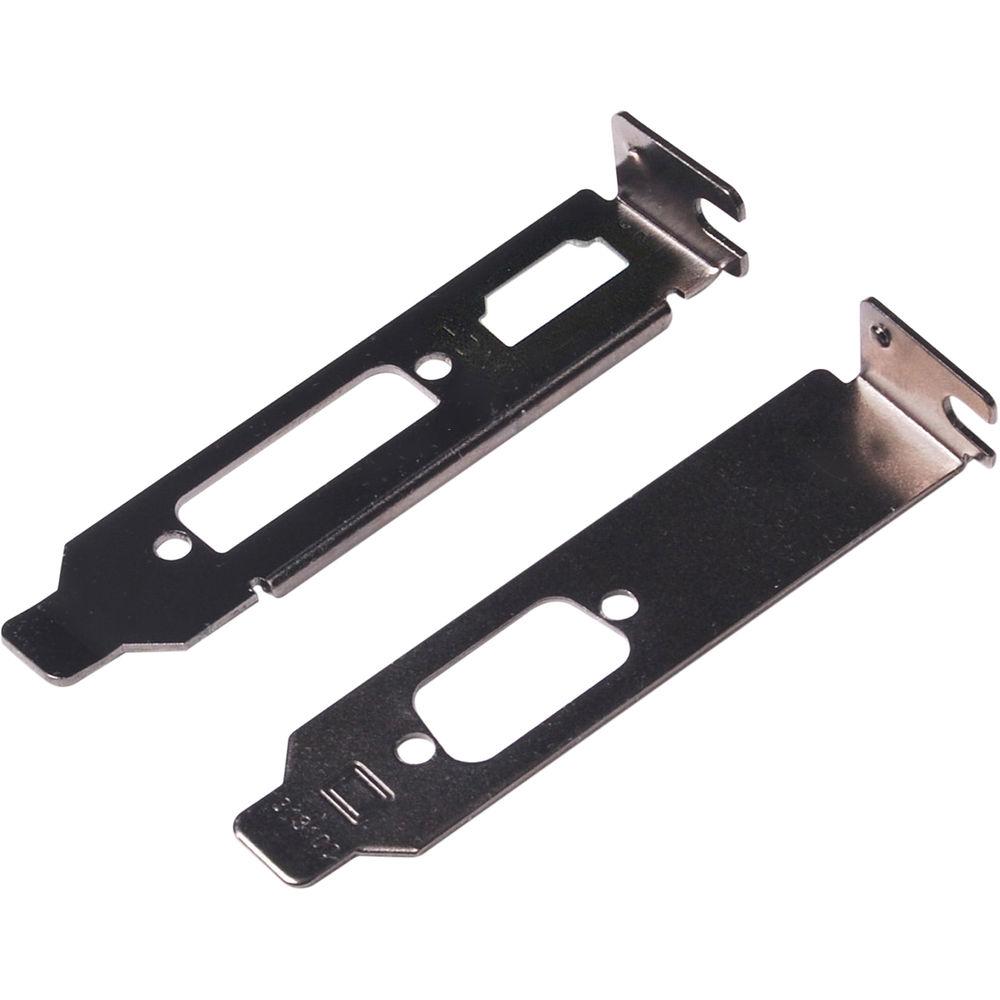

UPC: 816264015243 In the Box ZOTAC GeForce GT 730 Zone Edition Graphics Card Low-Profile Bracket [HDMI + DVI] Low-Profile Bracket [VGA] Limited 2-Year Warranty User Manual PDF 2.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ZOTAC GeForce GT 730 Zone Edition Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZOTAC GT 730 Zone Edition Specs | GPU | NVIDIA GeForce GT 730:
CUDA Cores: 384
Base Clock: 902 MHz
Boost Clock: N/A | | Memory | Clock Speed: 1600 MHz Effective
Configuration: 2GB
Interface: DDR3
Interface Width: 64-bit
Bandwidth: 40 GB/s | | Technologies | Microsoft DirectX: 11 (will support 12)
OpenGL: 4.4

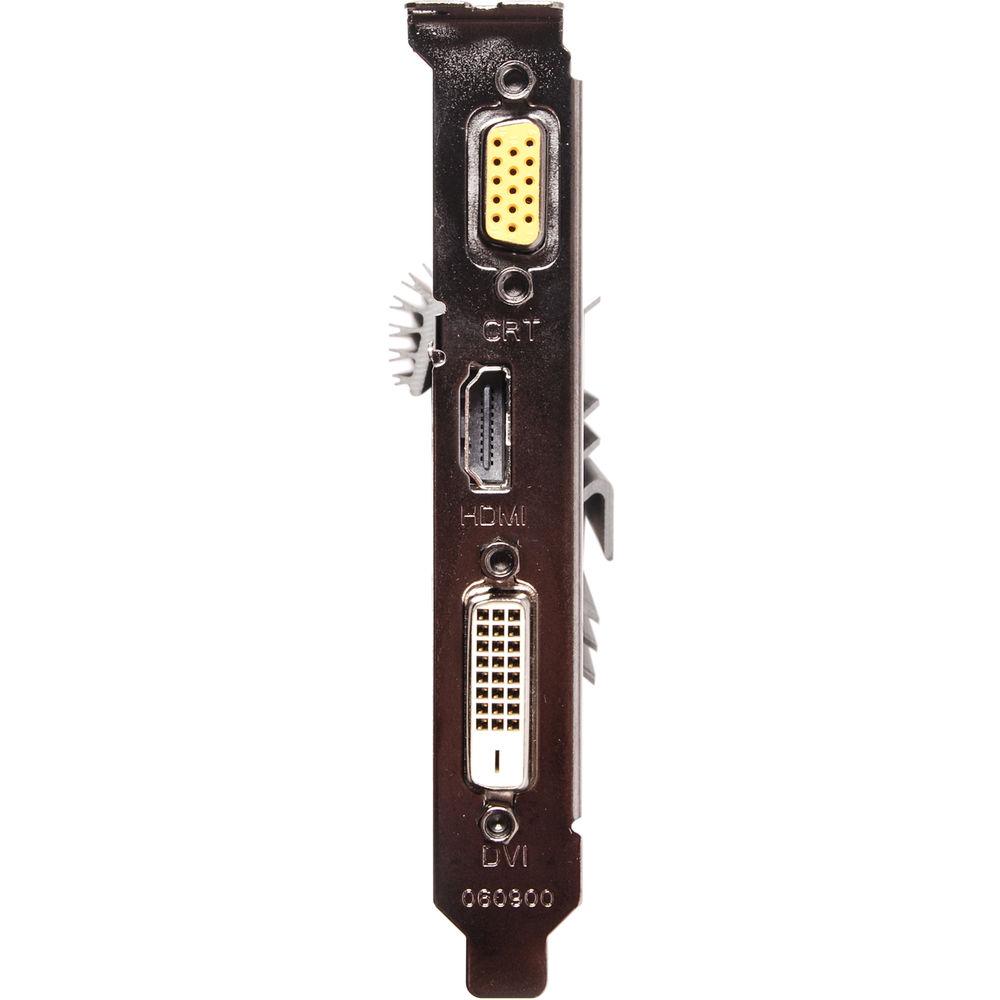

CUDA: Yes | | Interface | PCI Express 2.0 x16 | | Display Support | Display Connectors:
1 x DVI-I DL
1 x HDMI
1 x VGA
Maximum Digital Resolution: 3840 x 2160
Maximum VGA Resolution: 2048 x 1536
Multi Monitor Support: 3 | | Power Requirements | Power Consumption: 49 W
Minimum System Power Requirement: 300 W (recommended)
PCI Power Connectors: N/A | | Dimensions | Height: 4.4" / 111.15 mm
Length 5.7" / 146 mm
Width: Dual-Slot | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 10.1 x 6.5 x 2.3" |
