User Manual for ZOTAC GeForce GTX 1050 Ti OC Edition Graphics Card Click to enlarge the picture
Contents of the user manual for the ZOTAC GeForce GTX 1050 Ti OC
- Product category: Graphic Display Cards ZOTAC
- Brand: ZOTAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZOTAC Graphic Display Cards
 |
User manual for the ZOTAC GeForce GTX 1050 Ti OC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZOTAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZOTAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZOTAC product will considerably shorten its lifespan!
|
Product description - The Best GeForce GTX 10 Series ZOTAC Gaming Graphics Card

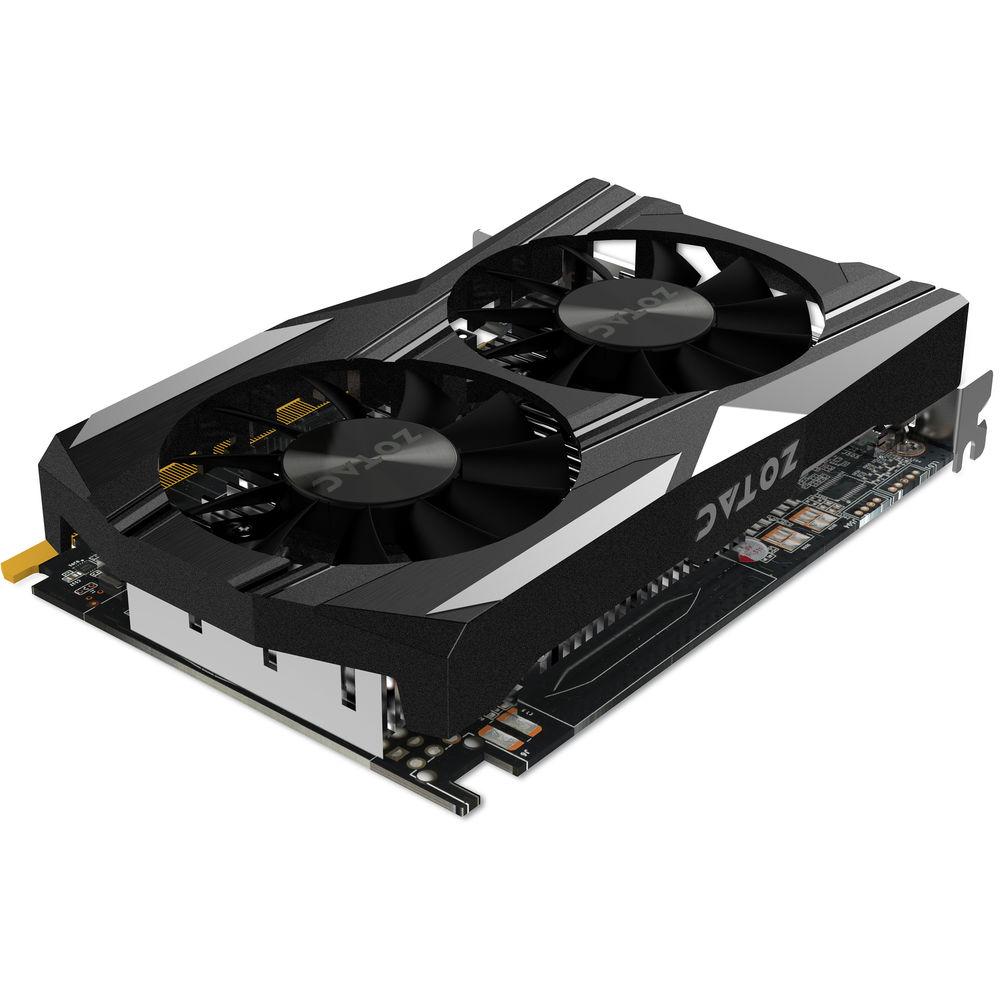

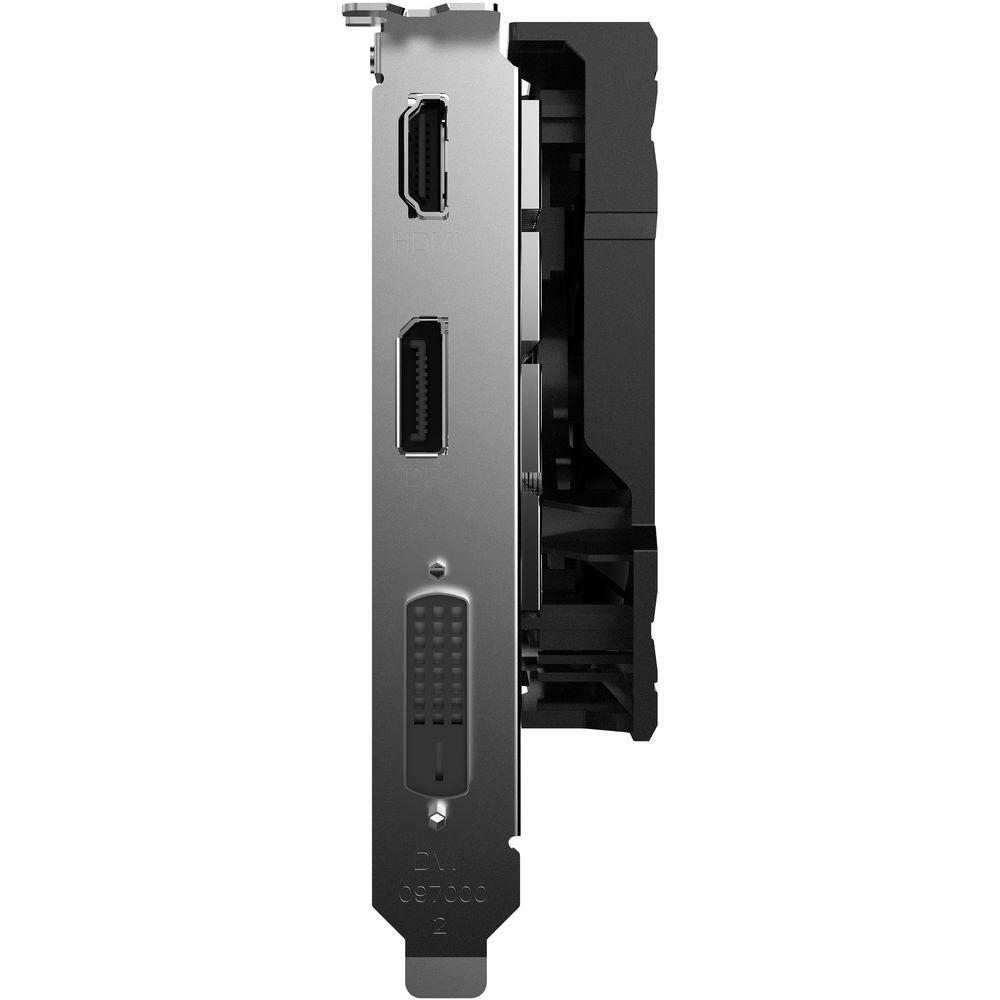

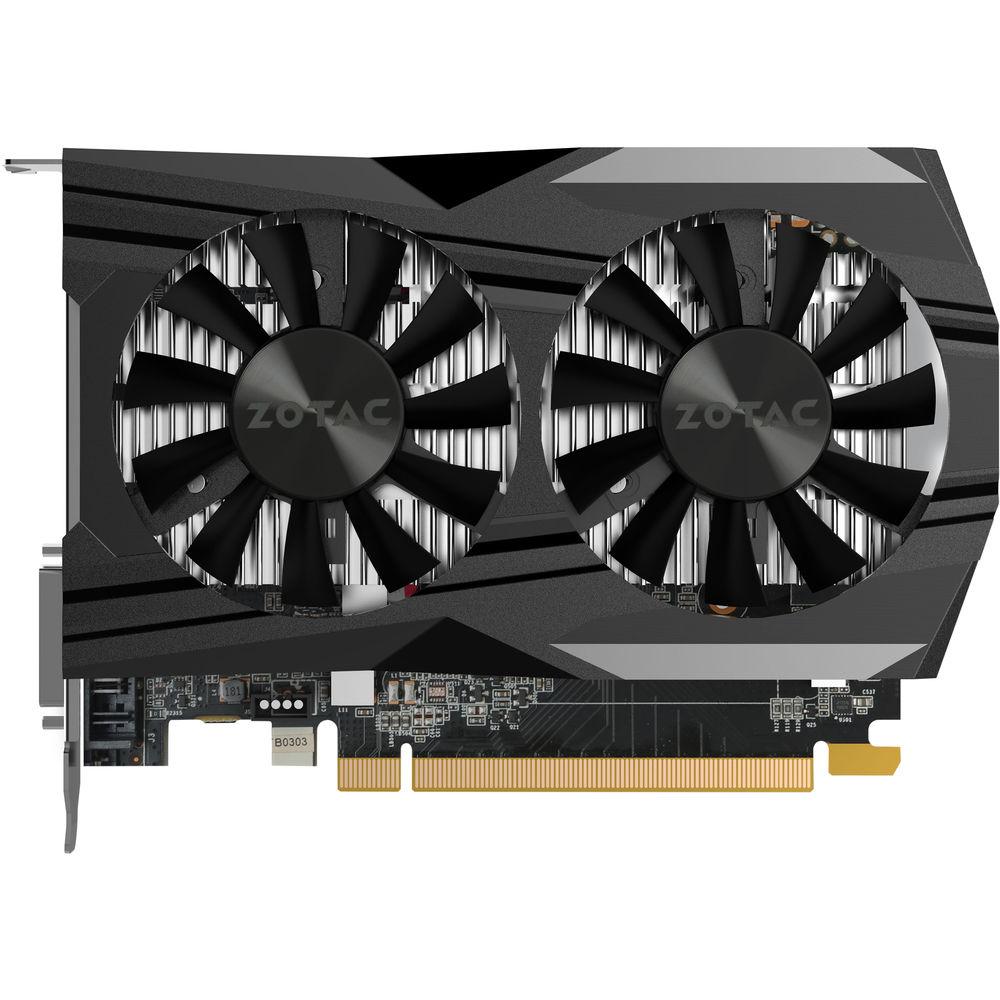

With a compact design and based on NVIDIA's Pascal architecture, the ZOTAC GeForce GTX 1050 Ti OC Edition Graphics Card provides major improvements in performance, memory bandwidth, and power efficiency over its predecessor, the Maxwell architecture.The front panel of the card features a variety of outputs. There are one DisplayPort 1.4 output, one HDMI 2.0b output, and one DVI-D Dual-Link output. The GTX 1050 Ti is not just about high-resolution gaming: Computationally intensive programs can utilize the GPU's 768 cores to accelerate tasks using CUDA or other APIs.For cooling, ZOTAC features dual 70mm fans. The dual fans cover more of the heatsink to take away heat more efficiently. - NVIDIA Ansel
- With Ansel, gamers can compose the gameplay shots they want, pointing the camera in any direction and from any vantage point within a gaming world. They can capture screenshots at up to 32 times the screen resolution, and then zoom in where they choose without losing fidelity. With photo-filters, they can add effects in real-time before taking the shot. And they can capture 360-degree stereo photospheres for viewing in a VR headset or Google Cardboard.
- CUDA
- With CUDA, NVIDIA allows applications to hand off CPU-intensive tasks to the GPU. Your GPU is no longer just used for rendering graphics, but it can provide teraflops of floating point performance and accelerate application tasks, from real-time video rendering to fluid dynamics simulation. CUDA is used in many applications and games.
- G-SYNC Ready
- When used with a monitor that has G-SYNC hardware installed, the monitor's refresh rate will sync and lock with the graphics card's output frame rate. Establishing this sync removes tearing and stuttering which can result from conventional fixed screen refresh rates, especially important for gaming in stereoscopic 3D. An additional benefit of G-SYNC is reduced lag so gamers will benefit from the improved command response time as well.
- NVIDIA GPU Boost 3.0
- Boosts the card's clock speed in real-time based on the target temperature. If the card is running below the set target temperature, GPU Boost 3.0 will increase the clock speed to improve performance. The target temperature can be reset depending on your preference so you can have the card run more quietly for everyday tasks and older games, and run at full tilt during intense high-resolution gaming sequences.
UPC: 816264017186 In the Box ZOTAC GeForce GTX 1050 Ti OC Edition Graphics Card Limited 2-Year Warranty User Manual PDF 2.3mbsubdsqvz Table of Contents
|
Upload User Manual
Have you got an user manual for the ZOTAC GeForce GTX 1050 Ti OC Edition Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZOTAC GTX 1050 Ti OC Specs | GPU | NVIDIA GeForce GTX 1050 Ti:
CUDA Cores: 768
Base Clock: 1392 MHz
Boost Clock: 1506 MHz | | Memory | Speed: 7 Gb/s
Configuration: 4 GB
Interface: GDDR5
Interface Width: 128-bit
Bandwidth: 112 GB/s | | Technologies | Microsoft DirectX: 12
OpenGL: 4.5
CUDA: Yes
Vulkan: Yes | | Interface | PCI Express 3.0 x16 | | Display Support | Display Connectors:
1 x DisplayPort 1.4
1 x HDMI 2.0b
1 x DVI-D DL
Maximum Digital Resolution: 7680 x 4320
Multi Monitor Support: Yes | | Power Requirements | Power Consumption: 75 W
Recommended System Power Requirement: 300 W
PCI Power Connectors: Not specified by manufacturer | | Dimensions | Height: 4.4" / 111.2 mm
Length: 6.9" / 174 mm
Width: Dual-Slot | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 11.2 x 8.7 x 2.4" |
