User Manual for ZOTAC ZBOX MAGNUS EK3105T Mini Desktop Computer Click to enlarge the picture
Contents of the user manual for the ZOTAC ZBOX MAGNUS EK3105T Mini Desktop
- Product category: Barebone PCs ZOTAC
- Brand: ZOTAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZOTAC Barebone PCs
 |
User manual for the ZOTAC ZBOX MAGNUS EK3105T Mini Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZOTAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZOTAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZOTAC product will considerably shorten its lifespan!
|

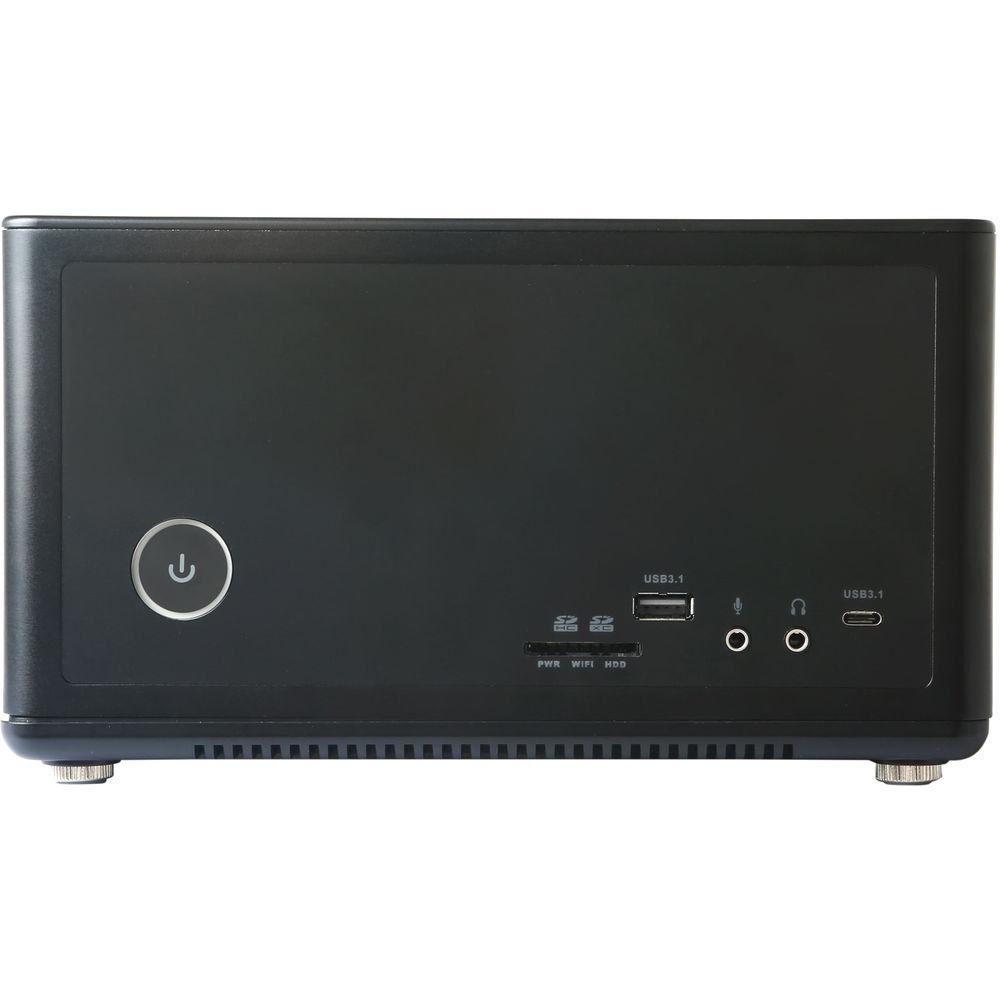

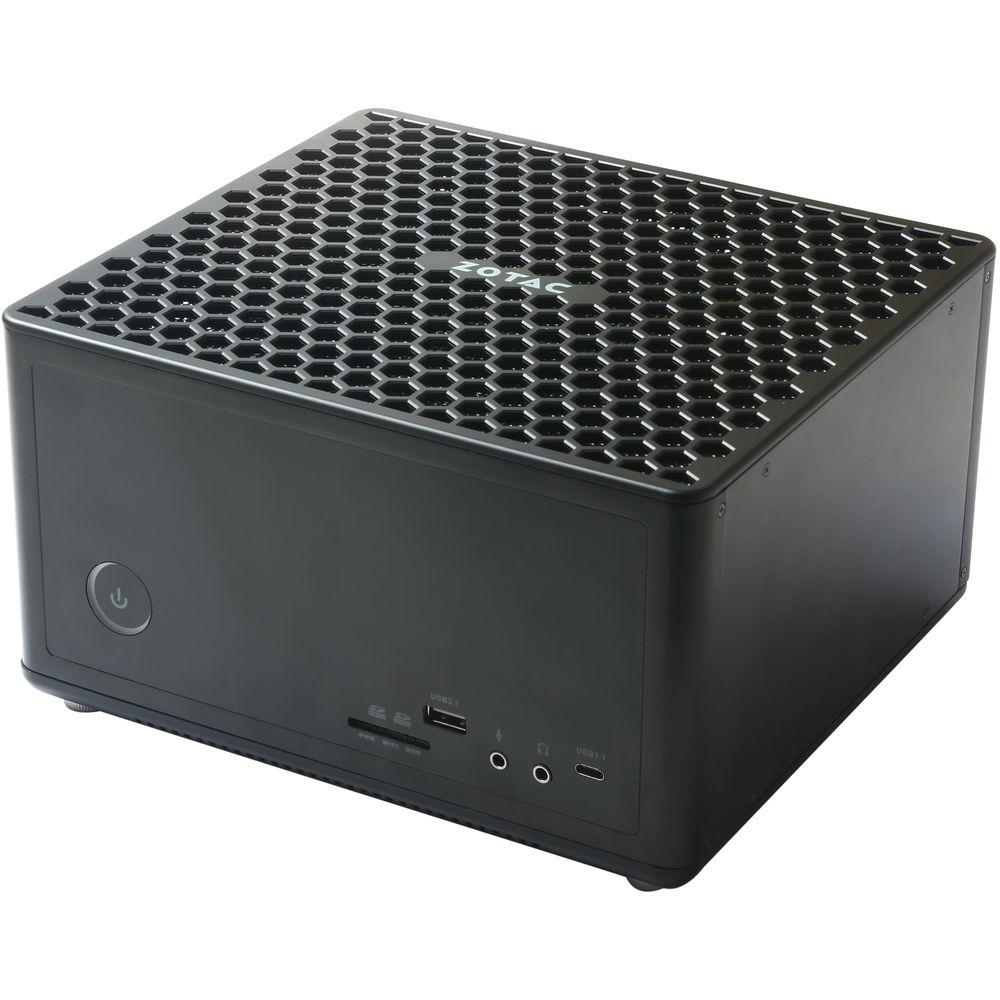

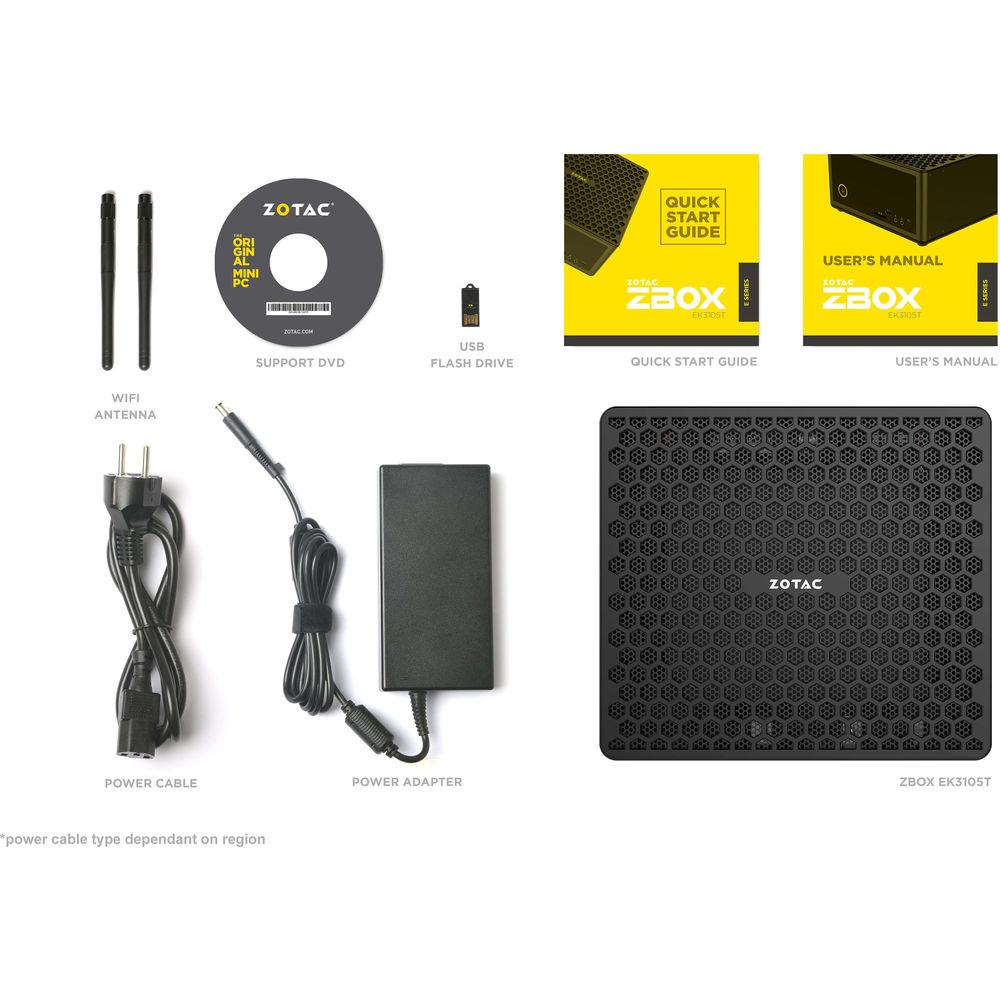

Product description The ZBOX MAGNUS EK3105T Mini Desktop Computer from Zotac has a compact design for users who require a space-saving computing solution. As a barebones system, it's equipped with a 3.0 GHz Intel Core i3-7100H dual-core processor and an NVIDIA GeForce GTX 1050 Ti graphics card. It also supports up to 32GB of 2400 MHz DDR4 RAM and has an M.2 slot, which can be used with Intel Optane as well as NVMe drives for faster performance. Other integrated features include multiple USB and video-out ports, an SDXC card reader, 802.11n Wi-Fi, Bluetooth 4.2, and audio in/out jacks. Please note that you will have to install an operating system, storage, and memory. UPC: 816264019166 In the Box ZOTAC ZBOX MAGNUS EK3105T Mini Desktop Computer Wi-Fi Antenna USB Drive with OS Driver Driver Disc Power Cable & Adapter Limited 2-Year Warranty More info from ZOTAC Table of Contents
|
Upload User Manual
Have you got an user manual for the ZOTAC ZBOX MAGNUS EK3105T Mini Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

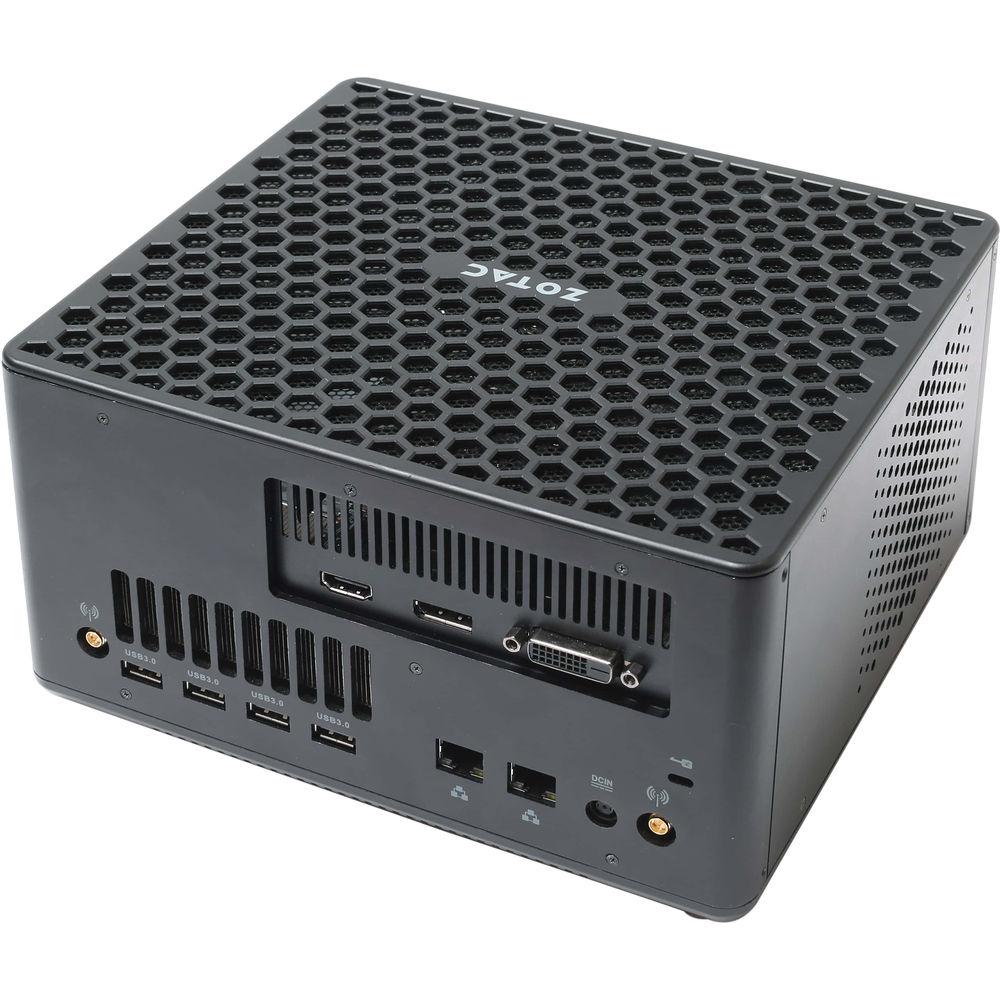

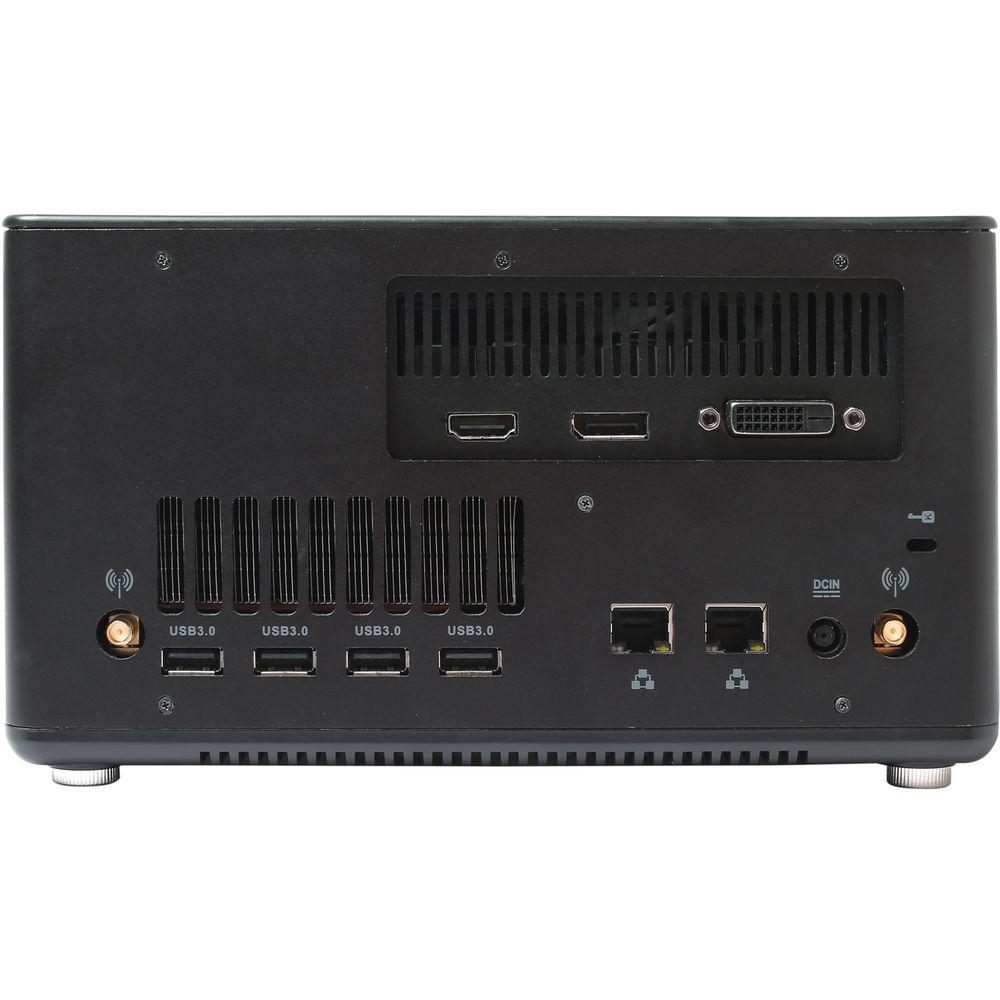

Technical parametersZOTAC MAGNUS EK3105T Specs | | | CPU Socket | BGA 1440 | | CPU | 3 GHz Intel Core i3-7100H Dual-Core | | L3 Cache | 3 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | None | | Memory Configuration | None | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 2 | | Buffered Memory | No | | ECC Memory | No | | Graphics Type | Dedicated | | GPU | NVIDIA GeForce GTX 1050 Ti with 4 GB GDDR5 VRAM | | | | Total Drive Bays | 1 x 2.5" (Internal) | | SSD Slots | 1 x M.2 | | Hard Disk Storage | None | | Optical Drive | None | | | | Ports | 1 x USB Type-A (USB 3.1 Gen 2)
4 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x USB 3.1 Gen 2 | | Display | 1 x HDMI 2.0
1 x DisplayPort 1.4
1 x DVI-D | | Audio | 1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Microphone Input | | Media Card Slots | 1 x SDXC | | | | Ethernet | 2 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 4 (802.11n) | | Bluetooth | 4.2 | | | | Power Supply | 230 W | | Dimensions | 8.9 x 5 x 8" / 225 x 128 x 203 mm |
