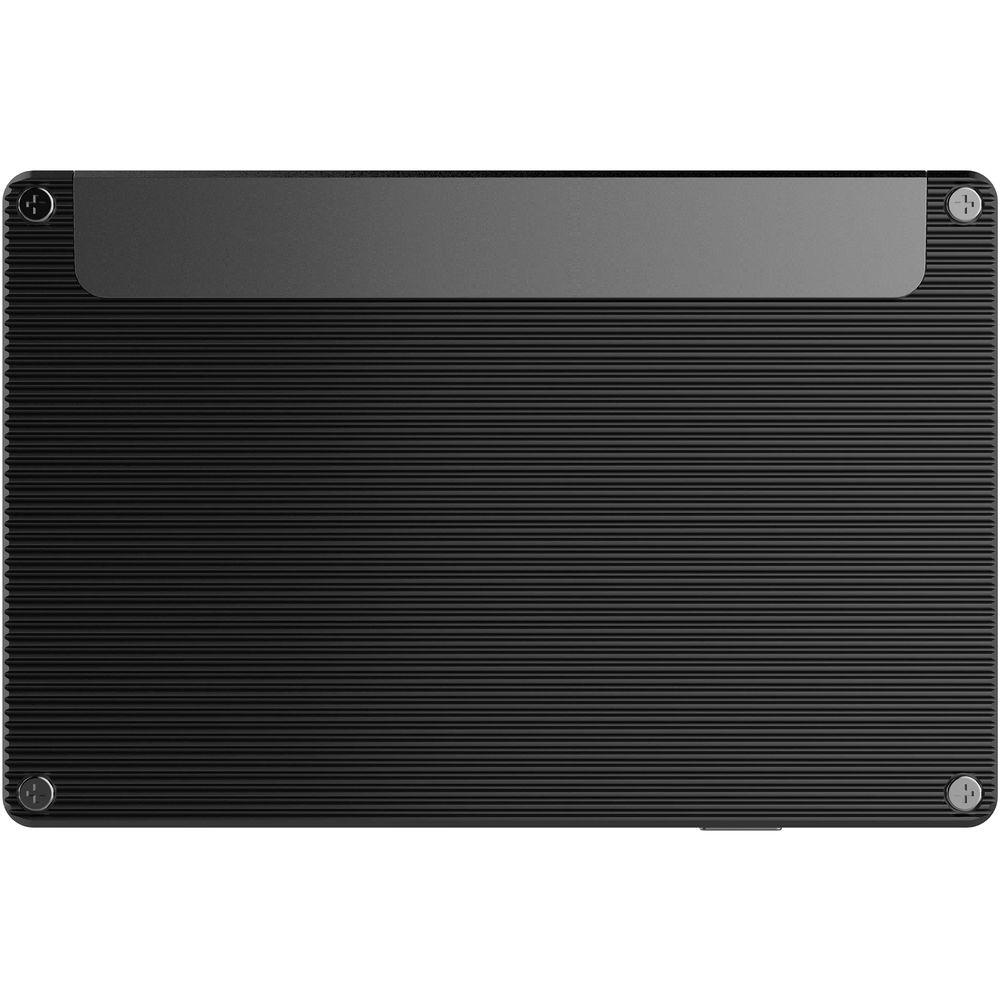

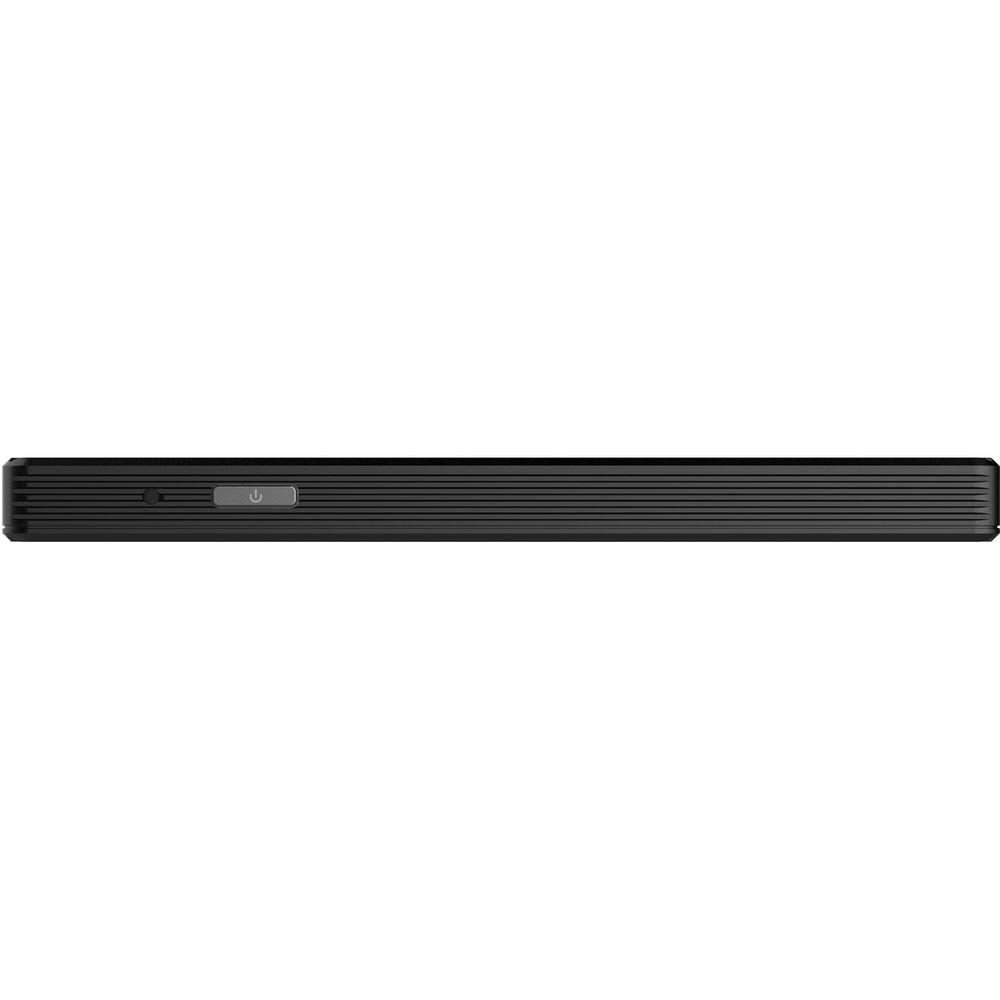

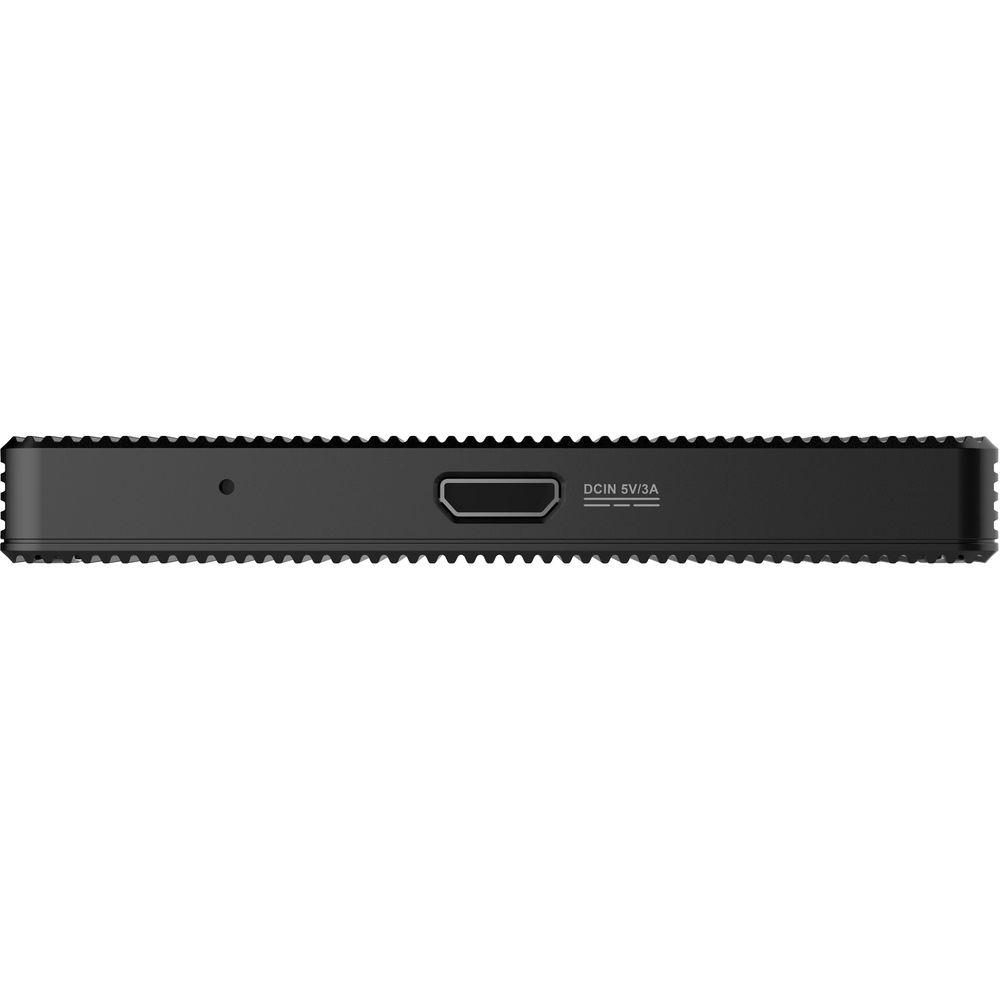

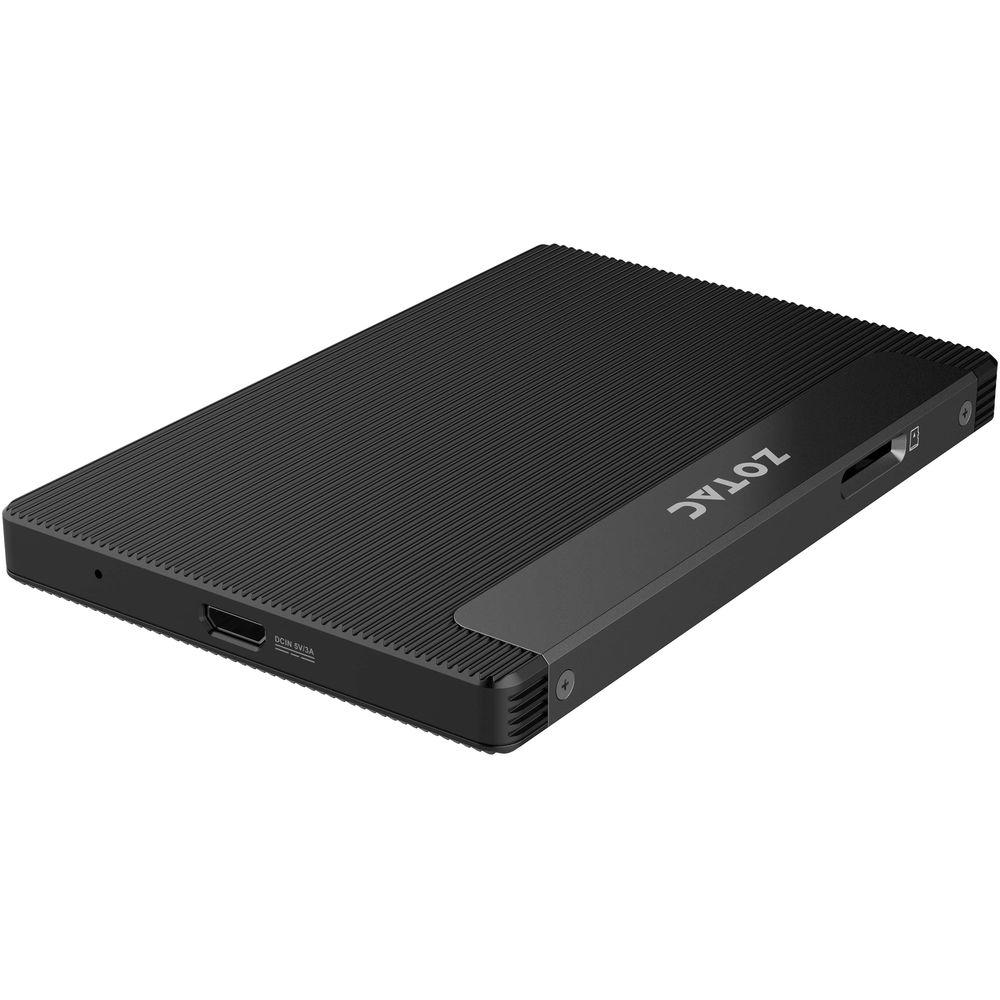

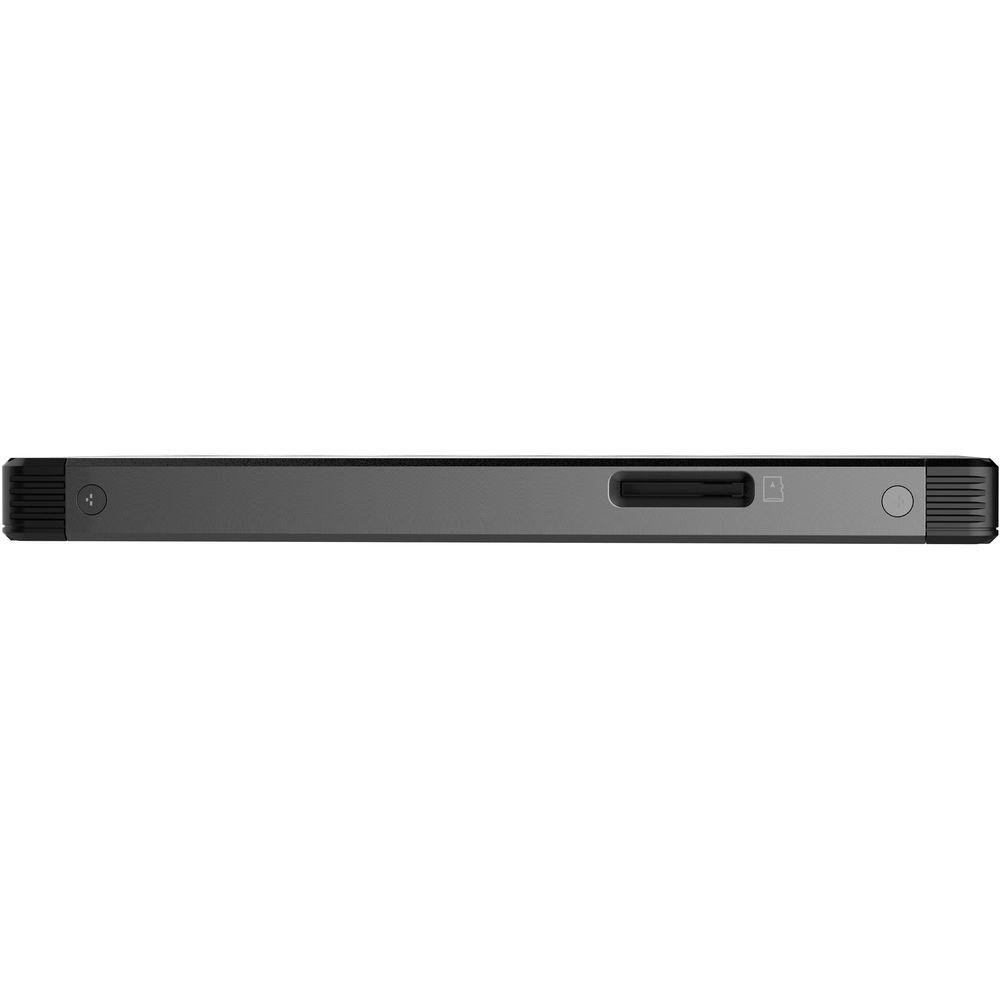

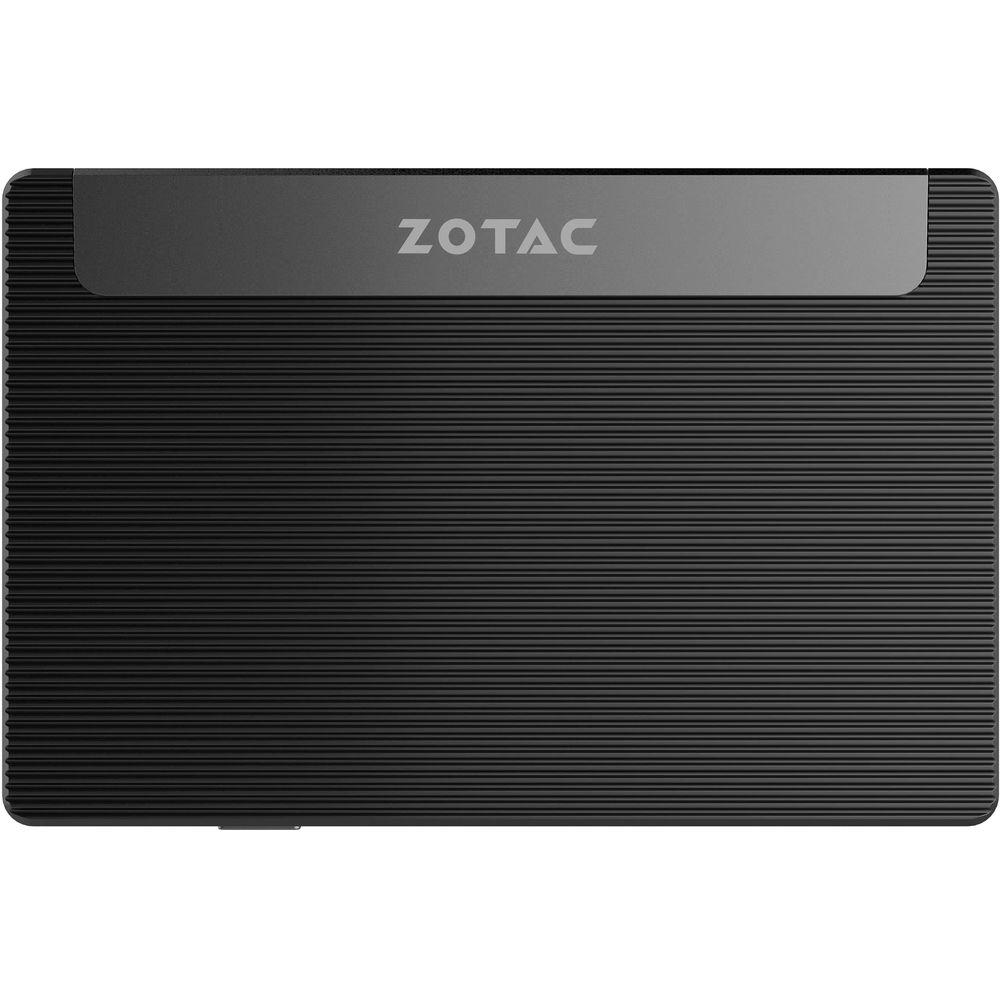

Product description The ZOTAC ZBOX PI225 pico Gemini Lake Mini Desktop Computer combines desktop performance with mobile flexibility, all within a system that has the footprint of a 2.5" SSD. Its performance is nearly silent, as it features fanless passive cooling and no moving parts.

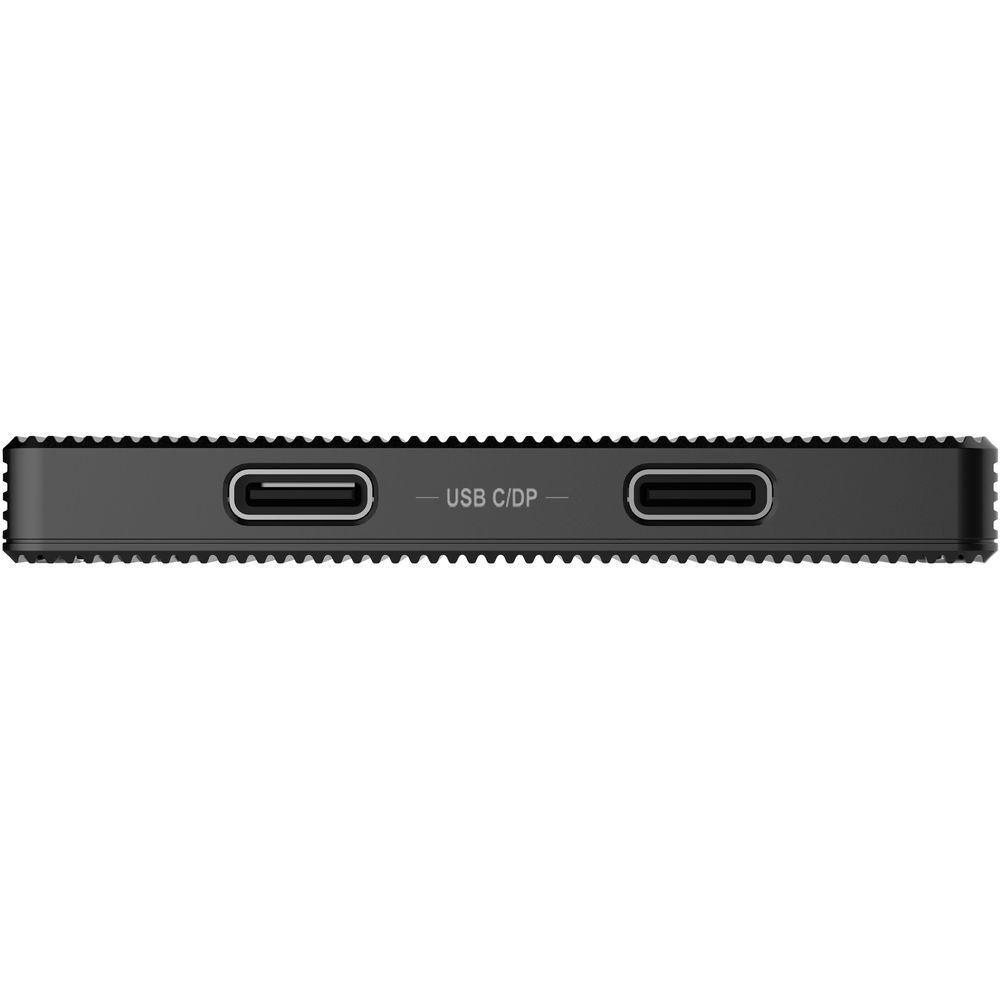

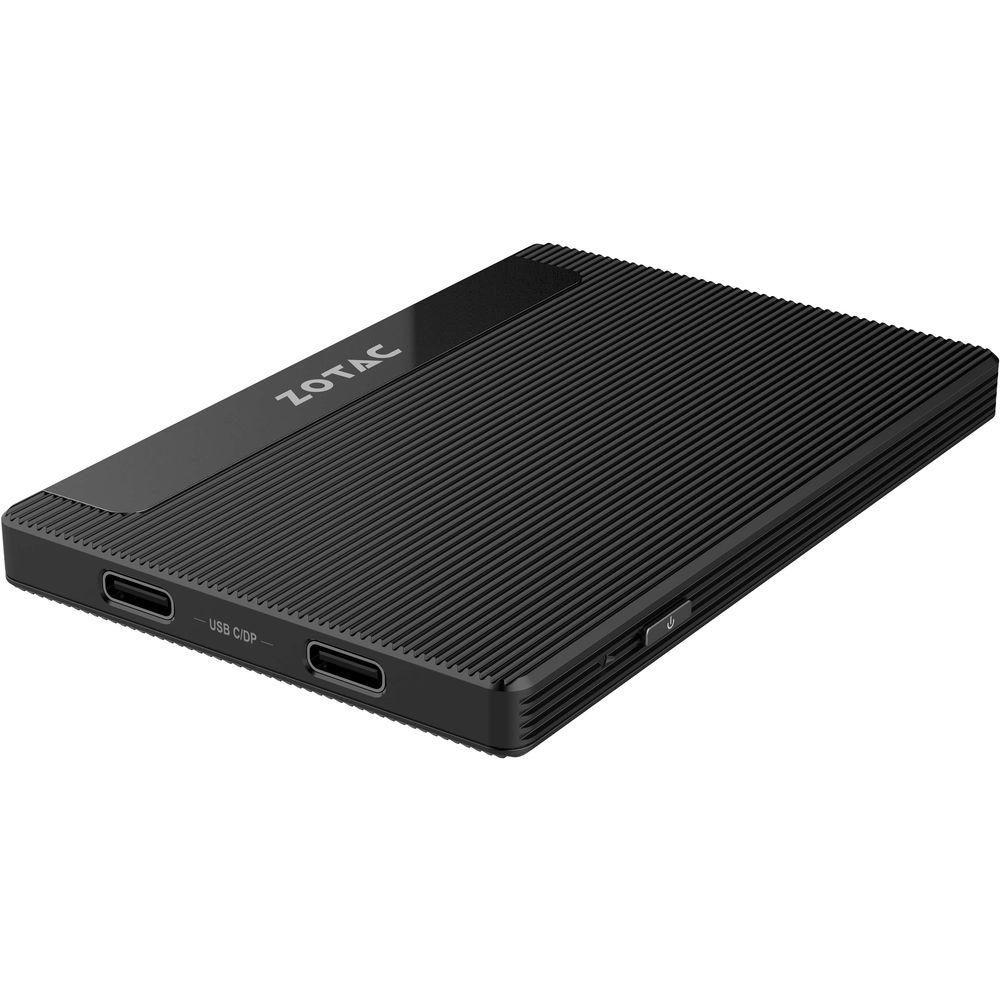

The ZBOX PI225 is powered by a 1.1 GHz Intel N4000 dual-core processor, which features a burst speed of up to 2.6 GHz, 4GB of LPDDR4 onboard RAM, and 32GB of eMMC Storage. Network connectivity is achieved using Wi-Fi 5 (802.11ac), while compatible wireless peripherals, such as keyboards, mice, and headsets can be paired using Bluetooth 5.0 technology. For wired peripherals, there are two USB 3.1 Gen 1 Type-C ports that support DisplayPort video output at resolutions up to 4096 x 2160 @ 30 Hz, as well as HDMI. For those who need to interface with USB Type-A devices, the USB Type-C to HDMI adapter also has two USB Type-A ports. Additionally, there is audio output support for digital 8-channel lossless bit stream. Windows 10 Home (64-bit) is the installed operating system. General Features - Small Footprint, Big Impact
- The ZOTAC ZBOX PI225 is a small and thin mini desktop computer. It has a width that's just a tad longer than a credit card and a height that is a bit taller than a typical 2.5" SSD. This form factor brings the performance of a desktop system to those who need performance that fits in their pocket.
- A Symphony of Silence
- The ZBOX PI225 is virtually silent, thanks to its passive fan cooling and solid-state components, which means no moving parts, allowing it to perform longer.
- "Mini" More Possibilities
- Powered by a 1.1 GHz Intel Celeron N4000 dual-core processor, 4GB of LPDDR4 RAM, and 4K video output, this system has a can suit a wide range of needs. Additionally, thanks to an included VESA mounting bracket, it can be hung on a wall, tucked away inside an empty space, or embedded into an existing system or display.
- Stay Connected
- With support for 802.11ac Wi-Fi and Bluetooth 4.2, as well as two USB 3.0 Type-C ports, both wired and wireless peripherals can be easily paired with the ZBOX. The mini PC provides an HDMI port and two USB 3.1 Gen 1 Type-C ports for added convenience.
- Plug-and-Play Simplicity
- With Windows 10 Home pre-installed, simply connect power and peripherals to get going as soon as you're unpacked. No matter where you are, the bundled universal power adapter and interchangeable tips allow simple and convenient power.

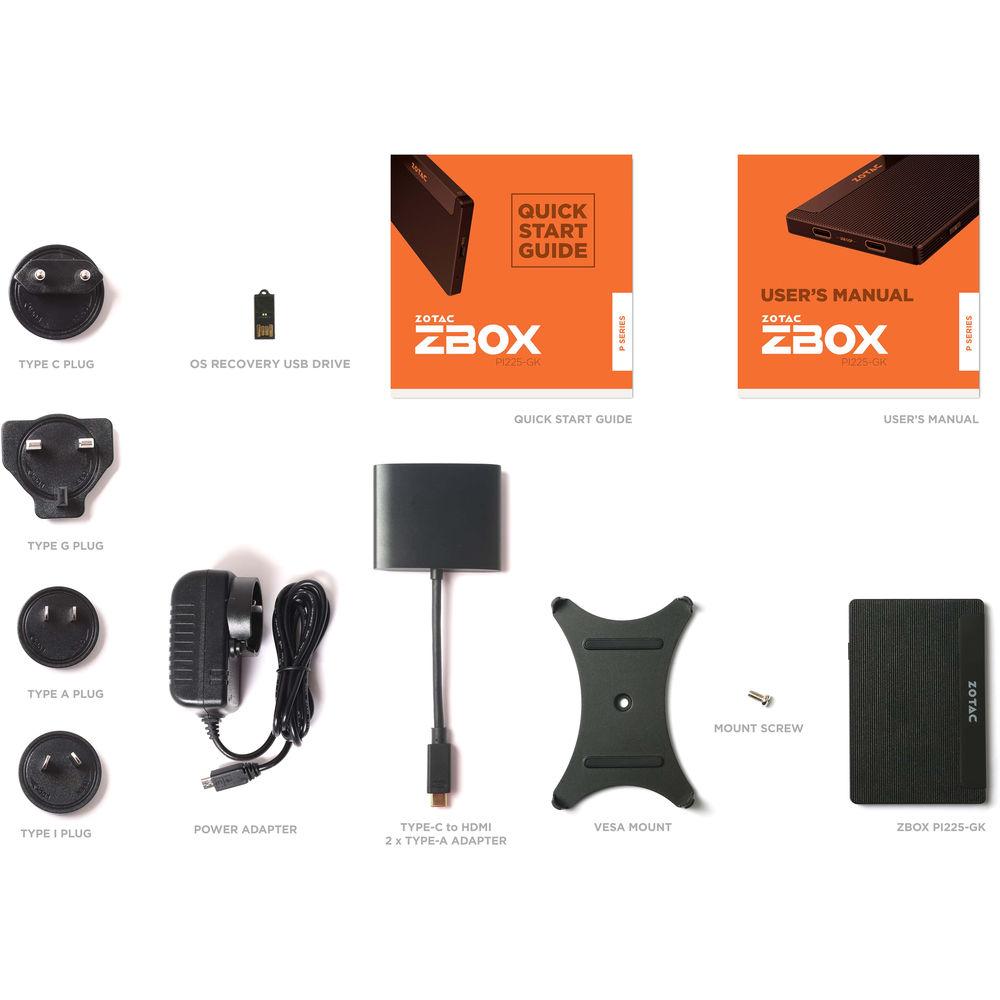

UPC: 816264019425 In the Box ZOTAC ZBOX PI225 pico Gemini Lake Mini Desktop Computer Universal Power Adapter with Multiple Plugs Mounting Bracket Mounting Screw USB Type-C to HDMI / 2 x USB Type-A Adapter OS Recovery USB Flash Drive Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZOTAC ZBOX PI225 pico Gemini Lake Mini Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZOTAC ZBOX PI225 pico Specs | Operating System | Windows 10 Home (64-Bit) | | | | CPU | 1.1 GHz Intel Celeron N4000 Dual-Core | | Maximum Boost Speed | 2.6 GHz | | L3 Cache | 4 MB | | Memory Type | LPDDR4 | | Total Installed Memory | 4 GB | | Memory Configuration | 1 x 4 GB (Onboard) | | Maximum Memory Capacity | 4 GB | | Available Memory Slots | None | | Graphics Type | Integrated | | GPU | Intel UHD Graphics 600 | | | | Total Drive Bays | None | | Solid State Storage | 1 x 32 GB Integrated eMMC | | PCI Expansion | None | | Optical Drive | None | | | | USB Type-C Ports | 2 x USB 3.1 Gen 1 | | Display | 1 x HDMI | | Audio | None | | Media Card Slots | 1 x microSDXC | | | | Wi-Fi | Wi-Fi 5 (802.11ac) | | Bluetooth | 5.0 | | | | Dimensions | 3.8 x 2.5 x 0.3" / 9.7 x 6.3 x 0.8 cm | | | | Package Weight | 1.155 lb | | Box Dimensions (LxWxH) | 7.15 x 7.1 x 2.3" |
