ZOTAC ZBOX QK5P1000 Mini Desktop Computer

Search your instruction manual in PDF to download

User Manual for ZOTAC ZBOX QK5P1000 Mini Desktop Computer

Click to enlarge the picture
ZOTAC ZBOX QK5P1000 Mini Desktop Computer Contents of the user manual for the ZOTAC ZBOX QK5P1000 Mini Desktop Computer
  • Product category: Barebone PCs ZOTAC
  • Brand: ZOTAC
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ZOTAC Barebone PCs

ZOTAC ZBOX QK5P1000 Mini Desktop Computer ZOTAC ZBOX QK5P1000 Mini Desktop Computer ZOTAC ZBOX QK5P1000 Mini Desktop Computer ZOTAC ZBOX QK5P1000 Mini Desktop Computer ZOTAC ZBOX QK5P1000 Mini Desktop Computer ZOTAC ZBOX QK5P1000 Mini Desktop Computer ZOTAC ZBOX QK5P1000 Mini Desktop Computer ZOTAC ZBOX QK5P1000 Mini Desktop Computer ZOTAC ZBOX QK5P1000 Mini Desktop Computer
User manual for the ZOTAC ZBOX QK5P1000 Mini Desktop Computer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ZOTAC product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ZOTAC user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ZOTAC product will considerably shorten its lifespan!



Product description

  • ZOTAC ZBOX Q SERIES Lite-Workstation QK5P1000 with NVIDIA Quadro Mini PC Unboxing
Built for graphics- and data-intensive tasks such as CAD & industrial designs, VR designs, special effects rendering, video editing, computing complex data sets, imaging, architectural design, scientific visualizations, and multi-display setups, the ZBOX QK5P1000 Mini Desktop Computer from ZOTAC brings the power normally found in larger desktops into a smaller footprint. To that end, the QK5P1000 is equipped with a 2.5 GHz Intel Core i5-7200 dual-core processor, which features a boost speed of up to 3.1 GHz, as well as a dedicated NVIDIA Quadro P1000 graphics card, which is equipped with 4GB of GDDR5 RAM and supports resolutions up to 4K @ 60 Hz using its four HDMI 2.0 video outputs.

Aside from the included processor and graphics card, the ZBOX QK5P1000 is primarily a bare-bones system and does not include an operating system, memory, or internal storage, which will allow users to configure it as they'd like. While the only compatible operating system is Windows 10 (64-bit), two 260-pin SO-DIMM memory slots support up to a total 32GB of 2400/2133 MHz DDR4 RAM. There is also flexibility in configuring the internal storage, as there is one 2.5" SATA III drive bay, as well as one M.2 slot that supports 2242, 2260, and 2280 SATA and NVMe SSDs.

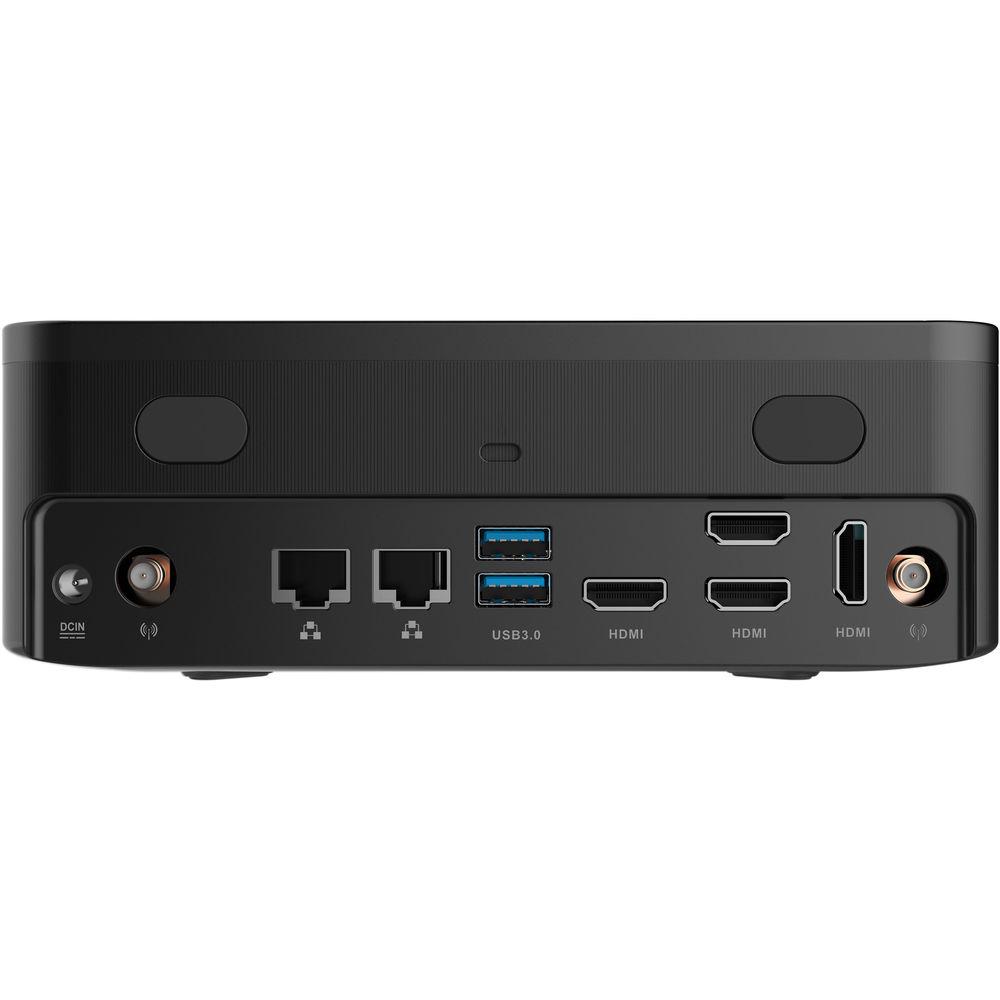

The ZBOX QK5P1000 is rounded out with plenty of external connectivity, including three USB 3.1 Gen 1 Type-A ports and a card reader that supports SD, SDHC, and SDXC media. Network connectivity is achieved using dual Gigabit Ethernet ports, or if you need to stay mobile, use 802.11ac Wi-Fi. Bluetooth 4.2 technology is also available for wirelessly connecting peripherals such as keyboards, mice, headsets, and more.

ZOTAC's ZBOX QK5P1000 Mini Desktop Computer includes a Wi-Fi antenna, a 120W AC adapter, a power cord, a USB drive with an OS driver, and a driver disc. Protection is provided by a limited 2-year warranty.

General Features

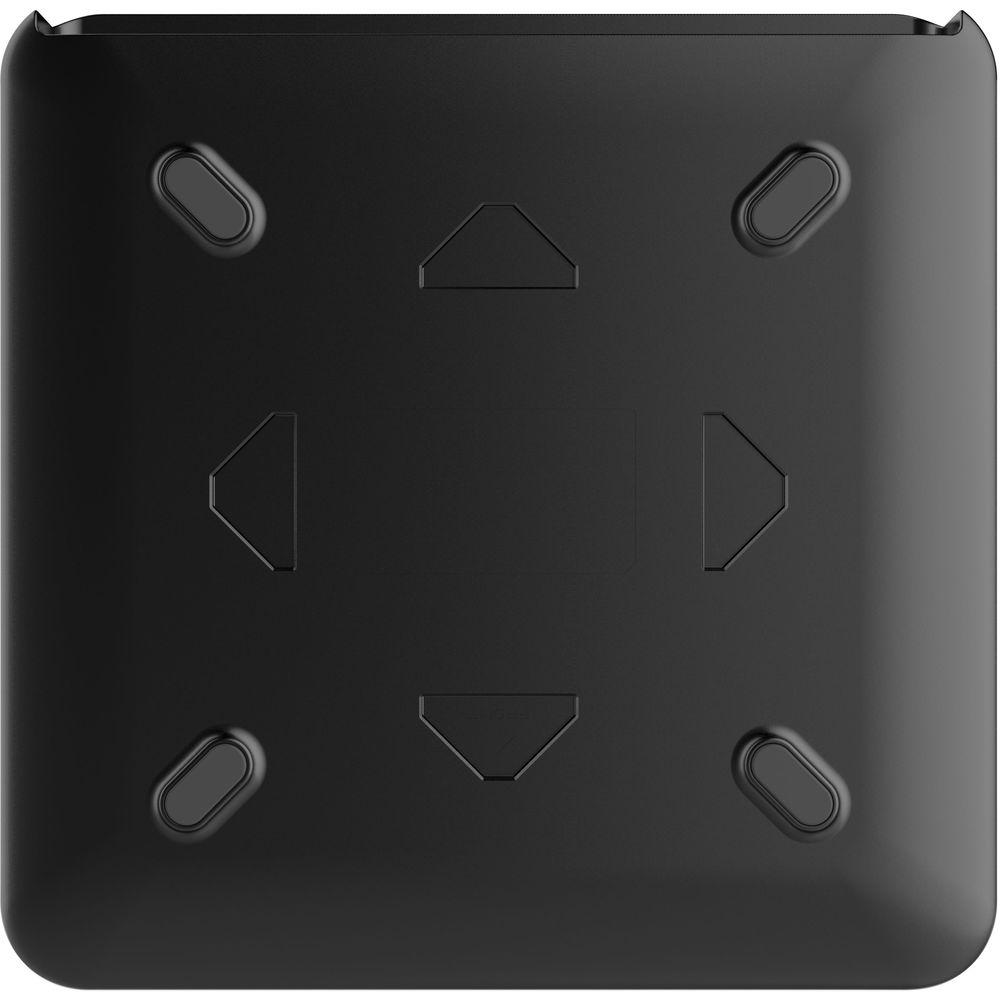

  • Ventilated bottom cover enables air intake and simple access to memory and storage expansion

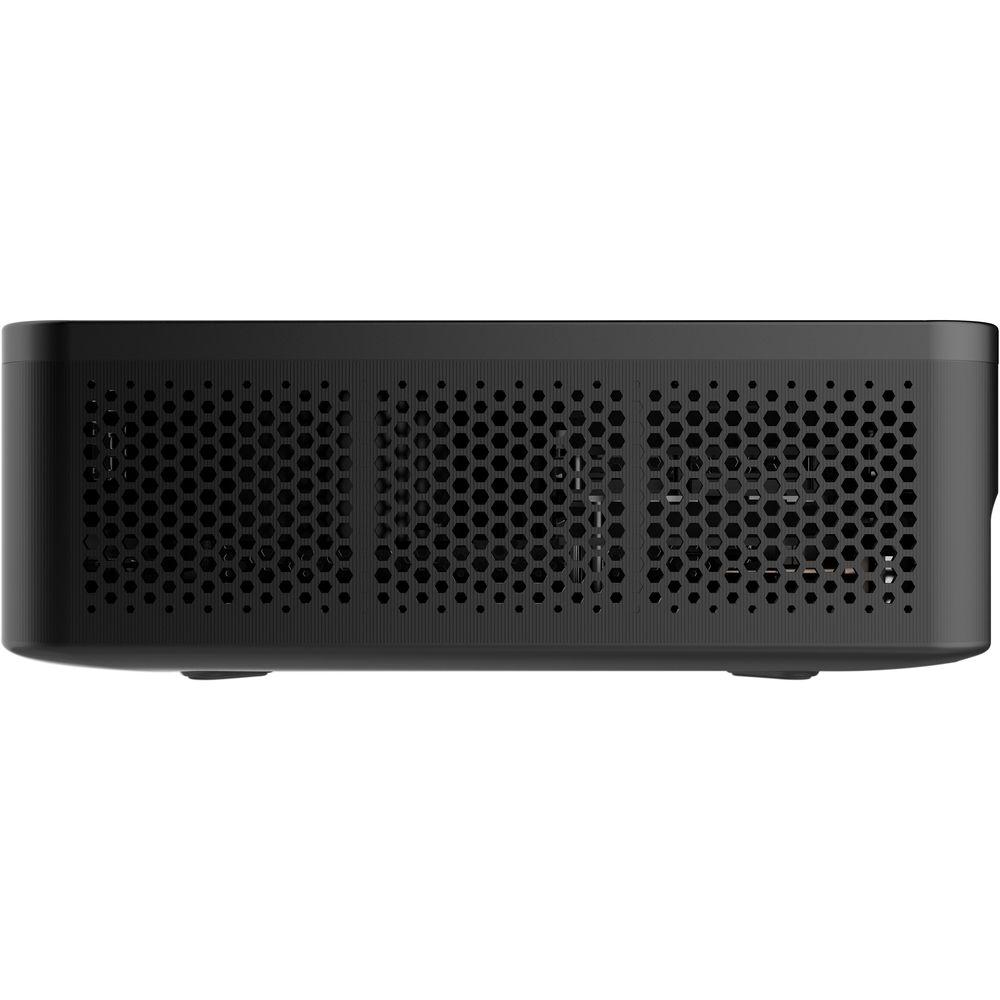

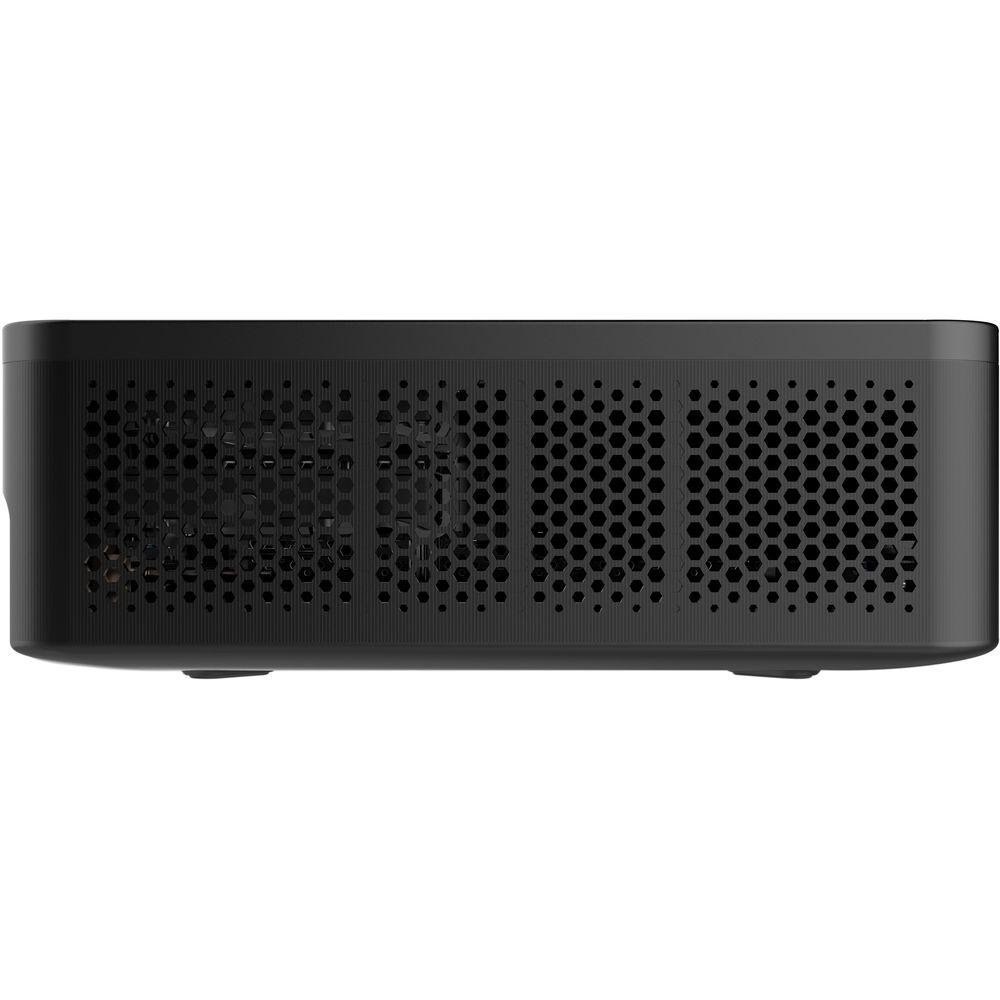

  • Aluminum body with widened ventilation for increased heat outflow
  • Doubling the cool air intake and increasing the surface area of the GPU helps ensure improved sustained performance
  • Targeted ventilation placement helps balance noise levels and cool air intake

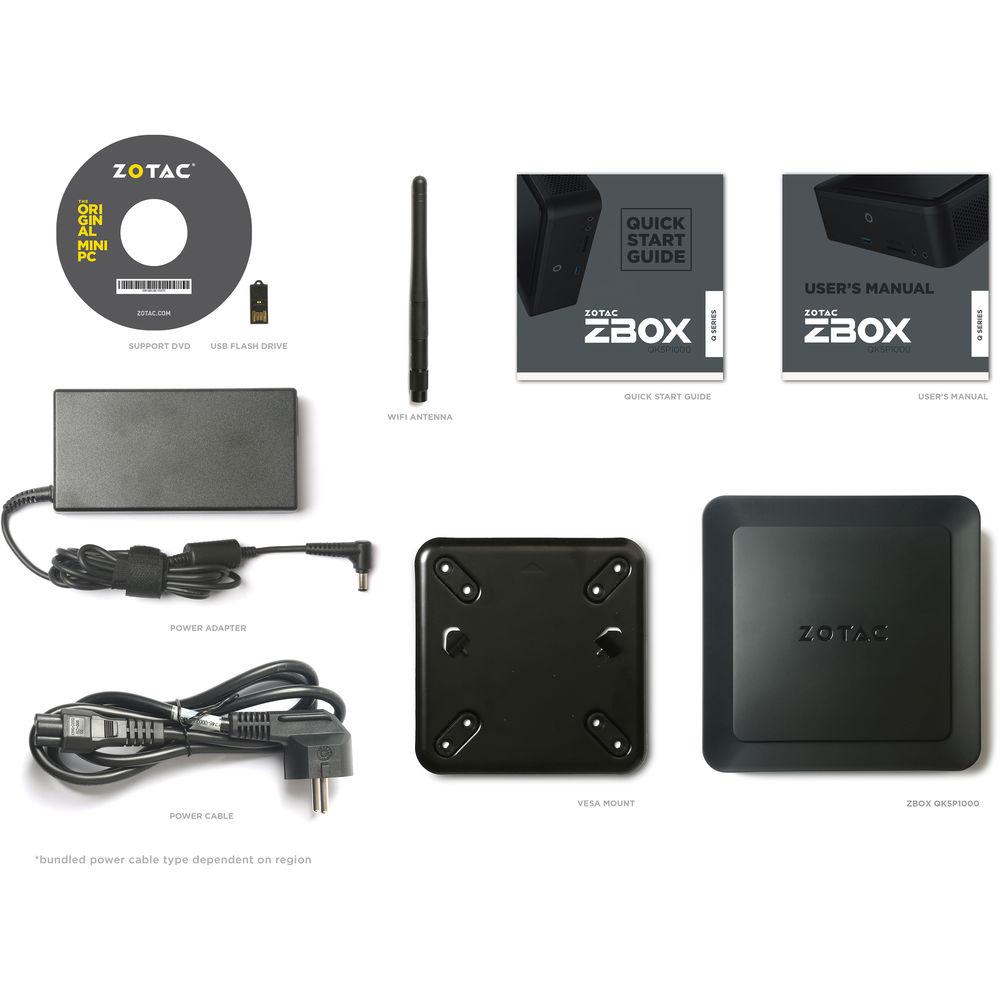

UPC: 816264018855 In the Box ZOTAC ZBOX QK5P1000 Mini Desktop Computer
  • 120W AC Adapter
  • Power Cord
  • Wi-Fi Antenna
  • USB Drive with OS Driver
  • Driver Disc
  • VESA Mount with 4 Screws
  • Limited 2-Year Warranty
  • More info from ZOTAC Table of Contents




    Upload User Manual

    Have you got an user manual for the ZOTAC ZBOX QK5P1000 Mini Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ZOTAC ZBOX-QK5P1000 Specs

    Operating System None
    CPU Socket LGA 1356
    CPU 2.5 GHz Intel Core i5-7200 Dual-Core
    Maximum Boost Speed 3.1 GHz
    L3 Cache 3 MB
    Memory Type 2400 MHz DDR4
    Total Installed Memory None
    Memory Configuration None
    Maximum Memory Capacity 32 GB
    Memory Slot Type 260-Pin DIMM
    Available Memory Slots 2
    Graphics Type Dedicated
    GPU NVIDIA Quadro P1000 with 4 GB GDDR5 VRAM
    Total Drive Bays 1 x 2.5" (Internal)
    SSD Slots 1 x M.2
    Hard Disk Storage None
    PCI Expansion None
    Optical Drive None
    Ports 3 x USB Type-A (USB 3.1 Gen 1)
    Display 4 x HDMI 2.0
    Audio 1 x 1/8" / 3.5 mm Headphone Output
    1 x 1/8" / 3.5 mm Microphone Input
    Media Card Slots 1 x SDXC
    Ethernet 2 x RJ45 (Gigabit)
    Wi-Fi Wi-Fi 5 (802.11ac)
    Bluetooth 4.2
    Power Supply 180 W
    Dimensions 7.3 x 7.3 x 2.8" / 184.6 x 184.6 x 71.5 mm
    Package Weight 5.115 lb
    Box Dimensions (LxWxH) 11.1 x 10.6 x 5.2"
