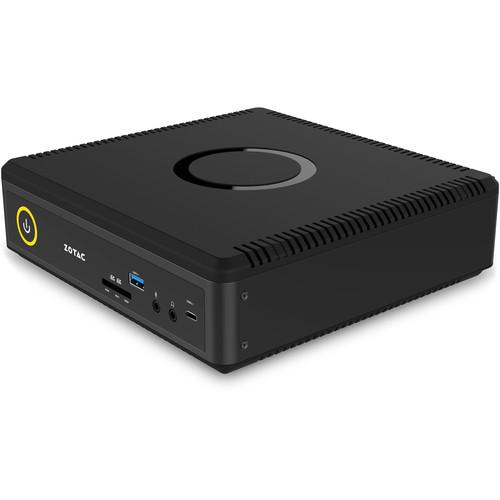

Product description - ZOTAC ZBOX Q SERIES Workstation QK7P3000 with NVIDIA Quadro Mini PC Unboxing

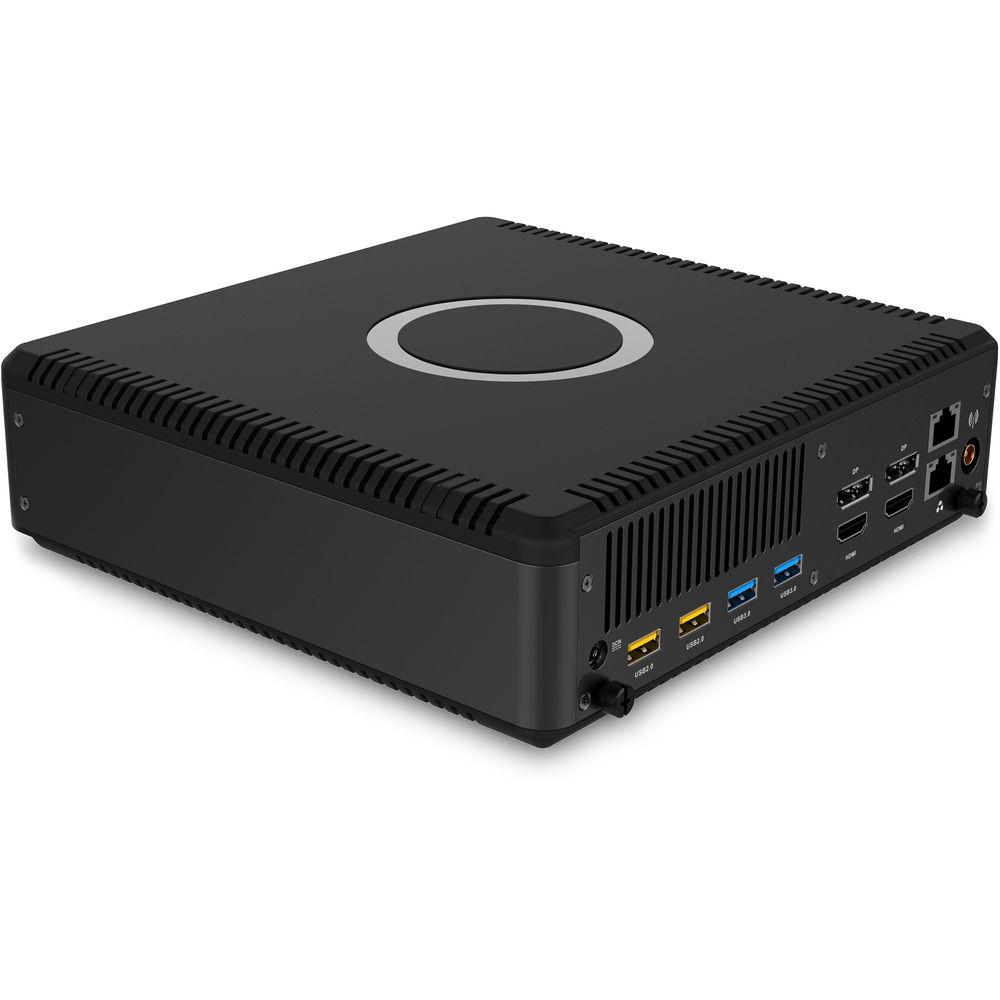

Built for graphic- and data-intensive tasks such as CAD & industrial designs, VR designs, special effects rendering, video editing, computing complex data sets, imaging, architectural design, scientific visualizations, and multi-display setups, the ZBOX QK7P3000 Mini Desktop Computer from ZOTAC brings the power normally found in larger desktops into a smaller footprint. To that end, the QK7P3000 is equipped with a 2.9 GHz Intel Core i7-7700T Quad-Core processor, which features a boost speed of up to 3.8 GHz, as well as a dedicated NVIDIA Quadro P3000 graphics card, which is equipped with 6GB of GDDR5 RAM and supports resolutions up to 4K @ 60 Hz using its two DisplayPort 1.4 and two HDMI 2.0 video outputs.
Aside from the included processor and graphics card, the ZBOX QK7P3000 is primarily a bare-bones system and does not include an operating system, memory, or internal storage, which will allow users to configure it as they'd like. While the only compatible operating system is Windows 10 (64-bit), two 260-pin SO-DIMM memory slots support up to a total 32GB of 2400/2133 MHz DDR4 RAM. There is also flexibility in configuring the internal storage, as there is one 2.5" SATA III drive bay, as well as one M.2 slot that supports 2242, 2260, and 2280 SATA and NVMe SSDs.

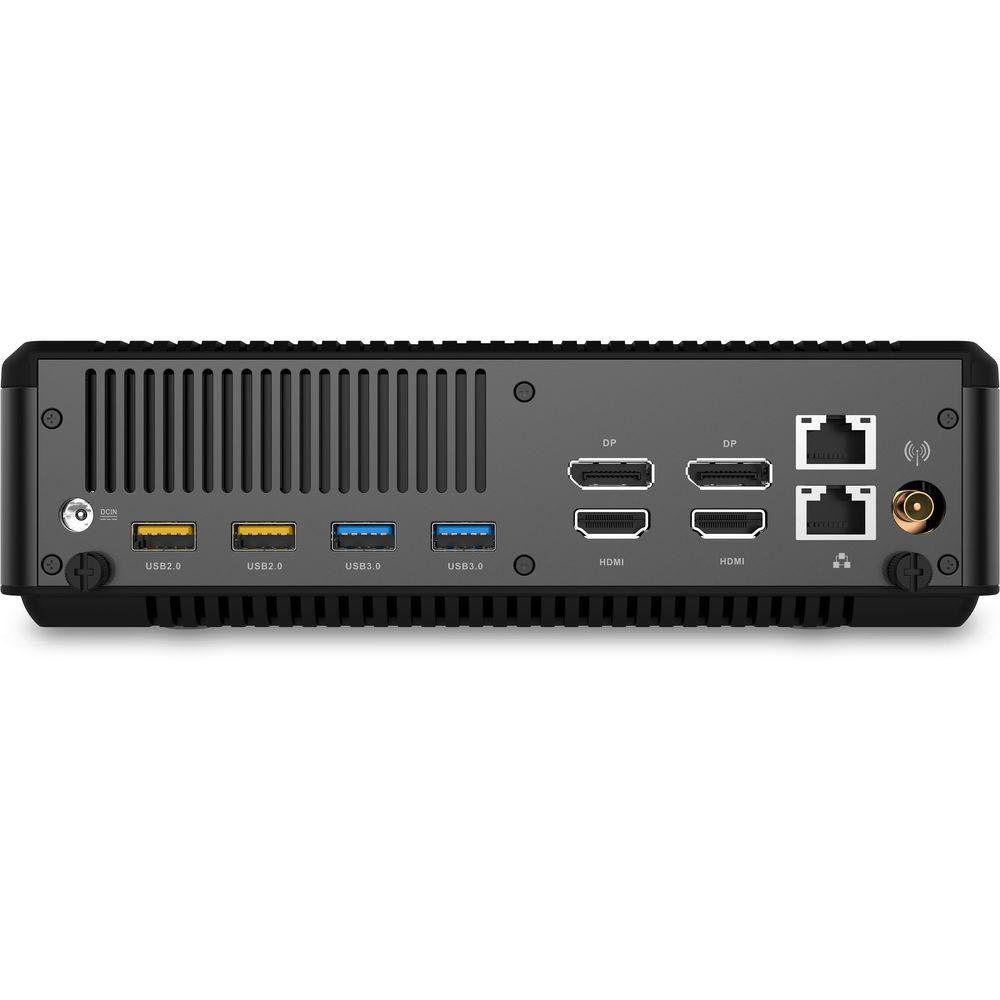

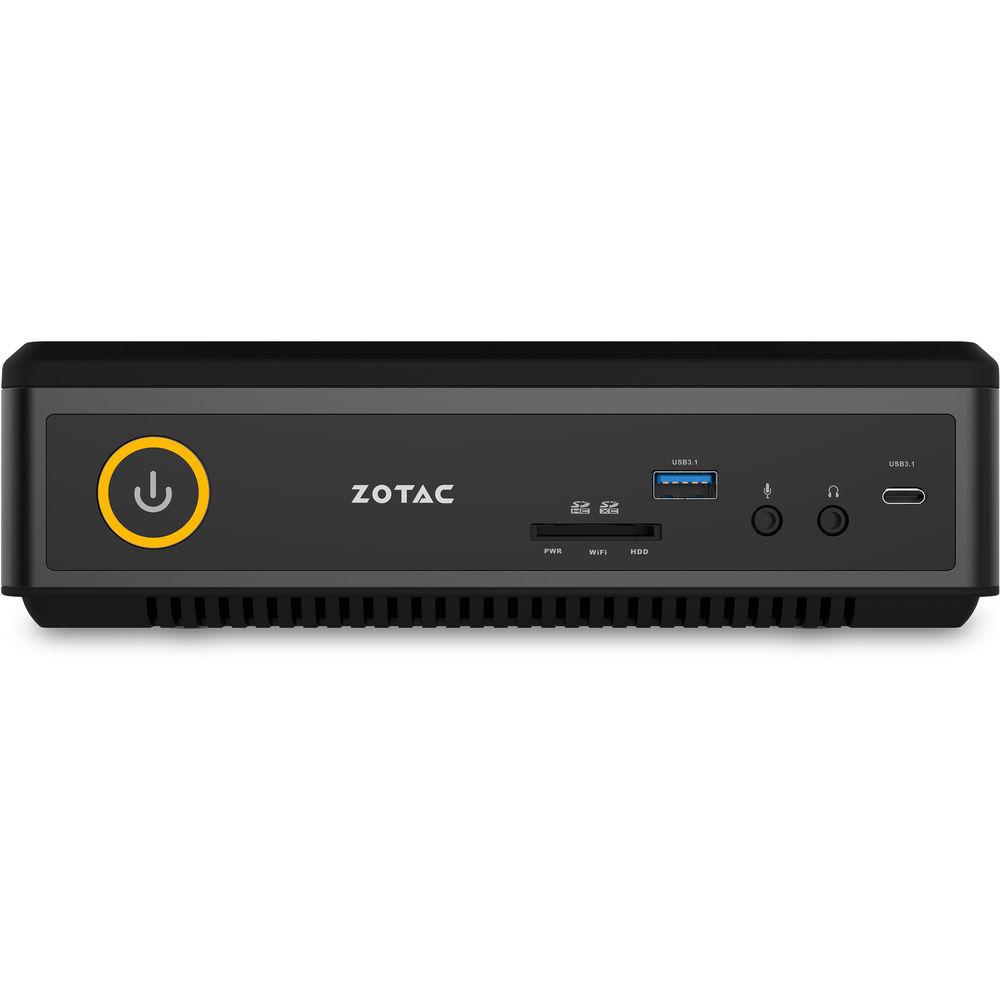

The ZBOX QK7P3000 is rounded out with plenty of external connectivity, including a USB 3.1 Gen 2 Type-C port, a USB 3.1 Gen 2 Type-A port, two USB 3.1 Gen 1 Type-A ports, two USB 2.0 Type-A ports, and a card reader that supports SD, SDHC, and SDXC media. Network connectivity is achieved using dual Gigabit Ethernet ports, or if you need to stay mobile, use 802.11ac Wi-Fi. Bluetooth 4.2 technology is also available for wirelessly connecting peripherals such as keyboards, mice, headsets, and more.

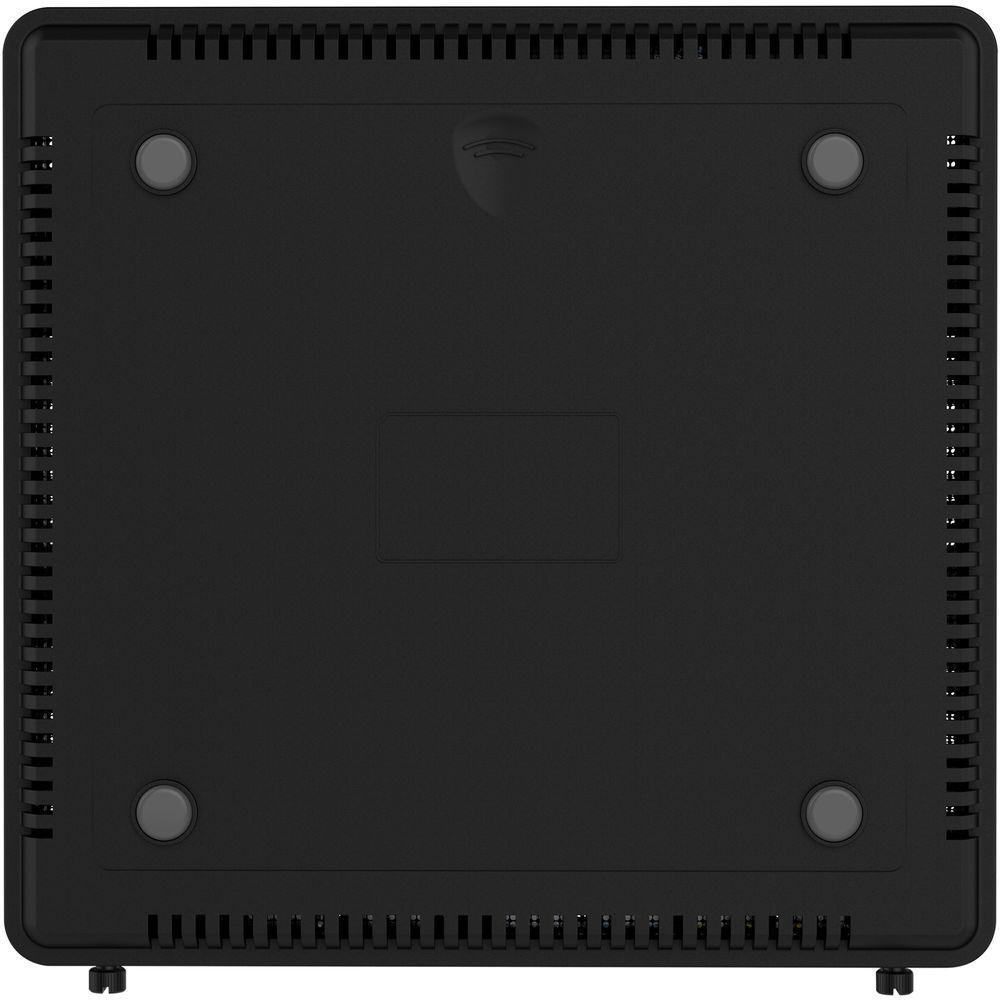

ZOTAC's ZBOX QK7P3000 Mini Desktop Computer includes a Wi-Fi antenna, a 180W AC adapter, a power cord, a USB drive with an OS driver, and a driver disc. Protection is provided by a limited 2-year warranty. General Features - Ventilated bottom cover enables air intake and simple access to memory and storage expansion

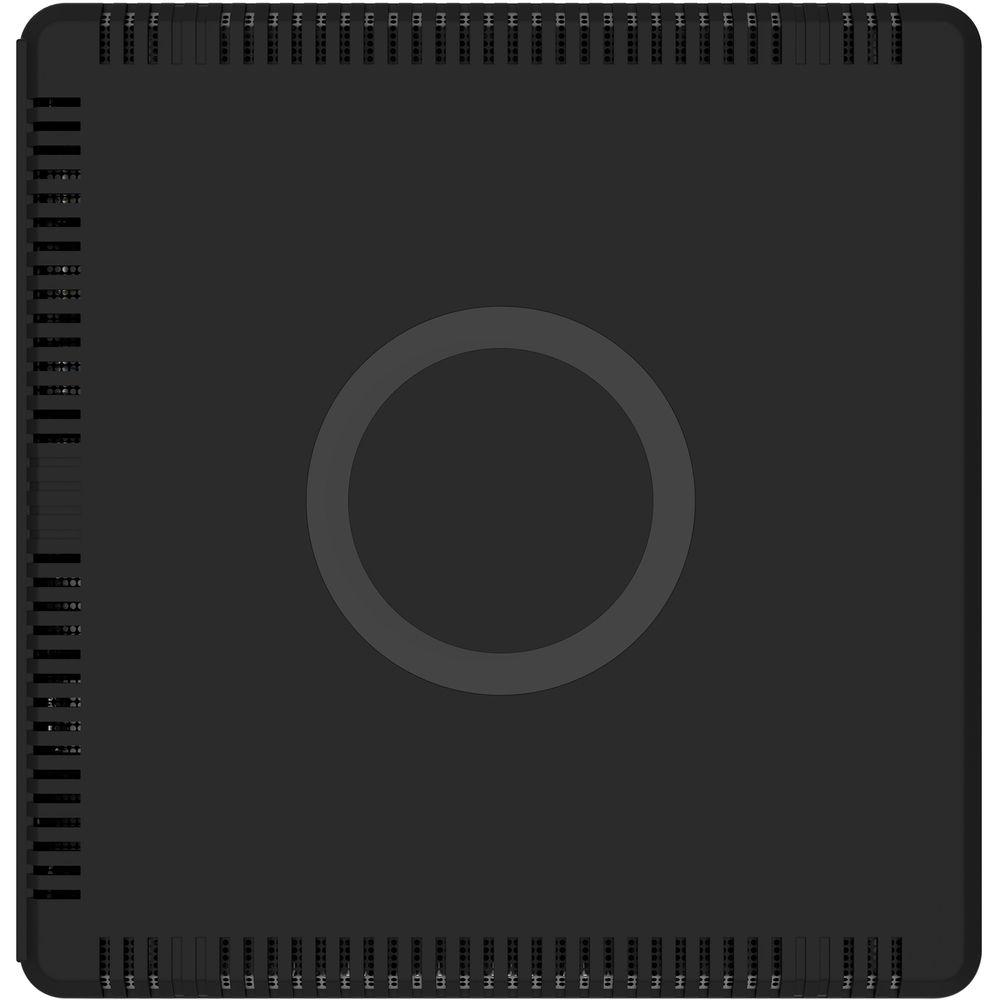

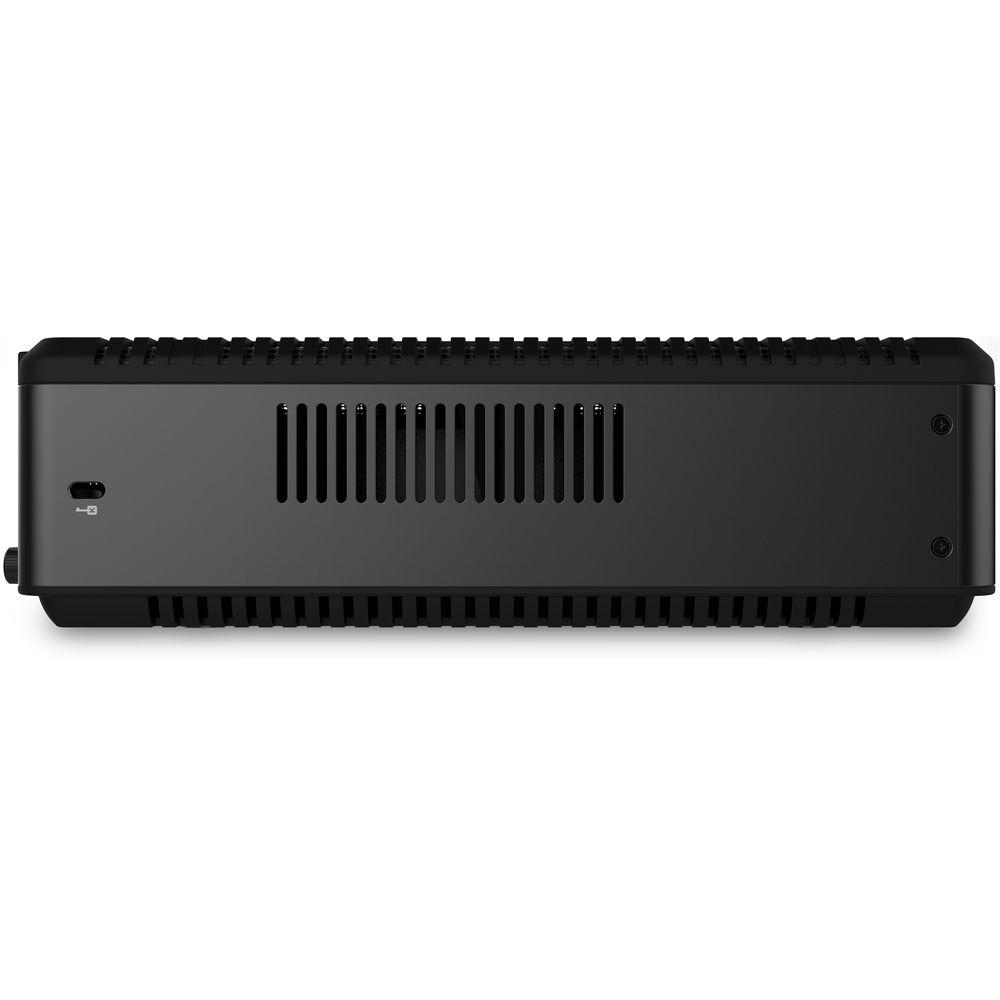

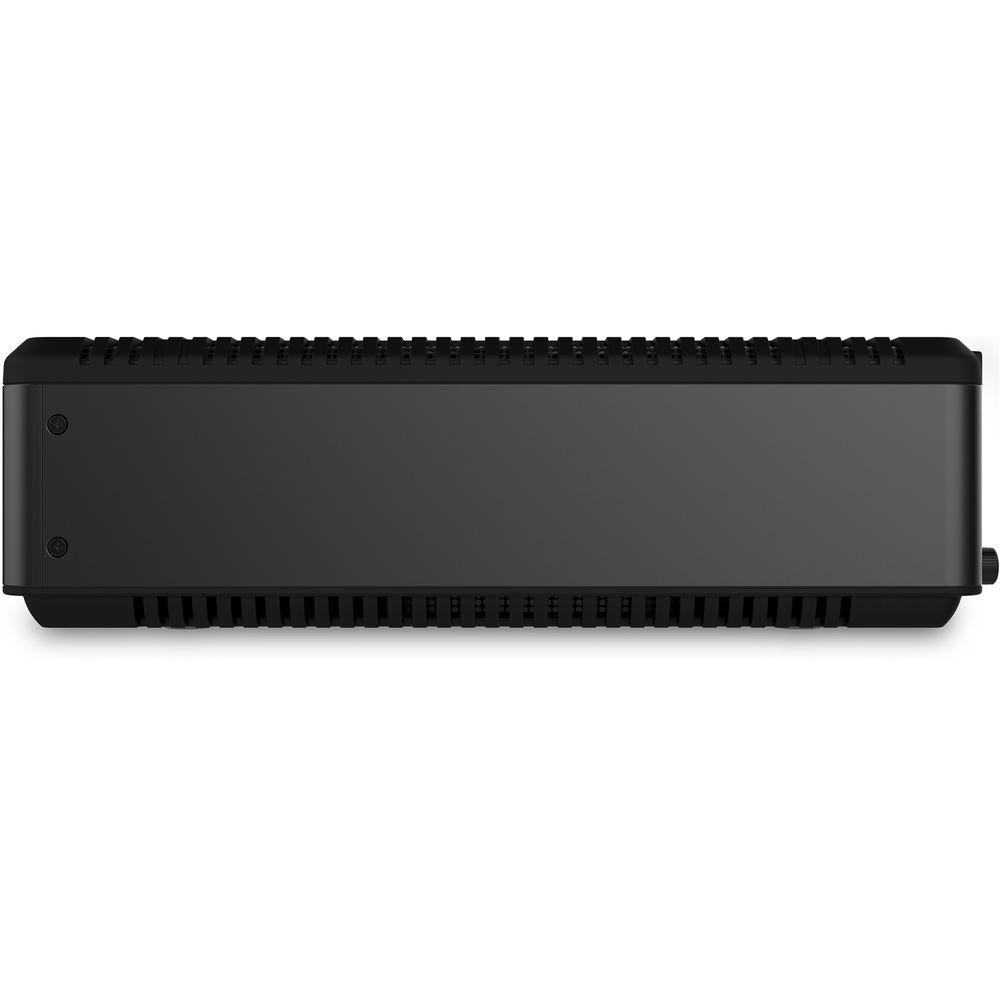

- Aluminum body with widened ventilation for increased heat outflow
- Doubling the cool air intake and increasing the surface area of the GPU helps ensure improved sustained performance
- Targeted ventilation placement helps balance noise levels and cool air intake

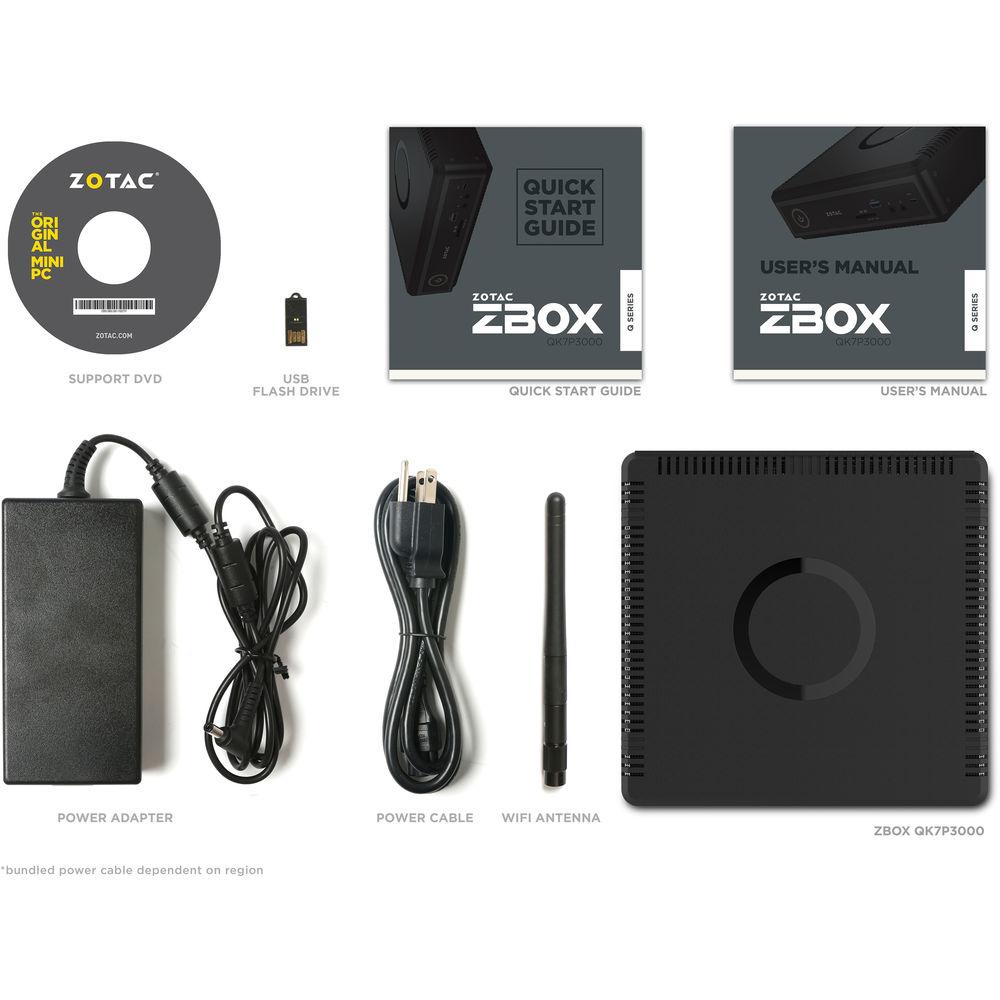

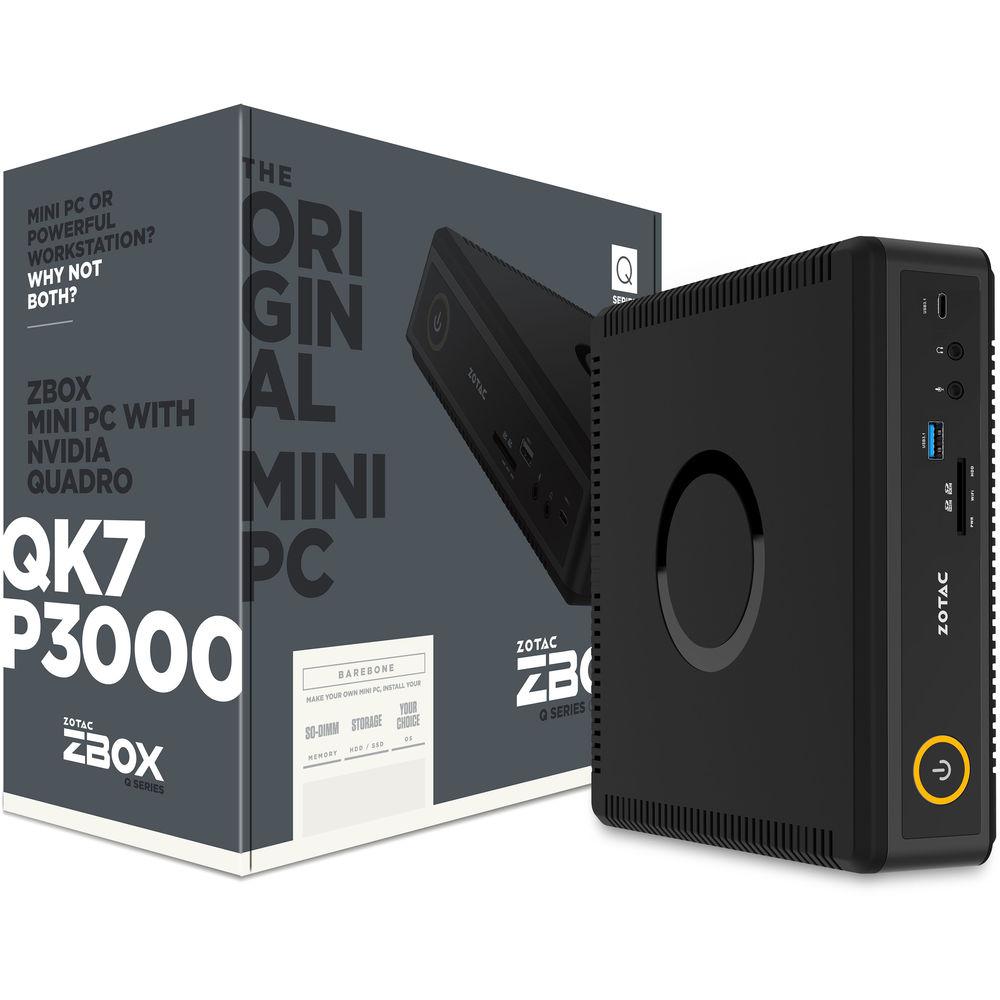

UPC: 816264018862 In the Box ZOTAC ZBOX QK7P3000 Mini Desktop Computer 180W AC Adapter Power Cord Wi-Fi Antenna USB Drive with OS Driver Driver Disc Limited 2-Year Warranty More info from ZOTAC exbeywfcdddzdqrcazfudwzdbaxzsx Table of Contents
|
Upload User Manual
Have you got an user manual for the ZOTAC ZBOX QK7P3000 Mini Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZOTAC ZBOX-QK5P1000 Specs | | | CPU | 2.9 GHz Intel Core i7-7700T Quad-Core | | Maximum Boost Speed | 3.8 GHz | | L3 Cache | 8 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | None | | Memory Configuration | None | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin DIMM | | Available Memory Slots | 2 | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro P3000 with 6 GB GDDR5 VRAM | | | | Total Drive Bays | 1 x 2.5" (Internal) | | SSD Slots | 1 x M.2 | | Hard Disk Storage | None | | PCI Expansion | None | | Optical Drive | None | | | | Ports | 1 x USB Type-A (USB 3.1 Gen 2)
2 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0) | | USB Type-C Ports | 1 x USB 3.1 Gen 2 | | Display | 2 x HDMI 2.0
2 x DisplayPort 1.4 | | Audio | 1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Microphone Input | | Media Card Slots | 1 x SDXC | | | | Ethernet | 2 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac) | | Bluetooth | 4.2 | | | | Power Supply | 180 W | | Dimensions | 8.3 x 8 x 2.4" / 210 x 203 x 62.2 mm | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 10.8 x 10.6 x 5.2" |
