User Manual for ZVOX SB500 140W 3.2-Channel Soundbar Click to enlarge the picture
Contents of the user manual for the ZVOX SB500 140W 3.2-Channel Soundbar
- Product category: Soundbar Speakers ZVOX
- Brand: ZVOX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZVOX Soundbar Speakers
 |
User manual for the ZVOX SB500 140W 3.2-Channel Soundbar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZVOX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZVOX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZVOX product will considerably shorten its lifespan!
|

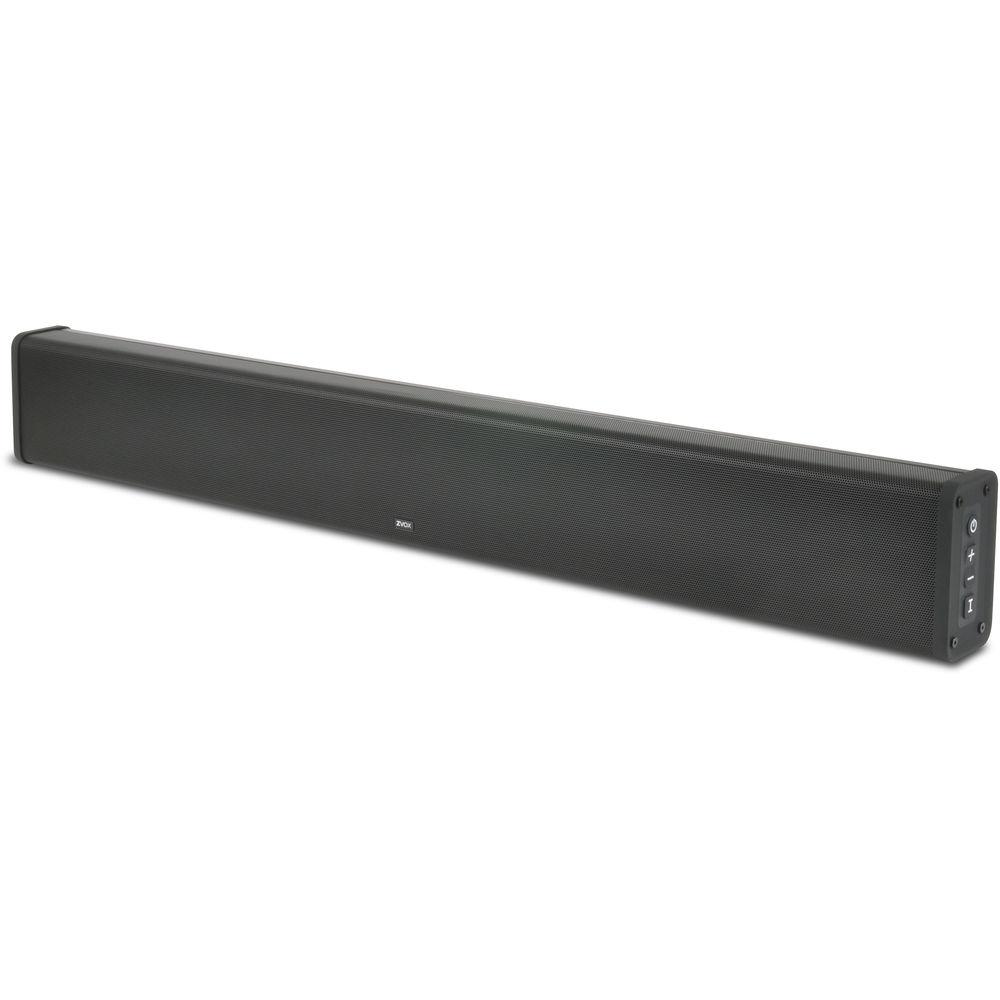

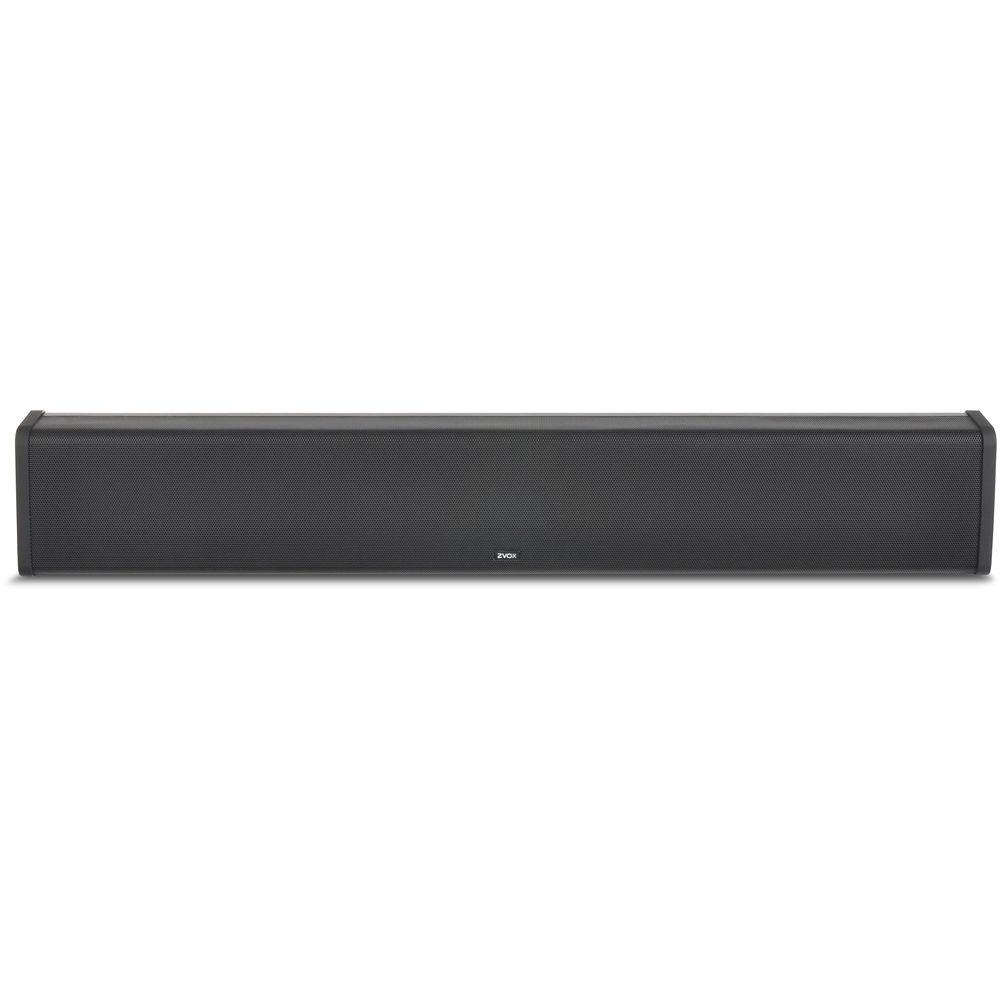

Product description How to Choose a Soundbar System Read More tzuqwvuvzwwsvrwrssffvwxayfbxs The ZVOX SB500 140W 3.2-Channel Soundbar is designed to deliver optimized sound with powerful bass reproduction. This speaker uses a class-D digital amplifier, and can produce up to 140W of total power for a dynamic audio experience. Housed inside of the aluminum chassis are three main speaker drivers and two built-in powered subwoofers. Built-in Bluetooth technology allows you to wirelessly stream audio from compatible devices such as smartphones and tablets.

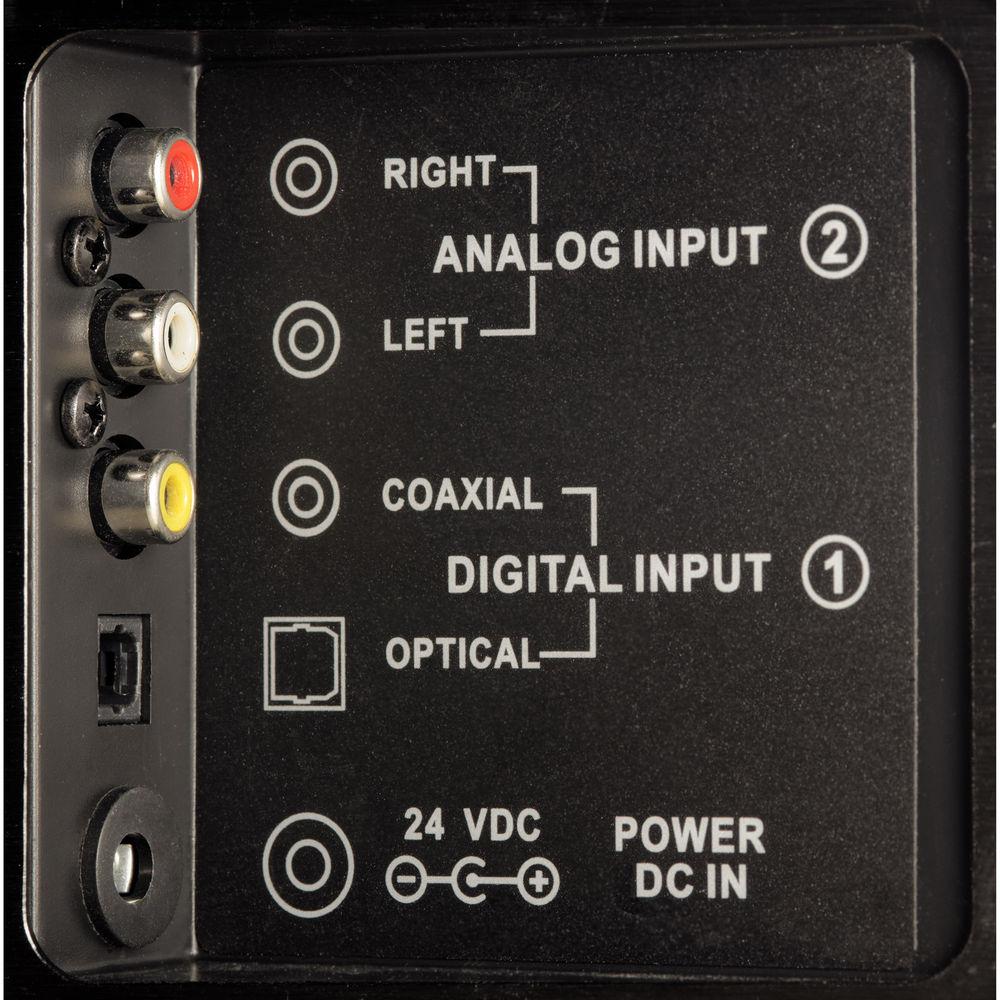

The SB500 is well equipped for wired device connections with stereo RCA, TOSLINK optical, and digital coaxial interfaces. As an added convenience, stereo RCA and optical cables are included. Along with the included remote control, this soundbar system can be controlled using your existing remote. - Designed for Powerful Sound
- The SB500 uses three high-performance speakers, two built-in powered subwoofers, an acoustically stable aluminum cabinet, and a 140-watt Class D digital amplifier to create warm, natural sound and surprisingly powerful bass.
- Big Sound from a Small Cabinet
- The SB500 uses the PhaseCue virtual surround system to give you rich, three-dimensional sound with movies or music.
- Clear Voice Reproduction
- The AccuVoice feature on the SB500 uses hearing aid technology to tailor the sound so voices are crystal-clear.
- Slim Aluminum Cabinet
- The SB500 features a 3.3"-slim cabinet constructed from anodized aluminum to provide low-resonance audio.
- MegaBass
- The MegaBass feature uses digital processing to tailor sound and control the subwoofer for robust, accurate bass with frequencies reaching as low as 42 Hz without an external subwoofer.
- Bluetooth Music Streaming
- The system uses an aptX Bluetooth receiver to stream high-quality music wirelessly from your phone, tablet, or computer. Play iTunes, Pandora, Spotify, or other music formats wirelessly through the SB500.
- Uses Your Remote Control
- The SB500 can be programmed to respond to your remote control. The illuminated display walks you through the process in less than a minute. Then whatever remote control you chose will control volume, mute, and power.
- Taming Loud Commercials
- Push the 'OL' button and a compression system takes over, making soft sounds louder and loud sounds softer, so there are fewer jarring moments when switching channels or when commercials come on.
- Adapts To Multi-Zone Wi-Fi Audio
- The SB500 has multiple inputs so you can easily connect audio devices in addition to your TV. For example, connect an optional Chromecast Audio device and you can use the SB500 as part of a multi-zone Wi-Fi audio system.
UPC: 882360050013 In the Box ZVOX SB500 140W 3.2-Channel Soundbar TOSLINK Cable Stereo RCA to Stereo RCA Cable Stereo RCA to 1/8" Mini Plug Cable Multifunction Remote Control Power Cord Limited 1-Year Warranty Bose: The New Lineup of Home Speaker Systems Richard L. Stevens 10/11/2014 tzuqwvuvzwwsvrwrssffvwxayfbxs Table of Contents
|
Upload User Manual
Have you got an user manual for the ZVOX SB500 140W 3.2-Channel Soundbar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZVOX SB500 Specs | | | Low-Frequency Drivers | 2 x 4" / 102 mm Cone | | Full-Range Drivers | 3 x 2" / 51 mm | | Amplification | Class-D | | Amplifier Output | 140 W | | | | Inputs | 1 x Optical TOSLINK
1 x Digital Coaxial
1 x Stereo RCA | | Wireless Audio Protocols | Bluetooth | | Bluetooth Codec Support | aptX | | | | Material of Construction | Aluminum | | Recommended Screen Size | 50" and Up | | Dimensions | 43.9 x 5.7 x 3.3" / 111.5 x 14.5 x 8.4 cm | | Weight | 12.6 lb / 5.7 kg | | | | Package Weight | 17.5 lb | | Box Dimensions (LxWxH) | 47.0 x 9.5 x 7.5" |
